Product detailed description
The Pilotix Transceiver for Optic Fiber Module SE is a specialized FPV optic fiber component designed for long-range signal transmission up to 60km. This compact transceiver utilizes single-mode fiber technology with FC optical connectors, supporting bidirectional data communication in TTL and SBUS formats along with NTSC, PAL, and SECAM video standards.
Key features
- ✓Extended transmission range — up to 60km over single-mode fiber
- ✓Bidirectional data — supports TTL and SBUS data formats
- ✓Multi-format video — compatible with NTSC, PAL, and SECAM via analog AV output

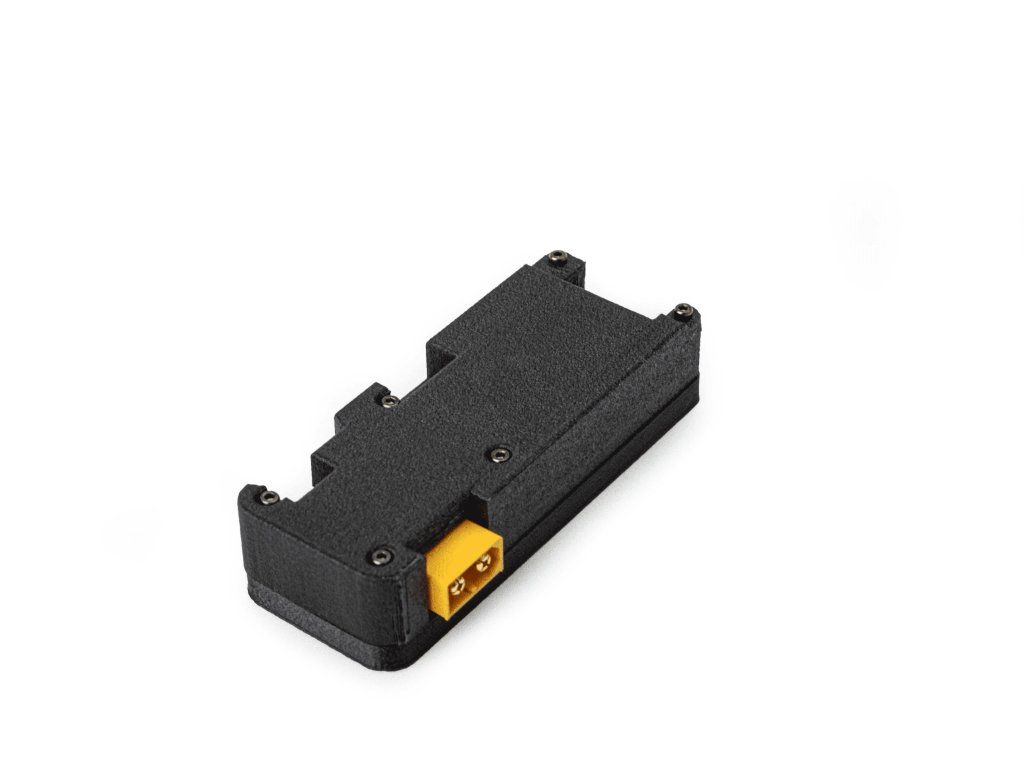

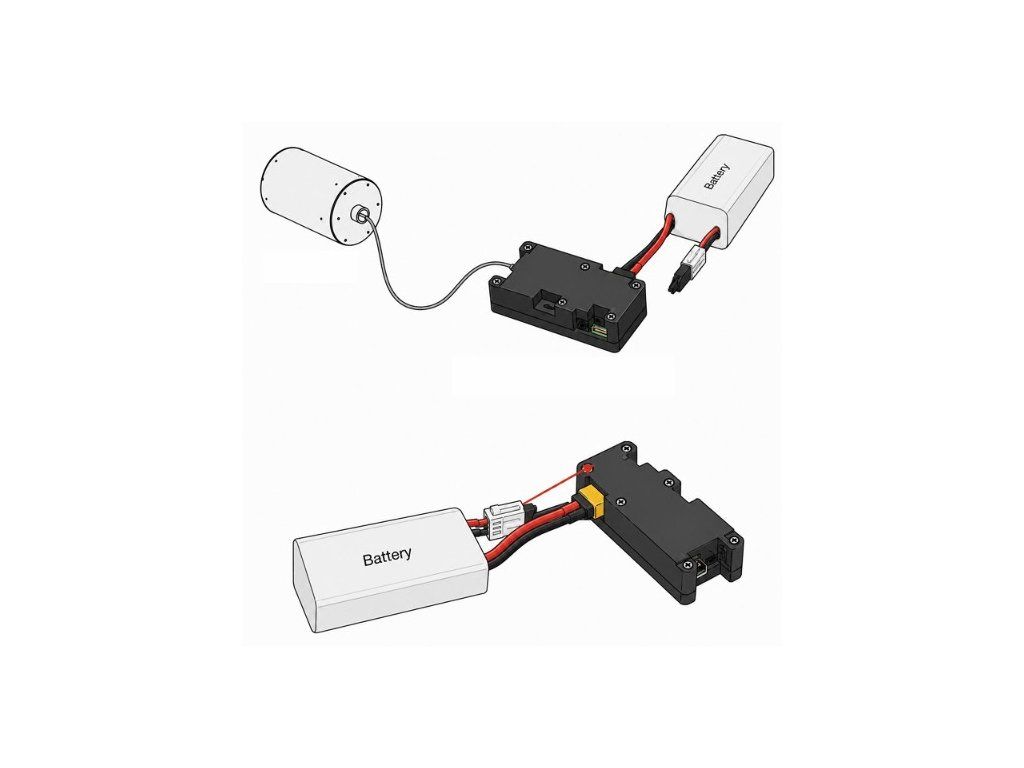

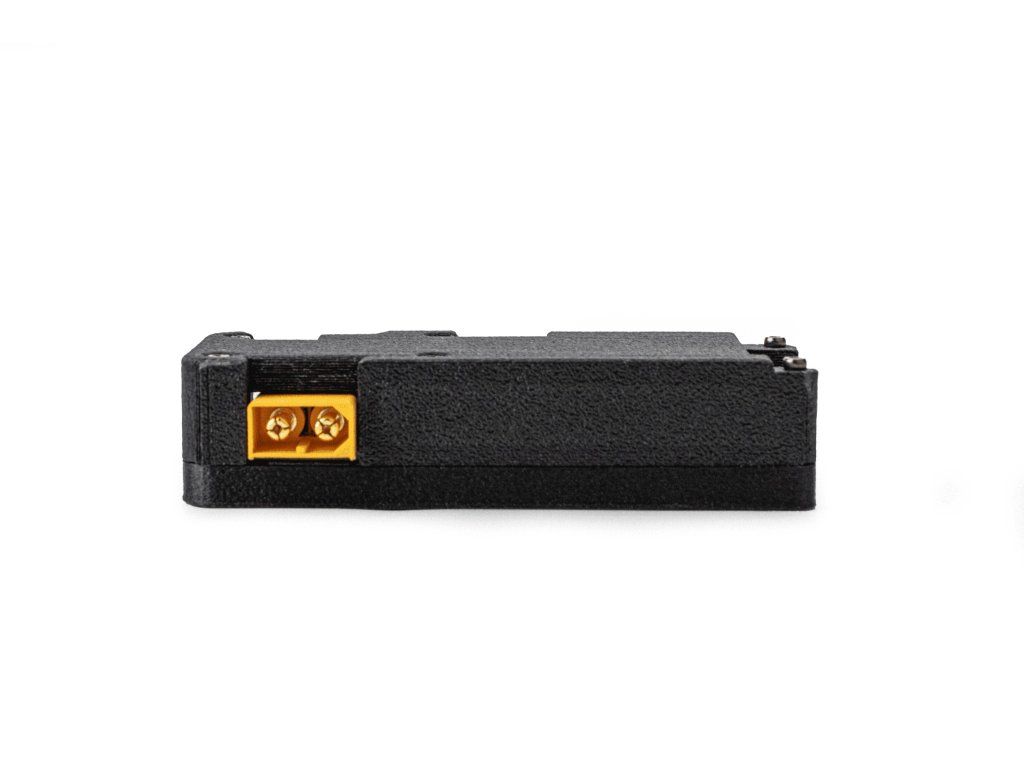

- ✓Flexible power input — 5.5–26V via XT60 connector, supports 3S–6S batteries
- ✓Compact design — measures 96 × 37 × 23mm at only 55g

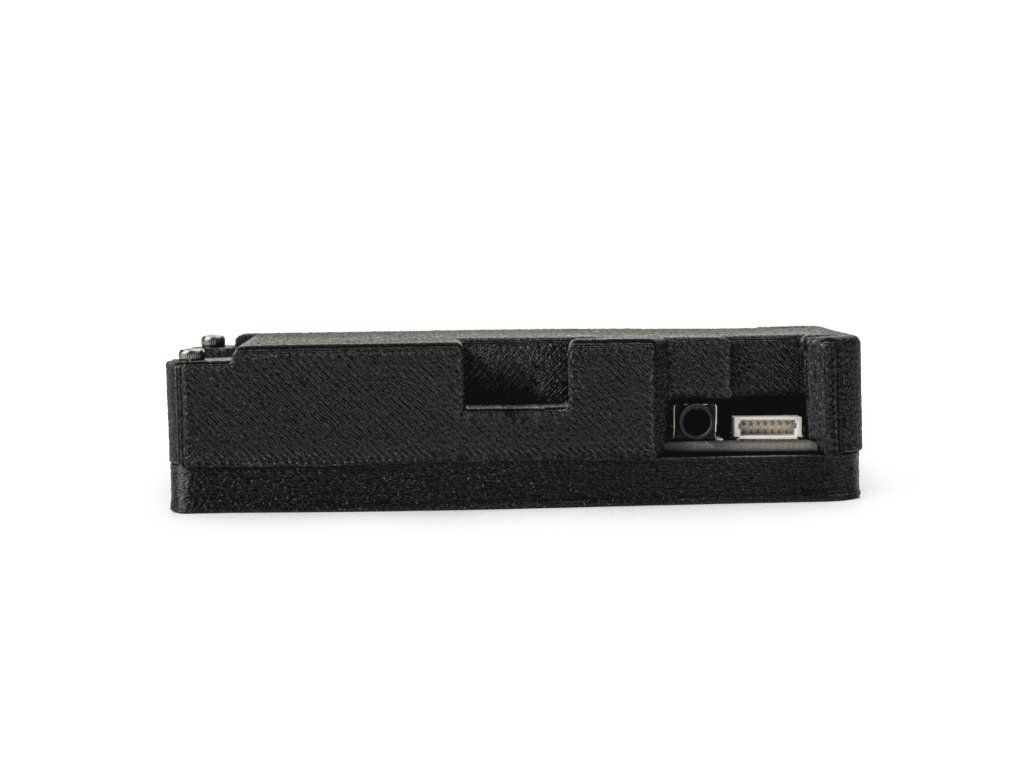

- ✓Status monitoring — 4 LED indicators and SH1.0 serial interface
The transceiver operates within -20 to 40°C temperatures and 20-95% RH non-condensing humidity. Storage temperature range is -30 to 50°C. Batteries are not included in the package. Backed by a 2-year warranty.
Important: Pilotix fiber optic products are compatible only with devices of the same series. We do not guarantee compatibility or proper operation when they are used with devices from other series.
Product details
| Model | Transceiver for Optic Fiber Module SE (60km) |
|---|
| SKU | 6915 |
|---|
Interface
| Video format | NTSC, PAL, SECAM |
|---|
| Data format | TTL, SBUS |
|---|
| Communication mode | Bidirectional |
|---|
External interfaces
| Power supply interfaces | XT60 |
|---|
| Video output | Analog (AV), 3.5 mm jack |
|---|
| SD card slot | no |
|---|
| USB port | no |
|---|
| Power switch | no |
|---|
| Record button | no |
|---|
| LED indicator | 4 |
|---|
| Serial interface | SH1.0 |
|---|
Fiber optic
| Fibre type | Single-mode fiber |
|---|
| Optical connector type | FC |
|---|
| FC interface | Fibre interface |
|---|
| Fibre wavelength | 1310/1550 nm |
|---|
| Transmission distance | 60km |
|---|
Mechanical specifications
| Dimensions | 96 x 37 x 23 mm |
|---|
| Weight | 55g |
|---|
Power
| Power supply | 5.5 - 26 V |
|---|
| Power supply interfaces | XT60 |
|---|
| Supported battery type | 3S–6S |
|---|
| Batteries are not included in the package. |
Operating conditions
| Humidity range | 20-95% RH (non-condensing) |
|---|
| Operating temperature | -20 - 40 °C |
|---|
| Storage temperature | -30 - 50 °C |
|---|
