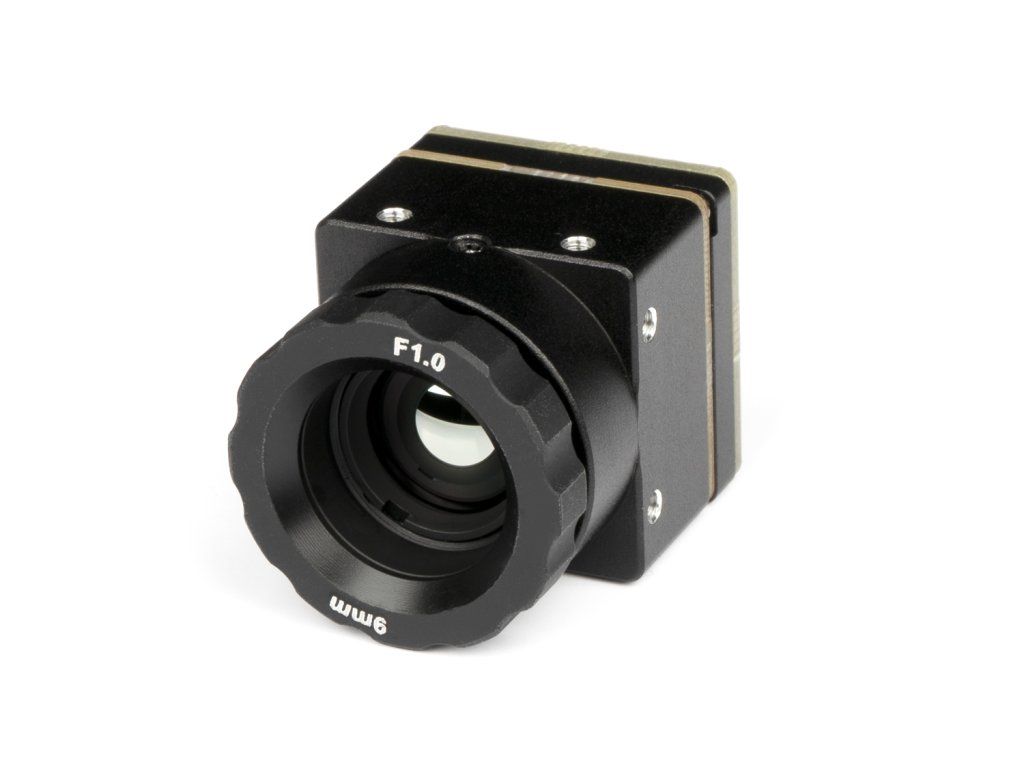

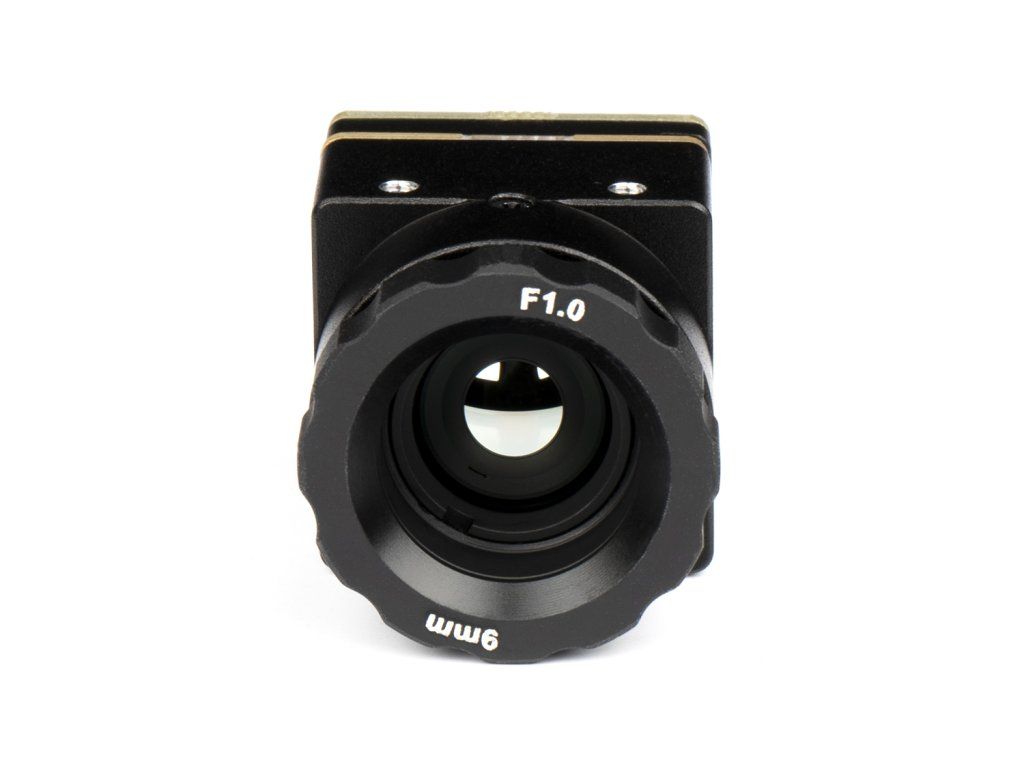

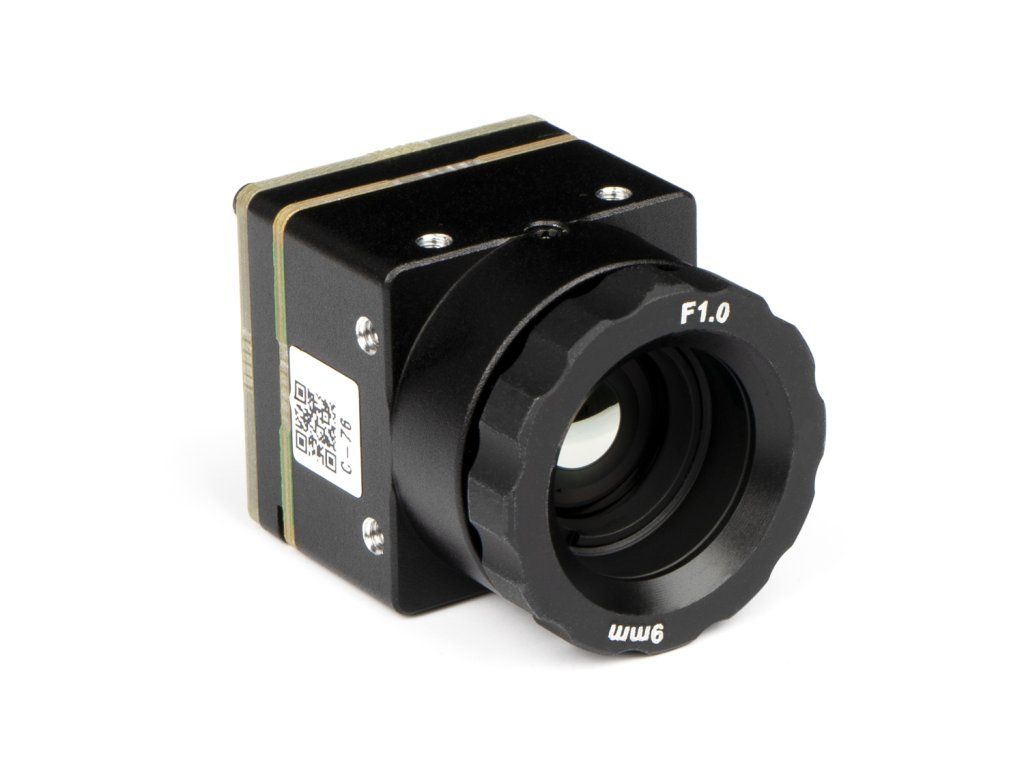

FPV Thermal Camera Pilotix T256

Product detailed description

The Pilotix Thermal T256 camera is a cutting-edge thermal imaging solution specifically designed for drone applications. This high-performance camera enables operators to capture detailed thermal imagery, making it ideal for a range of industries, including security, search and rescue, environmental monitoring, and infrastructure inspection.

The T256 provides a resolution of 256×192 pixels and a wide wavelength range of 8 to 14 μm, ensuring precise heat signature detection. With a NETD of ≤50 mK, it excels in distinguishing subtle temperature differences, even in low-visibility conditions. The camera's robust design allows it to operate effectively in extreme temperatures, from -40℃ to +80℃, and its lightweight construction (only 20 g) ensures minimal impact on drone flight dynamics.

Specifications:

Detector Type: Uncooled vanadium oxide
Resolution: 256×192
Lens: 9 mm
FOV: 19.38°(H) × 14.58°(V), 24.16°(D)
Wavelength Range: 8 ～ 14 μm
NETD: ≤50 mK @ F1.0 25℃
Frame Rate: 50 Hz
Scene Temperature Range: -20℃ +550℃
Temperature Accuracy: ±2℃
Video Output: CVBS
Outputs: UART2, PWM2, GPIO*2
Operating Temperature: -40℃ +80℃
Supply Voltage: 5V
Power Consumption: <1.3 W
Dimensions: 21×21×30 mm
Weight: 20 g
Humidity: 5% - 95%
Vibration: 6.06g
Shock: 80g @ 4ms

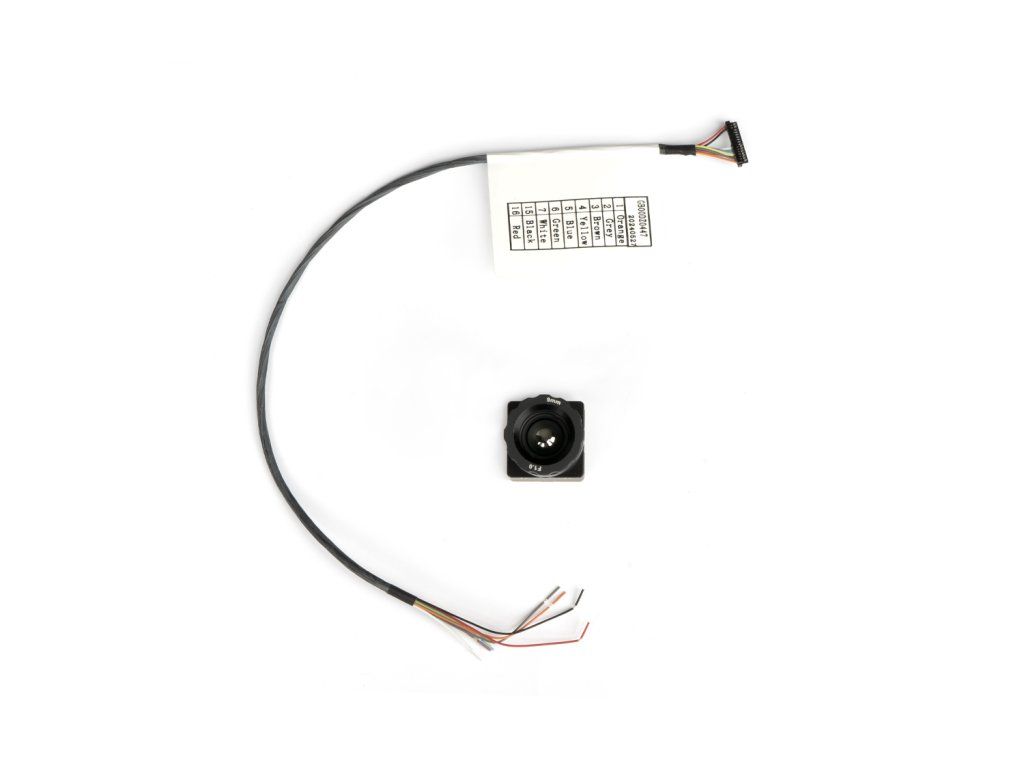

Package includes:
1x FPV camera Pilotix Thermal T256
