FPV Camera Pilotix P6 Pro CZ

Product detailed description

FPV Camera Pilotix P6 Pro CZ

The Pilotix P6 Pro is an FPV camera featuring a Sony 1/3" CMOS sensor with 1800 TVL resolution and a 2.8mm focal length lens. This compact camera delivers analog video output with a pixel size of 3.75 microns and a minimum sensitivity of 0.01 lux. The P6 Pro operates in color mode and provides a 100-degree horizontal field of view combined with a 70-degree vertical field of view. Image processing includes auto exposure, auto white balance, and 3D noise reduction for enhanced video quality during flight operations. This lightweight camera weighs just 9 grams with dimensions of 29.7 x 19 x 19mm. It accepts a wide input voltage range from 5V to 40V, consuming 130mA at 12V. Entirely designed, engineered, and manufactured in the Czech Republic, meeting high quality standards and delivering proven European reliability.

Features:
- Made in Europe with high-quality standards for durability and reliability
- High-quality image sensor for clear and detailed video transmission
- Excellent low-light performance for enhanced visibility in challenging conditions
- Wide field of view for improved situational awareness
- Automatic image optimization for consistent picture quality
- Advanced noise reduction for cleaner video output
- Lightweight and compact design suitable for FPV aircraft
- Wide input voltage range for versatile integration

Specifications:
Image sensor
Sensor: Sony 1/3" CMOS
Sensitivity: 0.01 Lux
Resolution: 1800 TVL
Pixel size: 3.75x3.75 μm
Day/Night mode: Color
Exposure modes: Auto
White balance: Auto
Noise reduction: 3D
Video output: Analog

Lens
Focal length: 2.8 mm
Horizontal view: 100°
Vertical view: 70°

Electrical specification
Input voltage: 5 - 40 V
Power consumtion: 130 mA @ 12 V

Mechanical specification
Dimension: 29.7x19x19 mm
Weight: 9 g

Operating conditions
Humidity range: 20-95% RH (non-condensing)
Operating temperature: -20 - 40 °C
Storage temperature: -30 - 50 °C

Design & Manufacturing: Fully developed and produced in the Czech Republic, ensuring high quality, European reliability, and long-lasting performance.

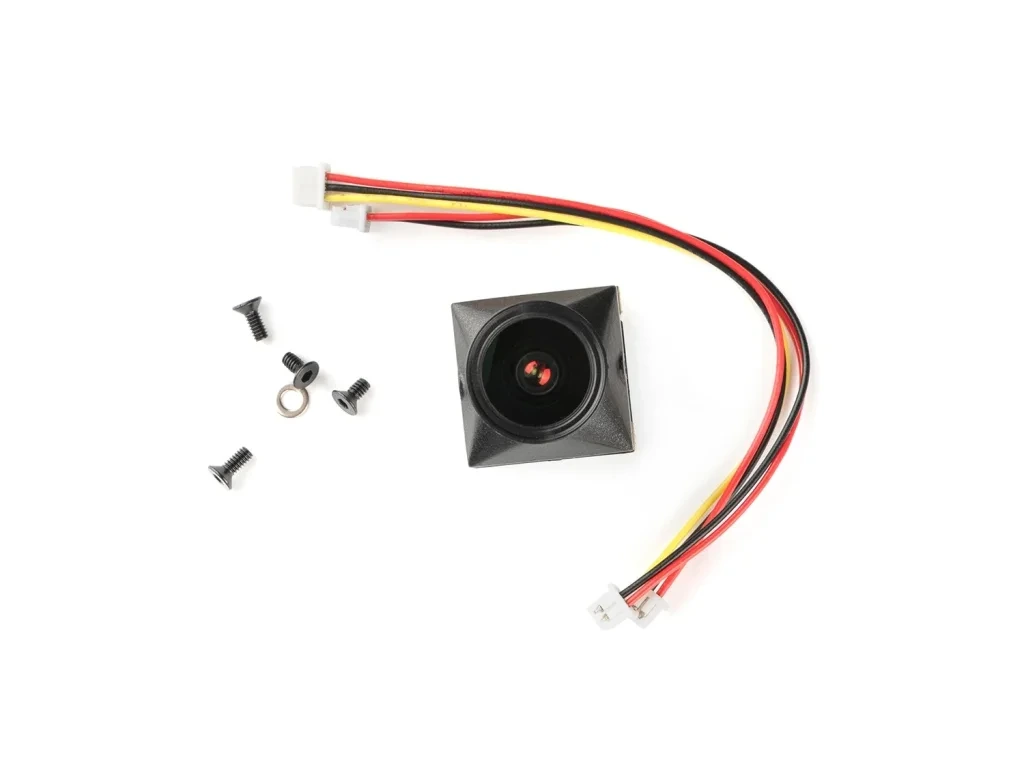

Package includes:
1x FPV Camera Pilotix P6 Pro
1x Video signal cable (90mm length)
1x OSD cable (90mm length)
2x Screws M2x4mm
2x Screws M2x2mm
