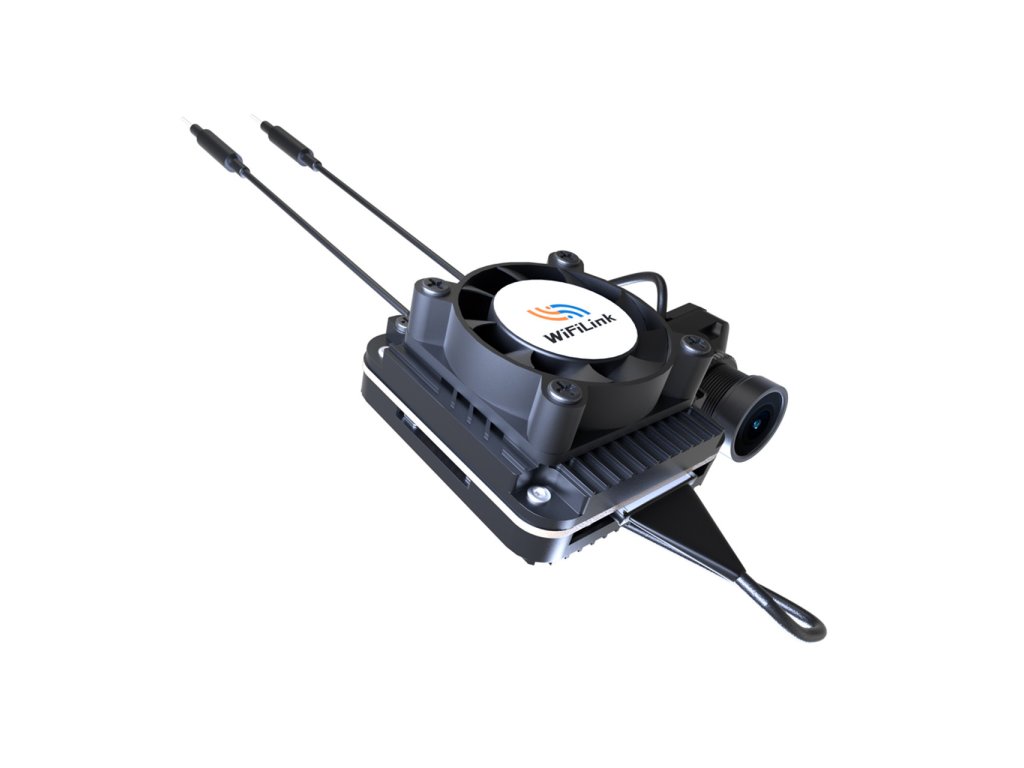

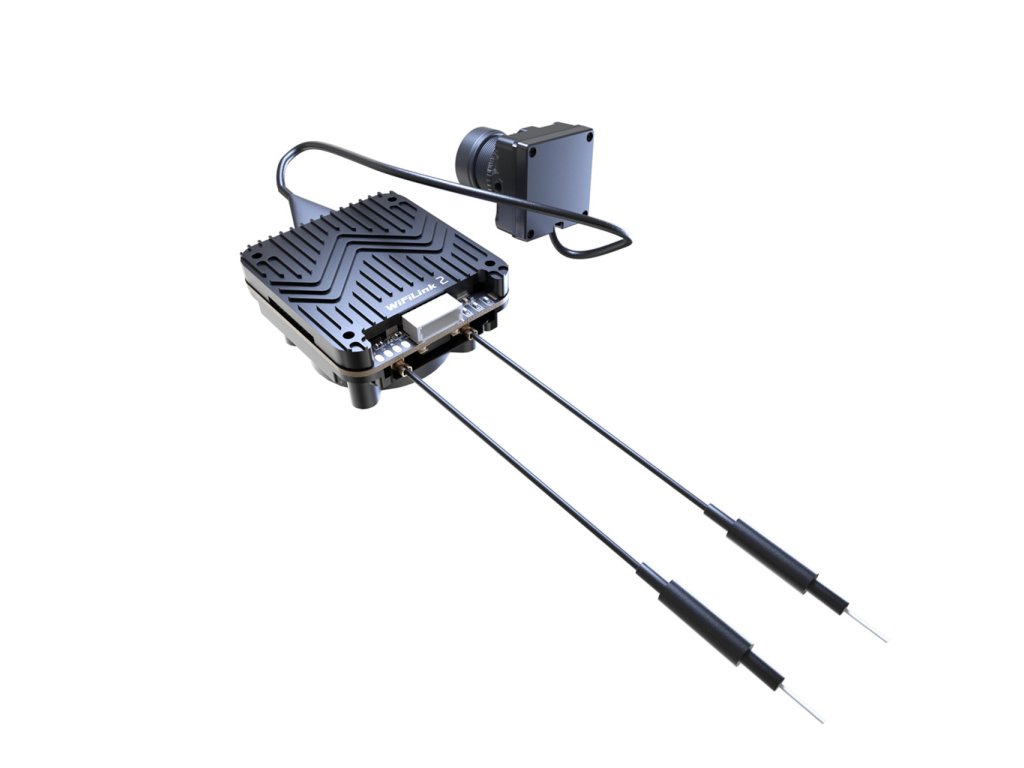

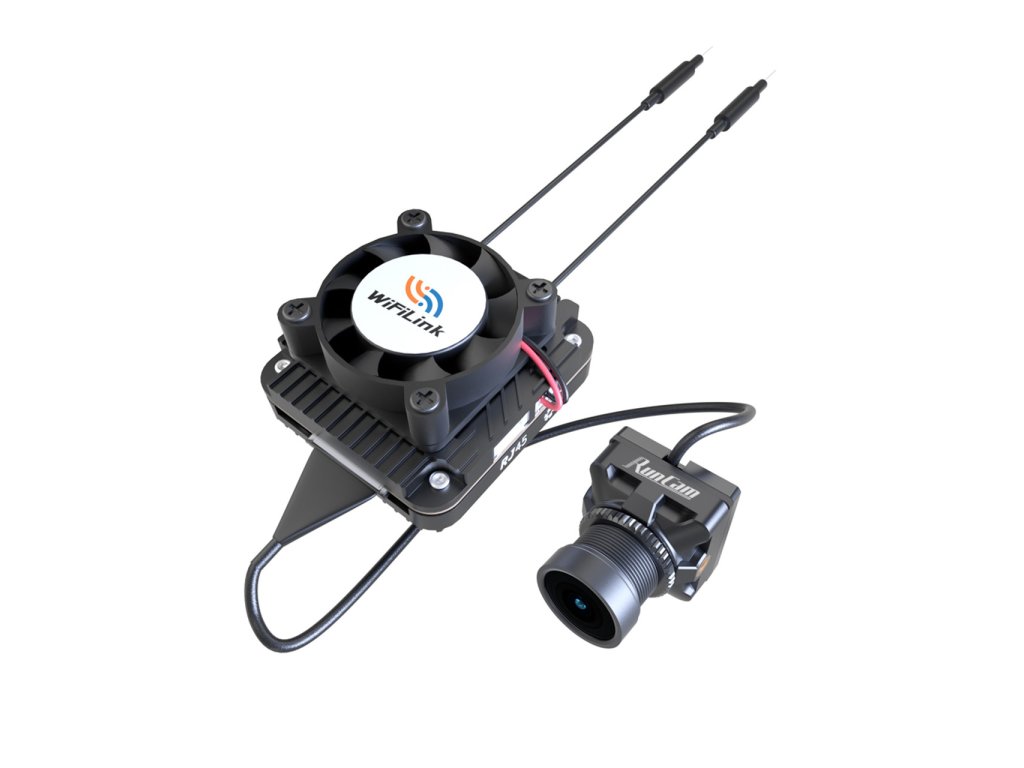

FPV HD Kit RunCam WiFiLink2 (Based on OpenIPC)

Product detailed description

FPV HD Kit RunCam WiFiLink2 (Based on OpenIPC)

FPV HD Kit RunCam WiFiLink2 (Based on OpenIPC) is a high-definition video transmission system designed for FPV drones. Powered by OpenIPC, it offers low-latency wireless streaming, flexible configuration, and open-source support. Ideal for advanced drone users and developers.

Features:
- Ultra-low‑latency performance — optimized for real‑time video feedback, typically around 40ms in 1080p mode, ideal for responsive FPV flying.
- Precision CNC‑machined aluminum cover — efficient heat dissipation and robust protection for stable operation.
- Multiple flight‑controller protocol support — compatible with MSPOSD and MAVLink interfaces, enabling seamless integration with Betaflight, INAV.
- Advanced video and audio capture — up to 1080p at 90FPS or 720p at 120FPS, delivering smooth, high‑quality footage.
- Highly compact and lightweight — weighs just ~25g without fan (30g with fan), minimizing payload and preserving drone agility.
- Wide field of view — 160° FOV via IMX415 sensor for perfect visual coverage.
- Flexible power input — operates on DC 9–22V (suitable for 3S–6S LiPo, ideally via BEC) for versatile drone setups.
- 5.8GHz wireless transmission — powerful VTX, IPEX‑connected antenna (2dB gain) ensures solid signal for long range.

Specifications:
Image Sensor: SonyIMX415
Field of View (FOV): 160°
Video Resolution / Frame Rate: 1080p@60FPS / 1080p@90FPS / 720p@120FPS
Power Supply Voltage: 9–22V (max 15W)
Lens Module: 19×19mm M12, with 130mm MIPI cable
PCB Dimensions: 30.6×33mm
Mounting Hole Distance: 25.5×25.5mm
Weight: 25g (without fan) / 30g (with fan)
Antenna: 2dB gain, IPEX connector (5.8GHz)
RF Output Power: <29dBm (FCC) / <20dBm (CE)
Latency (typical): ~40ms

Package includes:
1 X RJ45 to 4PIN
1 X 6 pin Cable
1 X WiFiLink 2
