Stack Pilotix F405 V4 ICM3055 AM32 55A

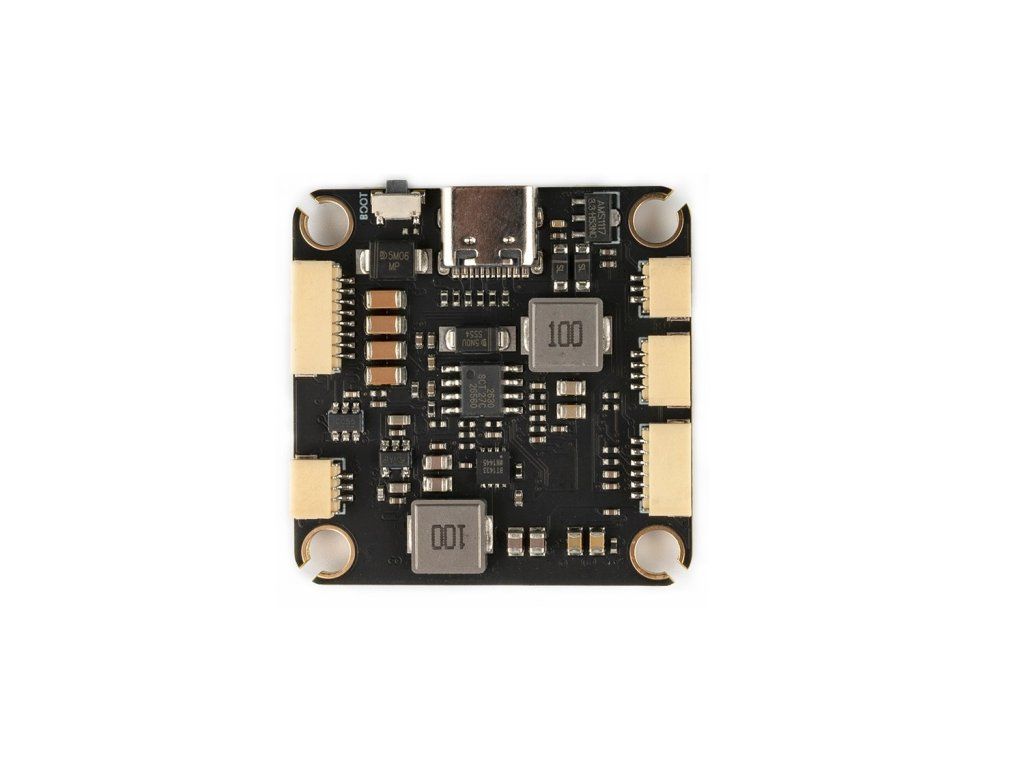

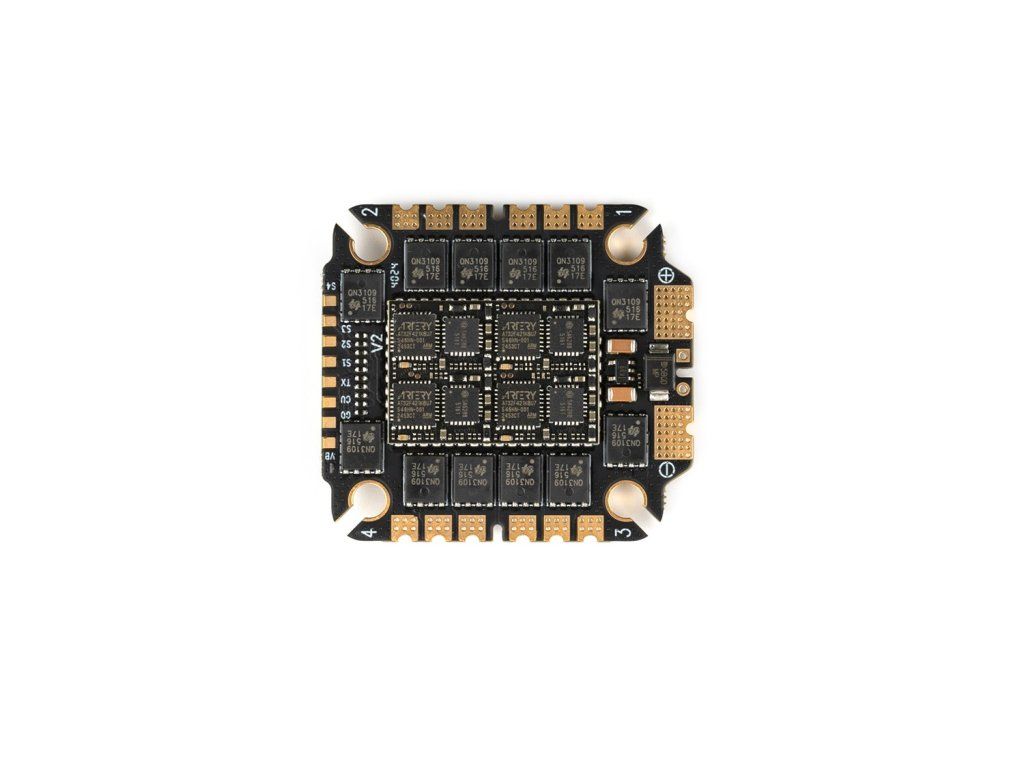

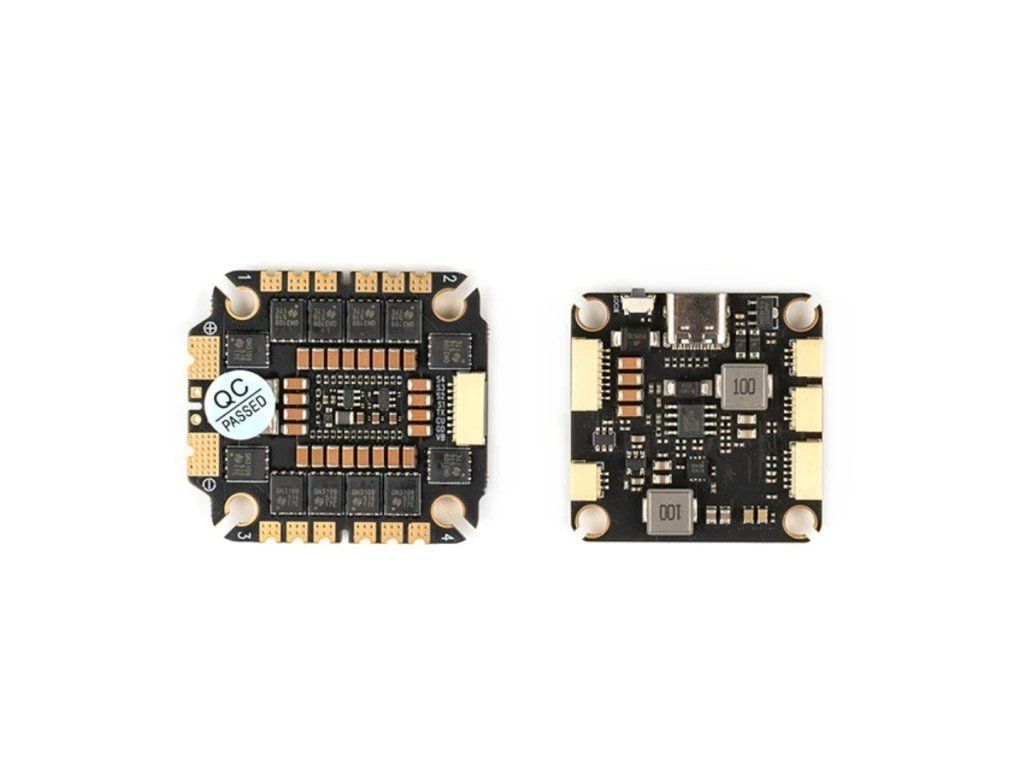

The Pilotix F405 V4 ICM3055 AM32 55A is an advanced FPV flight controller and electronic speed controller (ESC) capable of supporting continuous current up to 55A and peak current of 60A. This model features an STM32F405 microcontroller and is compatible with Betaflight firmware, making it suitable for various drone applications. The F405 V4 is equipped with an ICM42688-P gyro, and includes a built-in barometer (SPL06) for enhanced flight stability. Its ESC provides multiple protocols including DShot150, DShot300, DShot600, Multishot, and OneShot, along with bi-directional DShot capability. This product supports telemetry for current, voltage, temperature, and RPM, and features multiple motor control outputs (4) with solder pad connections. This device operates within a temperature range of -20 to 40 °C and can be stored at temperatures from -30 to 50 °C. It requires passive cooling through natural airflow, ensuring efficient heat management during operations. The package includes a set of cables, shock-absorbing balls, screws, nuts, solid-state capacitors, power cord, and heat shrink tubing. The product is backed by a 2-year warranty.
