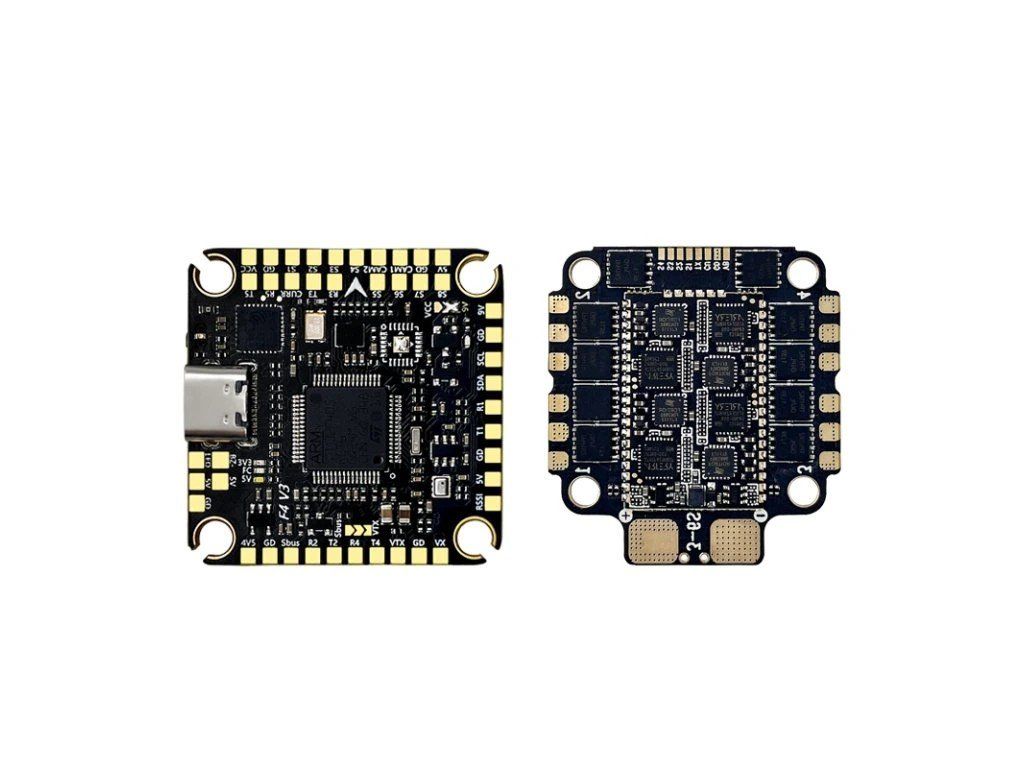

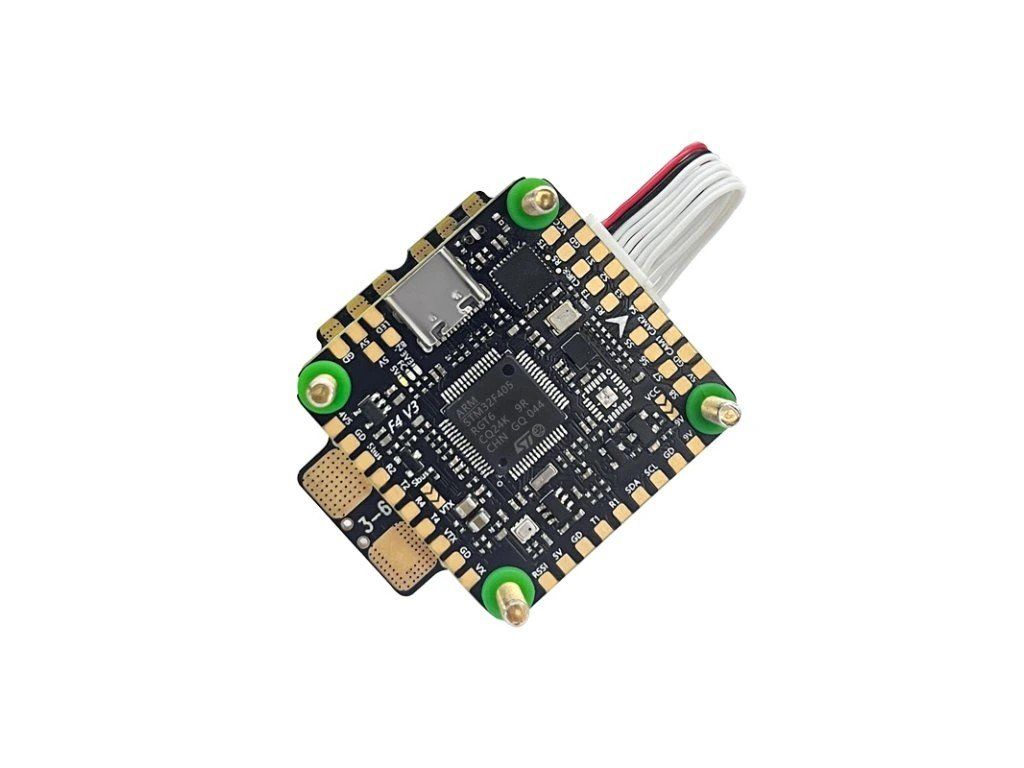

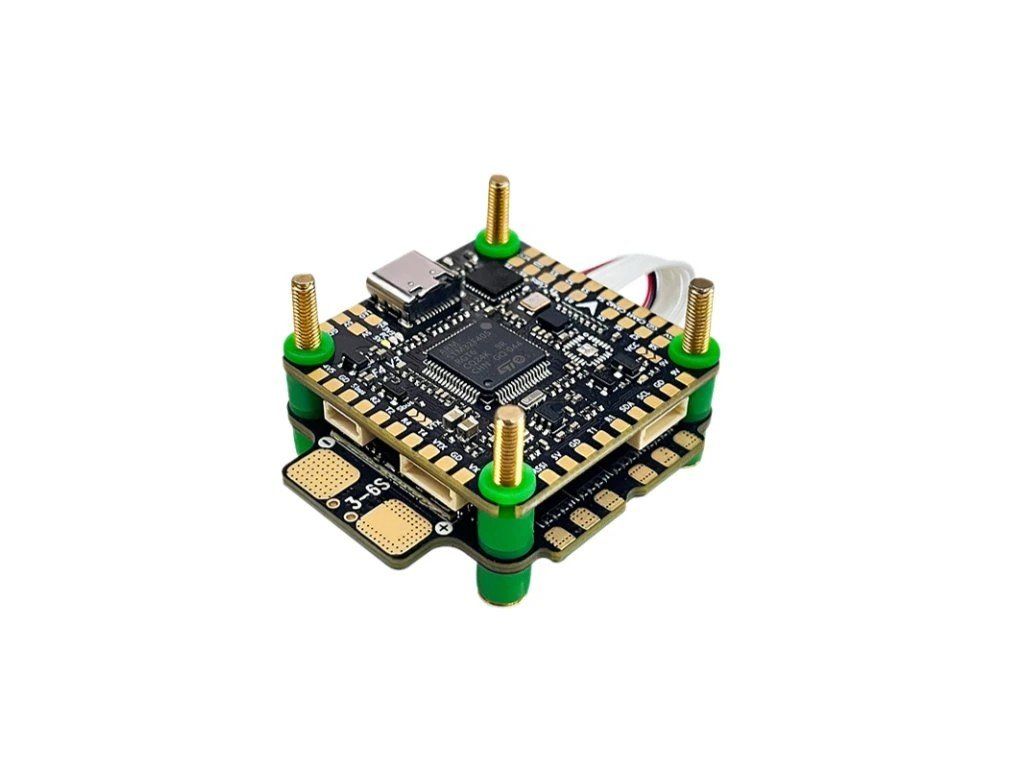

Stack Pilotix F405 V3 ICM42688 AM32 60A V1.0

The Pilotix F405 V3 ICM42688 AM32 60A v1.0 is a sophisticated FPV flight controller featuring an STM32F405 microcontroller and supports Betaflight firmware. This model integrates a 4-in-1 ESC with a continuous current capability of 60A and peak current of 70A, making it suitable for high-performance applications. This device incorporates the ICM42688 gyro and a built-in accelerometer alongside a SPL06 barometer for enhanced flight stability. It supports multiple protocols including DShot300, DShot600, and OneShot, along with telemetry for current, voltage, temperature, and RPM monitoring. The F405 V3 also features five UART ports, an I2C port, and offers a variety of connectivity options, including up to four motor control outputs and compatibility with multiple receiver protocols. The operating temperature range for the device is -20 to 40 °C, and it requires passive cooling through natural airflow. It is designed for durability with a humidity range of 20-95% RH (non-condensing) and is packaged with essential accessories such as shock-absorbing balls, a power cord, and solid-state capacitors.
