Receiver DeepSpace ELRS 2.4 GHz + Antenna 80mm

Product detailed description

Receiver DeepSpace ELRS 2.4 GHz + Antenna 80mm

The DeepSpace Nano 2.4GHz ExpressLRS receiver is a tiny, lightweight receiver for FPV drones. It uses an ESP32C3 MCU and an SX1281 chip and comes pre-loaded with ELRS firmware 3.5.4. A built-in TCXO (temperature-compensated crystal oscillator) prevents frequency drift, so reception stays stable and reliable even when the ambient temperature changes. The receiver runs packet rates from 50Hz up to 1000Hz, with 100mW telemetry power, and connects to the flight controller using the CRSF protocol. At 17 x 11 x 3mm and just 0.8g without the antenna, it fits easily into compact builds. It comes with an 80mm T-type antenna that connects through an IPEX 1 connector.

Features:
— ExpressLRS 2.4GHz receiver with the ESP32C3 MCU and SX1281 chip
— Built-in TCXO for stable frequency with no drift across changing temperatures
— Packet rates from 50Hz to 1000Hz
— 100mW telemetry power
— CRSF protocol for easy connection to the flight controller
— Firmware 3.5.4 pre-loaded
— Compact size (17 x 11 x 3mm) and only 0.8g without the antenna
— 80mm T-type antenna with an IPEX 1 connector
— Simple four-wire connection: TX, RX, 5V and GND

Specifications:
Product Name: DS 2.4GHz Nano ExpressLRS Receiver
Target: DEEPSPACE 2.4GHz Nano 100mW RX
Firmware: 3.5.4 (Pre-loaded)
MCU: ESP32C3
Chip: SX1281
Telemetry Power: 100mW
Max Packet Rate: 1000Hz
Min Packet Rate: 50Hz
Operating Frequency Band: 2.4GHz (ISM2.4)
Antenna: T-type, 80mm
Antenna Interface: IPEX 1
Operating Voltage: 5V
Size: 17 x 11 x 3mm
Weight: 0.8g (without antenna)
Protocol: CRSF

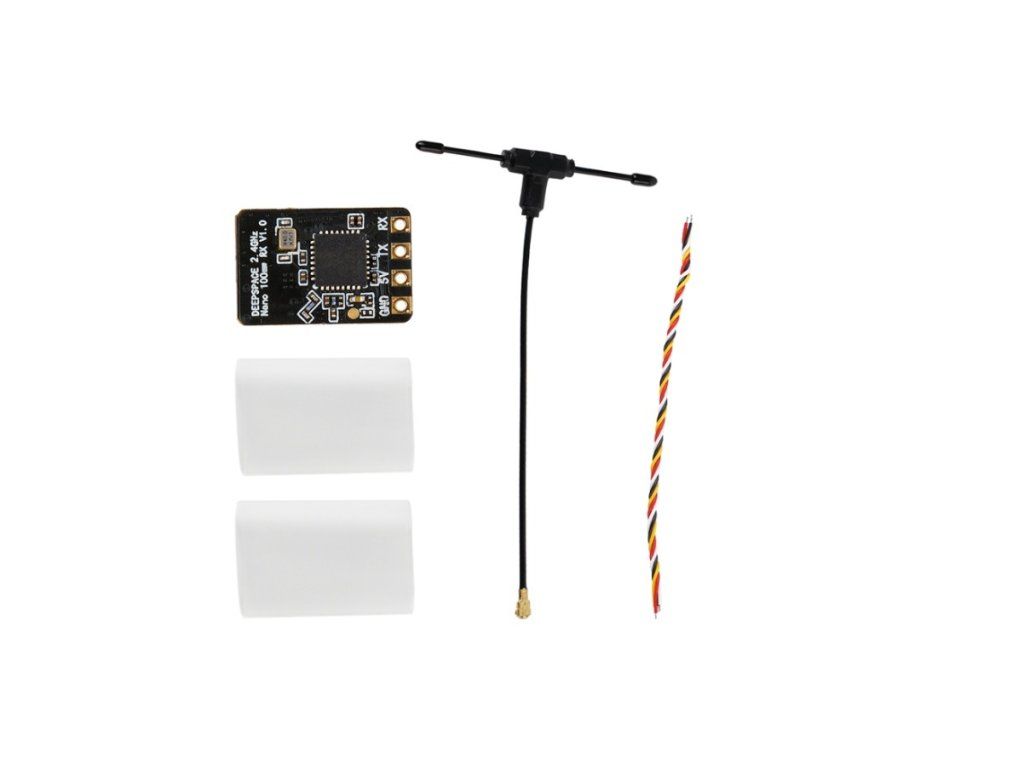

Package Includes:
1x Receiver
1x Antenna (80mm)
1x Connection Cable
2x Heat Shrink Tubing
