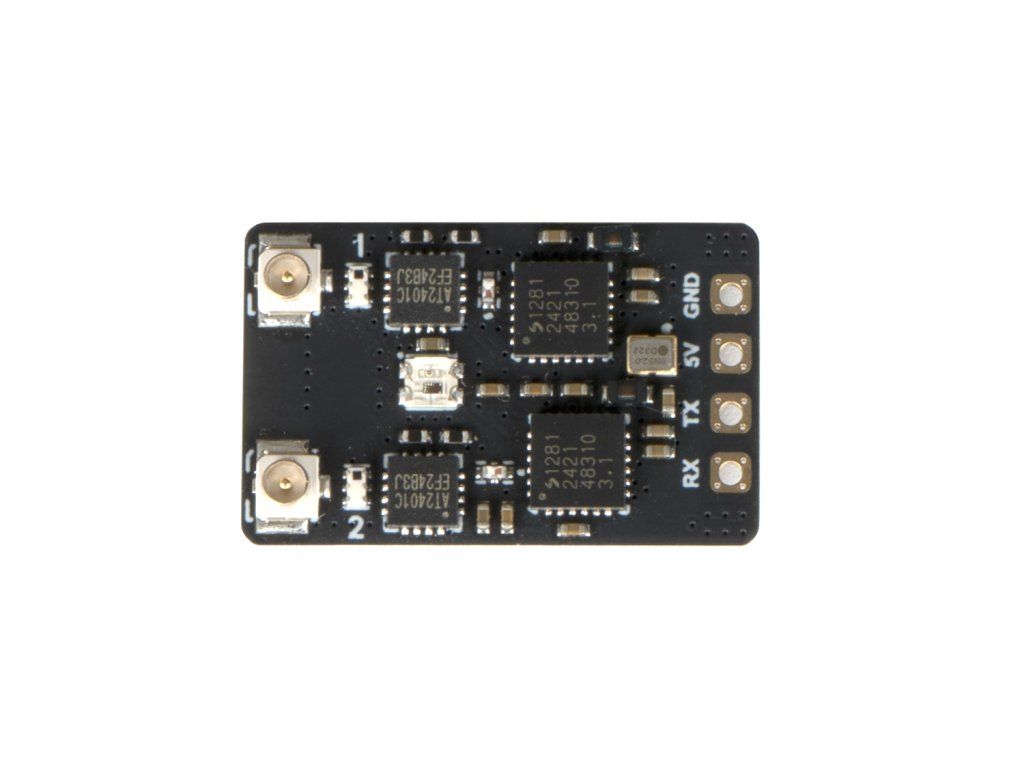

Receiver Cyclone ELRS 2.4G Diversity with Antenna

Product detailed description

Receiver Cyclone ELRS 2.4G Diversity with Antenna

The Cyclone ELRS 2.4G Diversity Receiver is a compact and high-performance receiver designed for stable long-range FPV communication with ultra-low latency. Built on advanced SX1281 technology and featuring dual-antenna diversity reception, it provides reliable signal quality even in demanding environments. Its lightweight and miniature design make it ideal for micro drones and compact FPV builds.

Features:
- Reliable long-range signal transmission with low latency
- Dual-antenna diversity system for improved signal stability
- Compact and lightweight construction for micro FPV builds
- Advanced SX1281 RF technology for efficient communication
- Pre-installed ExpressLRS firmware for quick setup
- Wide refresh rate support for responsive control performance
- Easy integration with CRSF-compatible flight controllers
- Suitable for freestyle, racing, and long-range FPV drones

Specifications:
Product name: SuperD 2.4 Dual Receiver
MCU: ESP32-PICO-D4
RF chip: SX1281
RF connector: IPEX-1
Antenna type: 2.4G T-type antenna ×2
Frequency range: 2.4 GHz
Maximum receive refresh rate: DK500Hz / K1000Hz
Minimum receive refresh rate: 50 Hz
Operating voltage: DC 3.8–5.5 V
Weight: 1.7 g (without antennas)
Dimensions: 22x18x4 mm
Firmware: ExpressLRS v3.5.6 pre-installed
Bus interface: CRSF

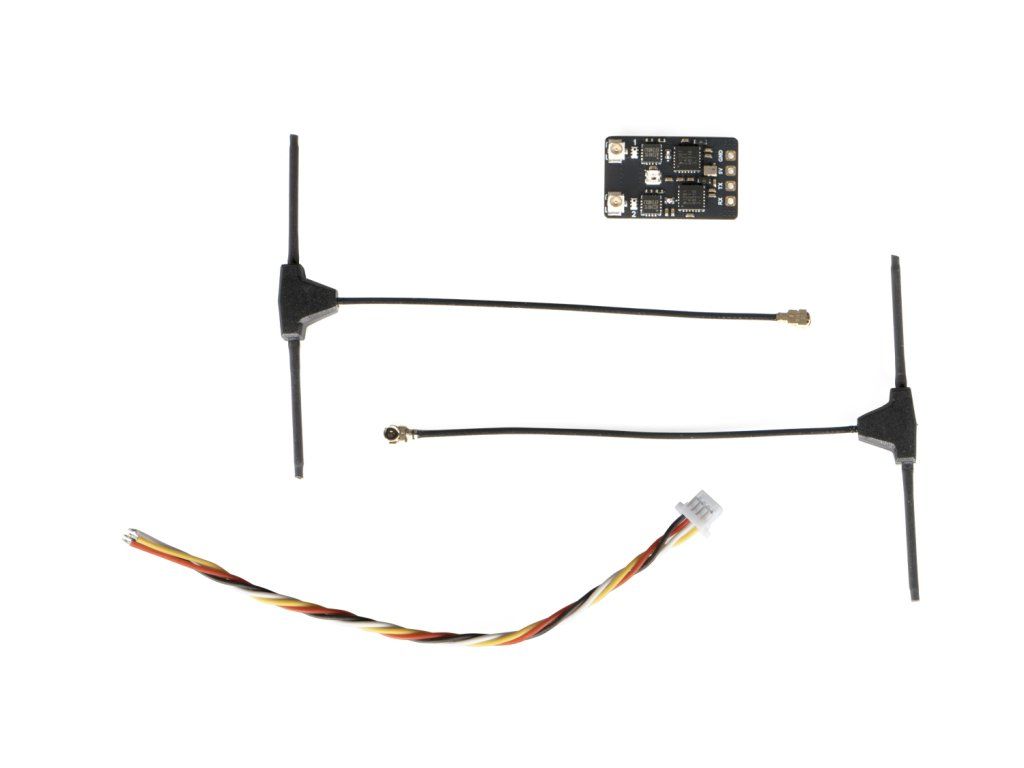

Package includes:
1x Cyclone ELRS 2.4G Diversity receiver
2x Antennas
1x Connection Cable
