Power module MATEKSYS PM20S-2

Product detailed description

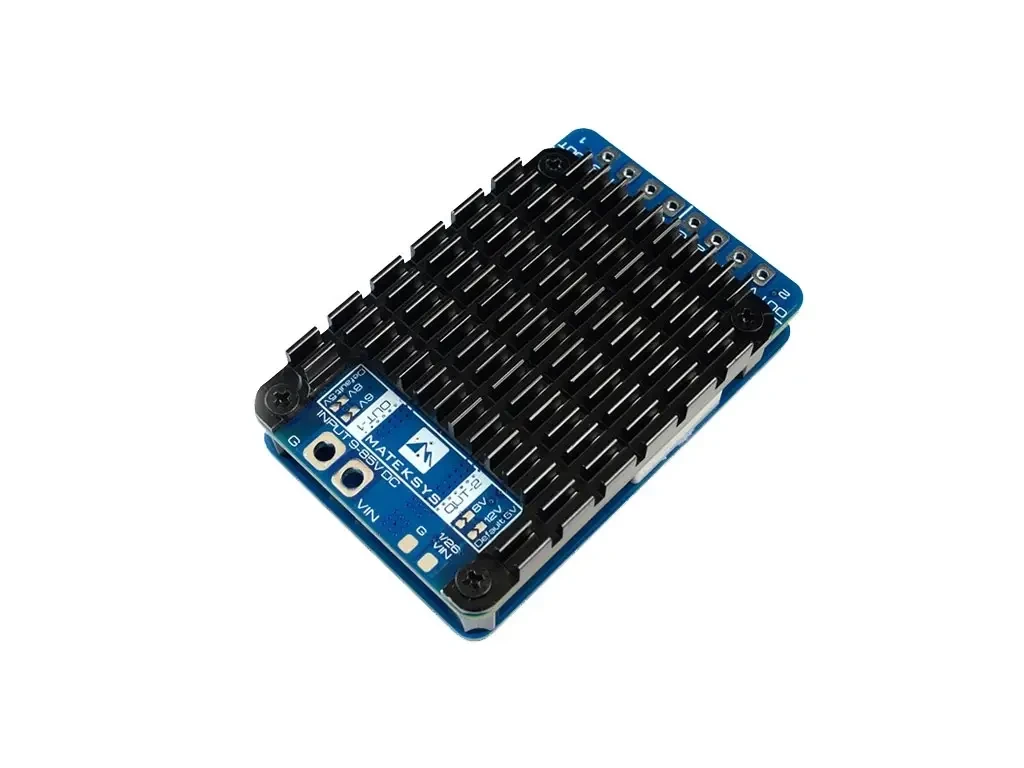

Power module MATEKSYS PM20S-2

MATEKSYS PM20S-2 is a high-power dual-output DC-DC power module designed to provide stable and efficient power for demanding RC, UAV and drone electronics. It features two independent synchronous step-down regulators with selectable output voltages, high current capability and built-in protection functions.

Features:
- Dual Independent Regulators: Provides two separate power outputs, allowing different onboard devices to be supplied with the voltage they require
- Wide Input Compatibility: Designed for high-voltage power systems and suitable for a broad range of battery configurations
- High Current Capability: Delivers substantial continuous and peak current for demanding servos, flight controllers and other power-hungry electronics
- Efficient Power Conversion: Synchronous buck regulator technology provides efficient voltage conversion with reduced power loss
- Selectable Output Voltages: Each regulator offers several predefined voltage options for flexible system configuration
- High-Voltage Protection: Built-in TVS protection helps protect the module against high input-voltage transients
- Overcurrent Protection: Automatically recovers after an overcurrent condition, helping protect connected electronics
- Thermal Protection: Thermal shutdown protects the regulators from excessive temperature
- Voltage Monitoring: An integrated voltage divider allows the input voltage to be monitored through a 3.3V-based ADC
- Compact Design: High-power regulation is packed into a compact and lightweight board suitable for space-constrained UAV and RC installations

Specifications:
Input Voltage: 9–85V DC
Input Protection: 85V TVS
Components Rating: 100V DC
Number of Regulators: 2 independent
Regulator Type: Synchronous step-down (buck)
Typical Efficiency: 90–96%
Voltage Divider: 1K:25K, for 3.3V-based ADC
Dimensions: 61x40x15mm
Weight: 63g

Regulator 1
Output Voltage: 5.3V / 6.1V / 8.1V
Output Voltage Tolerance: ±1.5%
Continuous Output Current: Up to 15A
Peak Output Current: Up to 22A
Output Ripple: 25mV (42V input, 5.3V @ 5A); 35mV (58V input, 5.3V @ 15A)
Standby Current: 10–30mA
Thermal Shutdown: 150°C
Short-Circuit Tolerance: 1 second
Reverse Input Voltage Protection: No
Continuous 15A Output Requirement: Input voltage ≥15V

Regulator 2
Output Voltage: 5.3V / 8.1V / 12.2V
Output Voltage Tolerance: ±1.5%
Continuous Output Current: Up to 15A
Peak Output Current: Up to 22A
Output Ripple: 58mV (58V input, 12V @ 5A)
Standby Current: 10–30mA
Thermal Shutdown: 150°C
Short-Circuit Tolerance: 1 second
Reverse Input Voltage Protection: No
Continuous 15A Output Requirement: Input voltage ≥15V

Package Includes:
1x MATEKSYS PM20S-2 Power Module
