Motor Pilotix 5215 340KV
Code: 7125Product detailed description
The Pilotix 5215 340KV is an FPV brushless motor featuring a 340 KV rating and a 24N22P configuration. This motor is designed for applications requiring substantial power output with a rated voltage of 33.6V.
The motor delivers a maximum power of 1270W with a maximum current draw of 53A. It operates across a voltage range of 11.1V to 33.6V, providing flexibility for various battery configurations. The internal resistance measures 38.3 milliohms, while the no-load current is 1.1A at 10V. The stator dimensions are 52mm diameter by 15mm length.
The motor has overall dimensions of 60mm diameter and 35mm height, with a total weight of 289g. The shaft measures 4mm in diameter with a length of 5.8mm. Mounting is accomplished via a 25 x 25mm pattern using M3 hardware. The Pilotix 5215 340KV comes with a 2-year warranty.
Product details
| Model | 5215 340KV |
|---|---|
| SKU | 7125 |
Electrical specification
| Motor KV | 340 KV |
|---|---|
| Rated voltage | 33.6 V |
| Operating voltage range | 11.1 - 33.6 V |
| Maximum current | 53 A |
| Maximum power | 1270 W |
| No-load current | 1.1 A @ 10 V |
| Internal resistance | 38.3 mΩ |
Mechanical specifications
| Configuration | 24N22P |
|---|---|
| Stator size | 52 x 15 mm |
| Shaft size | 4 x 5.8 mm |
| Motor dimensions | 60 x 35 mm |
| Mounting | 25 x 25 mm (M3) |
| Weight | 289 g |
Common
| Warranty | 2 years |
|---|

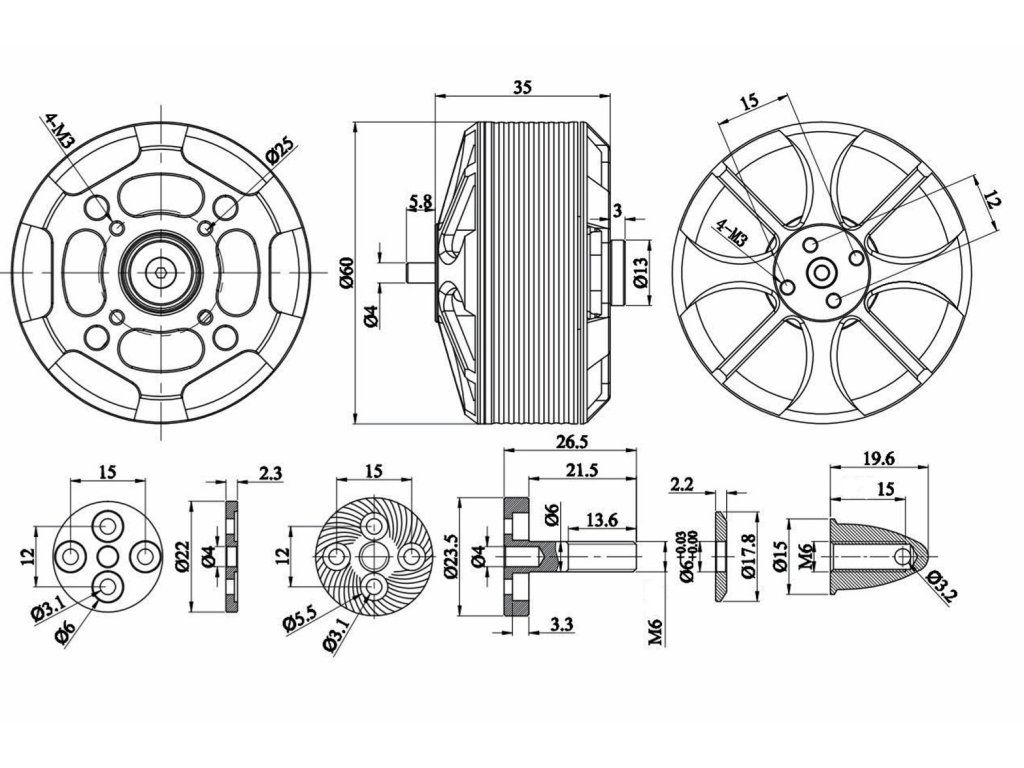

Mechanical specification

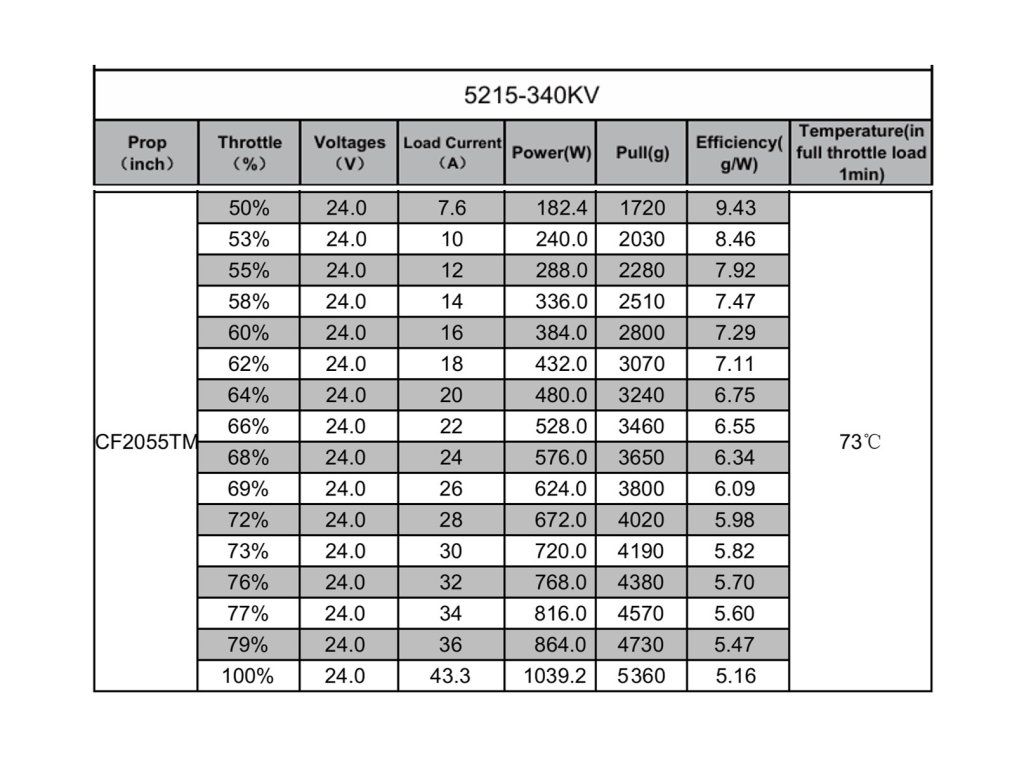

Motor performance data
