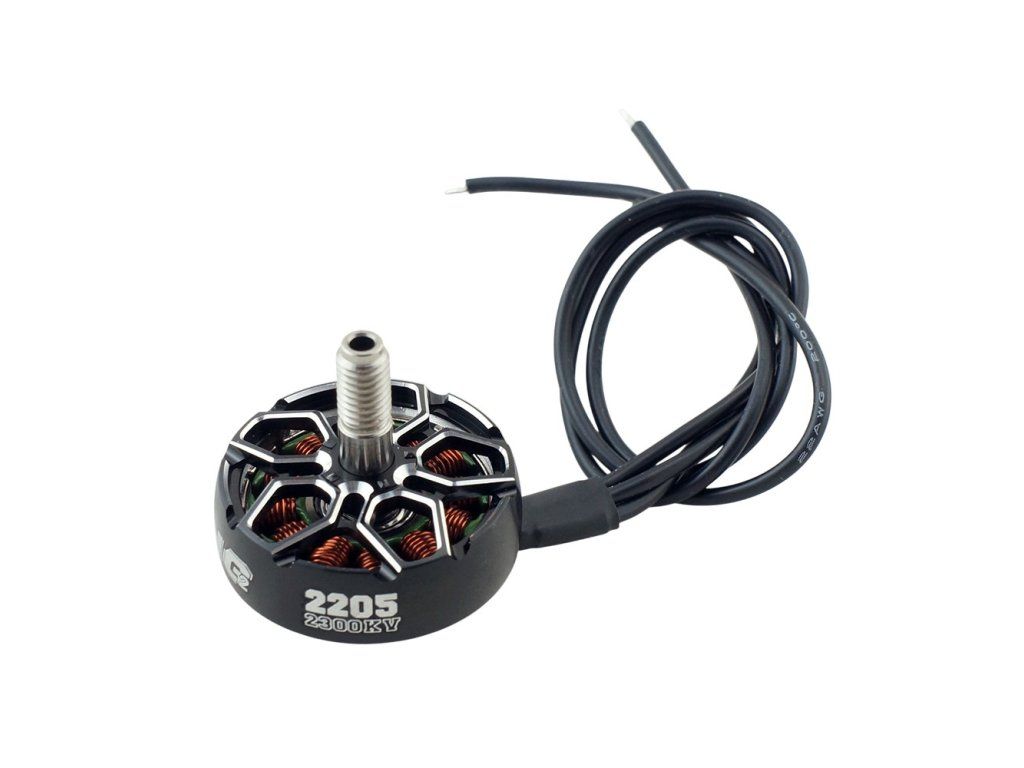

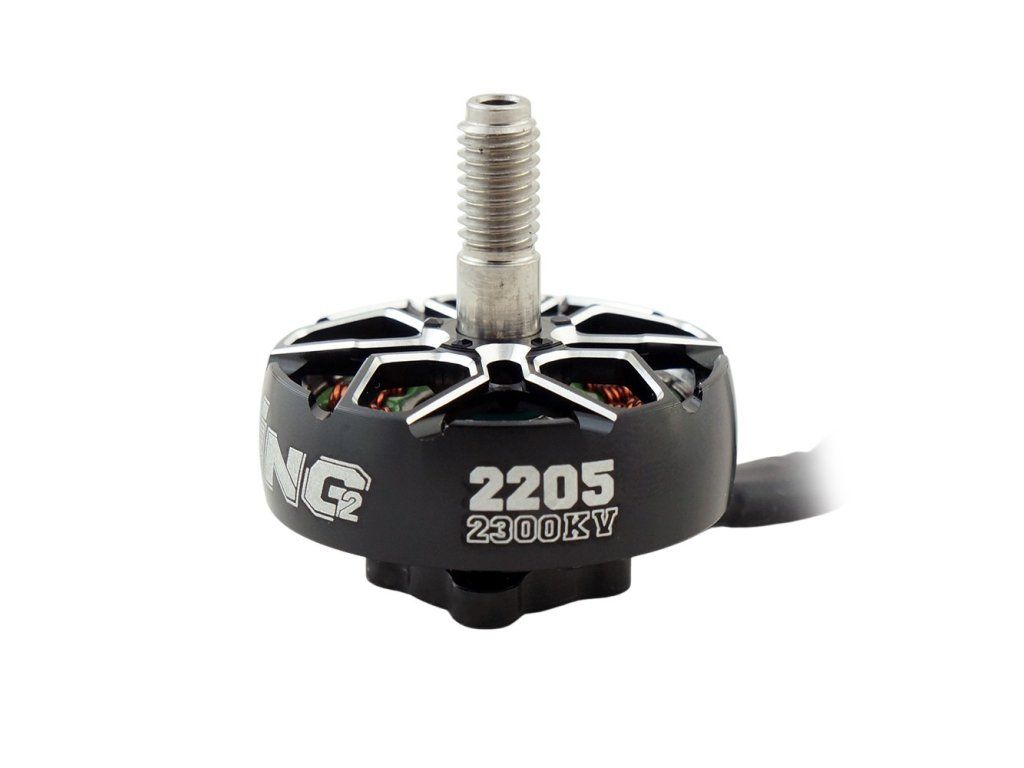

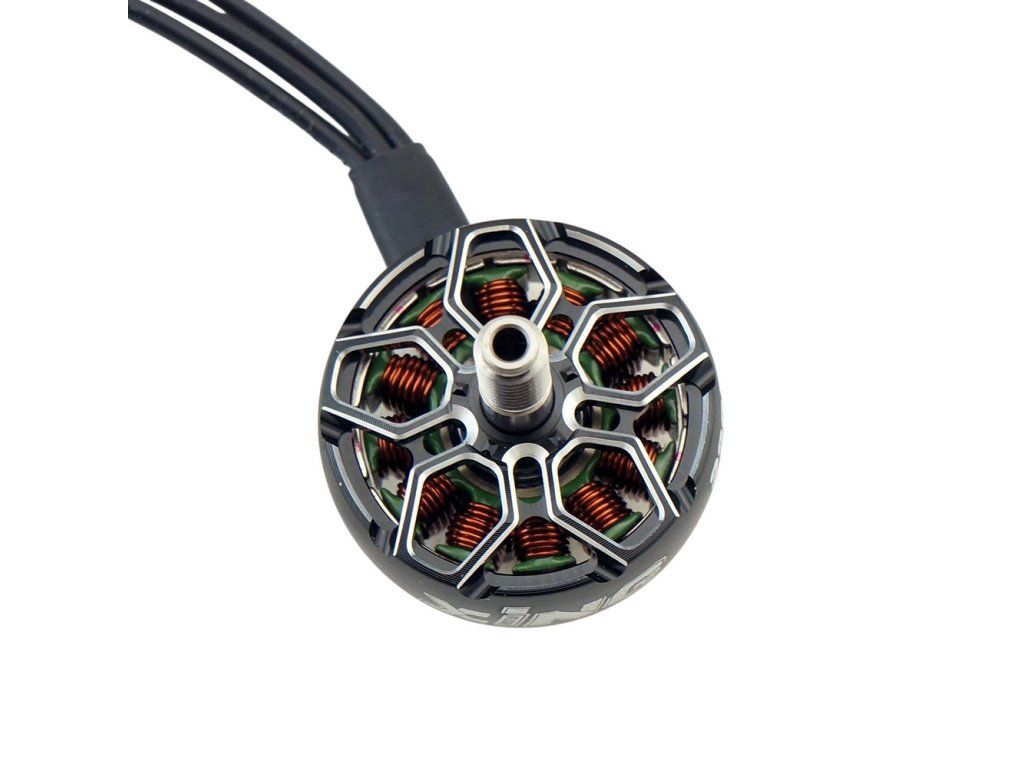

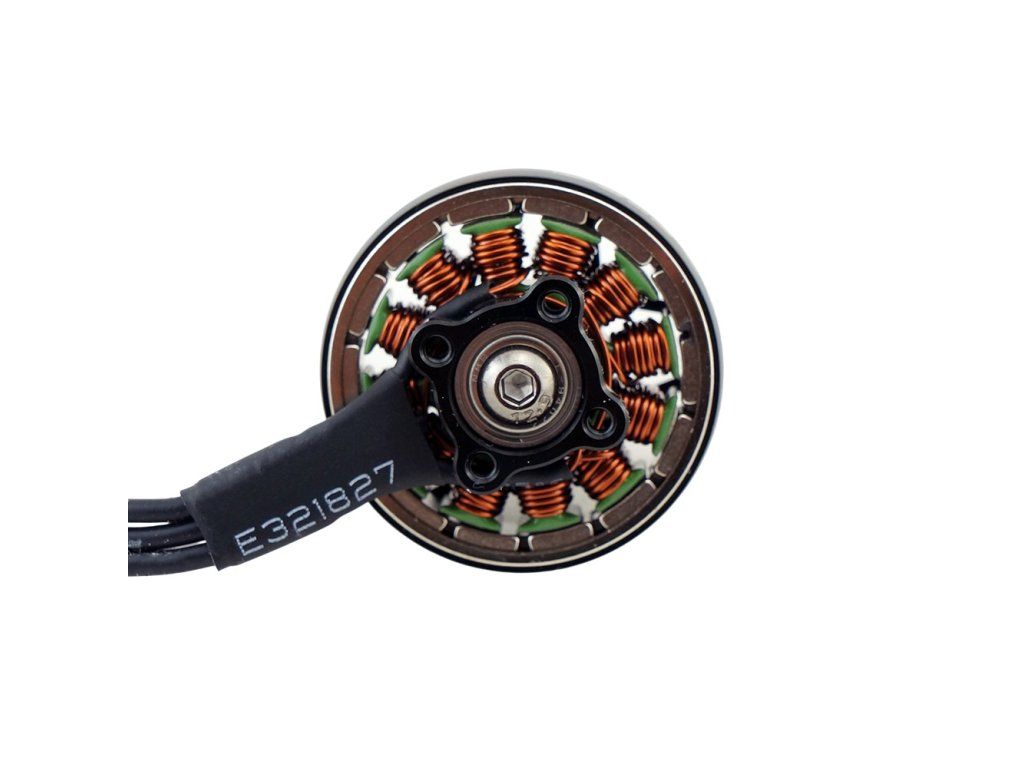

Motor iFlight XING2 2205 2300KV

Product detailed description

Motor iFlight XING2 2205 2300KV

The iFlight XING2 2205 2300KV is a next-generation FPV motor designed for smooth, powerful, and highly responsive flight performance. Upgraded with advanced magnet design and precision manufacturing, it delivers faster response and improved control. Ideal for pilots looking for a locked-in feel and reliable performance in freestyle or cinematic builds.

Features:
- Fast motor response with reduced latency for precise control
- Smooth and stable operation thanks to high-quality bearings
- Durable unibell construction with excellent balance
- Efficient and reliable single-strand copper winding
- Strong magnetic performance for consistent power delivery
- High manufacturing precision for improved flight feel

Specifications:
KV: 2300KV
Weight(included wire): 25.2g
Dimension: φ28.3x29.55mm
Interphase Resistance: 72.41mΩ
Input Volts: 25.2V
Peak Current: 18.12A
Max Watt: 456.62W
Mounting Holes: 12x12 φ2mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 13.5mm
Lead: 160mm/22AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK/NMB
Bearing Specification: φ9xφ4x4
Winding: Single Strand copper winding

Package includes:
1x XING2 2205 Brushless Motor
4x M3x7 screws
1x M5 Flange Nut
