GPS Module Holybro H-RTK ZED F9P Ultralight

Product detailed description

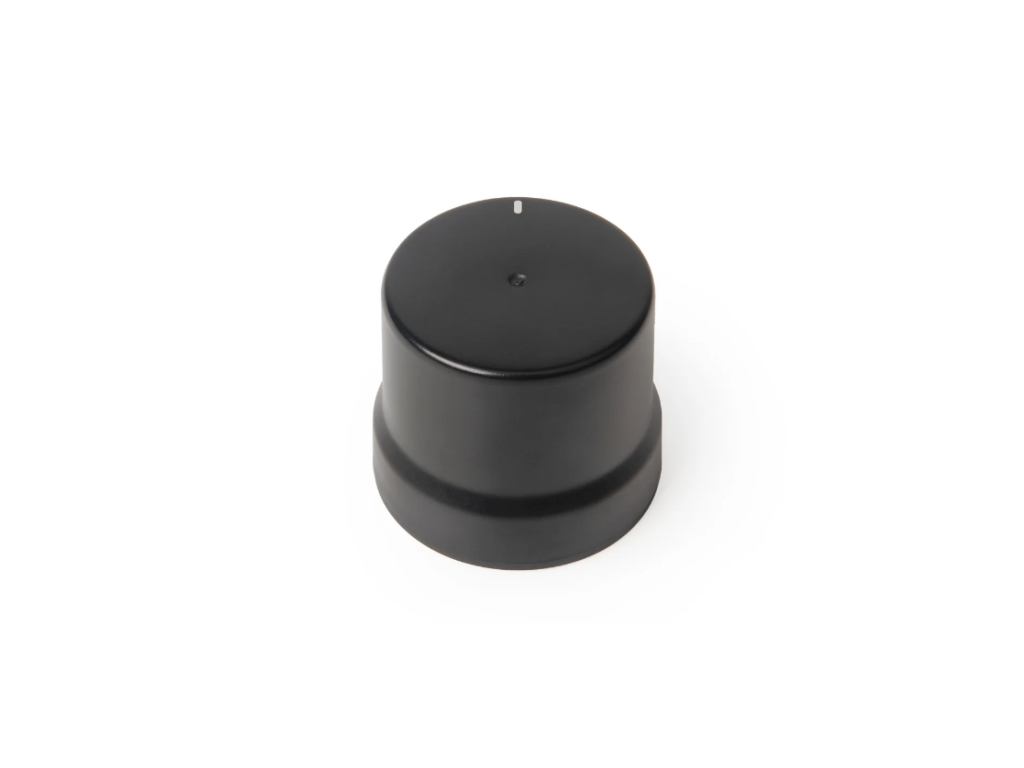

GPS Module Holybro H-RTK ZED F9P Ultralight

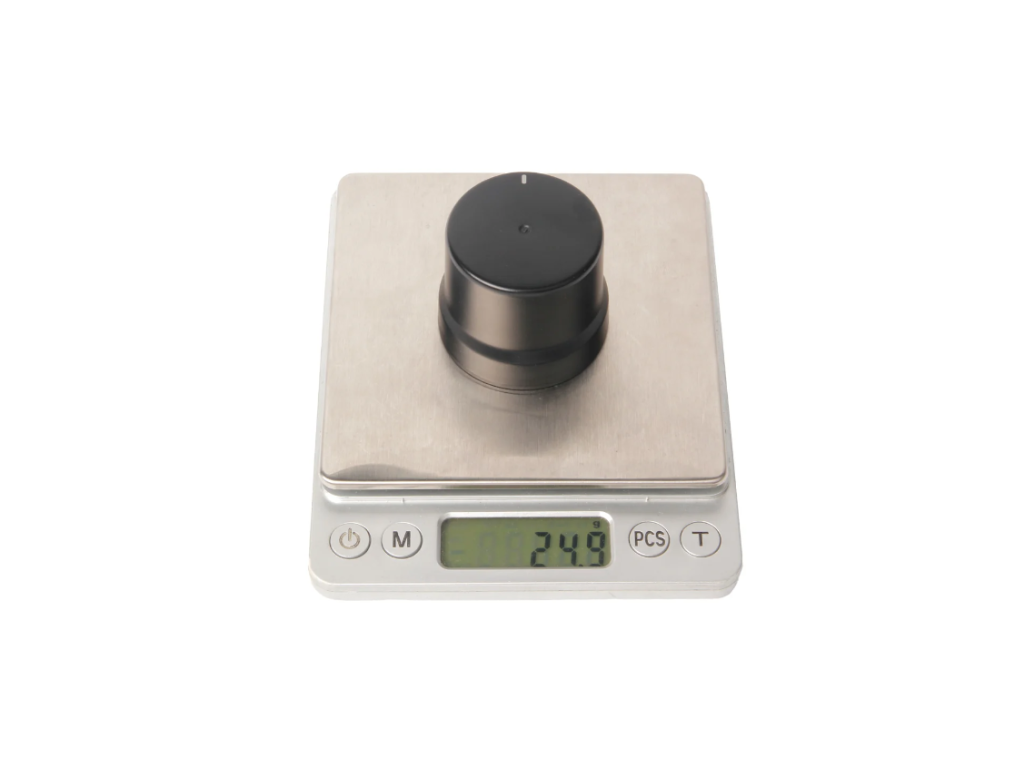

The Holybro H-RTK ZED-F9P Ultralight is a high-precision RTK GNSS positioning module designed for drones and other weight-sensitive autonomous platforms. Featuring the u-blox ZED-F9P receiver, integrated helical antenna, and IST8310 compass, it delivers reliable centimeter-level positioning while weighing less than 25 grams. Its multi-band, multi-constellation architecture provides accurate navigation and rapid satellite acquisition even in challenging signal environments.

Features:
- Ultra-lightweight design optimized for aircraft and UAV applications where minimizing weight is critical
- Advanced RTK GNSS technology enables centimeter-level positioning accuracy when used with correction data
- Multi-constellation satellite reception improves coverage, reliability, and positioning performance
- Simultaneous tracking of multiple GNSS systems for enhanced navigation precision
- Integrated helical antenna provides efficient signal reception without requiring an external antenna
- Built-in IST8310 compass supports accurate heading and orientation information
- High sensitivity receiver enables reliable operation in difficult signal conditions
- Fast satellite acquisition and quick recovery after signal interruption
- Interference suppression technology enhances positioning stability and reliability
- Compatible with RTK, DGNSS, and standard GNSS positioning modes
- Suitable for autonomous aircraft, mapping drones, surveying, inspection, and precision navigation applications

Specifications:
GNSS modul: u-blox ZED-F9P
Compass: IST8310
Application: Rover (Aircraft)
GNSS: GPS / QZSS, GLONASS, Galileo, BeiDou
GNSS Band: L1C/A, L2C, L1OF, L2OF, E1B/C, E5b, B1I, B2I
Sensitivity:
Tracking: -163dBm
Reacquisition: -147dBm
Time-To-First-Fix:
- Cold Start: ≤35 s
- Warm Start: 20s
- Hot Start: 1 s
Position accuracy:
- Autonomous: 2.0 m CEP
- DGNSS: 0.5m CEP
- RTK: 1cm+1ppm (Horizontal)
Accuracy of time pulse signal: RMS - 30ns
Velocity accuracy:
- GNSS: 0.1 m/s
- D-GNSS: 0.05 m/s
Operational limits:
- Dynamics: ≤ 4 g
- Altitude: 18000 m
- Velocity: 515 m/s
Baud Rate: 38400-230400 bps (Default 115200 bps)
Max navigation update rate:
- RAW: 25Hz (only achievable with GPS-only mode)
- RTK: 20Hz (only achievable with GPS-only mode)
- Moving Baseline: 8Hz (only achievable with GPS-only mode)

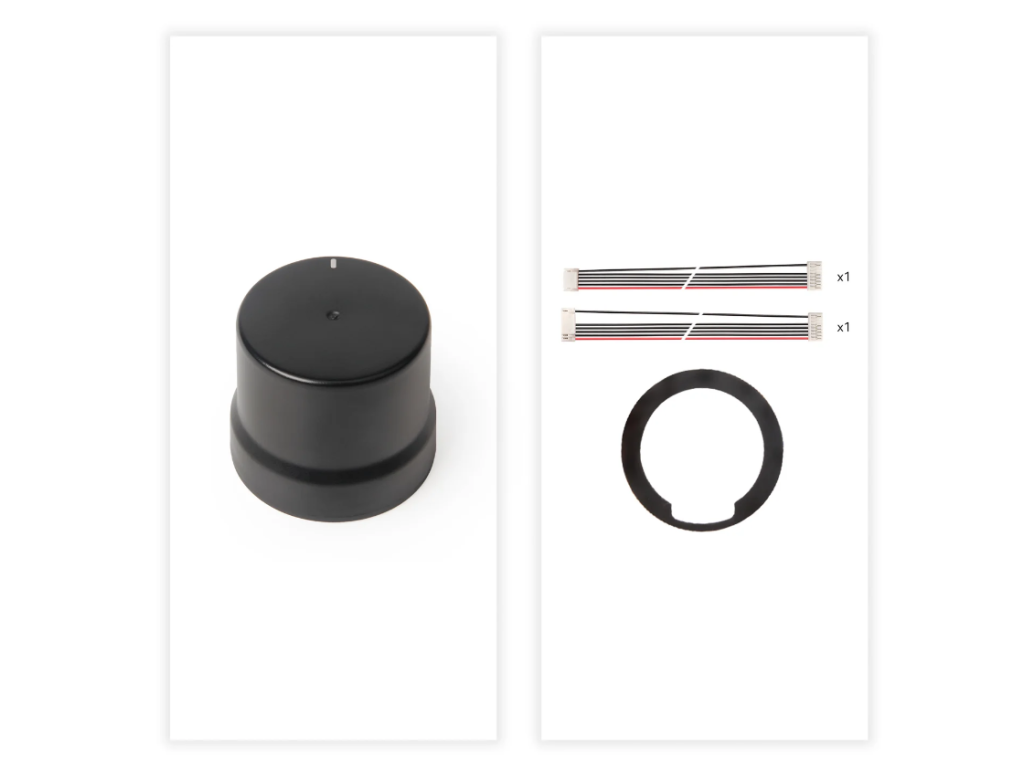

Package includes:
1x Holybro H-RTK ZED-F9P Ultralight GNSS Module
1x Connection Cable Set
