GPS Module CUAV C-RTK 9Ps (Rover with stand and base unit)

Product detailed description

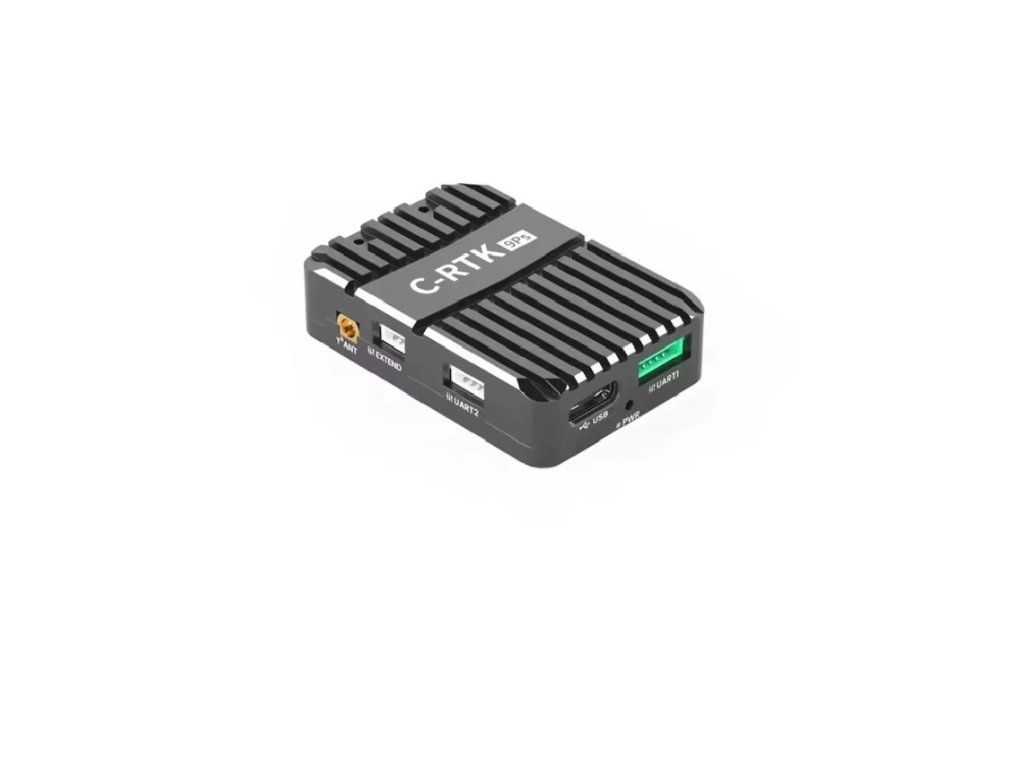

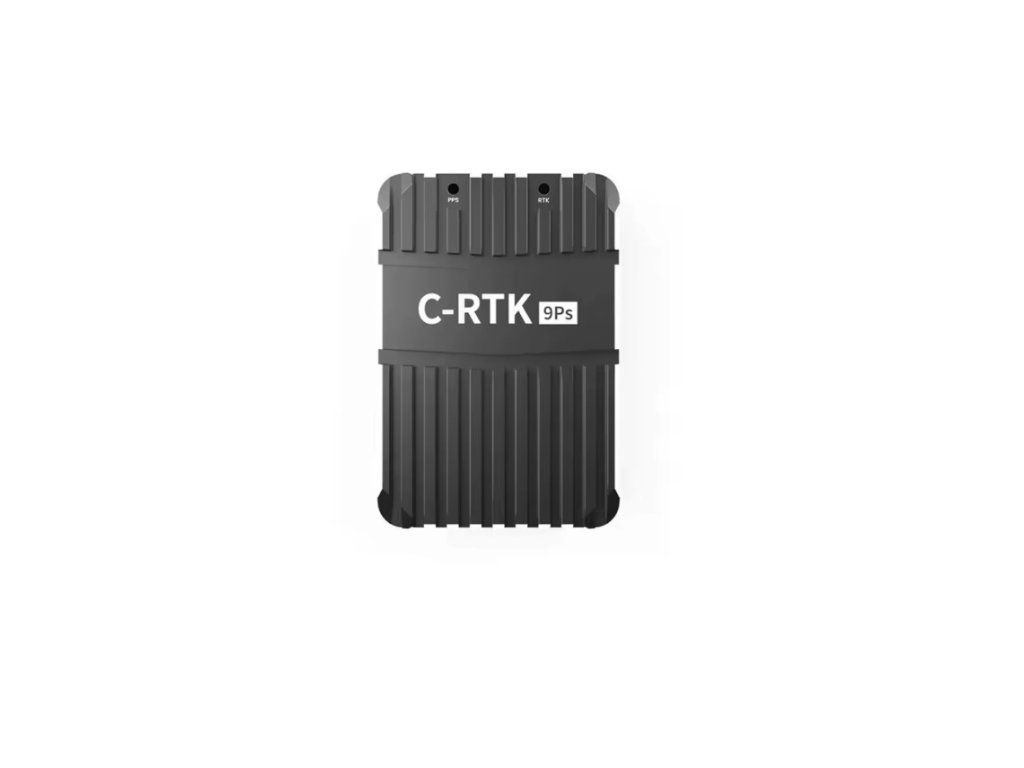

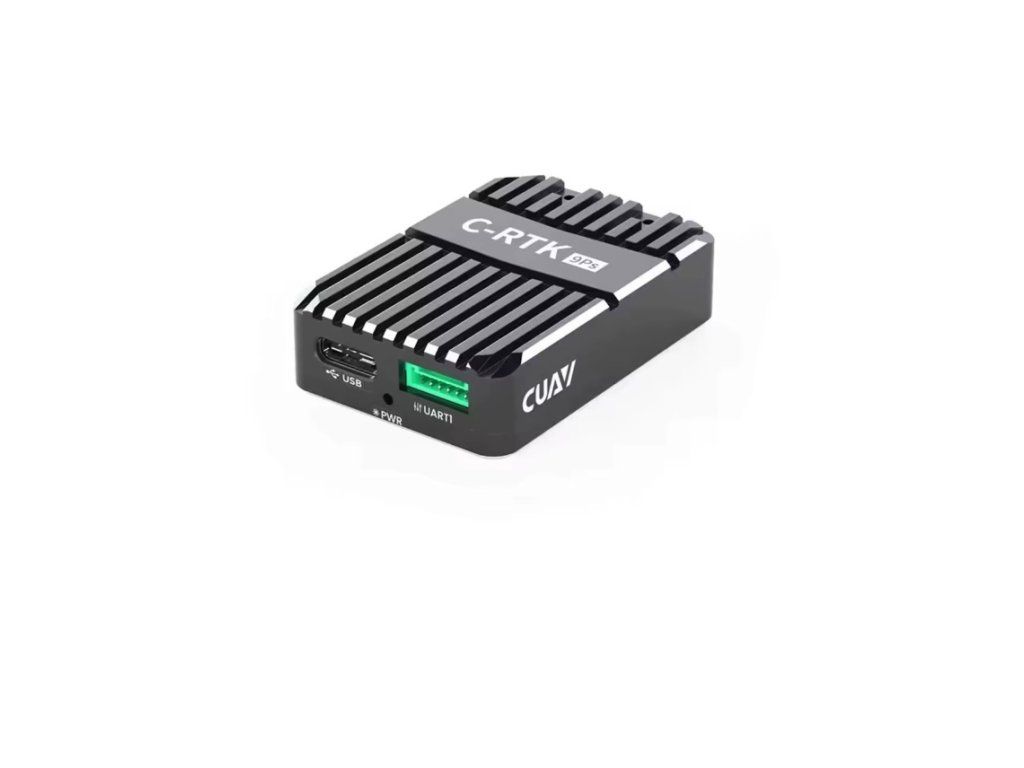

GPS Module CUAV C-RTK 9Ps (Rover with Stand and Base Unit)

The CUAV C-RTK 9Ps is a professional centimeter-level GNSS positioning system designed for UAVs, mapping, surveying, and industrial applications. The kit includes both Rover and Base Station units, enabling high-precision RTK positioning with rapid convergence, multi-frequency satellite support, and reliable navigation performance. Compatible with PX4, ArduPilot, Pixhawk, and CUAV flight controllers, it provides accurate positioning, GPS heading functionality, and stable operation even in challenging environments.

Features:
- Complete RTK solution with Rover and Base Station units
- Centimeter-level positioning accuracy for professional UAV applications
- Multi-constellation and multi-frequency GNSS reception
- Fast RTK convergence and high update rate
- Supports GPS heading when using dual C-RTK 9Ps modules
- Compass-free yaw estimation for improved resistance to electromagnetic interference
- Compatible with PX4, ArduPilot, Pixhawk, and CUAV flight controllers
- Flexible Base/Rover role switching
- Integrated IST8310 compass
- Advanced anti-jamming and anti-spoofing technology
- Lightweight and compact design
- Suitable for mapping, surveying, precision agriculture, and autonomous missions
- Reliable operation in harsh environmental conditions

Specifications:
Receiver Type: u-blox ZED-F9P, 184 Channels
Compass: IST8310
Supported GNSS Systems:
						GPS
						BeiDou
						Galileo
						GLONASS
						QZSS
Number of Concurrent GNSS Systems: 4
Supported Frequency Bands:
						GPS: L1C/A, L2C
						GLONASS: L1OF, L2OF
						Galileo: E1B/C, E5b
						BeiDou: B1I, B2I
						QZSS: L1C/A, L2C
Navigation Performance:
						RTK Update Rate: 20Hz
						RAW Data Rate: 25Hz
						PVT Data Rate: 25Hz
						RTK Position Accuracy: 0.01m + 1ppm CEP
						GPS Position Accuracy: 1.5m CEP
						SBAS Position Accuracy: 1.0m CEP
						RTK Survey-In Time: <60s
						GPS Heading Support: Yes (requires two C-RTK 9Ps modules)
						Heading Accuracy: 0.4°
Acquisition Performance:
						Cold Start: <24s
						Hot Start: <1s
						Reacquisition Sensitivity: -160dBm
						Cold Start Sensitivity: -148dBm
						Hot Start Sensitivity: -157dBm
Antenna:
						Rover Antenna Gain: 2dBi
						Base Antenna Gain: 5dBi

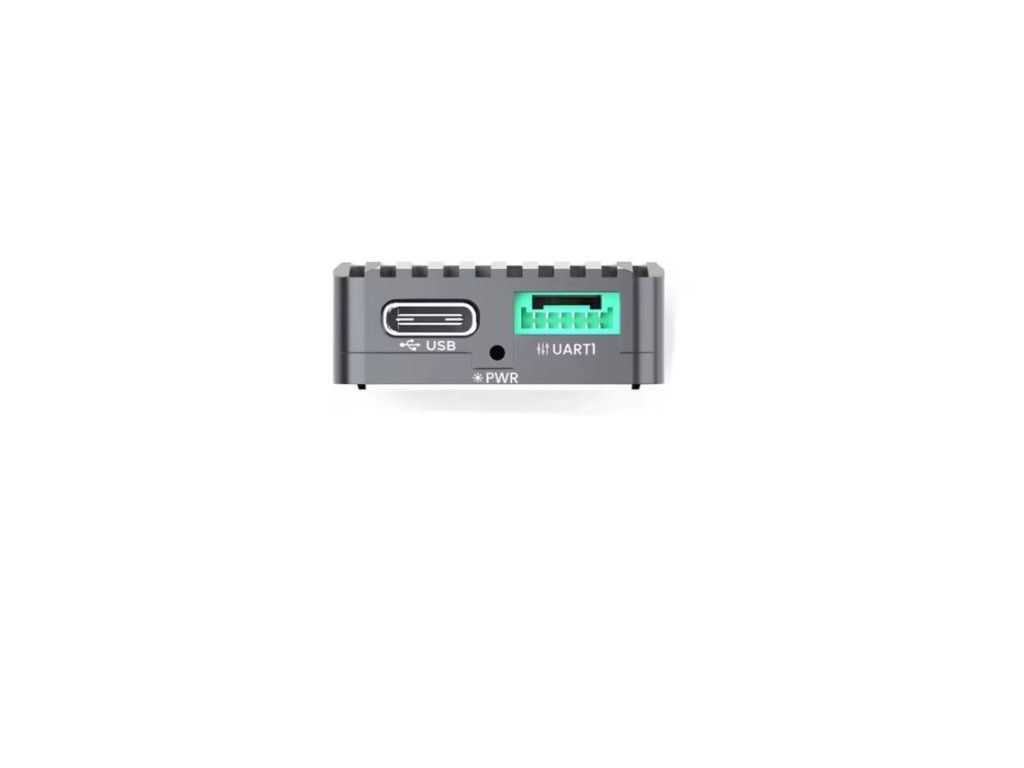

Interfaces:
						UART: 2
						USB: 1
Supported Protocols:
						NMEA
						UBX Binary
						RTCM 3.x
Operating Voltage: 4.5V–6V
Operating Temperature: -40°C to +85°C
Additional Functions:
						Base/Rover Role Swap: Supported
						PPK Support: Not Supported
						Active CW Interference Detection and Removal
						Integrated Band-Pass Filter
						Advanced Anti-Spoofing Algorithms

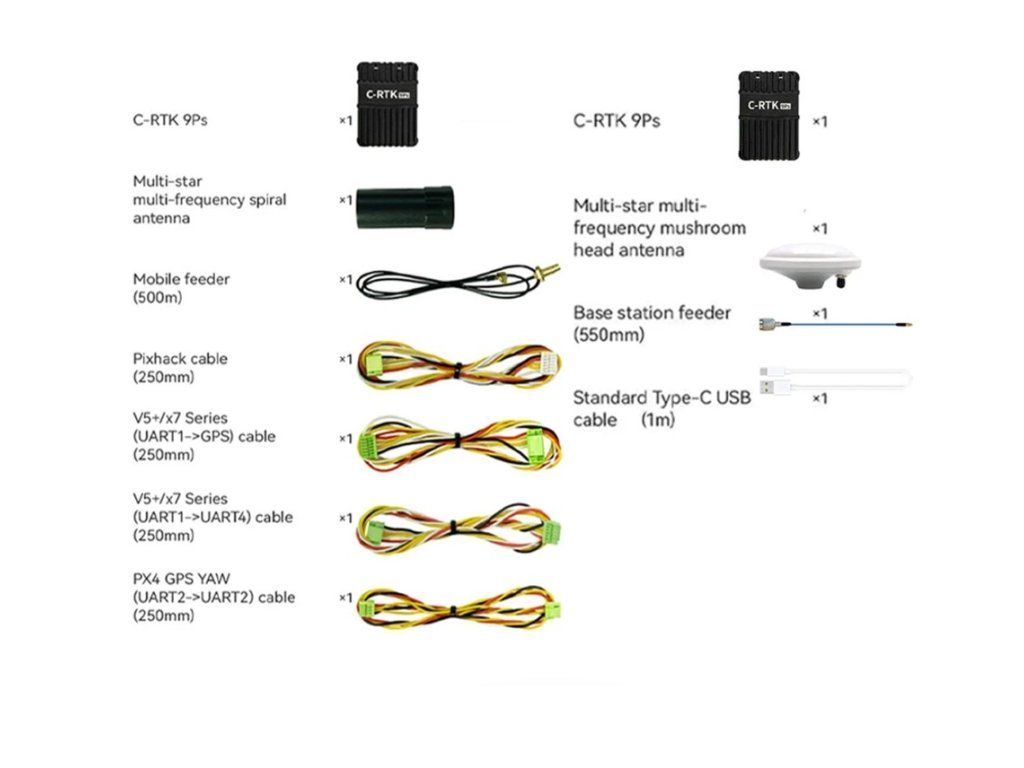

Package Includes:
Rover Bundle
1x CUAV C-RTK 9Ps Module
1x Spiral Antenna
1x Carbon Fiber Stand
1x Pixhawk Cable
1x V5+/X7 Cable
1x PX4 GPS Yaw Cable
Base Bundle
1x CUAV C-RTK 9Ps Module
1x Mushroom Antenna
1x Base Station Feeder Cable
1x USB Type-C Cable
