GPS Module CUAV C-RTK 9Ps (Rover with stand)

Product detailed description

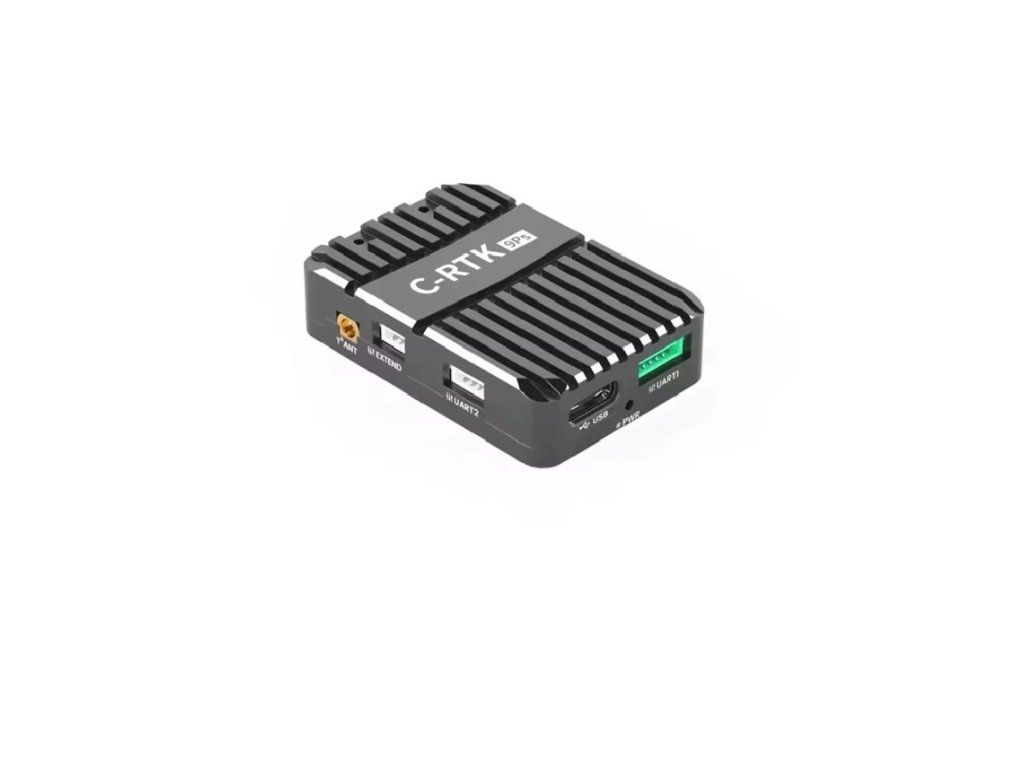

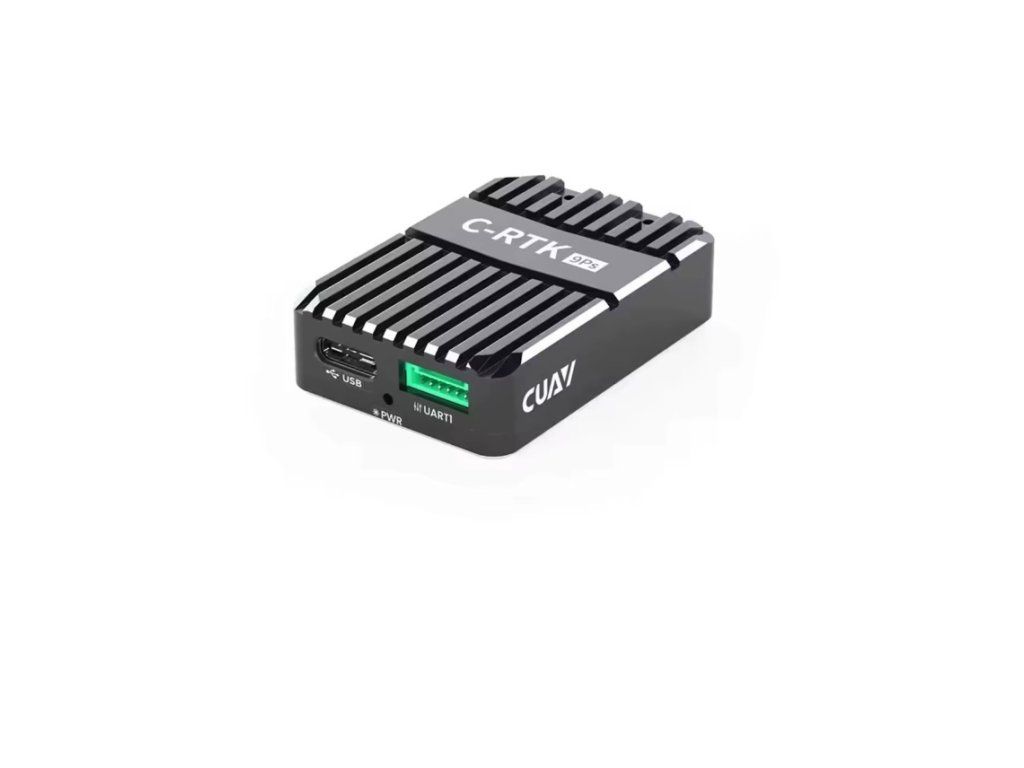

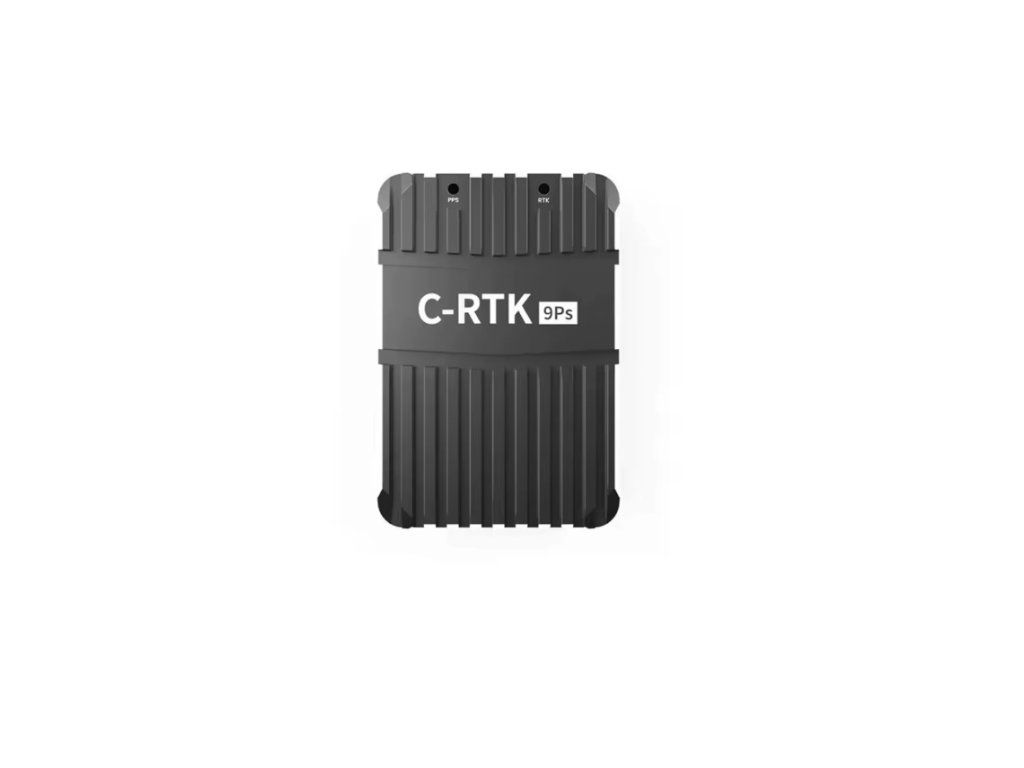

GPS Module CUAV C-RTK 9Ps (Rover with Stand and Base Unit)

The CUAV C-RTK 9Ps Rover is a high-precision multi-frequency GNSS positioning module designed for UAV navigation, mapping, surveying, and autonomous flight applications. Built around the u-blox ZED-F9P receiver, it delivers centimeter-level RTK positioning, fast satellite acquisition, and reliable performance in demanding environments. The included carbon fiber stand and high-sensitivity rover antenna make it a ready-to-use solution for professional drone platforms using PX4, ArduPilot, and compatible flight controllers.

Features:
- Centimeter-level RTK positioning for highly accurate navigation and mission execution
- Multi-constellation GNSS support for improved satellite coverage and positioning stability
- Fast RTK convergence and rapid signal acquisition for efficient deployment
- Supports dual-GPS heading functionality when paired with a second C-RTK 9Ps module
- Resistant to electromagnetic interference compared to traditional compass-based heading systems
- Advanced anti-jamming and anti-spoofing technologies for reliable operation
- Compatible with PX4, ArduPilot, Pixhawk, CUAV, and other open-source flight controllers
- Lightweight design suitable for UAVs where payload efficiency is important
- Stable operation in harsh weather and industrial environments
- Includes carbon fiber mounting stand and connection cables for easy integration

Specifications:
Product Name: CUAV C-RTK 9Ps (Rover with Stand)
Receiver Type: u-blox ZED-F9P, 184 channels
Compass: IST8310
GNSS Systems: GPS, BeiDou, Galileo, GLONASS
Concurrent GNSS Systems: 4
Supported Bands:
						GPS: L1C/A, L2C
						GLONASS: L1OF, L2OF
						Galileo: E1B/C, E5b
						BeiDou: B1I, B2I
						QZSS: L1C/A, L2C
Navigation Update Rate:
						RTK: 20Hz
						RAW: 25Hz
						PVT: 25Hz
Position Accuracy:
						RTK: 0.01m + 1ppm CEP
						GPS: 1.5m CEP
						SBAS: 1.0m CEP
RTK Convergence Time: <60s
Acquisition Time:
						Cold Start: <24s
						Hot Start: <1s
Sensitivity:
						Cold Start: -148 dBm
						Hot Start: -157 dBm
						Reacquisition: -160 dBm
GPS Heading Support: Yes (requires two C-RTK 9Ps modules)
Heading Accuracy: 0.4°
Base/Rover Role Swap: Supported
Anti-Jamming: Active CW detection and removal, onboard band-pass filter
Anti-Spoofing: Advanced anti-spoofing algorithms
Antenna Gain: 2 dBi (Rover)
Protocols: NMEA, UBX Binary, RTCM 3.x

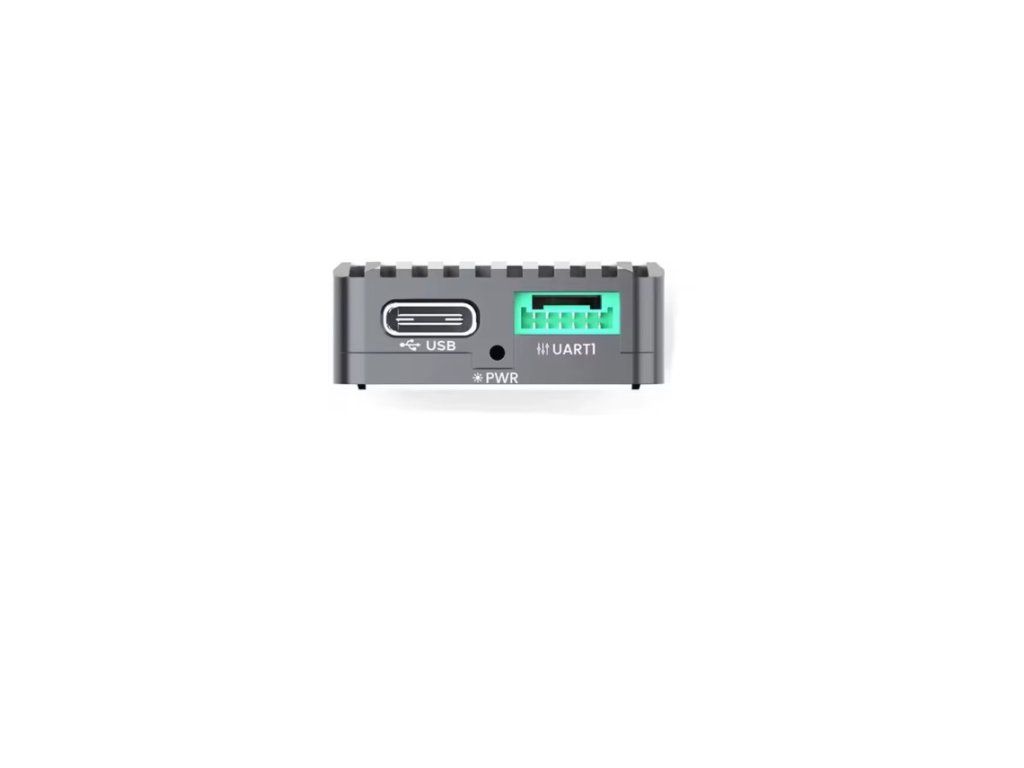

Interfaces:
						UART x2
						USB x1
Operating Voltage: 4.5V–6V
Operating Temperature: -40°C to +85°C

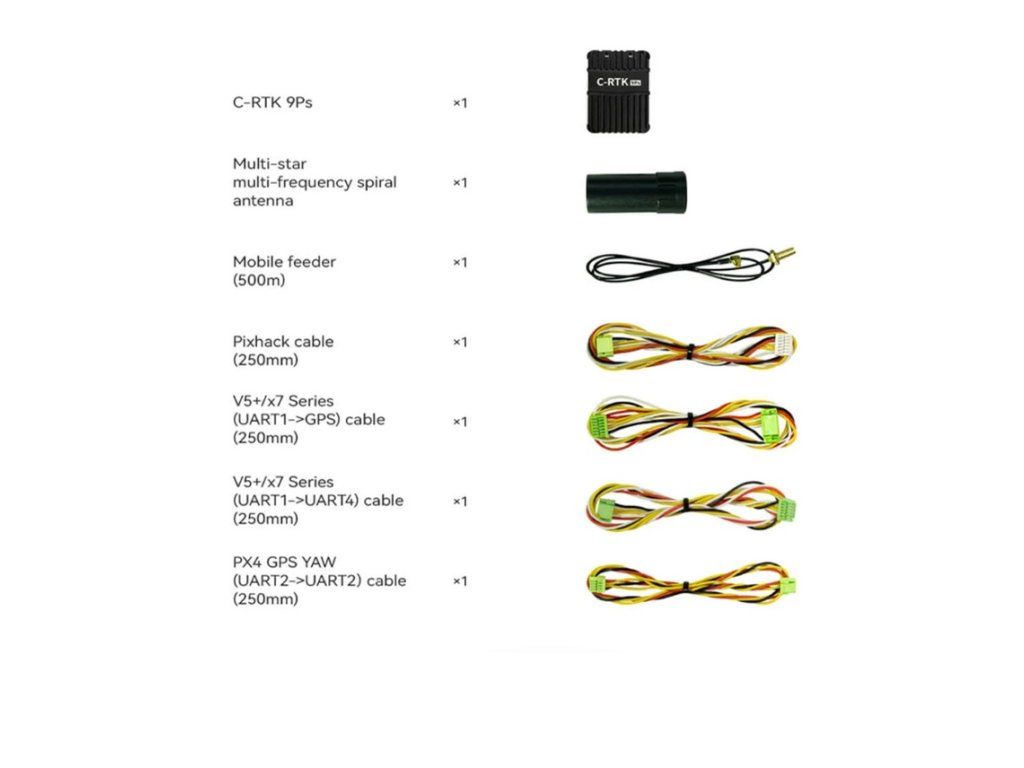

Package Includes

Package Includes:
1x CUAV C-RTK 9Ps Module
1x Spiral Antenna
1x Carbon Fiber Stand
1x Pixhawk Cable
1x V5+/X7 Cable
1x PX4 GPS Yaw Cable
