Frame Pilotix Mark4-8
Code: 4235Product detailed description

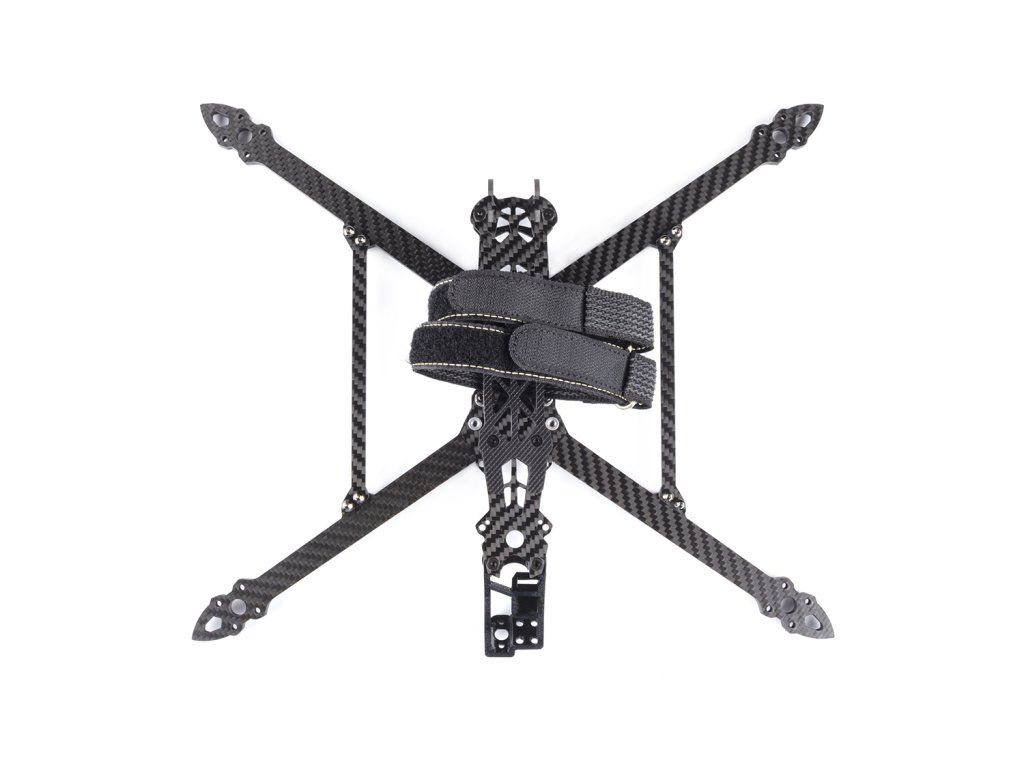

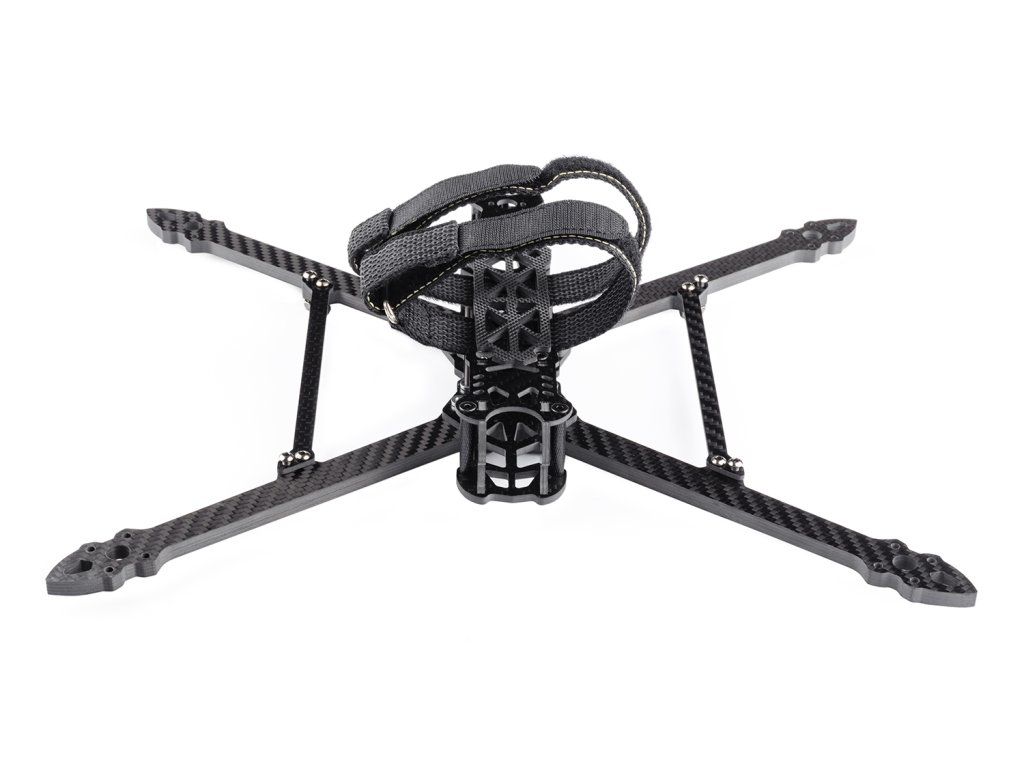

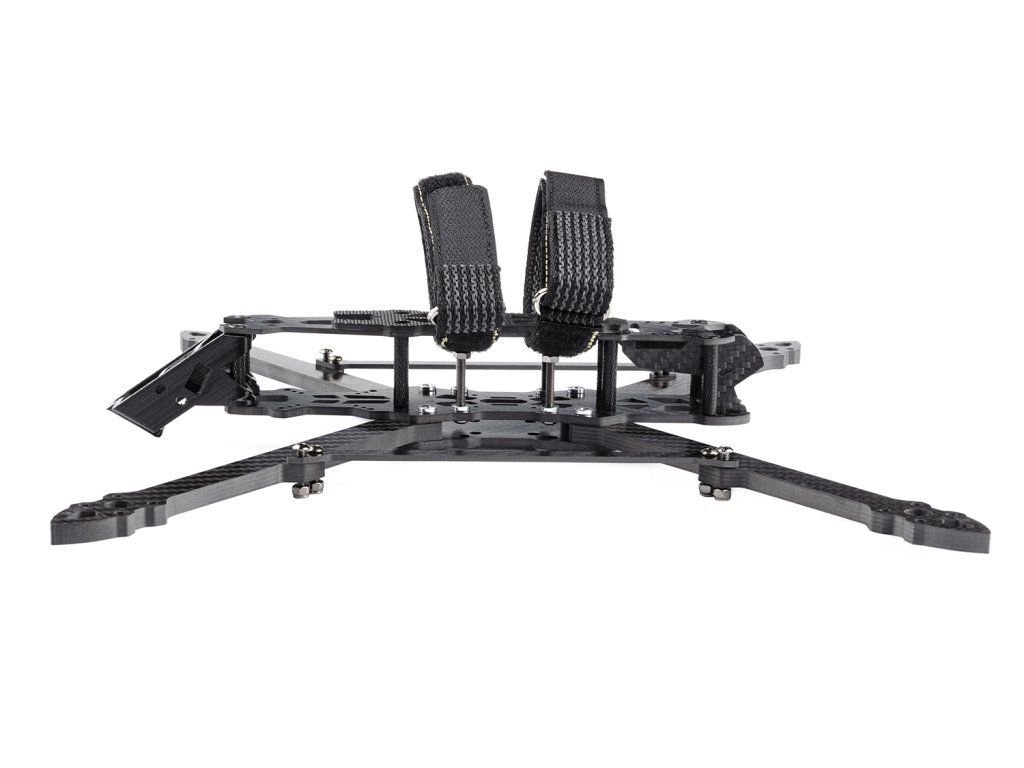

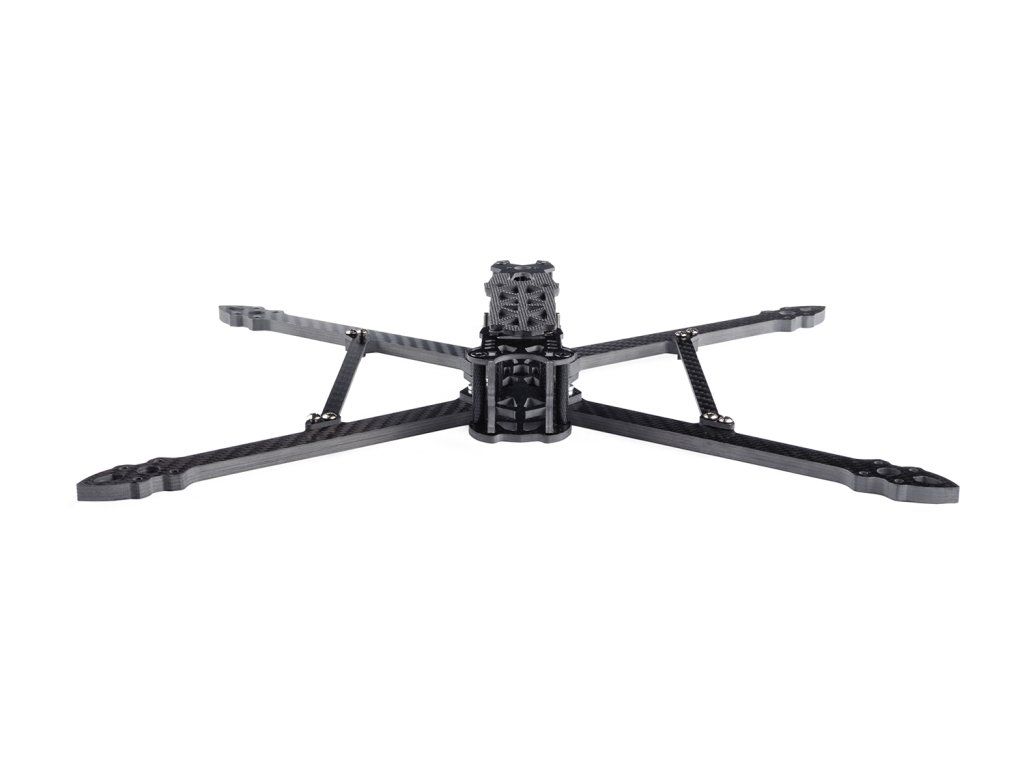

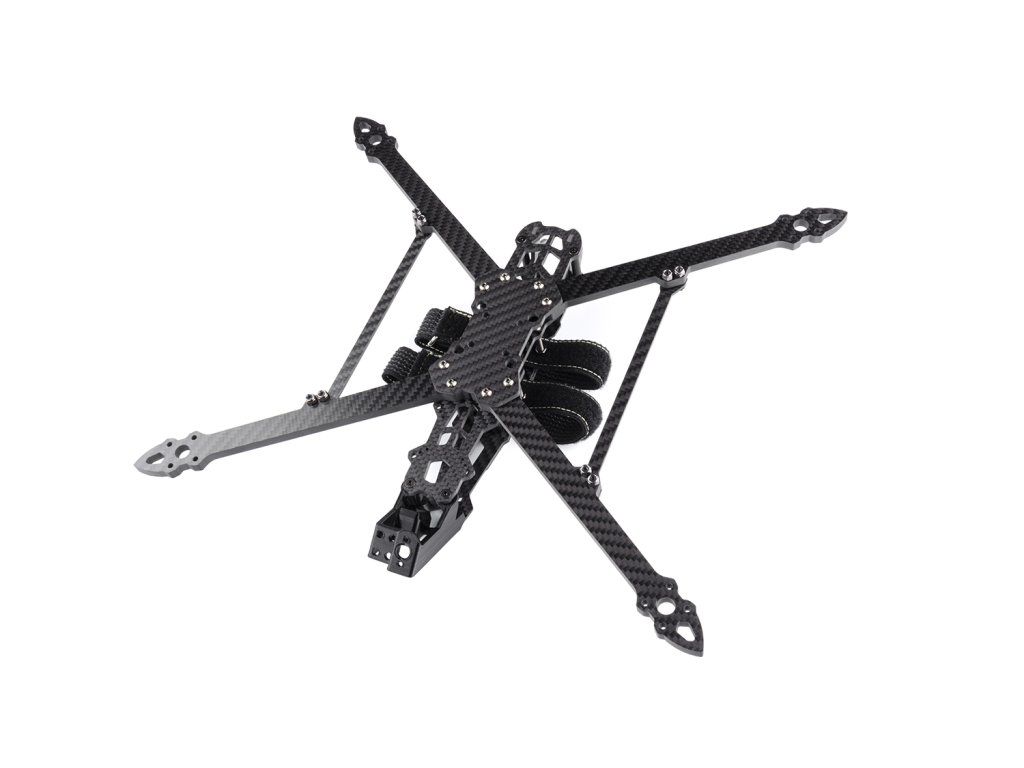

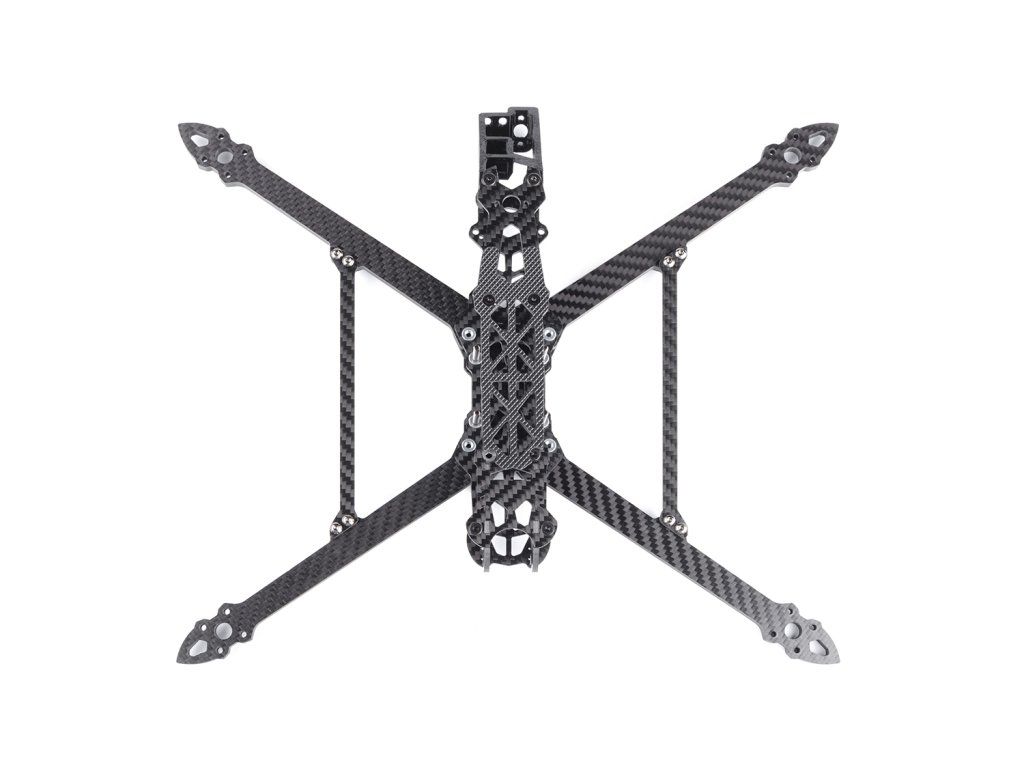

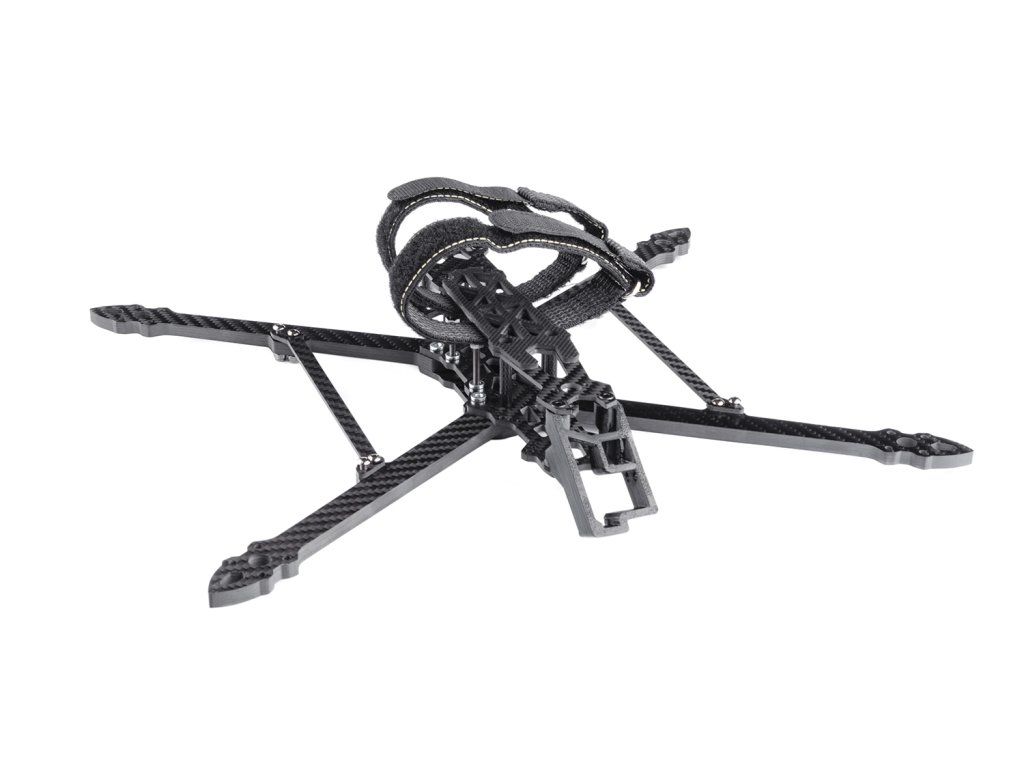

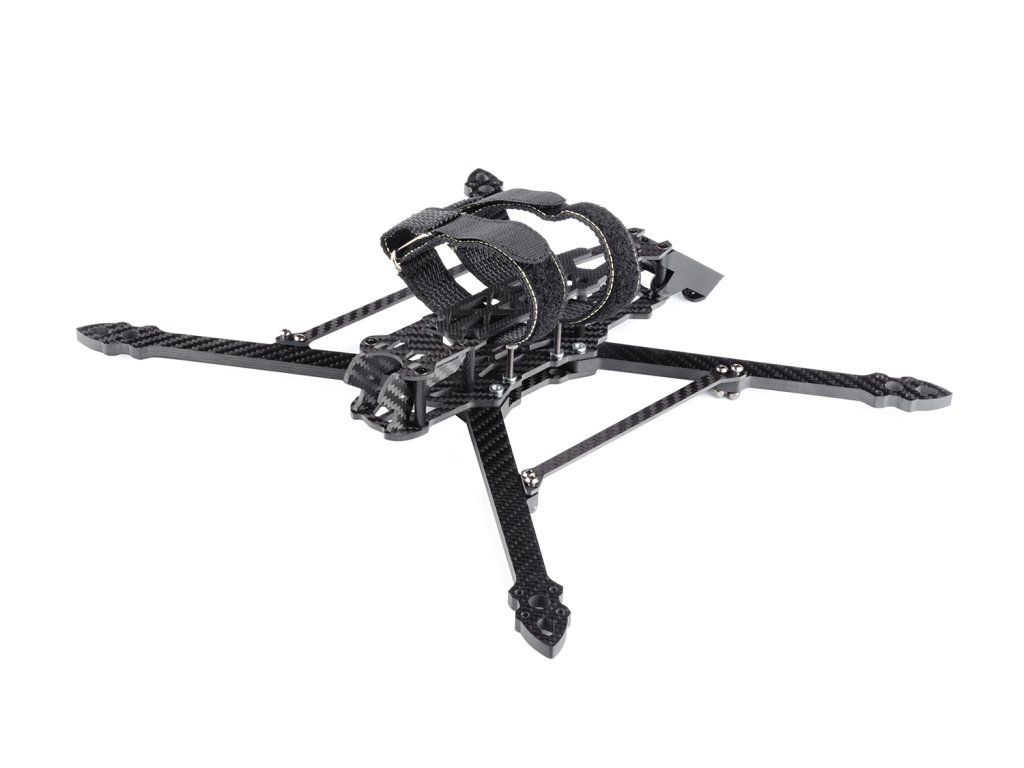

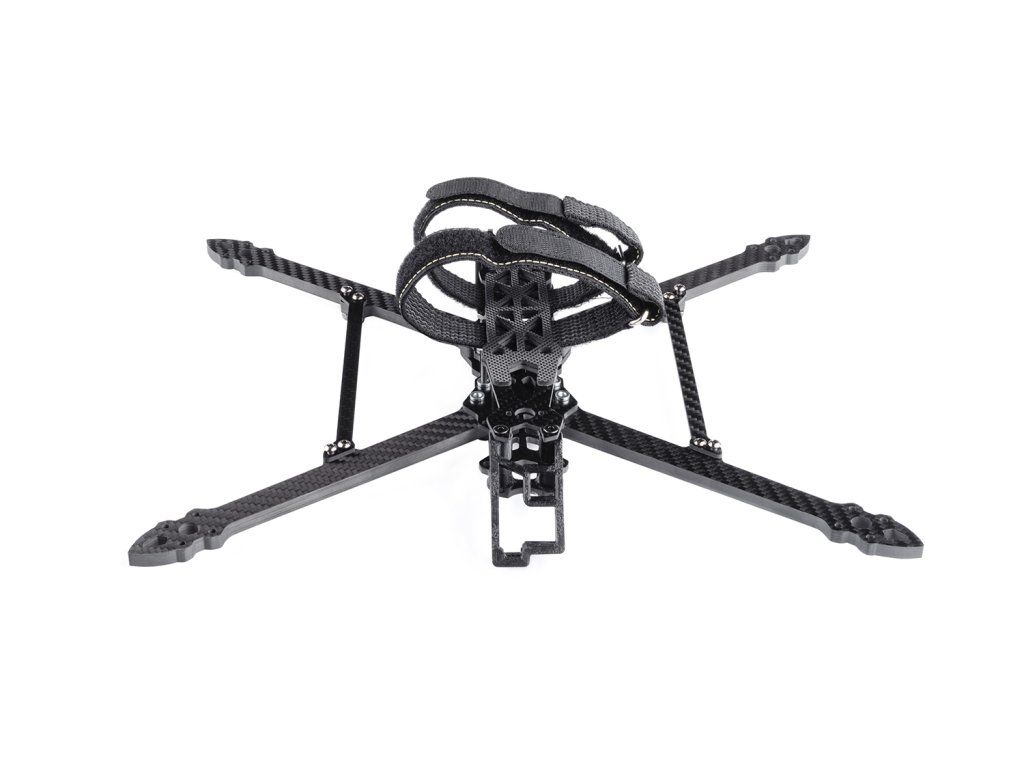

Frame Pilotix Mark4-8 The Pilotix Mark4-8 is a lightweight 8-inch carbon frame with robust construction, making it ideal for long range flight. With its versatile design, it accommodates various configurations and components, ensuring optimal flight stability and agility. Specifications: Model: Mark4-8 Wheelbase: 350mm
Arm thickness: 6mm
Top plate length: 180mm
Top plate width: 30mm
Top plate thickness: 2mm
Bottom plate length: 82mm
Bottom plate width: 35mm
Bottom plate thickness: 3mm
Width: 310mm
Length: 260mm

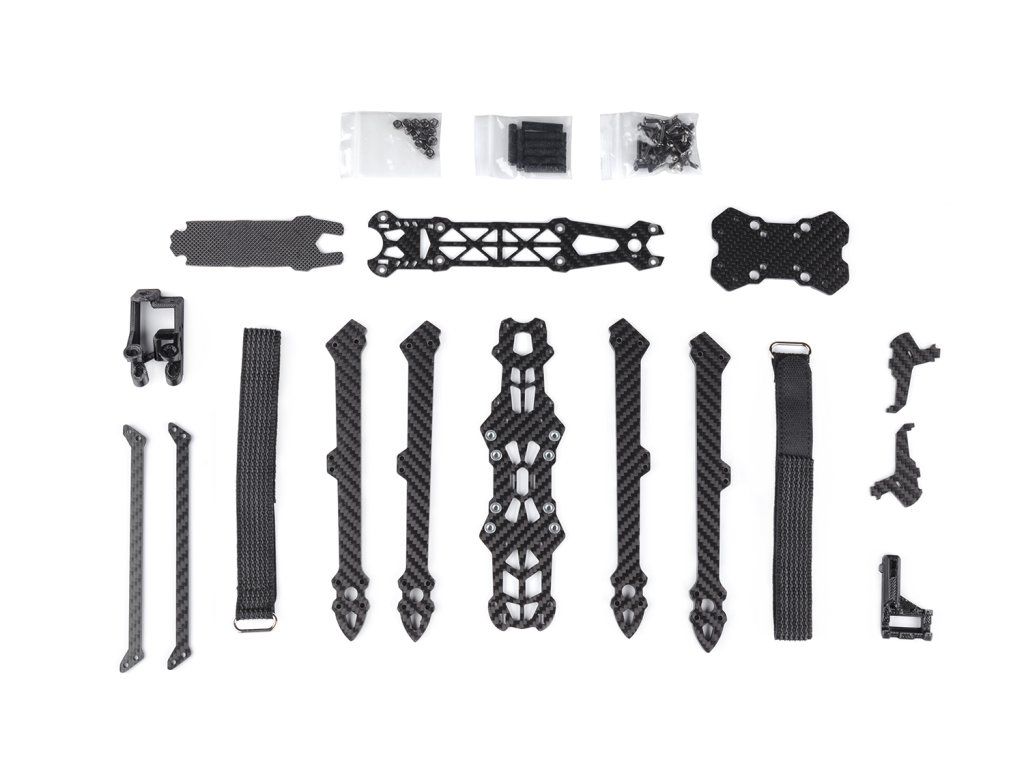

Weight: 199gDownload documentation Package Includes: 1x Frame Pilotix Mark4-8
Additional parameters
| Category: | FPV Frames |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.208 kg |
| EAN: | 5060491867037 |
| Material: | Carbon fiber |
| Camera Mounting: | Micro (19 mm) |
| Size: | 8 inch |
| Motor Size: | 2812 |
| Wheelbase: | 370 mm |
| Drone Type: | Long Range |
Product rating
Be the first who will post an article to this item!
Discussion
Be the first who will post an article to this item!
Pilotix is a European brand that designs and manufactures FPV drone components and complete UAV systems in the Czech Republic, including flight controllers, motors, frames, VTX/VRX systems, fiber optic communication modules. More at www.pilotix.eu
