Product detailed description

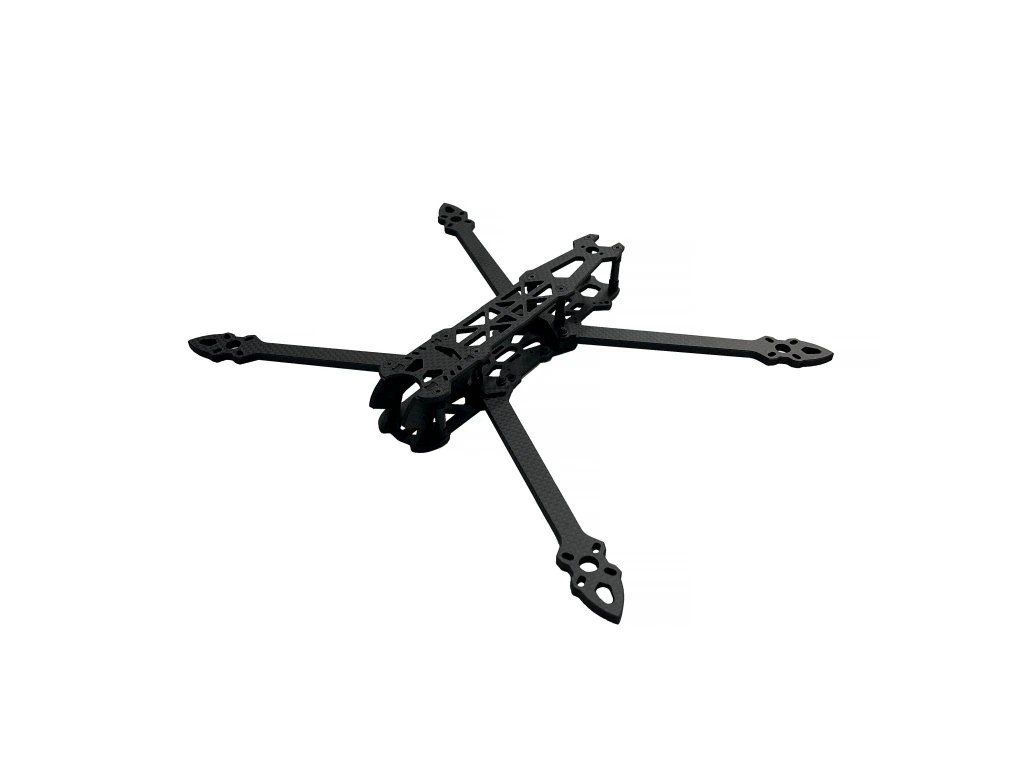

The Pilotix Mark4-7 is a 7-inch quadcopter X-frame designed for FPV applications. Constructed from Carbon T300 material, this frame features a 297mm wheelbase and weighs 170 grams.
The frame architecture includes a bottom plate measuring 182 x 50 x 2.5mm and a top plate of 177 x 41 x 2.5mm, with a 22mm mounting distance between the top and middle plates. The arms measure 156 x 22 x 5mm, providing structural support for the quadcopter configuration. The Mark4-7 accommodates FC and ESC stacks with 30.5 x 30.5mm M3 mounting holes, while motor mounting uses the 19 x 19mm M3 pattern. VTX mounting options include 20 x 20mm M2, 25 x 25mm M2, and 30.5 x 30.5mm M3 configurations.

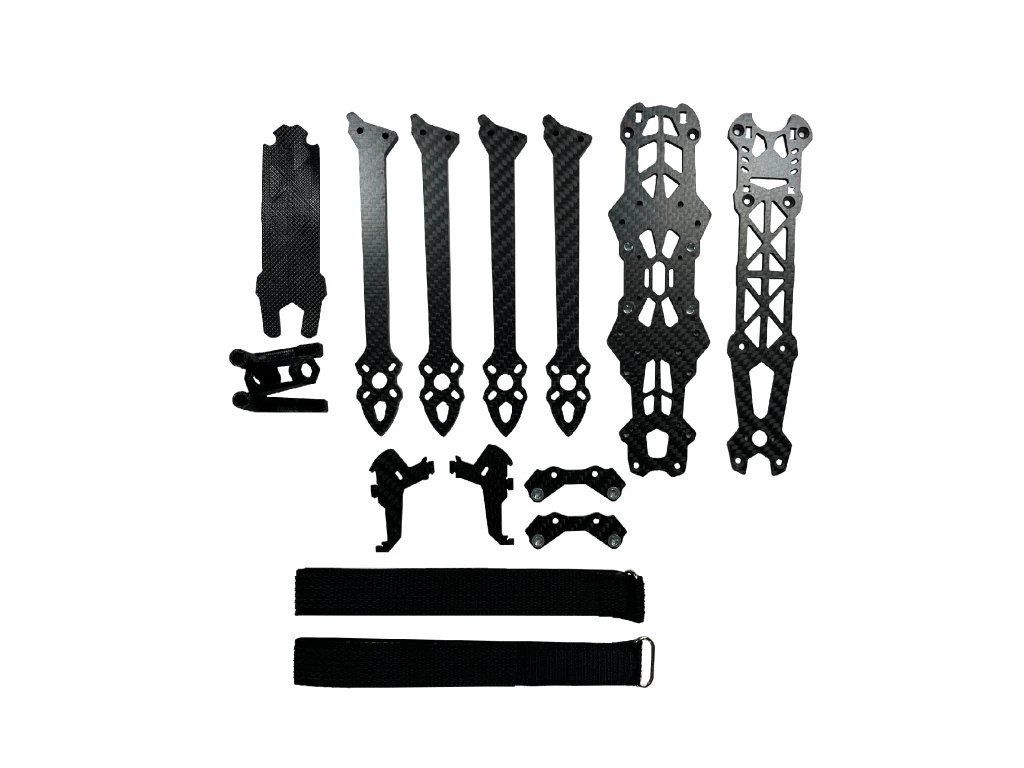

The package includes frame parts, aluminium columns, screws, battery pad, and two battery straps. The Pilotix Mark4-7 comes with a 2-year warranty.
Mechanical specification
| Frame material |
Carbon T300
|
| Frame type |
Quadcopter X-frame
|
| Frame size |
7"
|
| Wheelbase |
297 mm
|
| Stack height |
22 mm
|
| Bottom plate dimensions |
182 х 50 х 2.5 mm
|
| Top plate dimensions |
177 х 41 х 2.5 mm
|
| Arms dimensions |
156 х 22 х 5 mm
|
| FC & ESC mounting |
30.5 x 30.5 mm (M3)
|
| VTX mounting |
20 х 20 mm (М2),
25 х 25 mm (М2),
30.5 х 30.5 mm (M3)
|
| Motor mounting |
19 x 19 mm (M3)
|
| Weight |
170 g
|
Common
| Package contents |
Frame parts,
Aluminium columns,
Screws,
Battery pad,
2 x Battert strap
|
| Warranty |
2 years
|
