Product detailed description

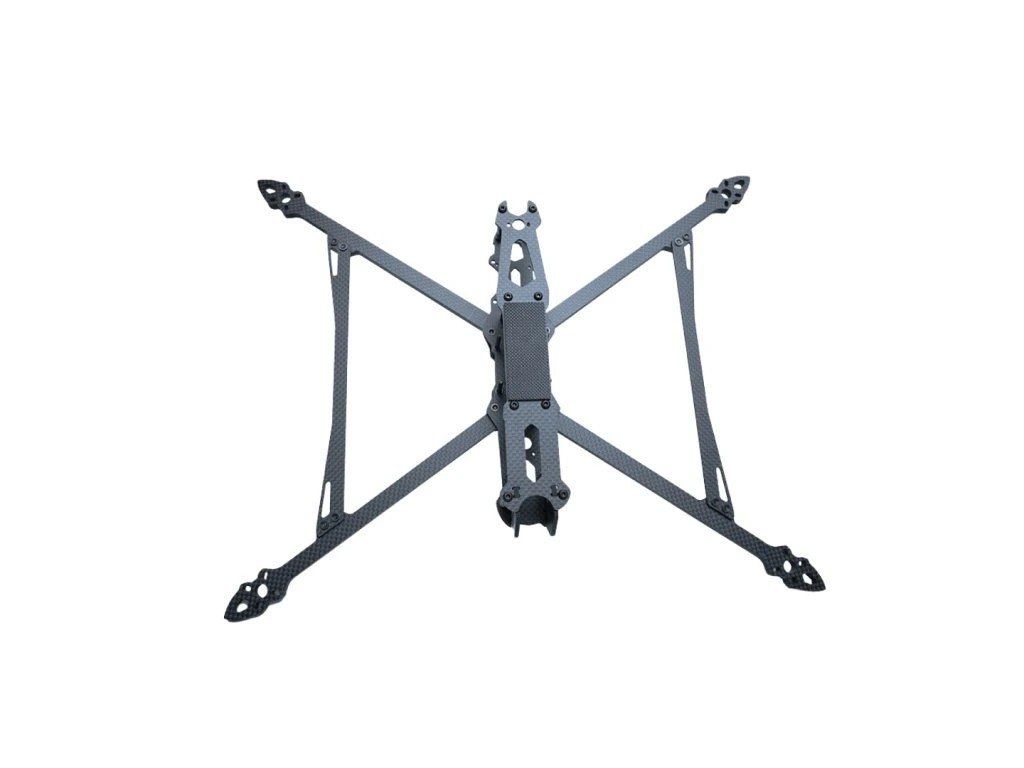

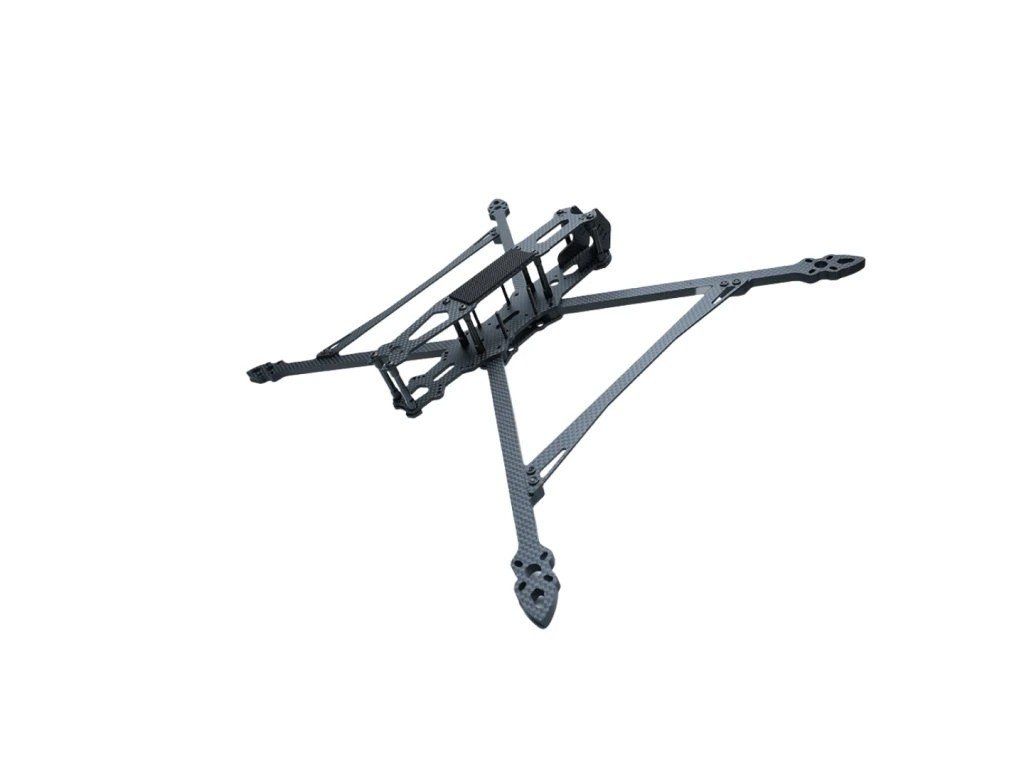

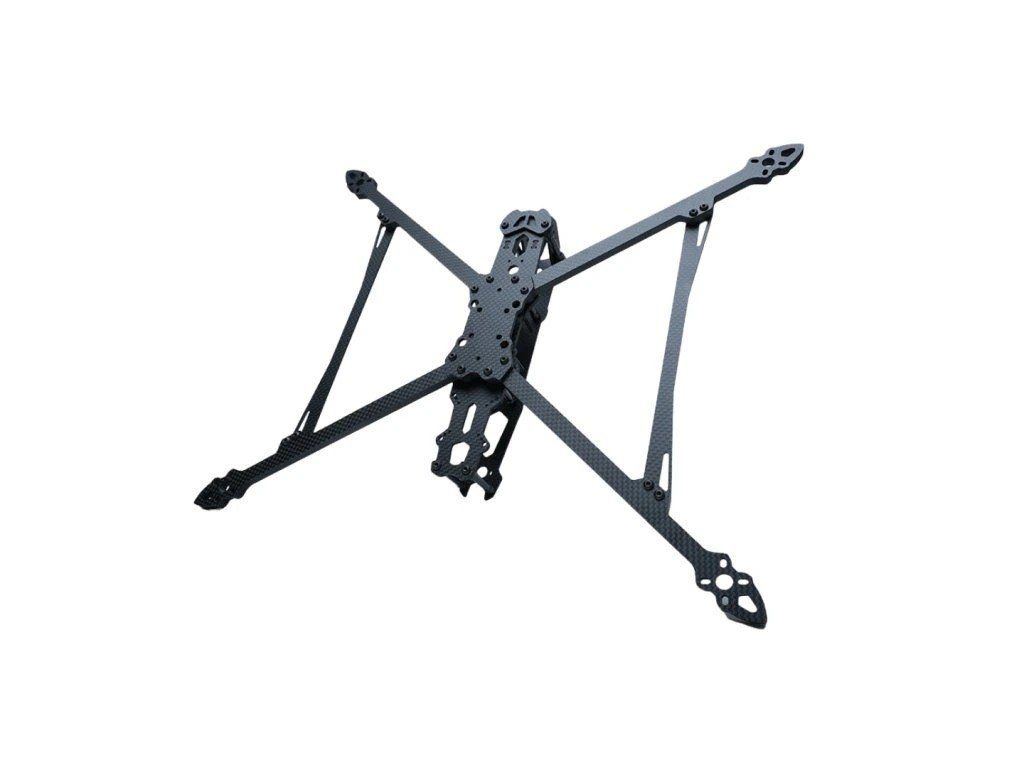

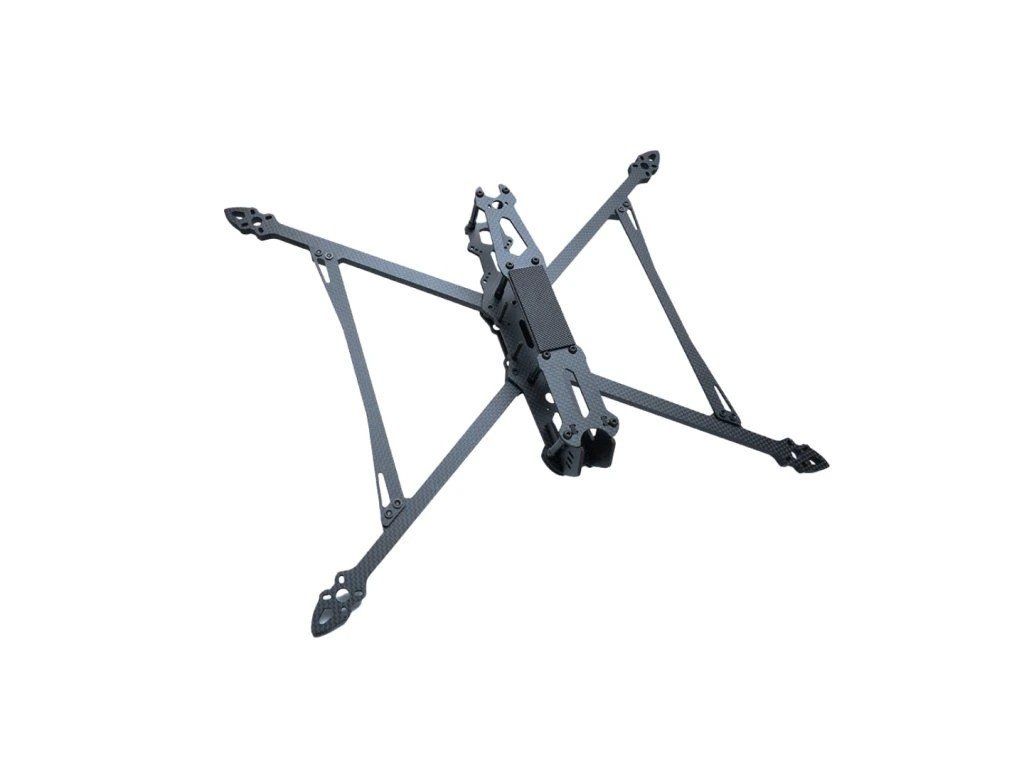

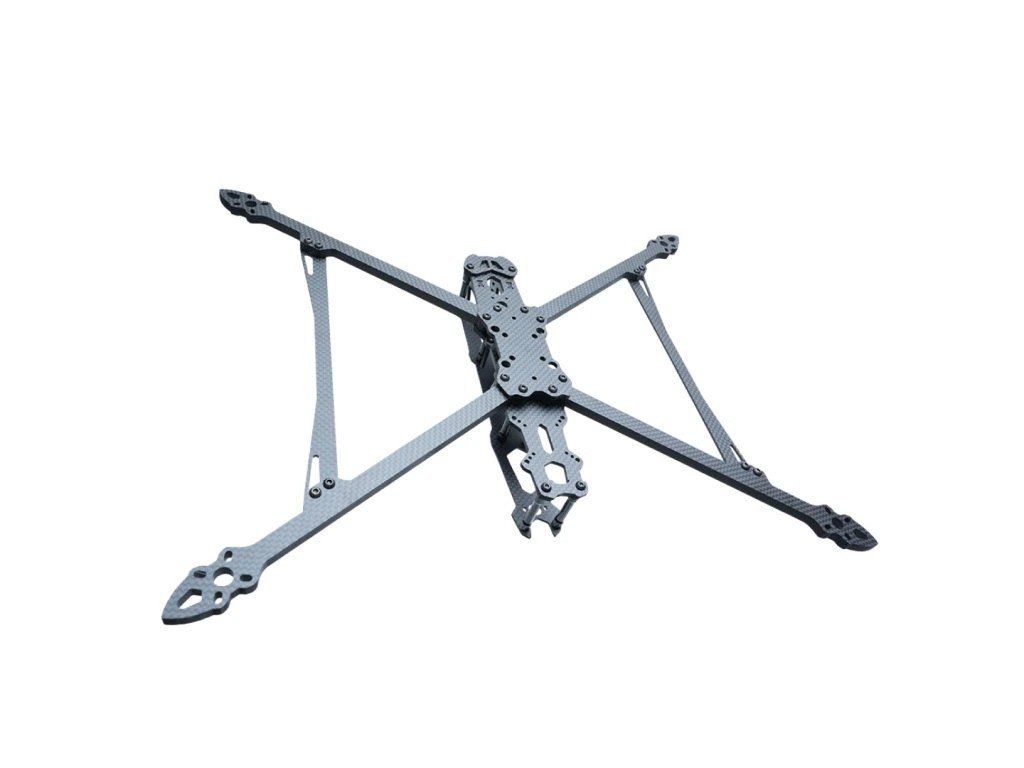

The Pilotix Mark4-10 V3 10" is a quadcopter H-frame FPV frame constructed from Carbon T300 material. This 10-inch frame features a 427mm wheelbase and weighs 234 grams, designed for larger FPV builds requiring extended flight capabilities.
The frame accommodates standard flight controller and ESC stacks with 30.5 x 30.5mm M3 mounting. VTX mounting options include 20 x 20mm M2, 25 x 25mm M2, and 30.5 x 30.5mm M3 patterns. Motor mounting supports both 16 x 16mm M2 and 19 x 19mm M3 configurations. The top plate measures 201 x 41 x 2mm, the middle plate measures 205 x 50 x 3mm, and the bottom plate measures 81 x 48 x 3mm. Arms measure 225 x 11 x 7mm, with 35mm mounting distance between the top and middle plates.

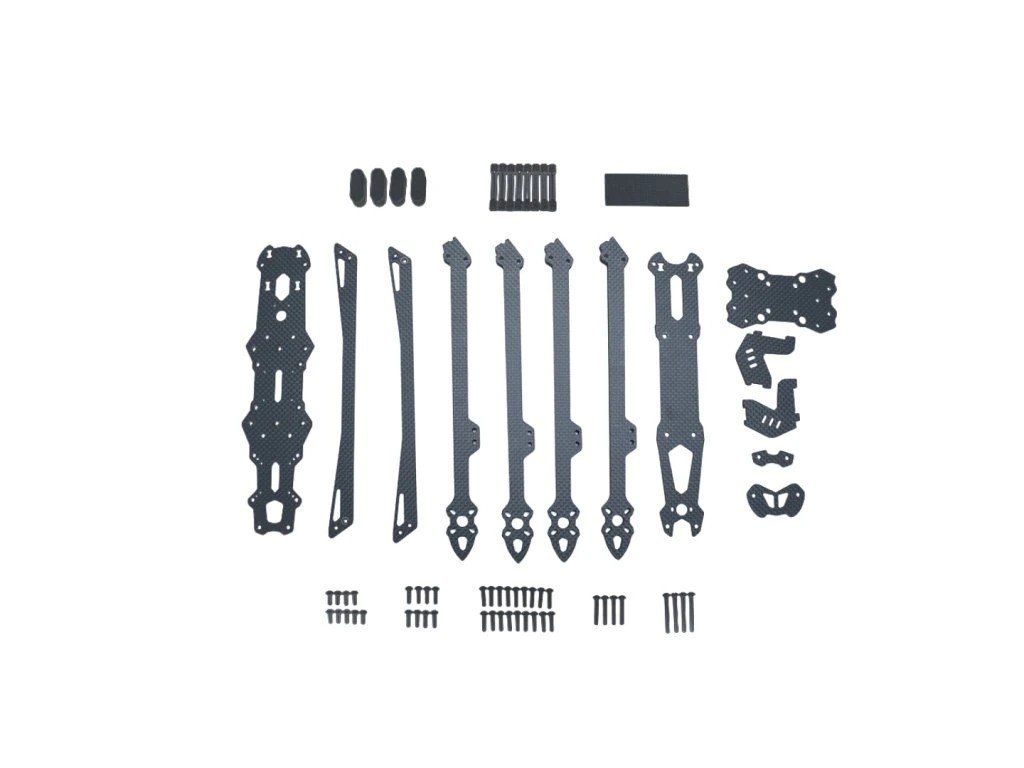

The package includes frame parts, aluminium columns, screws, battery pad, and battery strap. This product comes with a 2-year warranty.
Product details
| Model |
Mark4-10 V3 10 inch
|
| SKU |
7275
|
Mechanical specification
| Frame material |
Carbon T300
|
| Frame type |
Quadcopter H-frame
|
| Frame size |
10"
|
| Wheelbase |
427 mm
|
| Stack height |
35 mm
|
| Bottom plate dimensions |
81 х 48 х 3 mm
|
| Middle plate dimensions |
205 х 50 х 3 mm
|
| Top plate dimensions |
201 х 41 х 2 mm
|
| Arms dimensions |
225 х 11 х 7 mm
|
| FC & ESC mounting |
30.5 x 30.5 mm (M3)
|
| VTX mounting |
20 х 20 mm (М2),
25 х 25 mm (М2),
30.5 х 30.5 mm (M3)
|
| Motor mounting |
16 x 16 mm (M2),
19 x 19 mm (M3)
|
| Weight |
234 g
|
Common
| Package contents |
Frame parts,
Aluminium columns,
Screws,
Battert strap,
Battery pad
|
| Warranty |
2 years
|
