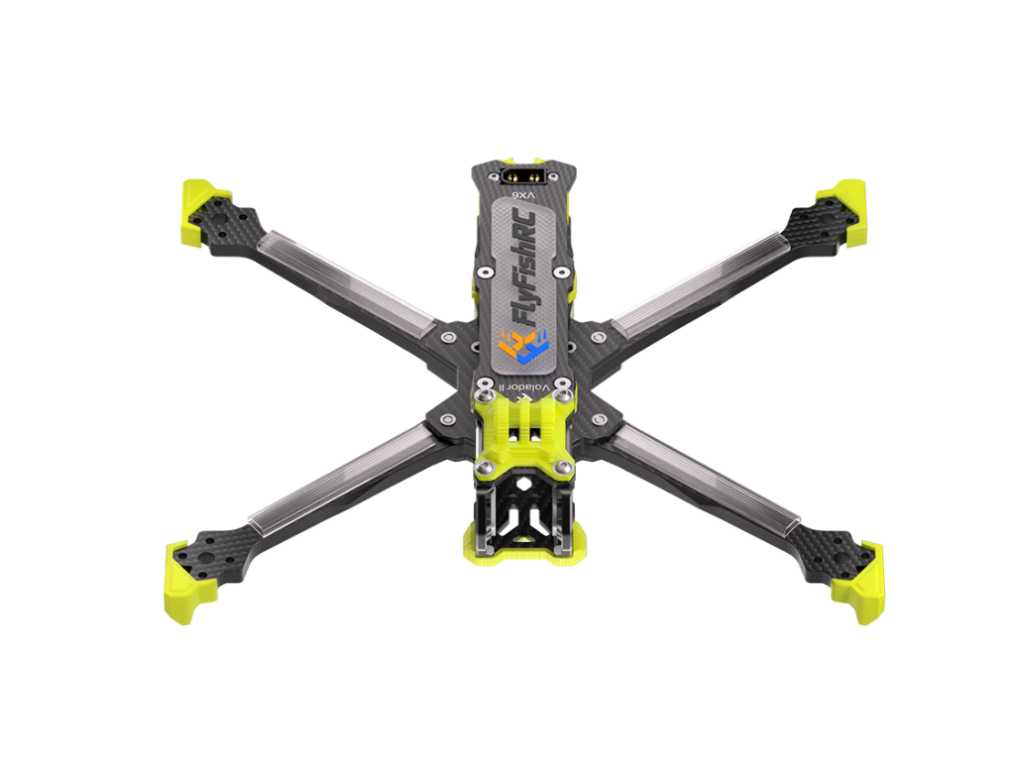

Frame FlyFishRC Volador II VX6 O4 Pro T700 Crystal Yellow

Product detailed description

Frame FlyFishRC Volador II VX6 O4 Pro T700 Crystal Yellow

The FlyFishRC Volador II VX6 is a high-performance 6-inch FPV frame designed for freestyle flying and compatible with DJI O4 Air Unit Pro, as well as analog and other HD FPV systems. Its Squashed X configuration provides responsive and precise flight characteristics, while the high-quality T700 carbon fiber construction and reinforced structure offer excellent durability and vibration resistance.

Features:
- High-strength T700 carbon fiber construction with CNC aluminum components
- Squashed X configuration designed for precise control and freestyle flying
- Tight structural design and keystone reinforcement minimize vibration and resonance
- Dedicated silicone shock-absorbing camera mount for DJI O4 Air Unit Pro
- Compatible with 19mm and 20mm FPV cameras
- Integrated XT60 connector for improved cable protection and convenient battery connection
- Motor wire protection tubes for improved durability
- Compatible with analog and HD FPV systems
- High-strength 12.9-grade hardware with pre-applied Loctite threadlocker

Specifications:
Model: Volador II VX6 O4 Pro
Frame Type: 6-Inch FPV Freestyle Frame
Configuration: Squashed X
Material: T700 Carbon Fiber
Arm Thickness: 6mm
Top Plate Thickness: 2.5mm
Middle Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Keystone Thickness: 5mm
Side Plate Thickness: 2mm
CNC Side Plate Thickness: 5mm
Propeller Size: 6–6.1 inch
FPV Camera Mounting: 19mm / 20mm
Stack Mounting: 20x20mm / 30.5x30.5mm (M3)
VTX Mounting: 20x20mm / 25.5x25.5mm (M2)
Motor Mounting: 16x16mm (Ø3mm)
Wheelbase: 268mm
Overall Dimensions: 209x159mm
Weight: 188.2g with TPU parts
Color: Crystal Yellow
Compatibility: DJI O4 Air Unit Pro, analog and HD FPV systems

Package includes:
1x Frame FlyFishRC Volador II VX6 O4 Pro T700 Crystal Yellow
