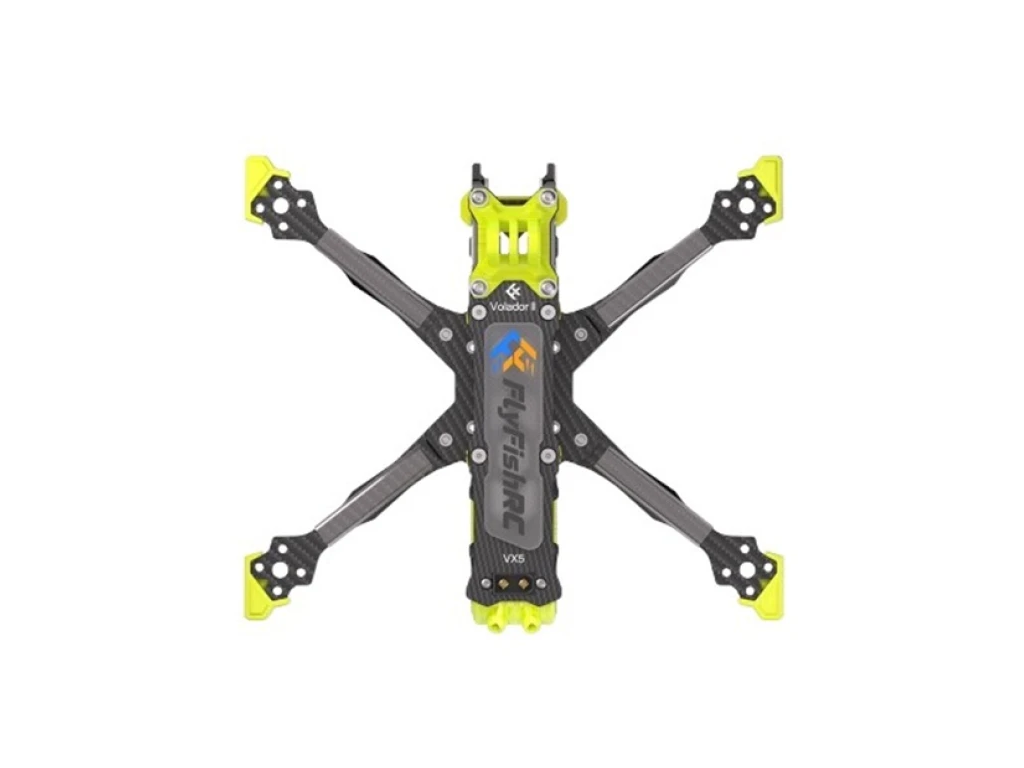

Frame FlyFishRC Volador II VX5 O4 Pro T700 Crystal Yellow

Product detailed description

Frame FlyFishRC Volador II VX5 O4 Pro T700 Crystal Yellow

The FlyFishRC Volador II VX5 is a high-performance 5-inch FPV freestyle frame designed for DJI O4 Air Unit Pro and other analog and HD FPV systems. Its Squashed X configuration, high-strength T700 carbon fiber construction, reinforced CNC aluminum components, and tight-fitting structure provide excellent durability, rigidity, vibration control, and broad electronics compatibility.

Features:
- High-strength T700 carbon fiber construction with reinforced CNC aluminum components
- Squashed X geometry optimized for precise control and freestyle flying
- Tight structural design with keystone reinforcement to minimize resonance and arm vibration
- Integrated XT60 connector and anti-slip battery pad for secure and reliable power connection
- Dedicated silicone shock absorption and CNC camera plates for DJI O4 Air Unit Pro
- High electronics compatibility with 19mm and 20mm FPV cameras
- Durable TPU components and motor wire protection tubes
- Premium 12.9-grade hardware with pre-applied Loctite threadlocker

Specifications:
Model: Volador II VX5 O4 Pro
Frame Type: 5-inch FPV Freestyle Frame
Configuration: Squashed X
Material: T700 Carbon Fiber
Arm Thickness: 6mm
Top Plate Thickness: 2.5mm
Middle Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Keystone Thickness: 5mm
Side Plate Thickness: 2mm
CNC Side Plate Thickness: 5mm
Propeller Size: 5–5.1 inch
FPV Camera Spacing: 19mm / 20mm
Stack Mounting: 20x20mm / 30.5x30.5mm (M3)
VTX Mounting: 20x20mm / 25.5x25.5mm (M2)
Motor Mounting: 16x16mm (Ø3mm)
Wheelbase: 225mm
Overall Dimensions: 177x165mm
Weight: 177.4g with TPU parts
Color: Yellow
Compatibility: DJI O4 Air Unit Pro, analog and HD FPV systems

Package includes:
1x Frame FlyFishRC Volador II VX5 O4 Pro T700 Crystal Yellow
