Frame FlyFishRC Volador II VD5 O4 Pro Deadcat FPV LR T700 Black

Product detailed description

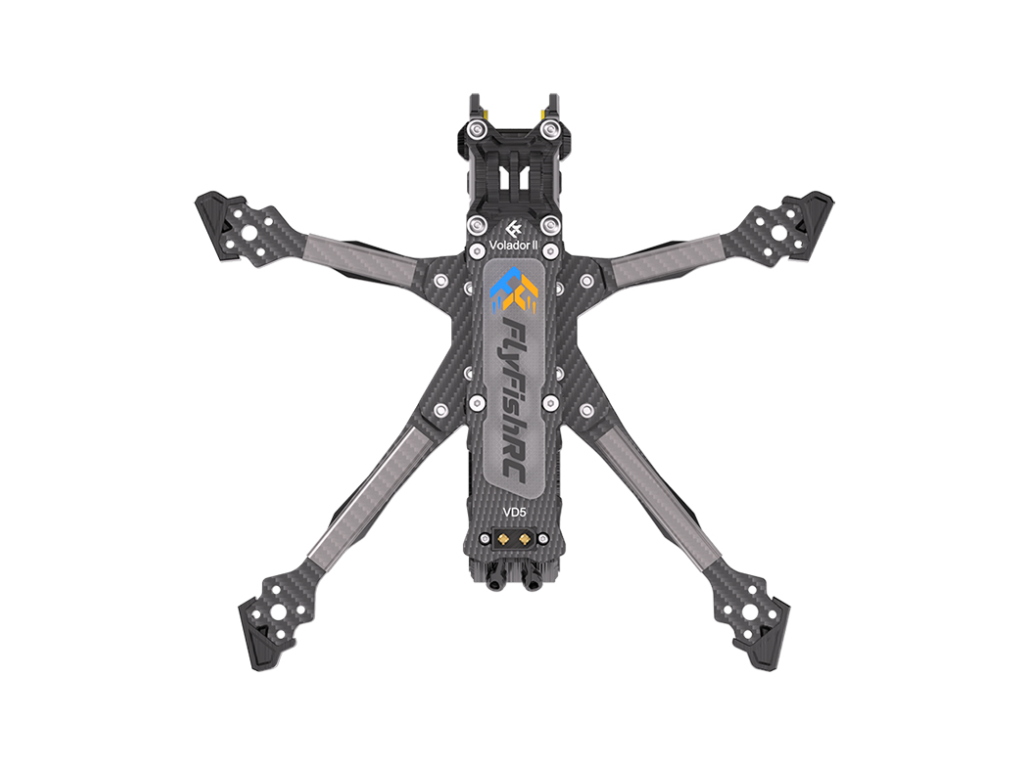

Frame FlyFishRC Volador II VD5 O4 Pro Deadcat FPV LR T700 Black

The FlyFishRC Volador II VD5 is a high-performance 5-inch FPV frame featuring a Deadcat configuration that keeps propellers out of the camera view, making it ideal for long-range and cinematic FPV applications. Constructed from high-quality T700 carbon fiber and reinforced with CNC aluminum components, the frame offers excellent durability, vibration resistance, and broad compatibility with analog and HD FPV systems, including the DJI O4 Air Unit Pro.

Features:
- High-strength T700 carbon fiber construction with CNC aluminum components
- Deadcat frame geometry keeps propellers out of the camera view
- Dedicated silicone shock-absorbing camera mount for DJI O4 Air Unit Pro
- Compatible with 19mm and 20mm FPV cameras
- Integrated XT60 connector for improved cable protection and convenient battery connection
- Anti-slip battery pad and durable TPU components
- Motor wire protection tubes for improved durability
- Broad compatibility with analog and HD FPV electronics
- High-strength hardware with pre-applied Loctite threadlocker

Specifications:
Model: Volador II VD5 O4 Pro
Frame Type: 5-inch FPV Deadcat Frame
Configuration: Deadcat
Material: T700 Carbon Fiber
Arm Thickness: 6mm
Top Plate Thickness: 2.5mm
Middle Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Keystone Thickness: 5mm
Side Plate Thickness: 2mm
CNC Side Plate Thickness: 5mm
Propeller Size: 5–5.1 inch
FPV Camera Mounting: 19mm / 20mm
Stack Mounting: 20x20mm / 30.5x30.5mm (M3)
VTX Mounting: 20x20mm / 25.5x25.5mm (M2)
Motor Mounting: 16x16mm (Ø3mm)
Wheelbase: 225mm
Overall Dimensions: 190x136mm
Weight: 186.4g with TPU parts
Color: Black
Compatibility: DJI O4 Air Unit Pro, analog and HD FPV systems

Package includes:
1x Frame FlyFishRC Volador II VD5 O4 Pro Deadcat FPV LR T700 Black
