Frame FlyFishRC Fifty5 O4 Pro Black

Product detailed description

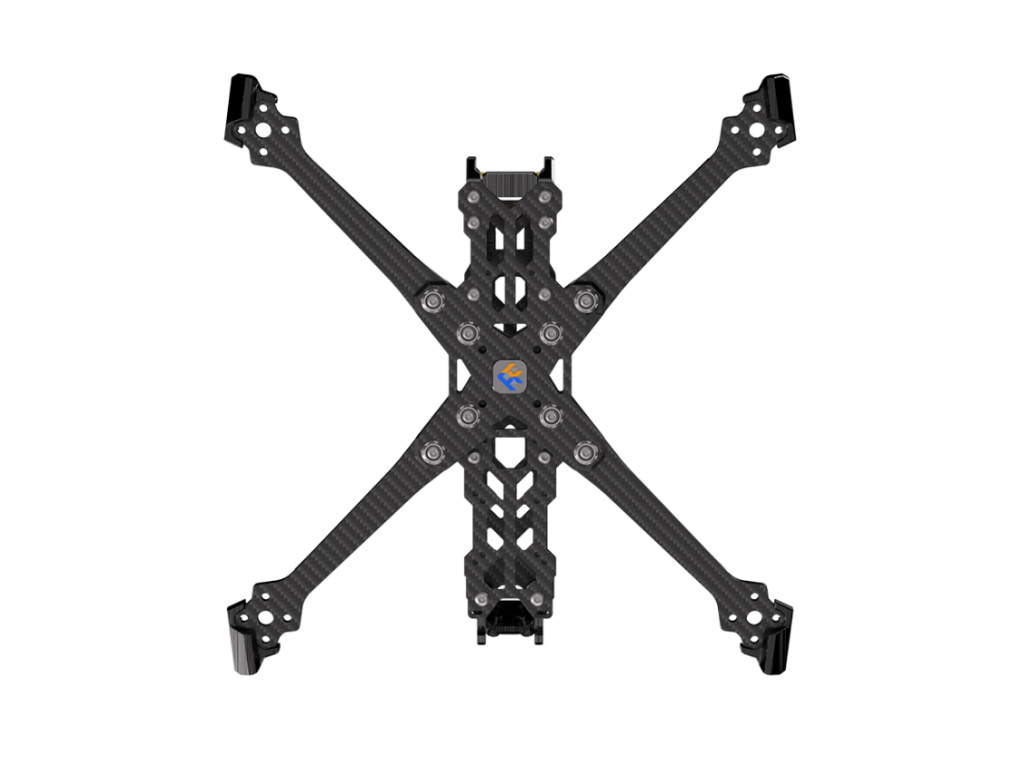

Frame FlyFishRC Fifty5 O4 Pro Black

The FlyFishRC FIFTY5 is a lightweight and durable 5.5-inch freestyle FPV frame designed to combine the agility of a 5-inch platform with the strength and payload capability of a larger frame. Built from high-quality T700 carbon fiber and featuring CNC aluminum camera plates, it supports both 5-inch and 5.5-inch propellers and is suitable for freestyle flying, cinematic footage, and high-speed chasing.

Features:
- Lightweight and durable True-X freestyle frame design
- High-quality T700 carbon fiber construction
- Designed for both 5-inch and 5.5-inch propellers
- Combines agile handling with increased payload capability
- Strong 5 mm carbon fiber arms
- CNC aluminum camera plates provide enhanced camera protection
- Compatible with 19 mm and 20 mm FPV cameras
- Silicone shock absorbers for the DJI O4 Air Unit help reduce vibrations and jello
- Smooth carbon fiber surfaces with chamfered edges
- High-quality TPU components included
- Suitable for analog and HD FPV builds
- Supports cinematic flying, freestyle, and high-speed chasing
- Compatible with 20x20 mm and 30.5x30.5 mm flight stacks
- Multiple VTX mounting patterns for flexible electronics installation
- High-strength 12.9-grade hardware
- Selected screws feature pre-applied Loctite threadlocker

Specifications:
Model: FIFTY5
Product: FPV Freestyle Frame Kit
Geometry: True-X
Wheelbase: 255 mm
Propeller Size: 5–5.5 inch
Carbon Fiber: T700
Arm Thickness: 5 mm
Top Plate Thickness: 2 mm
Middle Plate Thickness: 2.5 mm
Bottom Plate Thickness: 2.5 mm
CNC Camera Plate Thickness: 6 mm
FPV Camera Spacing: 19 mm / 20 mm
Motor Mounting Pattern: 16x16 mm (M3)
Stack Mounting: 20x20 mm / 30.5x30.5 mm (M3)
VTX Mounting: 20x20 mm / 25.5x25.5 mm (M2)
Weight: 127.7 g with TPU parts
Overall Dimensions: 180.3x180.3x33 mm

Package includes:
1x FlyFishRC FIFTY5 O4 Frame Kit
