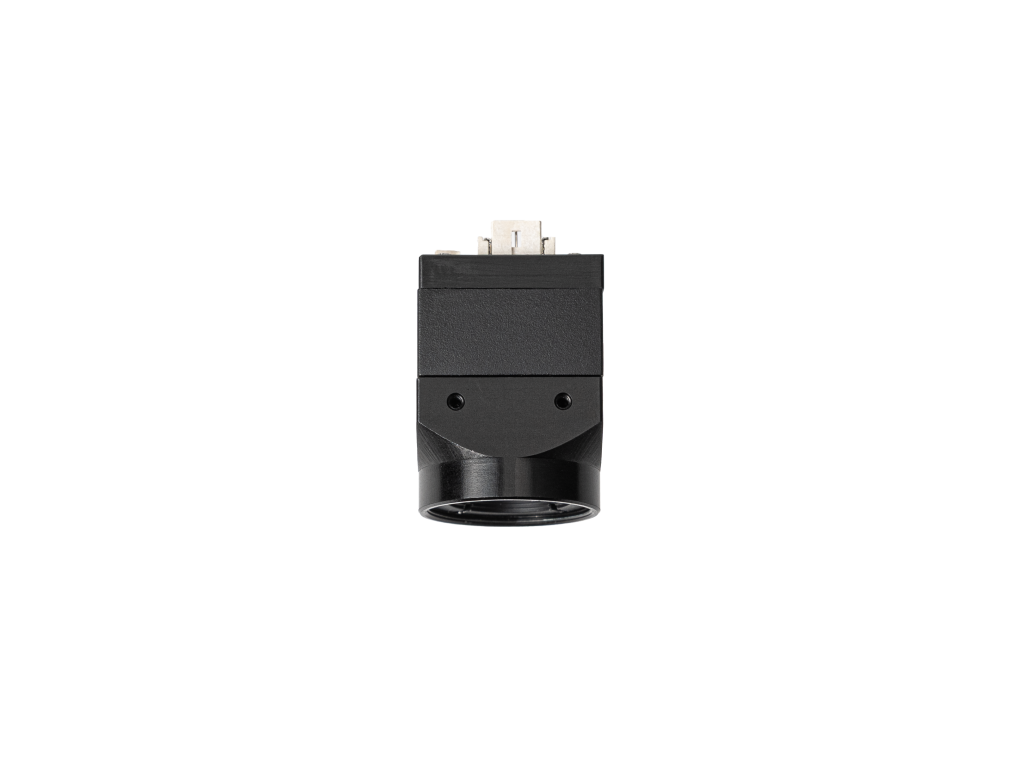

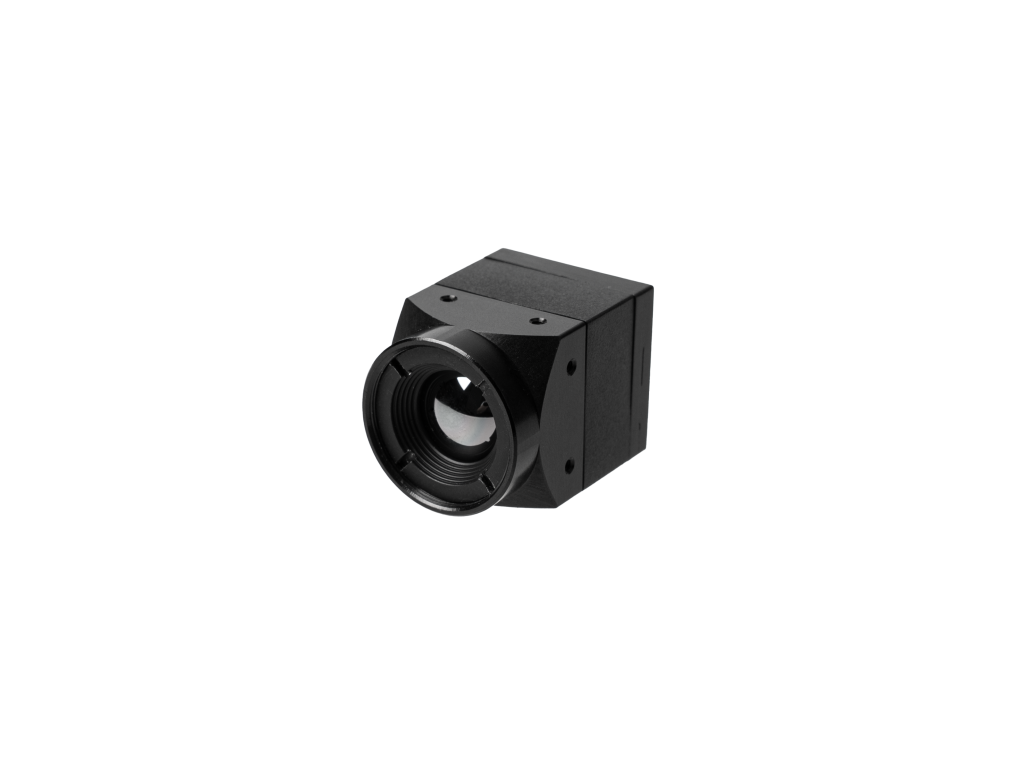

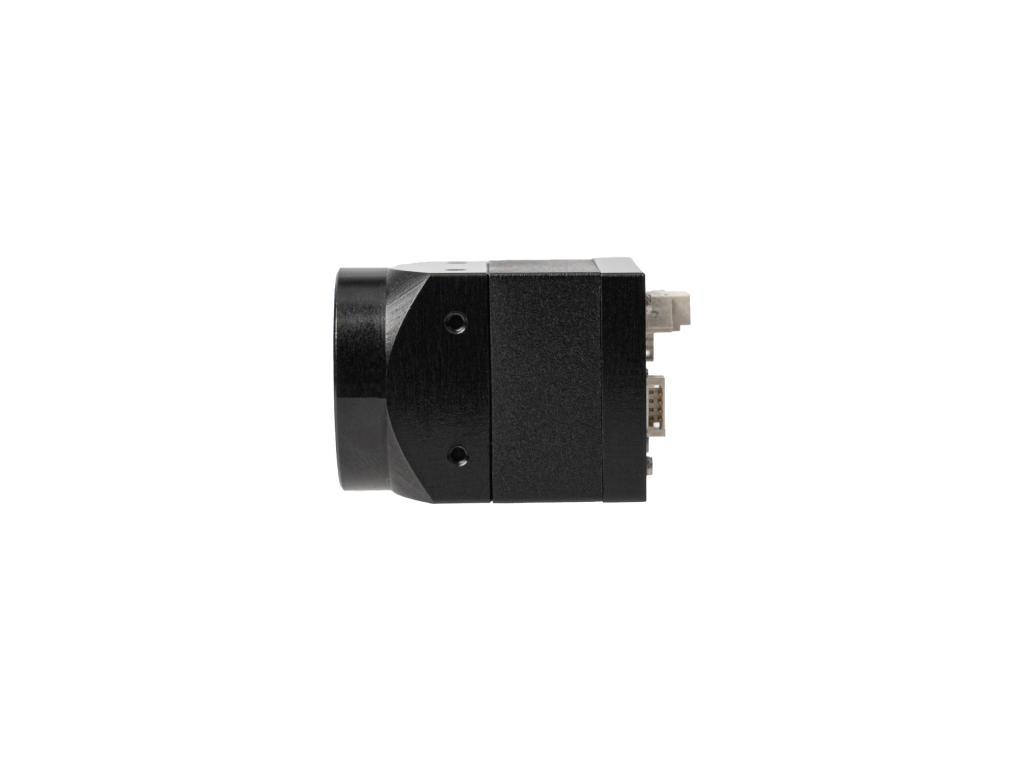

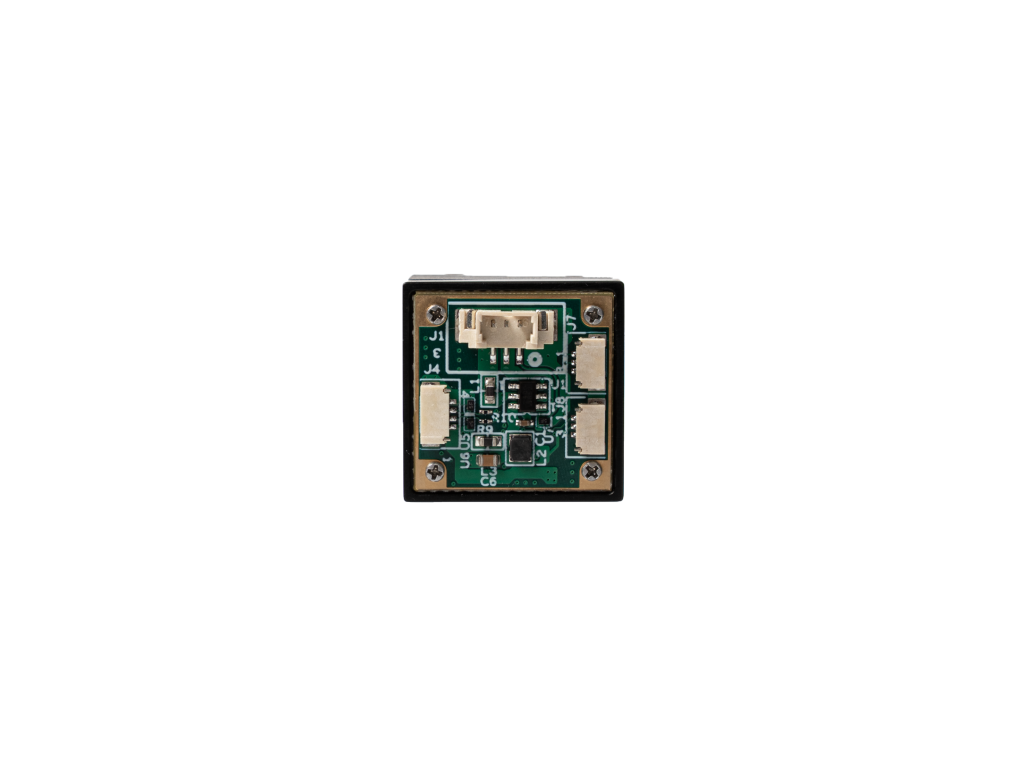

FPV Thermal Camera Pilotix T640 CVBS+USB (4mm)

Product detailed description

FPV Thermal Camera Pilotix T640 CVBS+USB (4mm)

The Pilotix T640 CVBS+USB (4mm) is a compact thermal imaging module designed for FPV drones, robotics, inspection systems, and advanced UAV applications. It provides reliable real-time thermal visualization together with flexible dual-output connectivity, making it suitable for both live piloting and onboard data processing. The 4mm lens offers a balanced field of view that combines wide scene awareness with sufficient detail for target detection and navigation tasks in complex environments.

This module supports analog CVBS output for direct integration with traditional FPV video systems, ensuring low-latency real-time flight viewing. At the same time, it provides a USB digital output, enabling high-quality data transmission to onboard computers, recording devices, or image-processing platforms. This dual-output architecture allows simultaneous live control and thermal data capture, making it highly effective for search missions, technical inspections, autonomous systems, and custom UAV setups.

Features:
- Vanadium oxide uncooled detector
- High-resolution 640x512 thermal imaging
- Dual output system: analog CVBS + USB digital
- Real-time low-latency analog FPV transmission
- High-quality digital data output for recording and processing

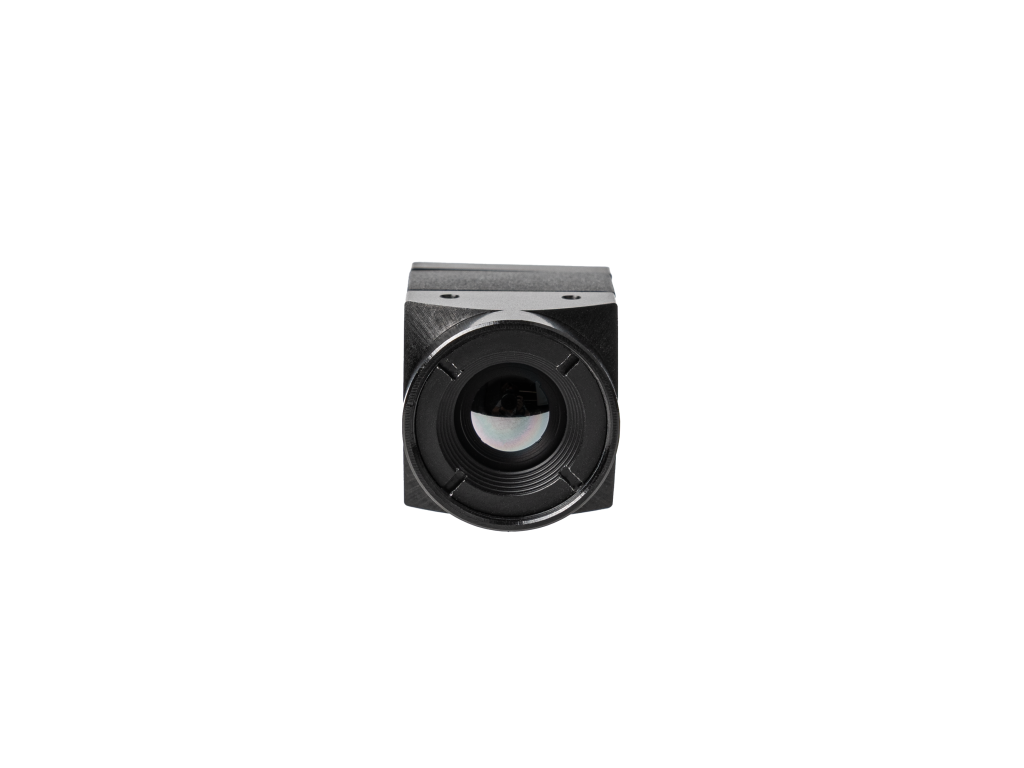

- Balanced 4mm lens for navigation and target observation
- Multiple thermal color palettes
- Manual and automatic brightness/contrast control
- Advanced image enhancement and noise reduction
- Image mirroring support
- Compact lightweight design for UAV integration
- Suitable for harsh environmental conditions and professional use

Basic Information:
Detector Type: Vanadium Oxide Uncooled Infrared Detector
Resolution: 640x512
Lens: 4.1mm F1.2
Frame Rate: 50Hz
Pixel Pitch: 12μm
Field of View (HxVxD): 100°x82°x121.5°
IFOV: 1.32mrad
Spectral Range: 8–14μm
NETD: <40mK @25°C, F#1.0
External Synchronization: 10–50Hz Rising-edge Trigger

Image Adjustment:
Brightness/Contrast: Manual / Automatic
Color Palette: Supported
Image Mirroring: Supported
Image Processing:
Temperature Control Algorithm
2D Noise Reduction
3D Noise Reduction
Histogram Equalization

Electrical Parameters:
Analog Video Output: CVBS (FPV real-time video)
Digital Video Output: USB (UVC for data recording/processing)
Communication Interface: UART
Power Supply Input: 5–12V DC
Typical Power Consumption: ≤0.50W; 0.40W @25°C

Physical Characteristics:
Weight (without lens): 8g
Dimensions (without lens): 21x21mm

Environment Adaptability:
Operating Temperature: -40°C ~ +80°C
Storage Temperature: -45°C ~ +85°C
Humidity: 5% ~ 95%, non-condensing
Vibration: 6.06g random vibration, all axes
Shock Resistance: 8ms sawtooth wave, 3 axes, 6 directions

Package includes:
1x FPV Thermal Camera Pilotix T640 CVBS+USB (4mm)
1x Interface Cable
