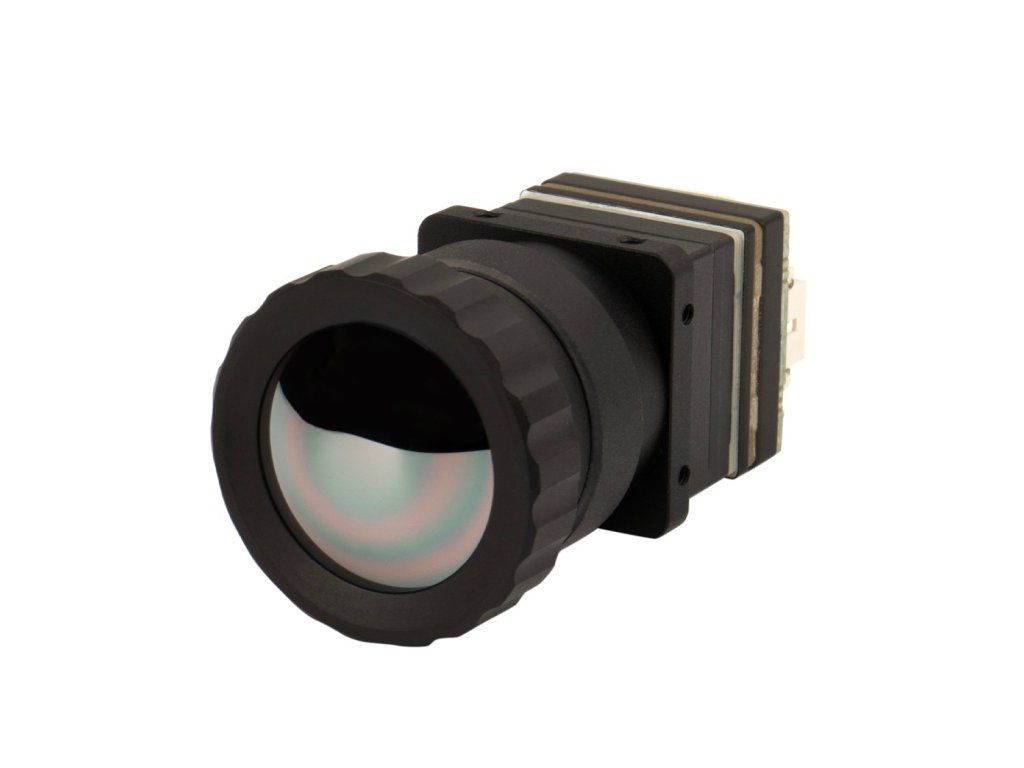

FPV Thermal Camera Pilotix T640 CVBS USB (4mm) CZ

The Pilotix T640 CVBS USB (4mm) is an FPV camera featuring a VO uncooled IRFPA sensor with a resolution of 640 × 512 pixels. This compact thermal imaging camera is designed for first-person view applications with both digital and analog video output capabilities. The camera utilizes a 12-micron pixel size sensor and incorporates both 2D and 3D noise reduction for enhanced image quality. The lens features a 4.1mm focal length with an F1.2 iris, providing a wide 100-degree horizontal field of view and 82-degree vertical field of view. The dual video output options (digital and analog) offer flexibility in integration with various FPV systems. This lightweight unit weighs only 8 grams with compact dimensions of 42 × 20 × 20mm. It operates on an input voltage range of 5 to 12V with 0.5W consumption. The camera functions within an operating temperature range of -20 to 40°C and humidity of 20-95% RH (non-condensing), with storage temperatures from -30 to 50°C. A 2-year warranty is included.
