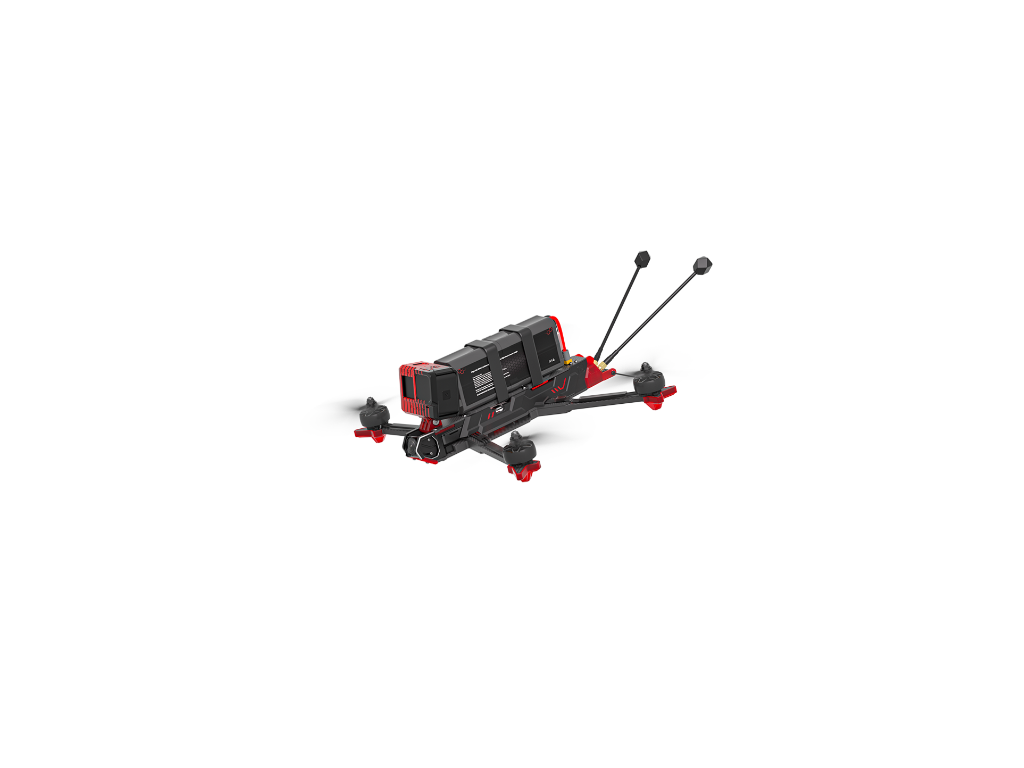

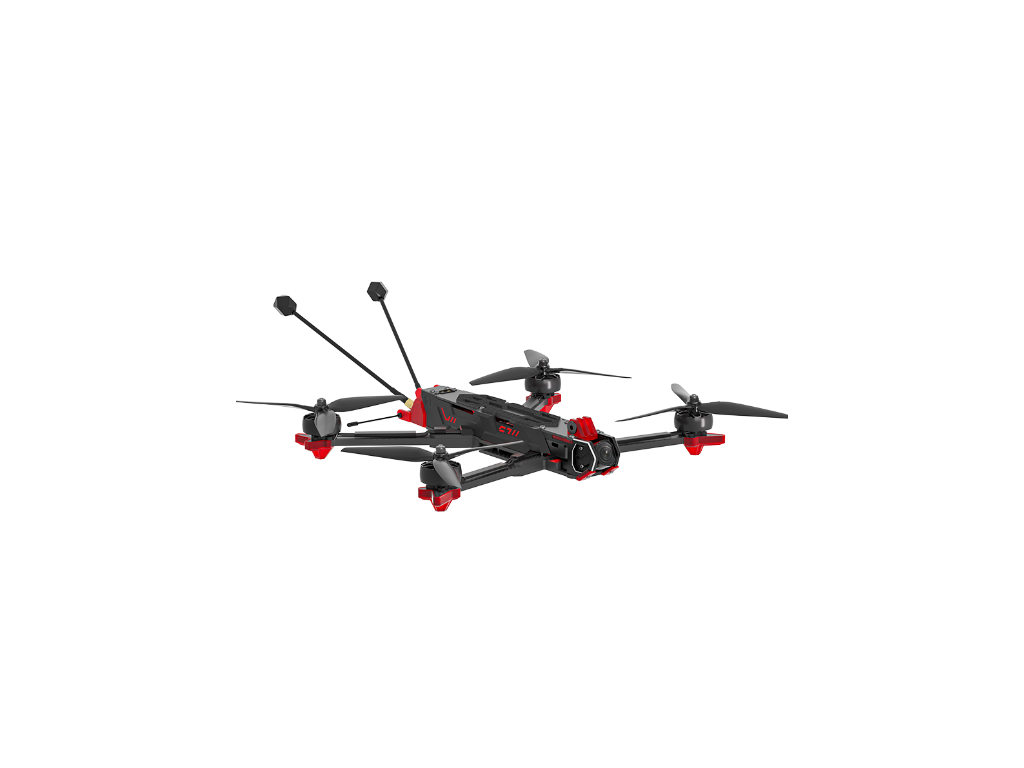

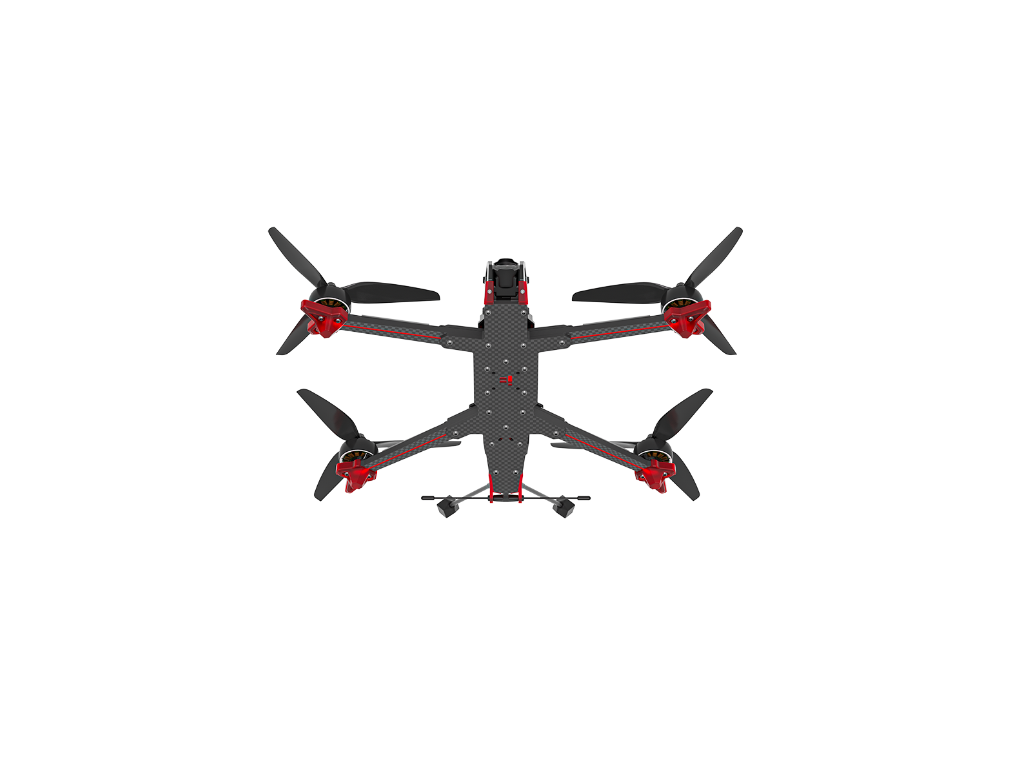

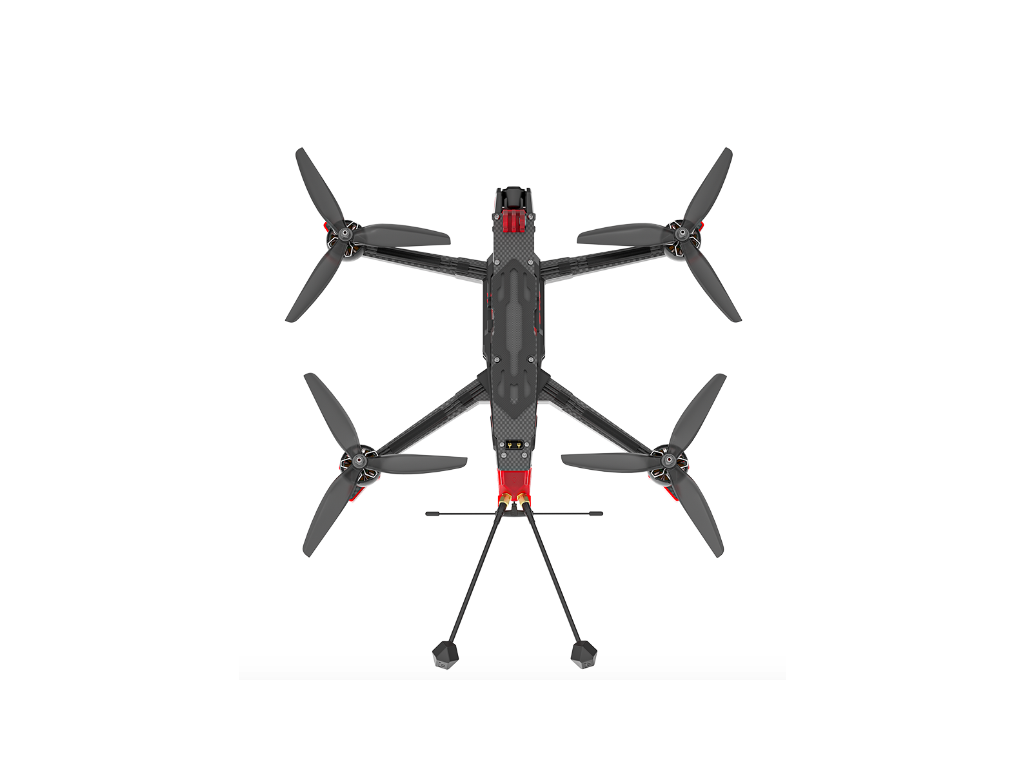

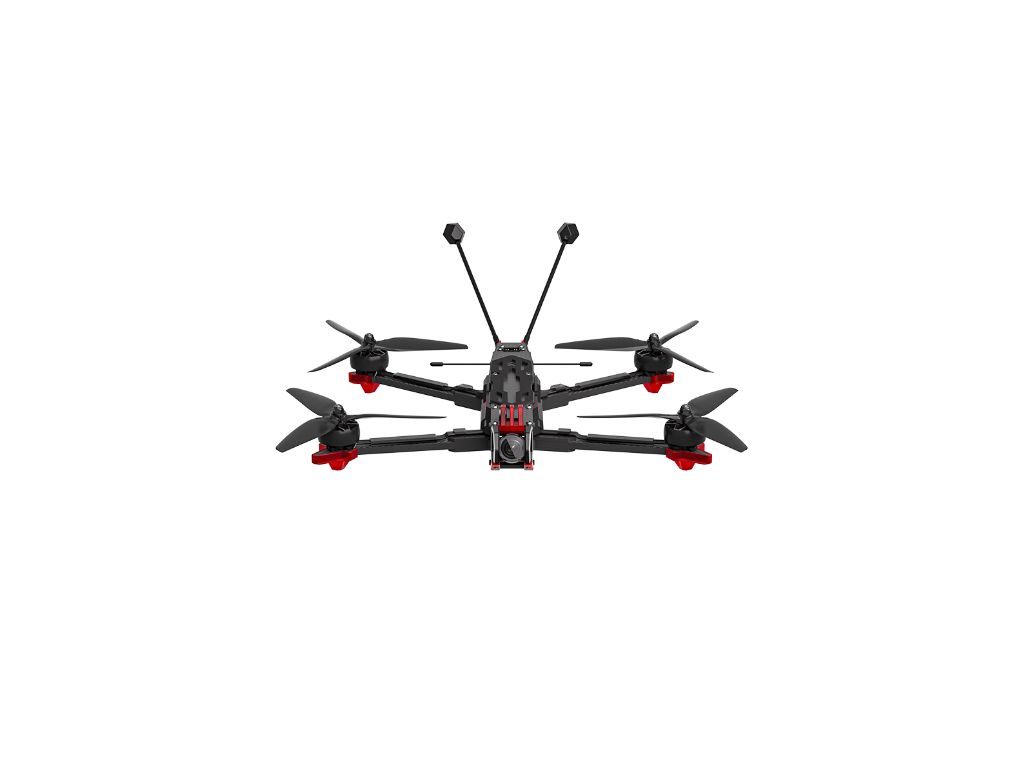

FPV Drone iFlight CineLR 7 O4 Pro BNF ELRS Dualband Diversity GPS Waterproof

Product detailed description

FPV Drone iFlight CineLR 7 O4 Pro BNF ELRS Dualband Diversity GPS Waterproof

FPV Drone iFlight CineLR 7 O4 DJI GPS Waterproof with receiver ELRS 100mW Dualband Diversity RX (2.4GHz/868/915MHz) is a high-performance cinematic FPV drone designed for long-range flights, smooth footage, and freestyle flexibility. Featuring DJI O4 Air Unit Pro, GPS module, and advanced electronics, it delivers powerful performance with immersive video transmission. The drone also offers waterproof protection, allowing safer operation in humid and wet conditions.

Features:
- Innovative frame design with no props in view for clean cinematic shots
- Waterproof construction improving durability in challenging environments
- High-quality digital video system delivering clear and immersive FPV experience
- Powerful propulsion system enabling smooth flight and high-speed performance
- Built-in GPS module enhancing navigation accuracy and flight safety
- Quick-release side panels simplifying maintenance and protecting electronics
- Optimized weight distribution for better stability and control
- Efficient cooling system improving reliability of onboard electronics
- Integrated camera mount for clean and secure action camera installation
- ELRS 100mW Dualband Diversity RX 868/915MHz as well as 2400MHz receiver have outstanding performance and long range capabilities

Specifications:
Product Name: SH CineLR 7 6S O4 HD
Geometry: H-shaped
FC: BLITZ F7 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O4 Air Unit Pro
Frame: 334mm wheelbase
Motor: XING2 2809 1250KV motors
Prop: HQ 7.5X3X3 propellers
Weight: 777±5g(Without Battery)
Takeoff Weight: Approx. 1628±5g (incl. 21700 6S 8000mAh)
Dimensions: 323x269x45mm
Max Speed: 140km/h
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 18min with 6S 3300mAh battery
                                Approx. 25min with 6S 8000mAh battery
Recommended load: 800g
Operating Temperature Range: -20° to 40° C
Antennas: Dual Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Battery plug: XT60
Receiver: iFlight ELRS 100mW Dualband Diversity RX (868/915/2.4GHz)

Video Transmission:
Product Name: DJI O4 Air Unit Pro
Image Sensor: 1/1.3-inch
Lens: FOV: 155°
ISO: 100-25600
Video Resolution: 1080p/100fps H.265
Video Format: MP4, Max Video Bitrate: 130Mbps
Color Mode: Normal Mode/D-Log M
Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
Live View Quality: 1080P@100fps
Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz
Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
Communication Bandwidth: Max 60 MHz
Antenna: Dual antennas
Built-in Storage: 4GB
Supported SD cards: microSD (up to 512GB)
Operating Temperature: -10° to 40° C
Weight: Air Unit (camera module included): Approx. 32 g
Dimensions: Transmission Module: 33.5×33.5×13 mm

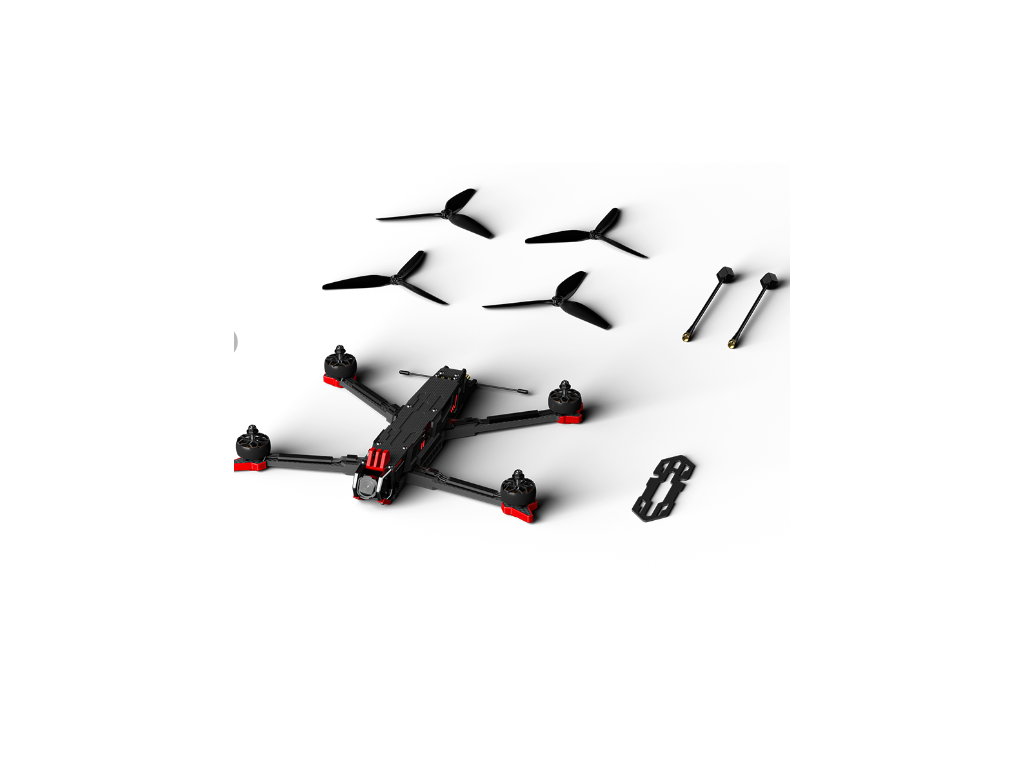

Package includes:
1x FPV Drone iFlight CineLR 7 O4 DJI GPS Waterproof
1x Battery pad
2x 7.5 inch Prop(Pairs)
2x Battery strap
