FPV Drone HappyModel Mobula7 O4 Wide

Product detailed description

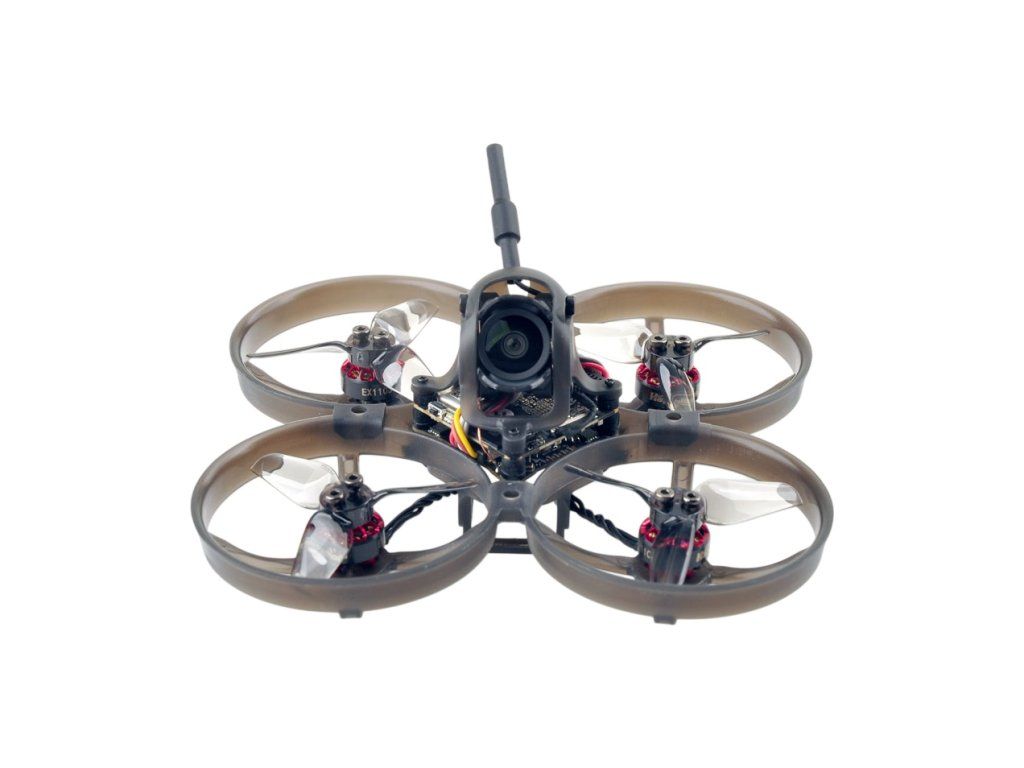

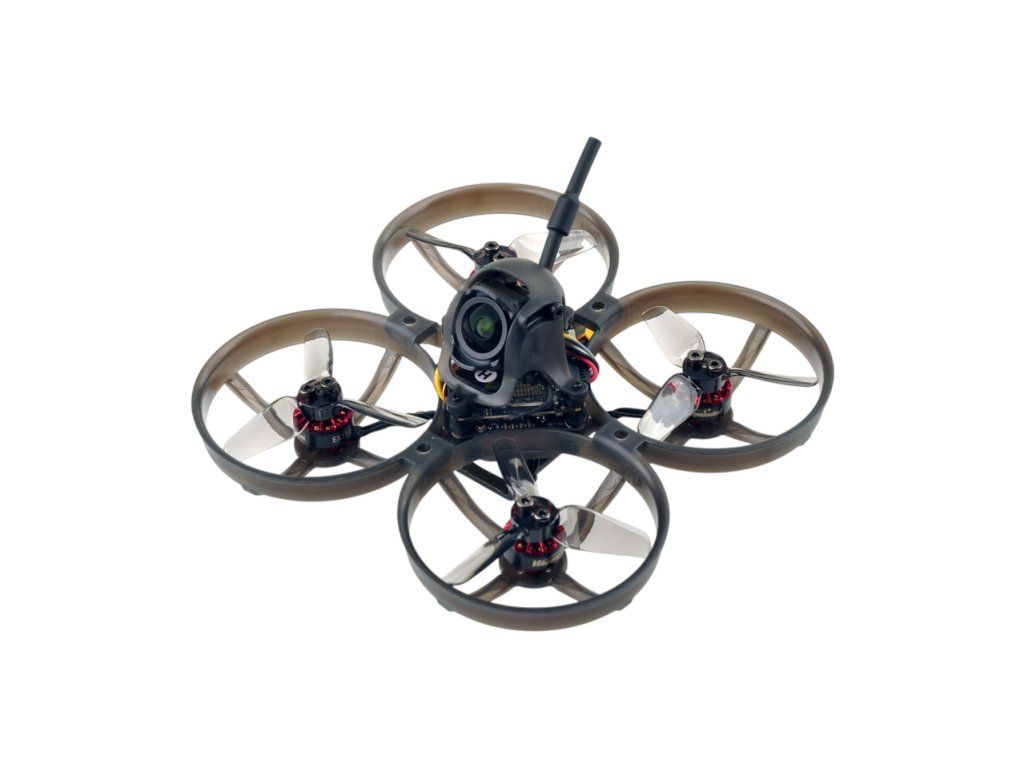

FPV Drone HappyModel Mobula7 O4 Wide

The HappyModel Mobula7 O4 Wide is a lightweight 2S digital HD whoop drone designed for immersive indoor FPV flying. Equipped with the DJI O4 Wide Air Unit, it delivers 1080p digital live video with an ultra-wide field of view and supports onboard recording up to 4K resolution. The integrated ExpressLRS 2.4GHz receiver and CrazyF405 HD AIO flight controller provide responsive control and smooth flight performance in a compact 80mm platform.

Features:
- DJI O4 Wide digital HD video transmission for an immersive FPV experience
- Ultra-wide camera view for an expanded perspective during flight
- 1080p live video transmission with onboard recording up to 4K
- Adjustable canopy designed specifically for the DJI O4 Wide camera
- Lightweight 2S whoop design for indoor FPV flying
- Ducted propellers help protect the propellers and surrounding objects
- Integrated UART ExpressLRS 2.4GHz receiver provides a responsive control link
- CrazyF405 HD AIO flight controller with an STM32F405 processor
- BMI270 gyro, barometer and 8MB blackbox memory
- Built-in 12A 4-in-1 ESC with Bluejay firmware
- Powerful RS1102 10000KV motors for smooth, controlled flight
- Recommended 2S 450–650mAh batteries with an XT30 connector

Specifications:
Model: Mobula7 O4 Wide
Drone Type: Digital HD Micro FPV Whoop
Wheelbase: 80 mm
Dimensions: 107x107x58 mm
Weight: Approx. 38g without battery
Frame: HappyModel M80
Flight Controller: CrazyF405 HD AIO
MCU: STM32F405RGT6, 168MHz, 1MB Flash
Gyro: BMI270
Barometer: SPL06-001 / DPS310 (as specified by the manufacturer)
Blackbox: 8MB
ESC: Built-in 12A 4-in-1, 15A peak for 3 seconds
ESC Firmware: Bluejay
Receiver: Integrated UART ExpressLRS 2.4GHz
Motors: RS1102 10000KV
Motor Configuration: 9N12P
Propellers: HQProp 45mm bi-blade
Propeller Shaft: 1.5mm
Video System: DJI O4 Wide Digital HD
Live View Resolution: 1080p at 30/50/60/100fps, depending on mode
Onboard Recording: Up to 4K
Camera Field of View: Ultra-wide DJI O4 Wide view
Battery Connector: XT30
Battery Input: 1–2 S LiPo/LiPo HV
Recommended Battery: 2S 450–650 mAh
Battery Bay: 17x13 mm
BEC: 5V @ 1A

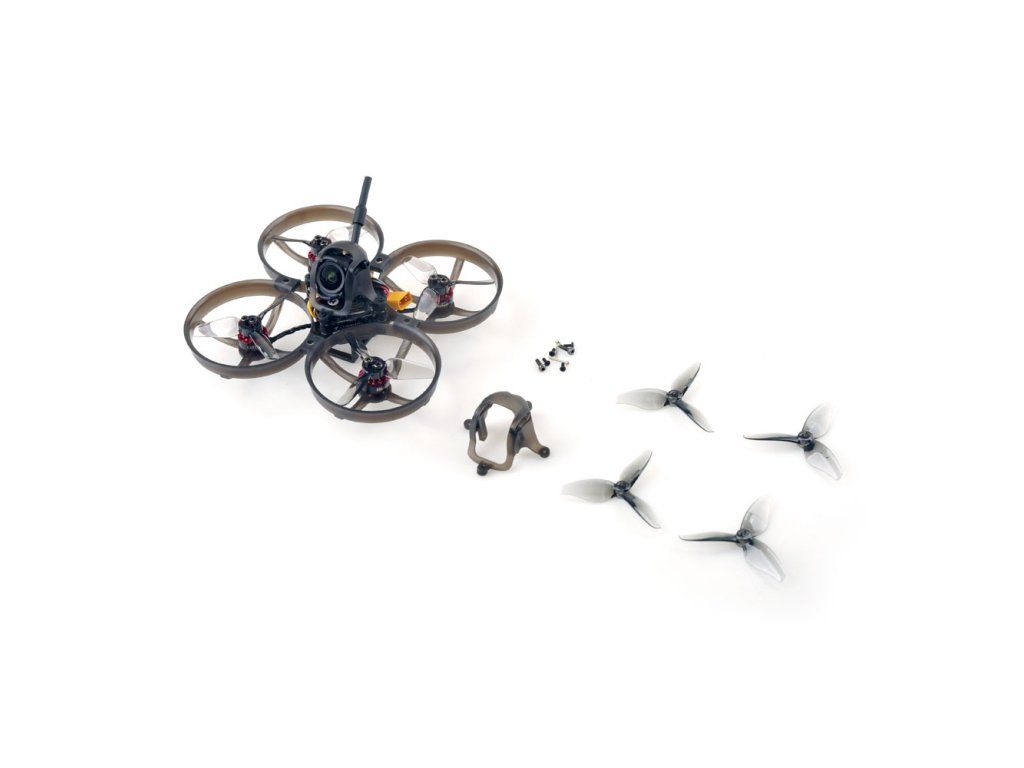

Package includes:
1x HappyModel Mobula7 O4 Wide Drone
1x DJI O4 Wide Air Unit
1x Spare Propeller Set
1x Spare Canopy
1x Cross Screwdriver
1x Propeller Removal Tool
1x Adjustable Canopy for DJI O4 Wide
1x Connection Cable Set
