FPV DIY Kit Pilotix Skyrend 5

Code: 7866
EU Brand
Not rated Rating details
1 373,40 € 1 135 € excl. VAT Measure price:
In stock (>5 pcs)

Detailed information

Product detailed description

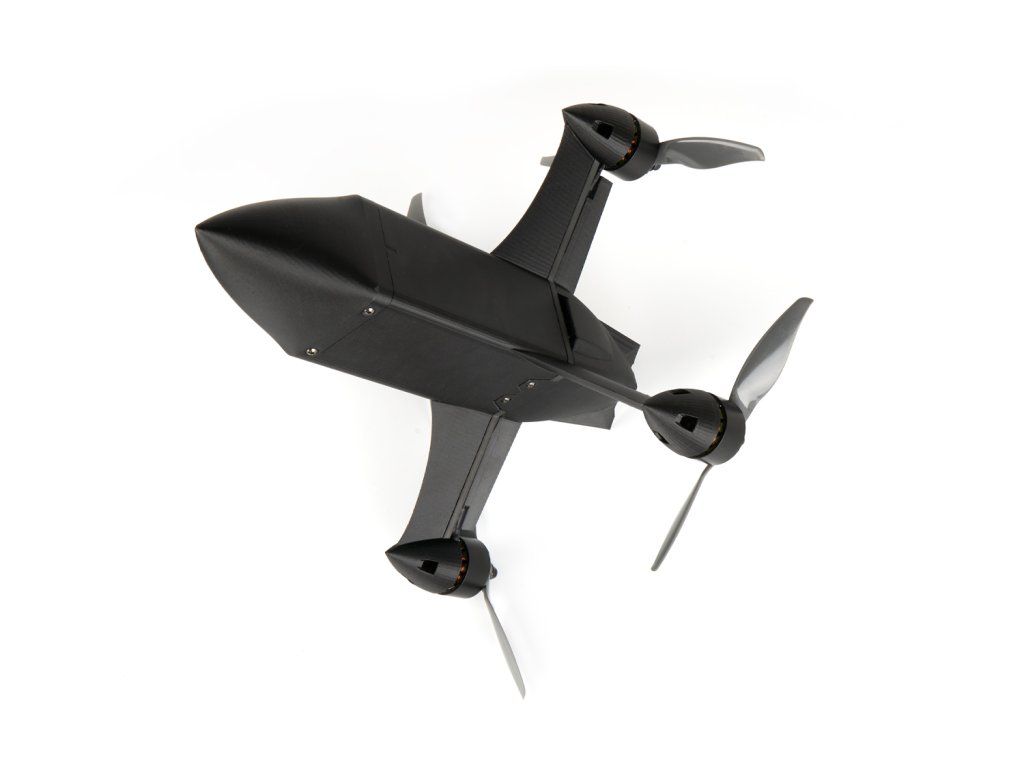

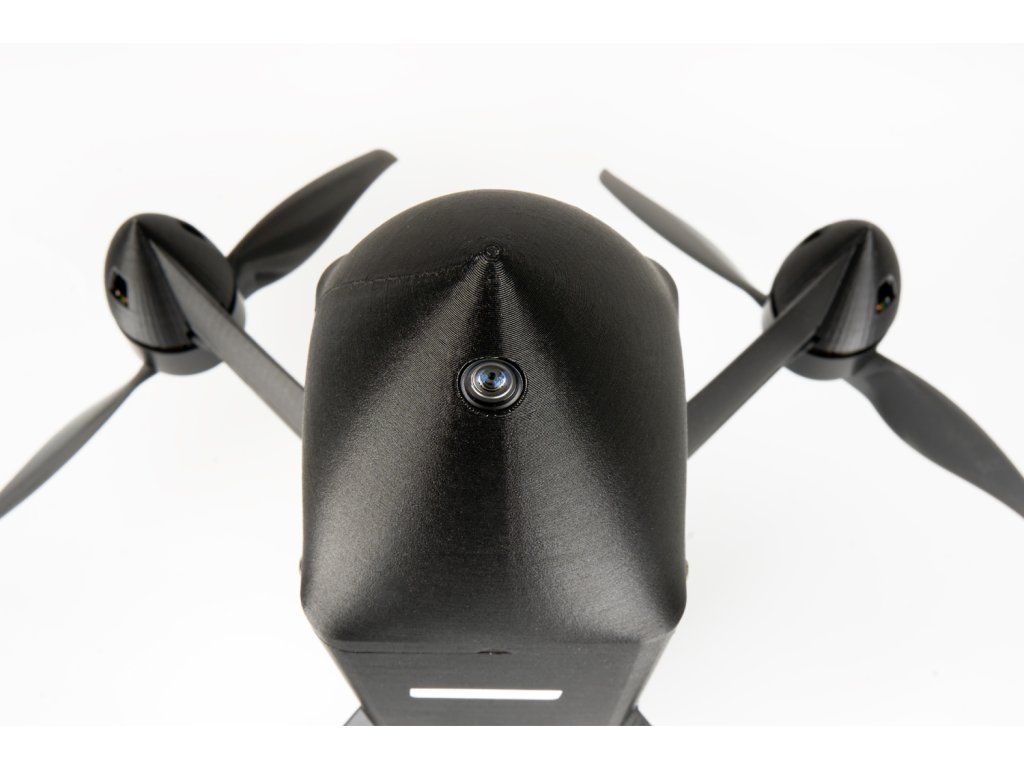

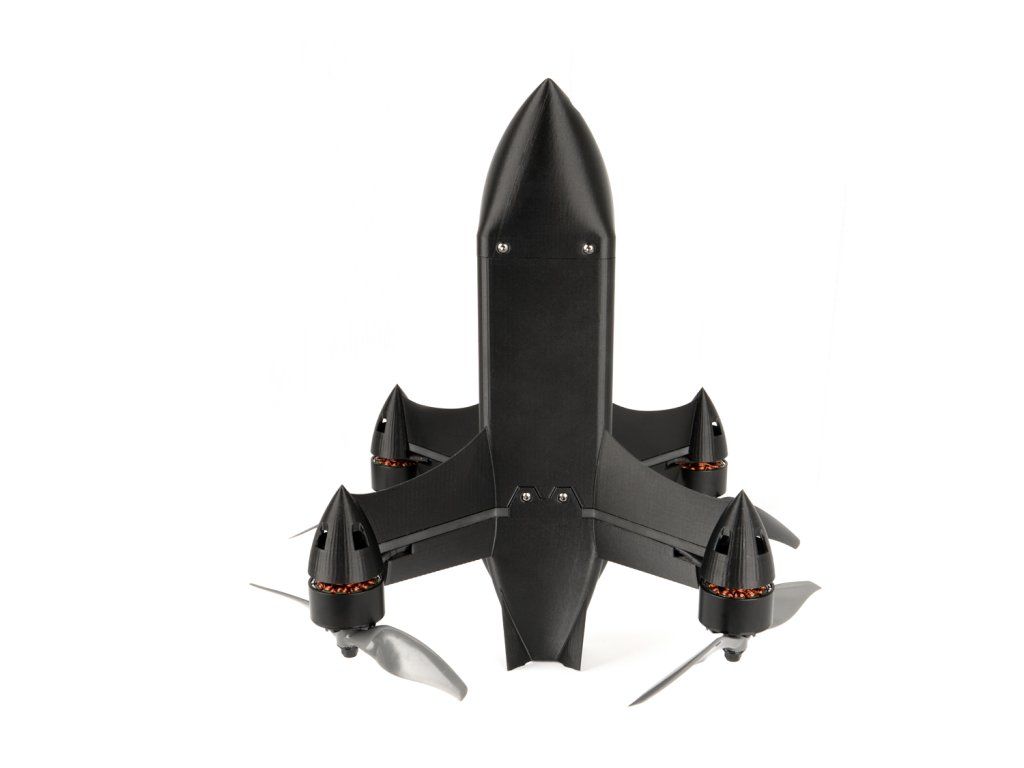

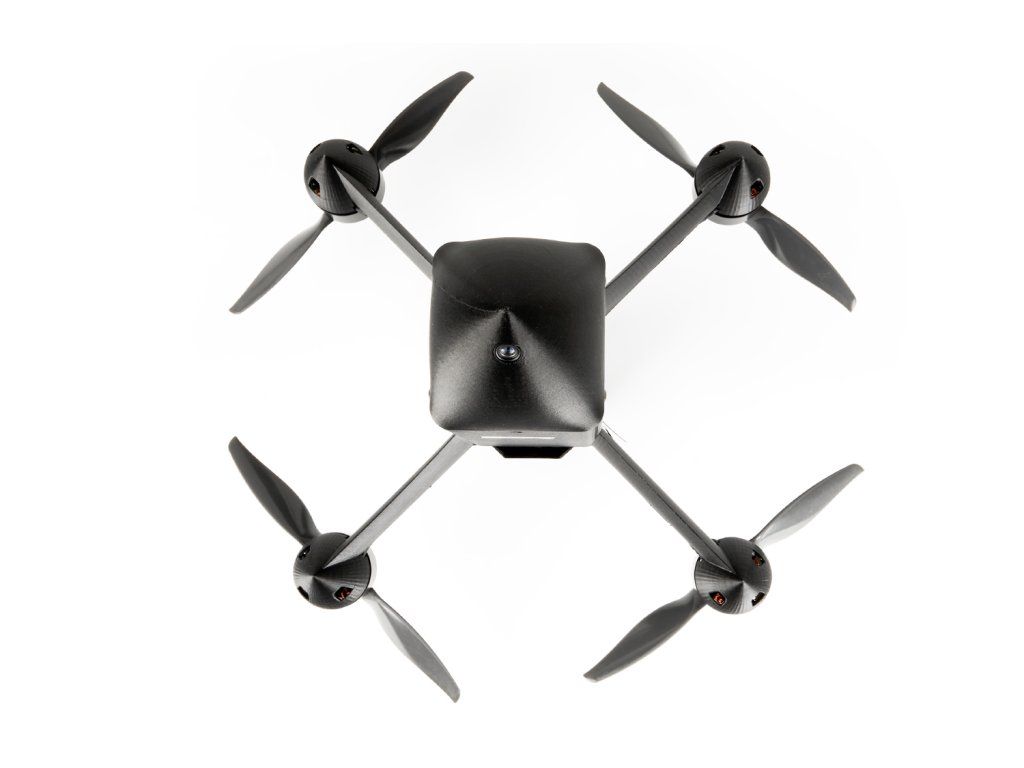

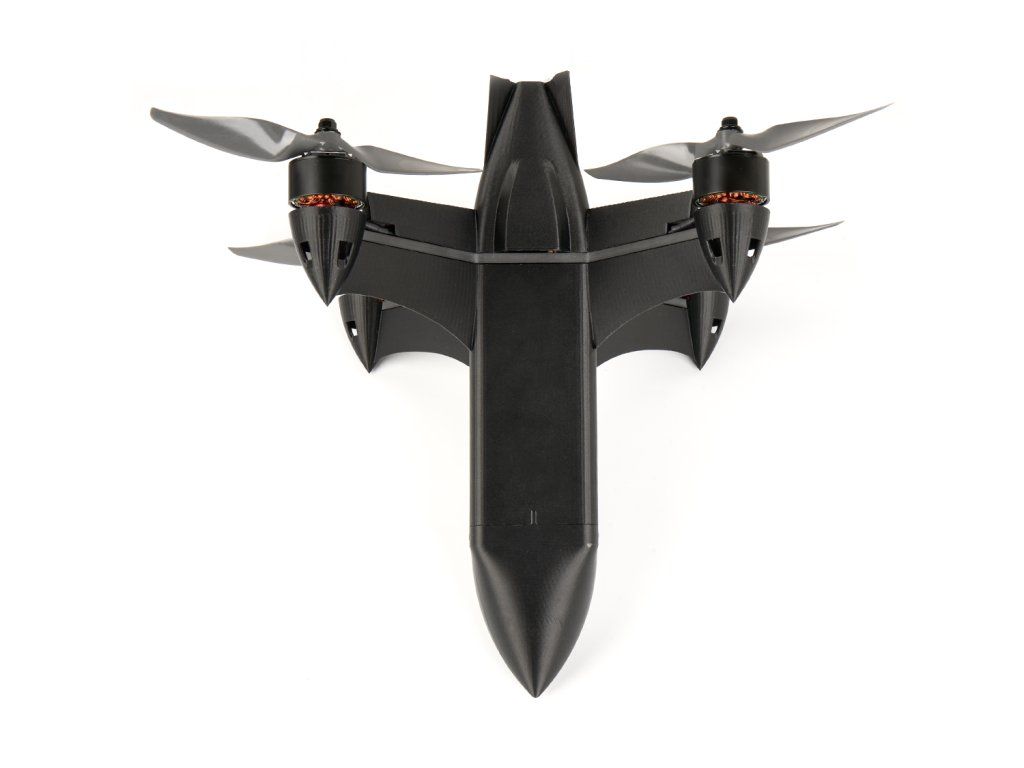

The Pilotix Skyrend 5 is a high-performance FPV drone built around the Matek H743 flight controller with Betaflight 4.5.3 pre-installed. Featuring a robust Carbon T300 arm construction and DJI O4 lite video transmitter, this 275mm wheelbase drone delivers a maximum speed of 450 km/h with a control distance of 20 km.

Key features

  • ✓Powerful ESC system — 4 x 80A ESCs with AM32 firmware
  • ✓GPS navigation — SpeedyBee BZGNSS BZ-251 with 5883 Compass
  • ✓Long-range receiver — Generic 900 RX (750–980 MHz) with ELRS 3.6.0
  • ✓Multi-firmware support — compatible with Ardupilot, INAV, and Betaflight

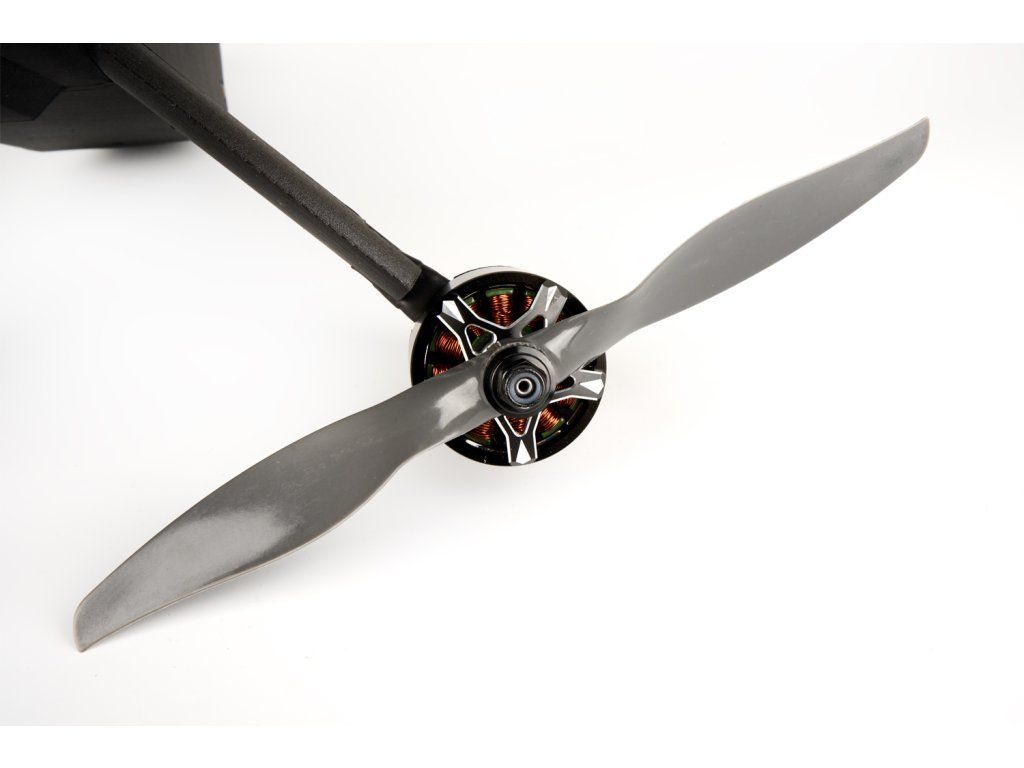

  • ✓Premium motors — 4 x 3115-1500KV with 7x9 propellers
  • ✓Durable frame — Carbon T300 arms with 5mm middle plate
  • ✓Maximum altitude — up to 6 km flight ceiling
  • ✓Lightweight build — 700g total weight

The Skyrend 5 operates reliably in temperatures from -20°C to 40°C with humidity tolerance of 20-95% RH (non-condensing). Recommended battery is 8S 3500 mAh 120C. Backed by a 2-year warranty.

Product details

ModelSkyrend 5
SKU7866

Specifications

VTXDJI O4 lite
GPSSpeedyBee BZGNSS BZ-251 with 5883 Compass
FCMatek H743
FC firmwareBetaflight 4.5.3 (pre-installed)
ESC4 x 80 A
ESC firmwareAM32
Receiver (RX)Generic 900 RX (750–980 MHz)
Receiver (RX) firmwareELRS 3.6.0
Supported Firmware (optional)Ardupilot, INAV, Betaflight
Recommended battery8S 3500 mAh 120C
Batteries (important note)Batteries are not included in the package.
Motors4 x 3115-1500KV
Propellers2 x 7x9E, 2 x 7x9R

Mechanical specification

Maximum flight altitude≤ 6 km
Control distance≤ 20 km
Maximum speed≤ 450 km/h
Housing materialPlastic
Housing dimensions 330 x 70 x 65 mm
Housing thickness3 mm
Arm materialCarbon T300
Middle plate dimensions220 х 220 mm
Middle plate thickness5 mm
Wheelbase275 mm
Weight700g

Operating conditions

Humidity range20-95 % RH (non-condensing)
Operating temperature-20 - 40 °C
Storage temperature-30 - 50 °C

Common

Package contents1 x FC, 1 x ESC, 1 x VTX, 4 x Propellers, 4 x Motors
Warranty2 years

Additional parameters

Category: DIY Drone Kits
Warranty: 2 years
Weight: 0.7 kg
EAN: 5061099733267
Drone Setup: BNF
Receiver Protocol: ELRS 868/915 MHz
Size: 5 inch
Wheelbase: 275 mm
Video System: DJI O4
Drone Power: 8 S
