FPV Camera HobbyDrone Eclipse 009Dual HD Camera + Thermal

Product detailed description

FPV Camera HobbyDrone Eclipse 009Dual HD Camera + Thermal

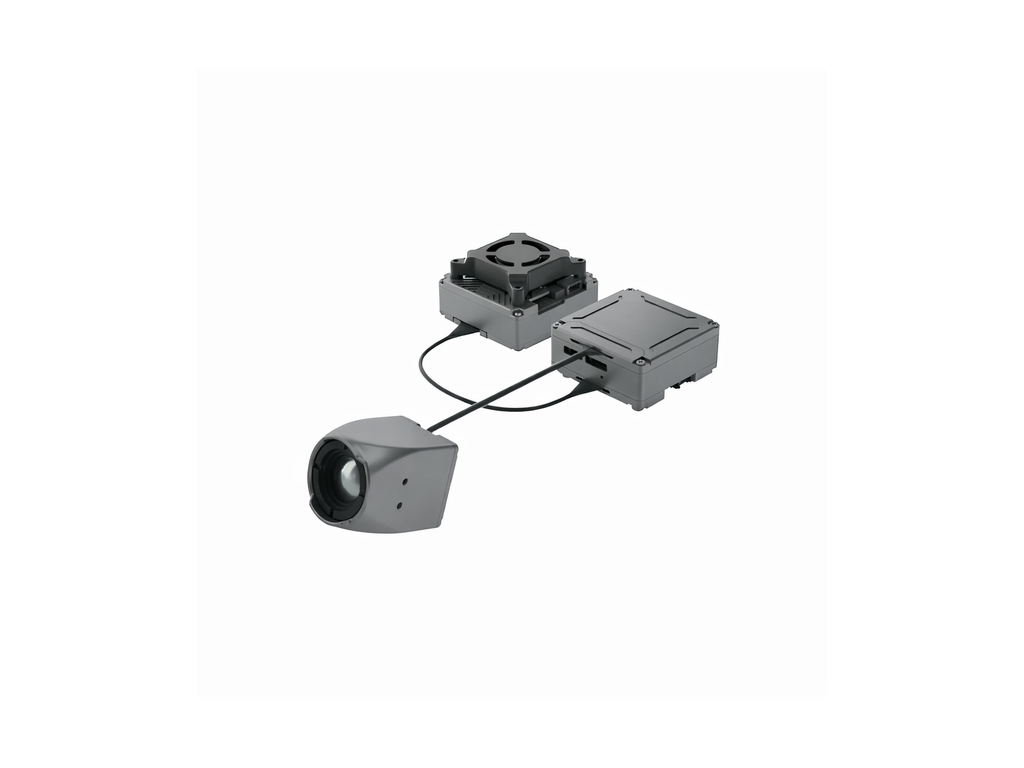

The HobbyDrone Eclipse 009Dual-HD is an advanced dual-camera FPV system combining a visible-light HD camera with a thermal imaging camera for enhanced situational awareness in day and night conditions. Powered by Pixelpump-Gen3 technology, it delivers sharper image quality, improved thermal detection, and smooth integration with HD digital VTX systems. With picture-in-picture mode, full-color night vision, and remote camera switching, it is an ideal solution for professional FPV operations, search tasks, and low-light exploration.

Features:
- Dual-camera system with visible-light and thermal imaging output
- Advanced Pixelpump-Gen3 technology for enhanced image clarity
- Full-color night vision for improved low-light visibility
- Picture-in-picture mode for simultaneous thermal and visible-light monitoring
- Remote camera switching via radio controller
- HD digital VTX compatibility with simultaneous video output
- UVC video output support for external devices
- Customizable OSD display with ADKEY control support
- Adjustable image settings including contrast, brightness, palette, and zoom
- Compact design suitable for FPV drones and professional applications

Specifications:
Product name: Eclipse 009Dual-HD
Model: AI BOX
Frame rate: 50 Hz
Video interface:  Ascent VTX system + UVC simultaneous output
Supply voltage: 4.5–20 V
Operating temperature: 20°C to 50°C
Typical power consumption: <1.5 W

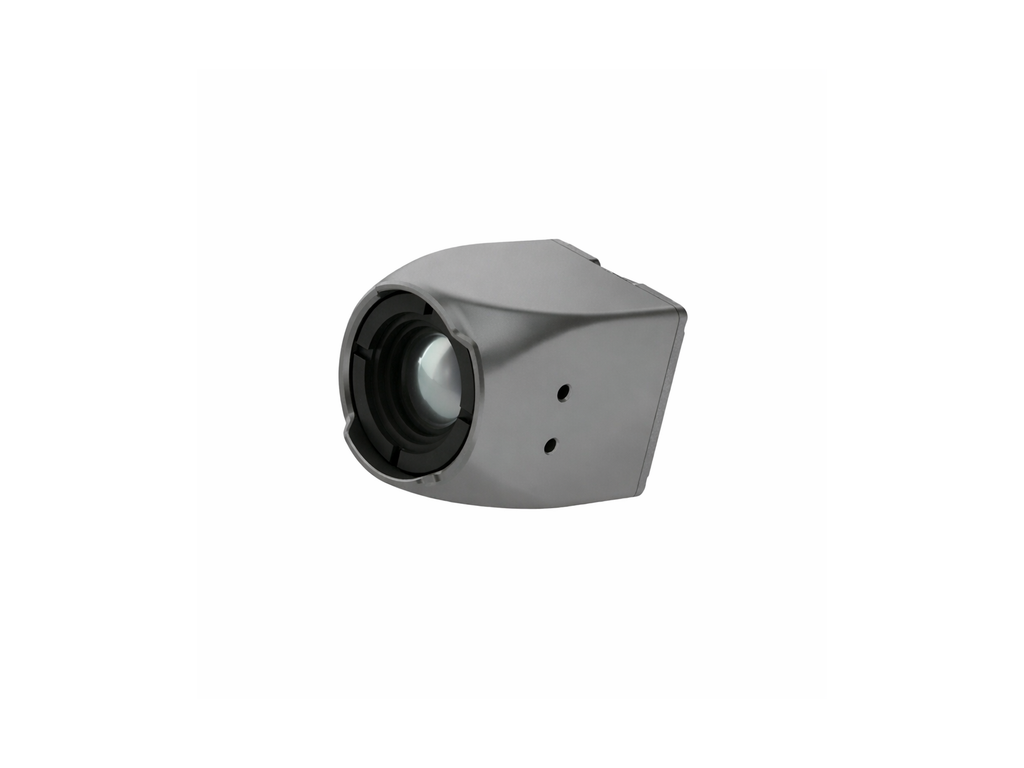

Thermal Camera Specifications:
Focal length: 9.1 mm
Resolution: 960x768 (Pixelpump)
Aperture: F1.0
Field of view: 48.3° (H) x 38.6° (V)
Communication interface: UVC / ADKEY
Brightness and contrast adjustment: 0–100
Palette modes: 0–4 selectable
Digital zoom: 1.0×–4.0× stepless zoom
Image mirroring: Horizontal / Vertical / Diagonal

Visible-Light Camera Specifications:
Field of view: 131.6°
Focal length: 2.8 mm
Aspect ratio: 16:9
Aperture: F1.0
Filter: Manually removable

Package includes:
1x Hobbydrone Eclipse 009Dual-HD camera system
1x AI Box module
1x Connection cable set
1x User manual
