FC Pilotix H743-SLIM

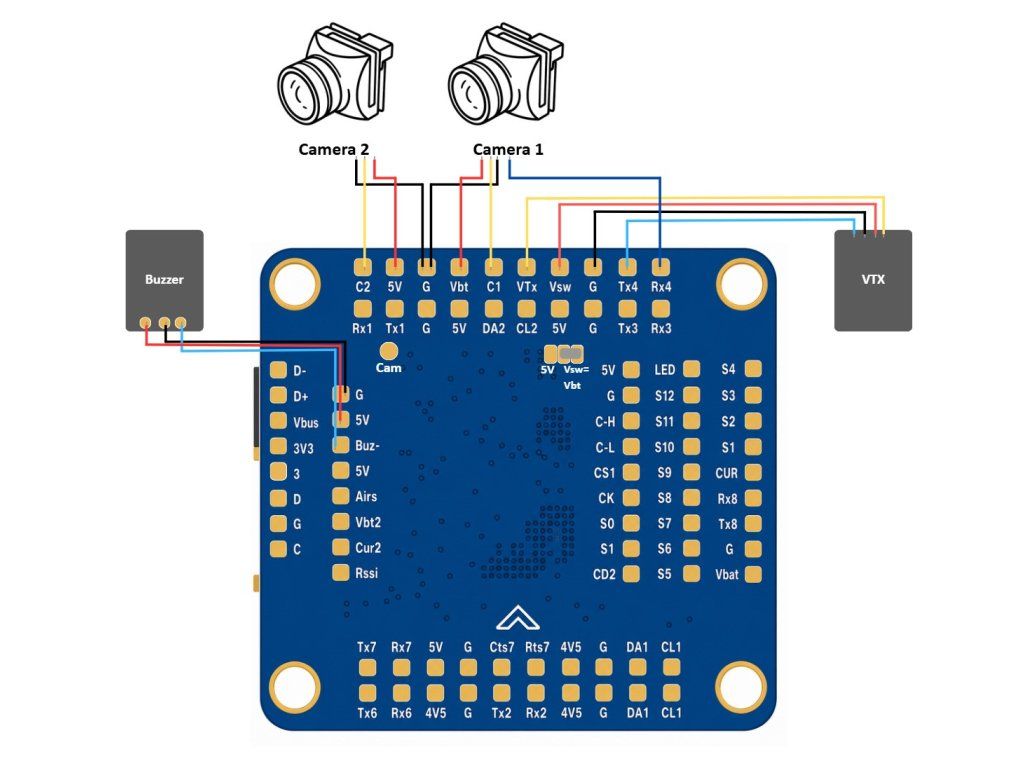

The Pilotix H743-SLIM is an FPV flight controller built around the STM32H743 microcontroller, featuring a compact 36 x 36 mm form factor with 30.5 x 30.5 mm M3 mounting pattern and weighing 7 grams. This flight controller supports both ArduPilot and Betaflight firmware. The H743-SLIM incorporates an ICM42688-P gyro connected via SPI with an 8 kHz update rate, a built-in accelerometer, and a DPS310 barometer. It provides 8 UART ports, 1 I2C port, 1 SPI port, and a USB Type C connection. The board offers 4 motor control outputs supporting DShot150, DShot300, DShot600, PWM, OneShot125, and OneShot42 protocols with bi-directional DShot capability. The CRSF receiver protocol is supported. Additional features include an analog OSD, 2 analog video inputs, analog video output, LED strip output, buzzer output, SD card slot, and DFU button. Dual BEC outputs provide 5V at 2A and 9V at 2A. The flight controller operates within -20 to 40°C and stores safely between -30 to 50°C at 20-95% RH non-condensing humidity. The package includes a set of cables and 4 shock-absorbing balls, backed by a 2-year warranty.
