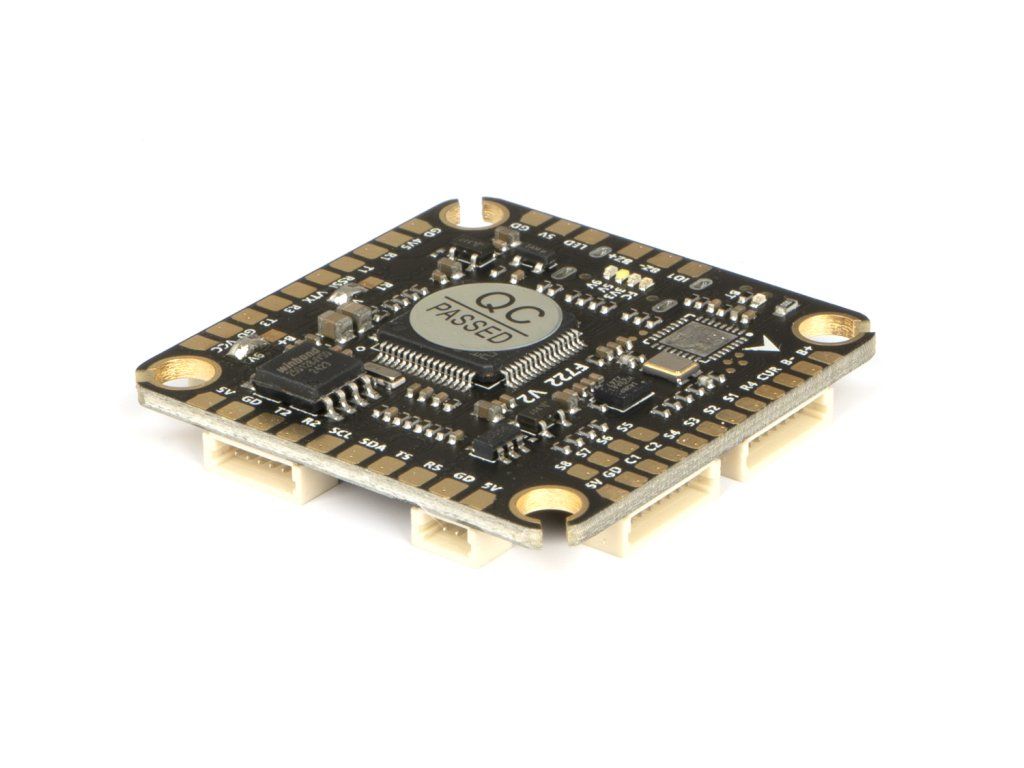

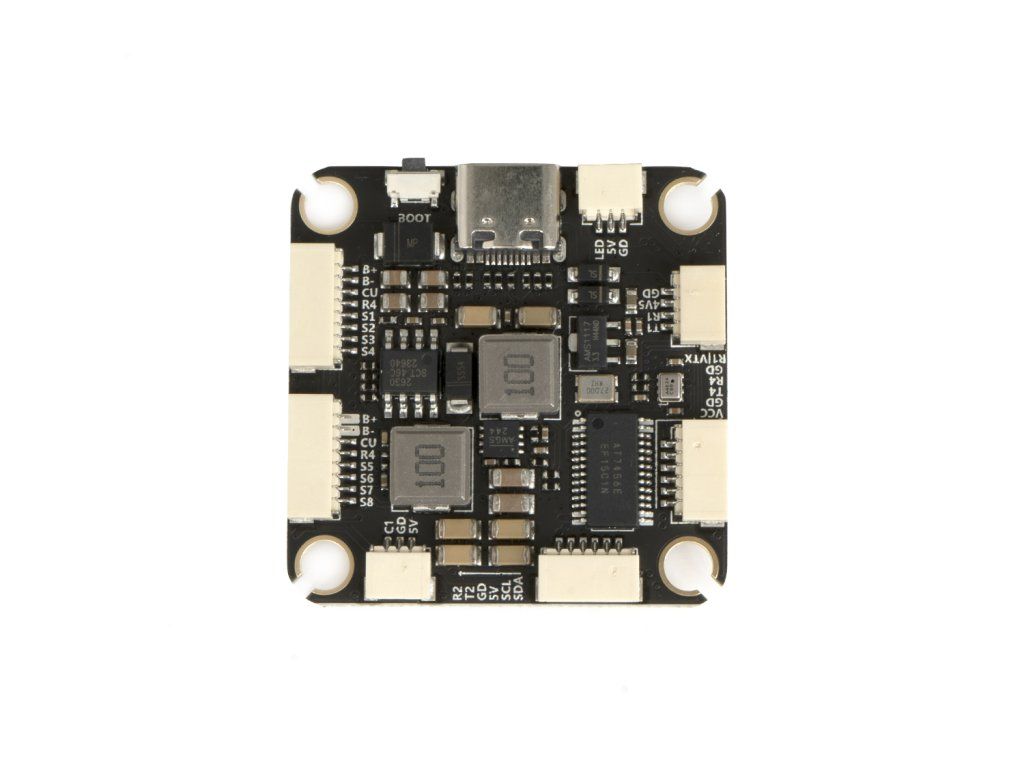

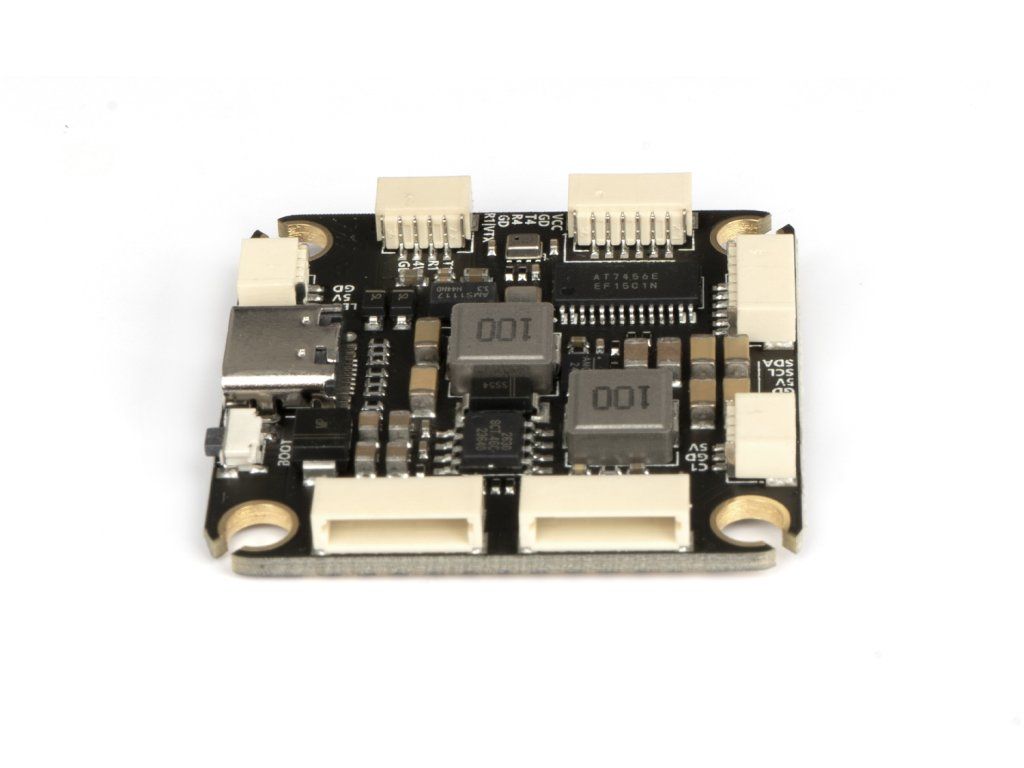

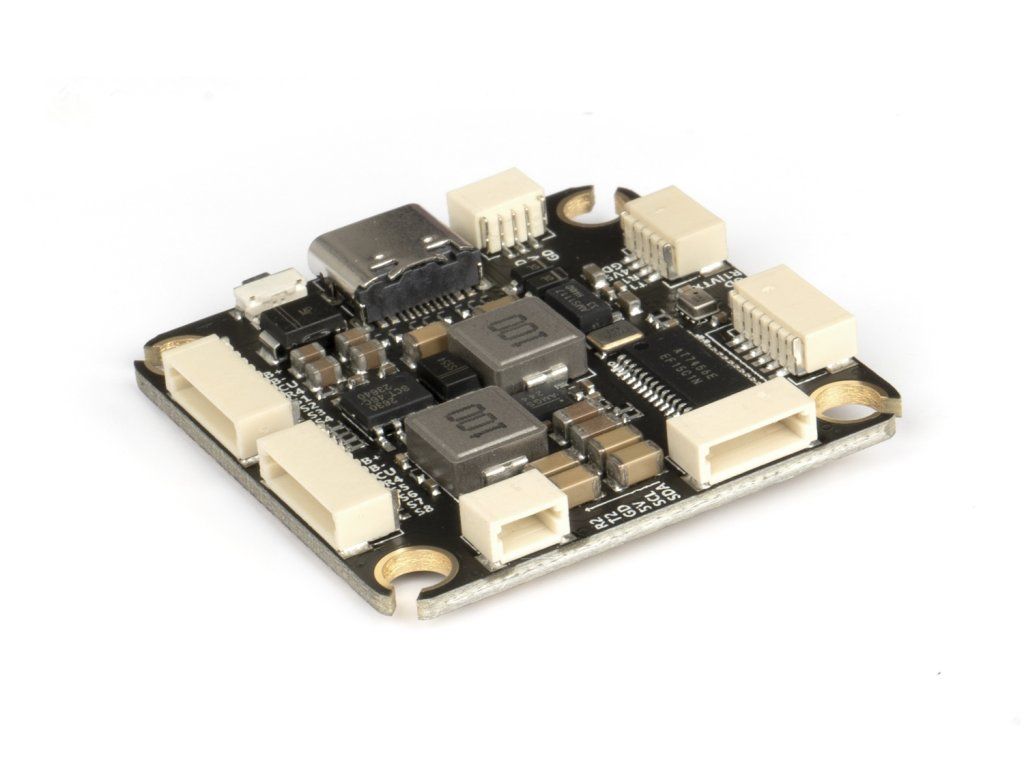

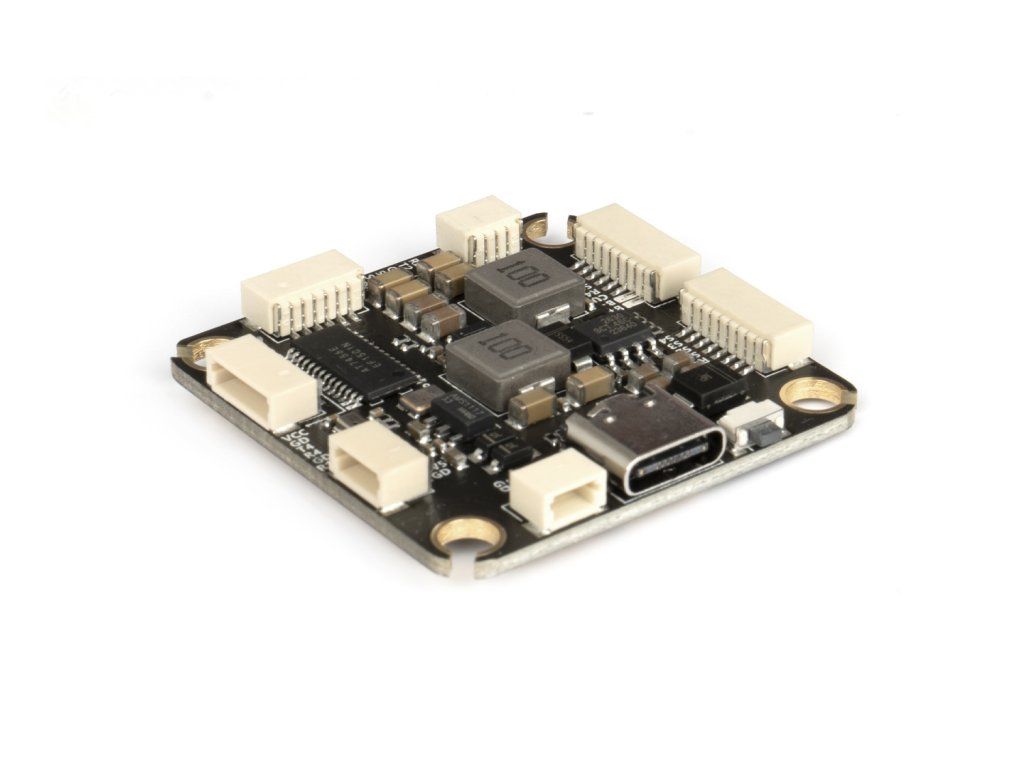

FC Pilotix F722 V2
Code: 5227Product detailed description
FC Pilotix F722 V2
- CPU: STM32F722RET6
- Gyro: ICM42688P
- Barometer: BMP280
- Black Box: 16MB
- OSD: Yes
- Motor Output: 8 channels
- UART: 5 channels
- LED Strip: Yes
- Buzzer: Yes
- BEC Output: 4.5V/2A, 5V/2.5A, 9V/3A
- Receiver: ELRS/CRSF/S.BUS/Frsky/Futaba/Flysky/TBS Crossfire/DSMX
- Dimensions: 37mm x 37mm
- Weight: 9.4g
- Mounting Holes: 30.5mm x 30.5mm
- Firmware: AOCODARCF722V2

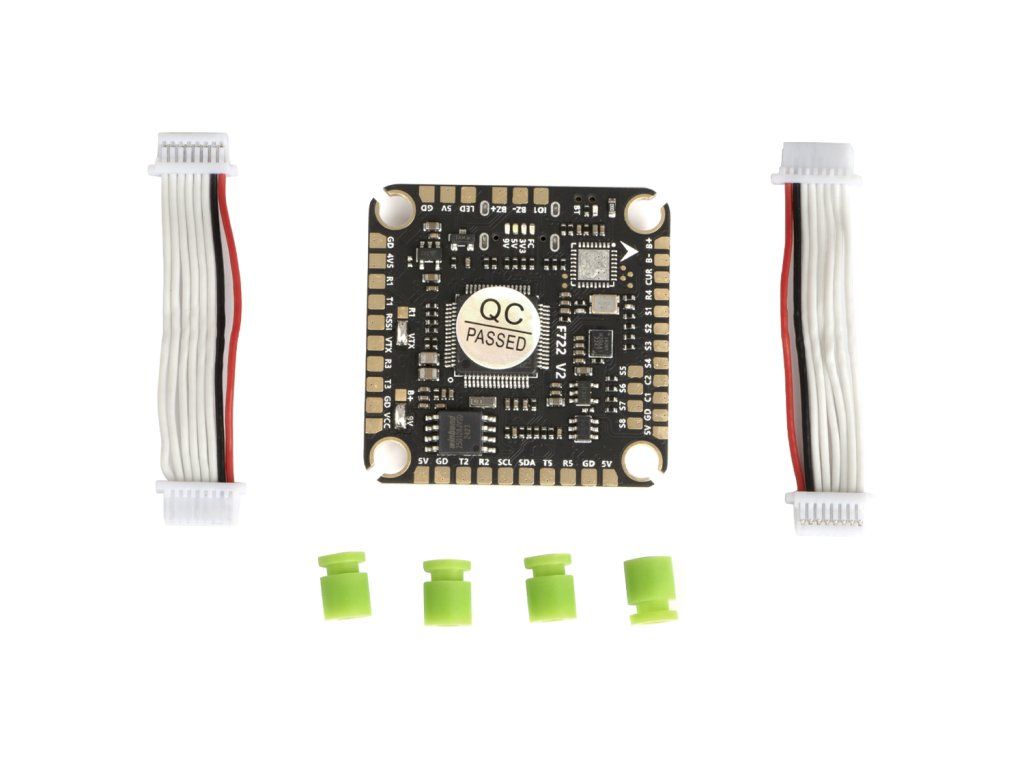

Packaging Lists
- 1x F722 V2 Flight Controller (FC)
- 2x 8PIN SH1.0 Connection Cables
- 8x M3*8 Shock-Absorbing Balls
Additional parameters
| Category: | FPV Drone FC |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.1 kg |
| EAN: | 5060491869765 |
| Mounting Size: | 30.5x30.5 mm |
| Processor Type: | F722 |
