FC Pilotix F405 V3 ICM42688
Code: 5447Product detailed description

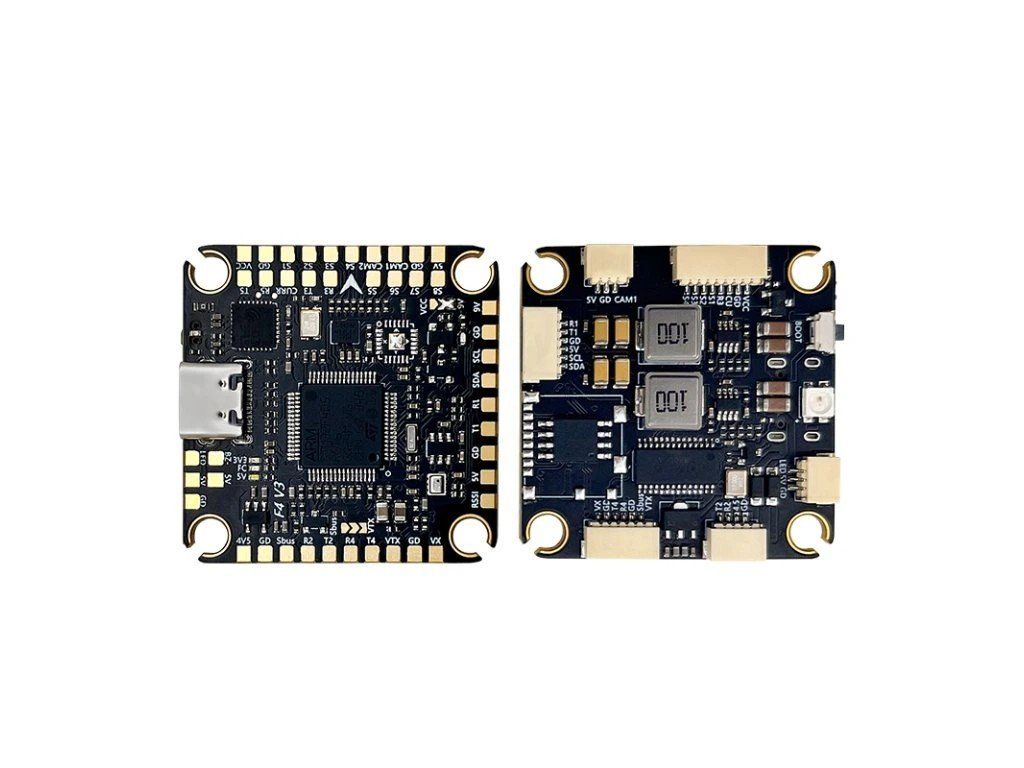

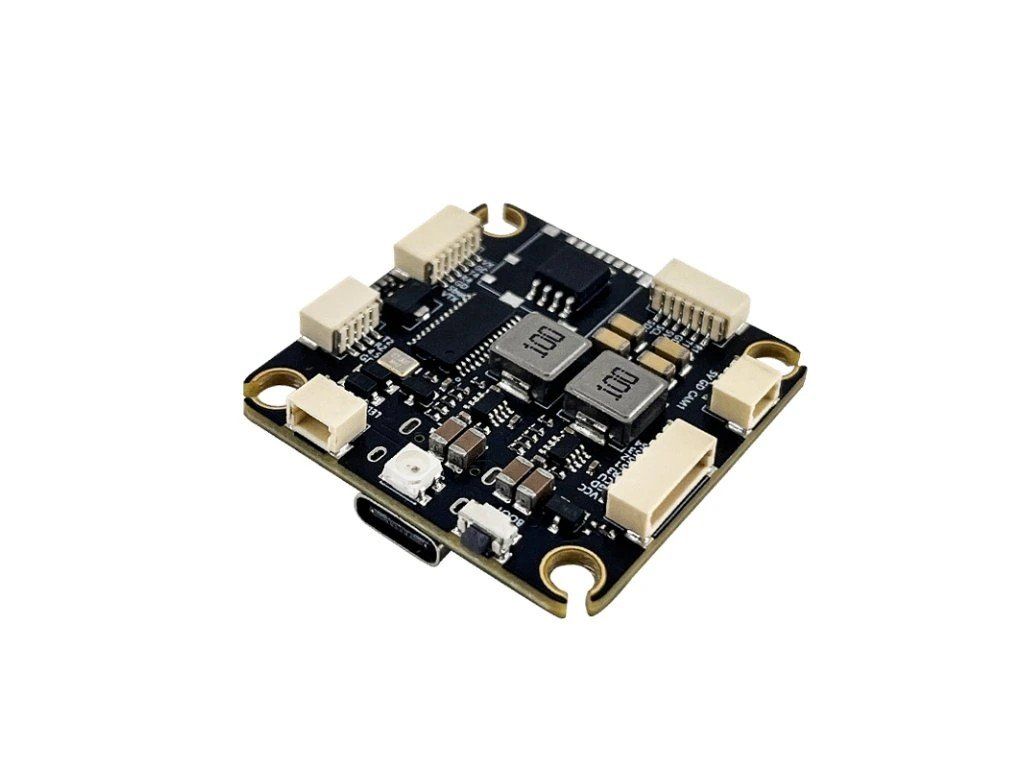

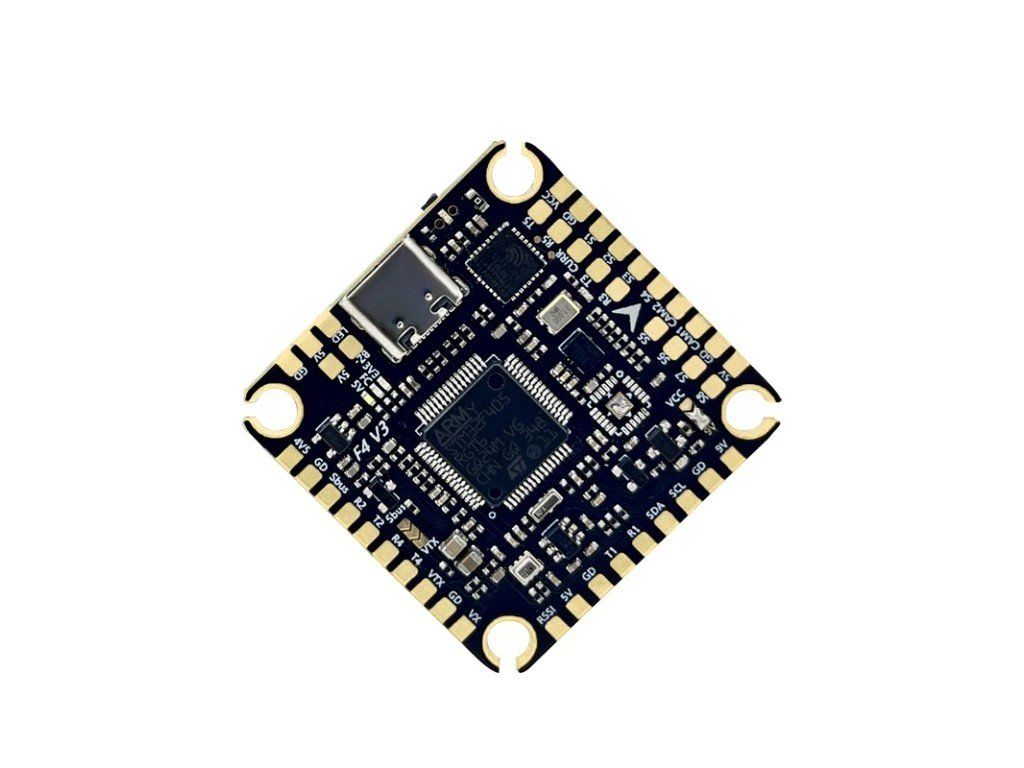

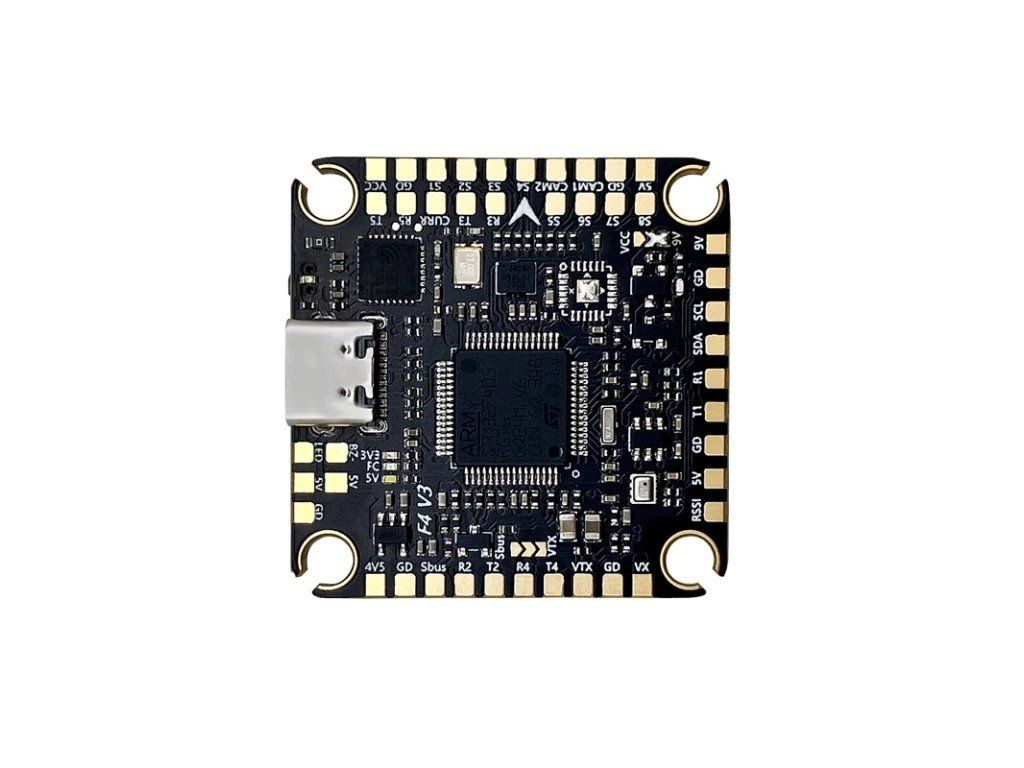

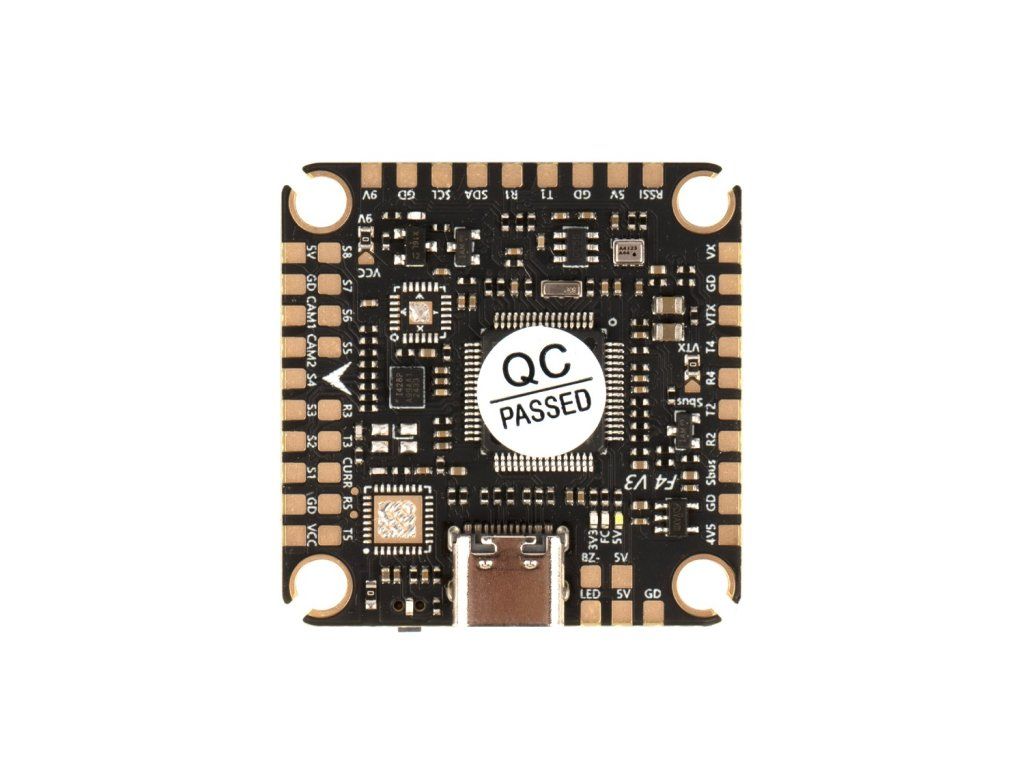

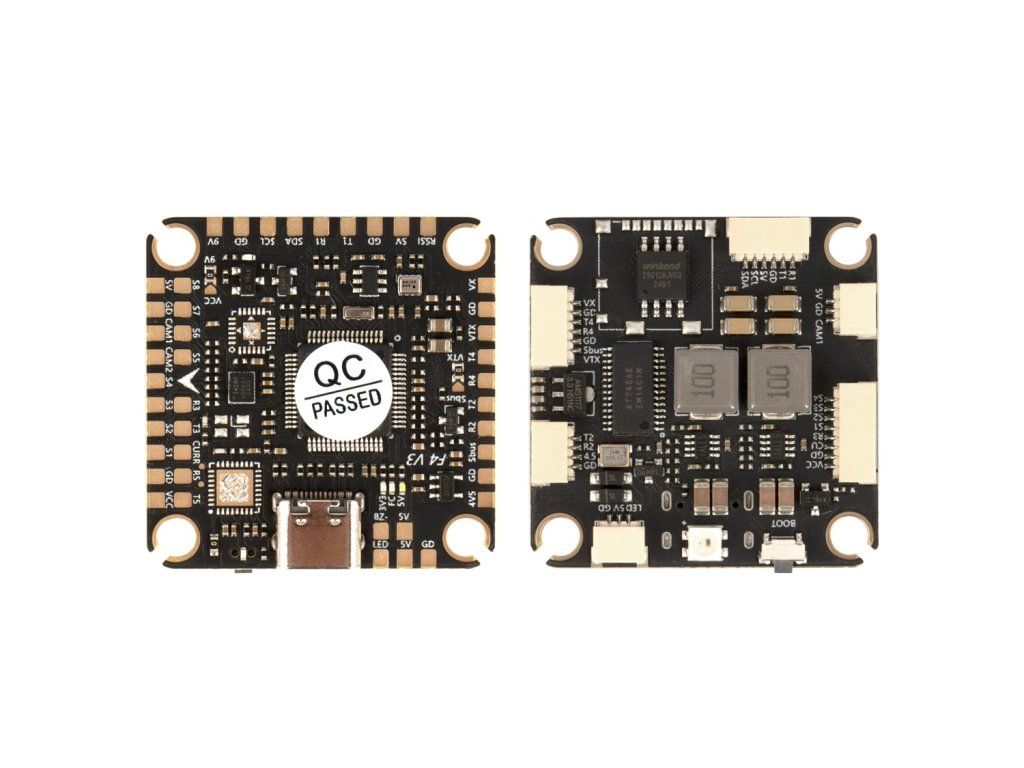

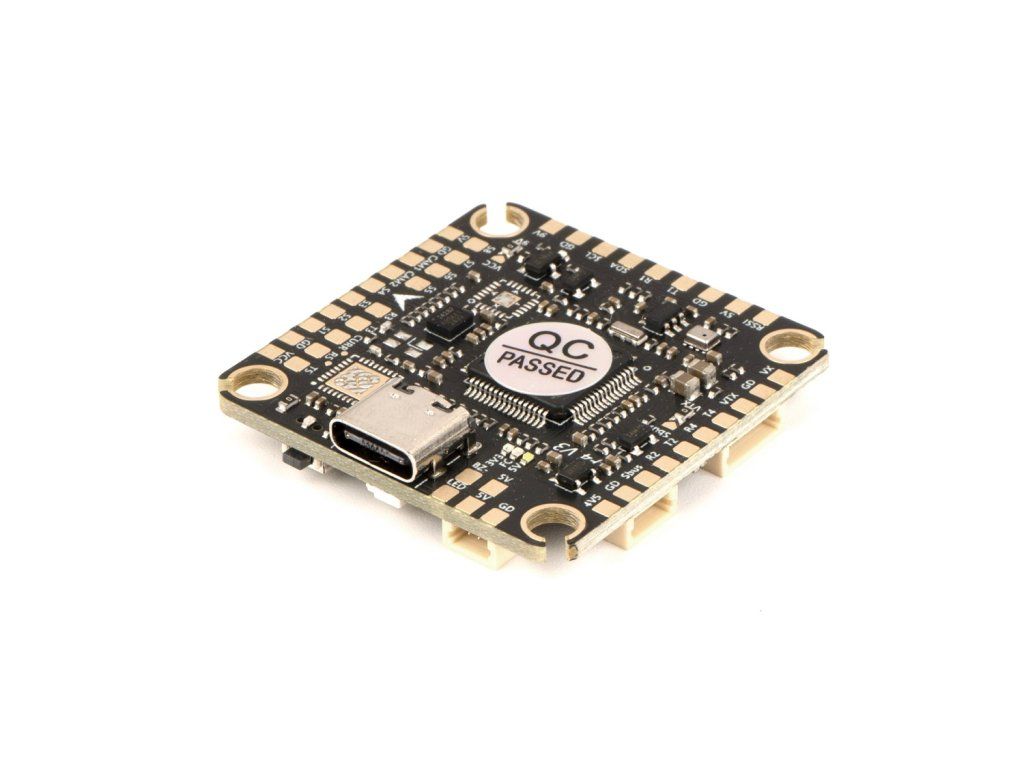

The Pilotix F405 ICM42688 V3 is a feature-rich FPV flight controller built around the STM32F405 MCU and the high-performance ICM42688-P gyroscope connected via SPI. Running Betaflight firmware with the PILOTIXF405V3 target, this 36 × 36 mm board weighs just 9.6 g and includes dual BEC outputs (5V/2.5A and 9V/2.5A), a built-in barometer, magnetometer, and analog OSD.
Key features
- ✓ICM42688-P gyro — high-precision sensor with SPI connection and built-in accelerometer
- ✓Dual BEC outputs — 5V/2.5A and 9V/2.5A for powering peripherals
- ✓Comprehensive sensor suite — SPL06 barometer and built-in magnetometer
- ✓5 UART ports — extensive connectivity for receivers, GPS, and peripherals
- ✓Bi-directional DShot — supports RPM filtering with DShot150 through DShot1000
- ✓Wide receiver compatibility — SBUS, CRSF, ELRS, TBS Crossfire, DSMX, and more
- ✓Dual analog video inputs — with analog OSD and composite video output
- ✓USB Type-C — modern connectivity with DFU button for easy flashing
The flight controller uses standard 30.5 × 30.5 mm
Product details
| Model | F405 ICM42688 V3 |
|---|---|
| SKU | 5447 |
MCU
| FC MCU | STM32F405 |
|---|---|
| Firmware target | PILOTIXF405V3 |
| Firmware support | Betaflight |
| OSD type | Analog OSD |
Sensors
| Gyro | ICM42688-P |
|---|---|
| Gyro connection | SPI |
| Number of gyros | 1 |
| Accelerometer | Built-in |
| Barometer | SPL06 |
| Magnetometer | Built-in |
Electrical specifications
| BEC | 5 V @ 2.5 A, 9 V @ 2.5 A |
|---|
Interfaces
| Motor control outputs | 4 |
|---|---|
| ESC protocols | PWM, OneShot125, Multishot, DShot150, DShot300, DShot600, DShot1000, OneShot42, Brushed |
| Bi-directional DShot | yes |
| Receiver protocol | SBUS, CRSF, ELRS, FrSky, Futaba, Flysky, TBS Crossfire, DSMX |
| DFU button | yes |
| I2C port | 1 |
| LED strip output | yes |
| SD card slot | no |
| UART ports | 5 |
| Buzzer output | yes |
| USB port | USB Type C |
| Video inputs | 2 |
| Video input | Analog |
| Video output | Analog |
Mechanical specifications
| Dimensions | 36 x 36 mm |
|---|---|
| Mounting | 30.5 x 30.5 mm (M3) |
| Weight | 9.6g |
Operating conditions
| Humidity range | 20-95% RH (non-condensing) |
|---|---|
| Operating temperature | -20 - 40 °C |
| Storage temperature | -30 - 50 °C |
Common

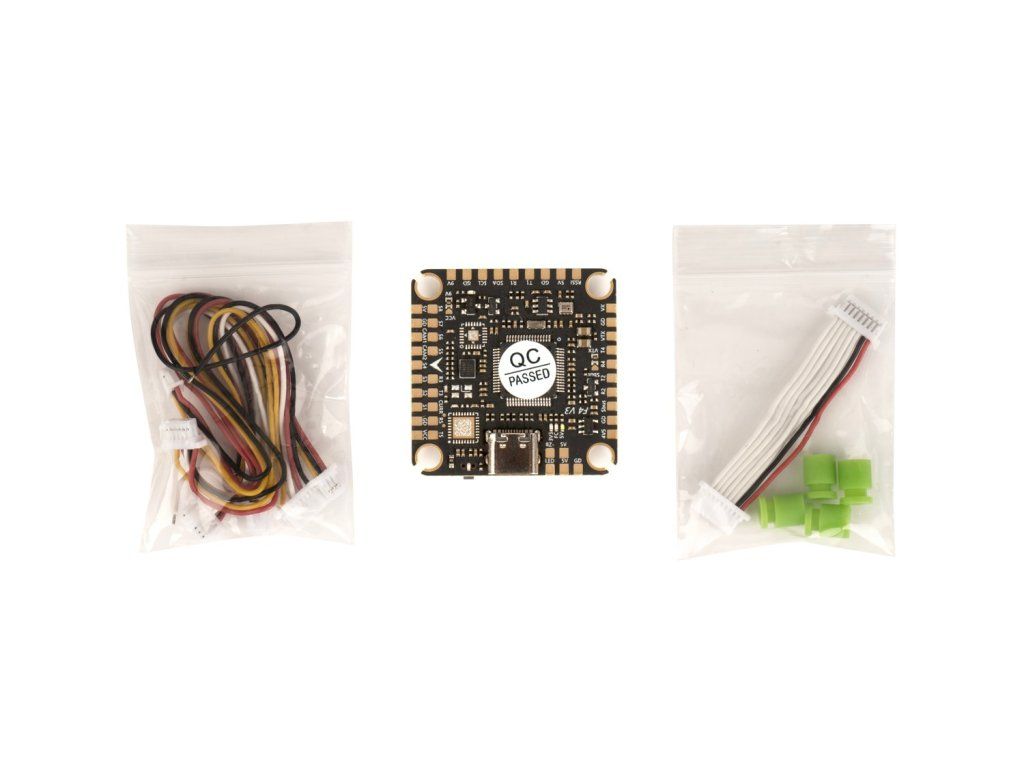

| Package contents | Set of cables, Shock-absorbing balls (4x) |
|---|---|
| Warranty | 2 years |

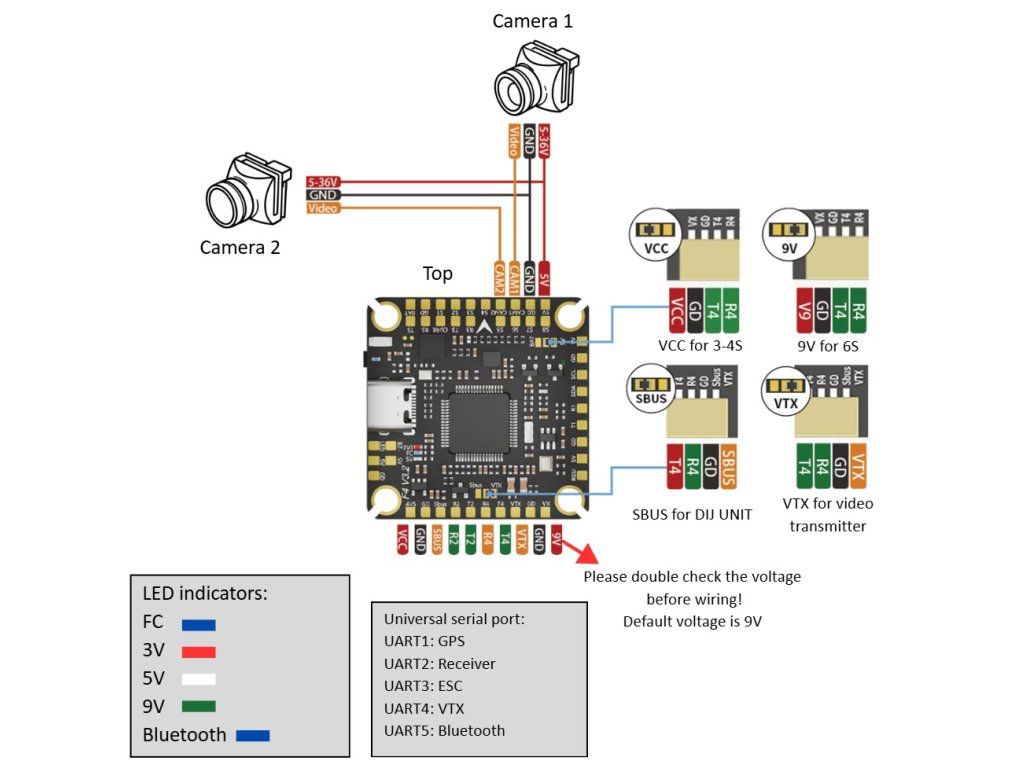

Wiring diagram
Additional parameters
| Category: | FPV Drone FC |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.11 kg |
| EAN: | 5060491868126 |
| Mounting Size: | 30.5x30.5 mm |
| Power Supply: | 3-6 S |
| Continuous Current: | 60 A |
| Processor Type: | F405 |
