FC Pilotix F405 V3 ICM42688 CZ

Product detailed description

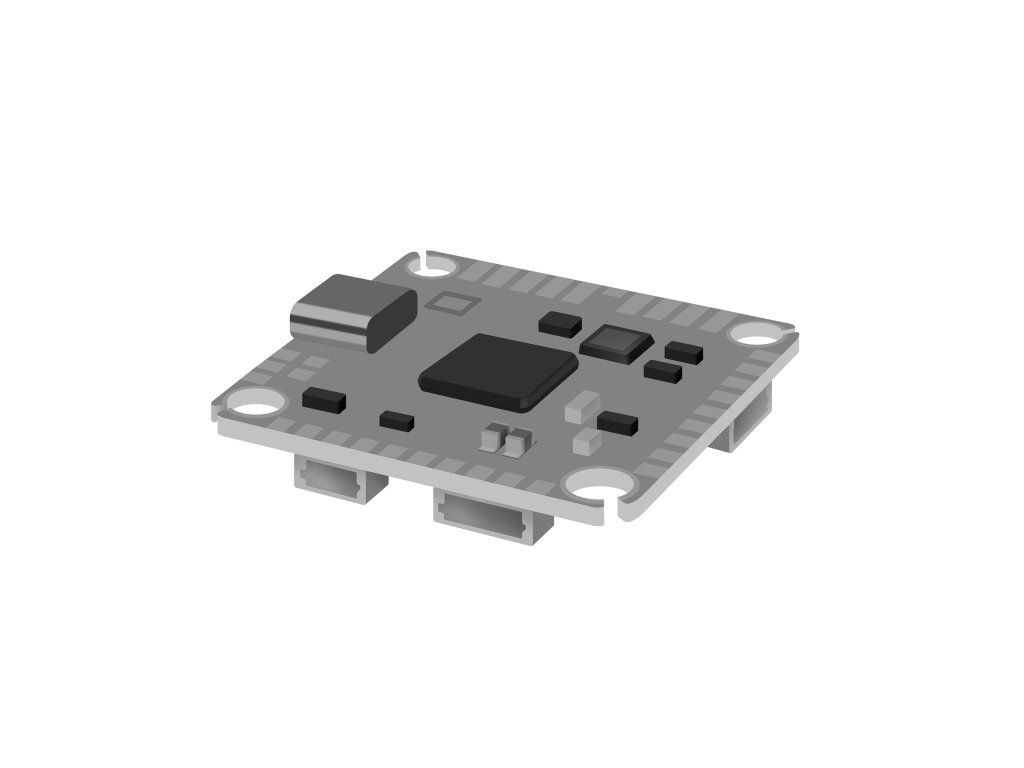

Flight controller Pilotix F405 V3 ICM42688 CZ

The Pilotix F405 V3 ICM42688 is a high-performance flight controller built around the STM32F405RGT6 processor, delivering exceptional speed and precision for FPV and autonomous drones.

Features:
- Made in Europe with high-quality standards for durability and reliability
- Powerful STM32F405 MCU ensures smooth signal processing and responsive flight control.
- High-precision ICM42688 gyroscope and SPL06B barometer for accurate motion and altitude data.
- Dual camera inputs with switch function — ideal for FPV setups and in-flight view switching.
- Integrated Blackbox with 16MB memory for detailed flight data logging.
- Wide connectivity options including five UART ports, I2C, Sbus, LED, buzzer, and VTX outputs.
- Onboard BECs provide clean power supply at 5V and 9V for connected components.
- Compact and lightweight design fits standard 30.5x30.5 mm mounts for easy installation.

Specifications:
Name: Flight controller Pilotix F405 V3 ICM42688
Model: Pilotix F405 V3 ICM42688
Maximum Frequency: 168 MHz
Microcontroller Unit: STM32F405RGT6
Gyroscope: ICM42688
Barometer: SPL06B
Firmware: Betaflight 4.5.0 (support ArduPilot)
Telemetry: Support
OSD: Yes
Blackbox: Built-in 16MB
UART: x5ch
Motor Outputs: x8ch
Additional Pinout: Sbus, x1 Led, x1 Bz, RSSI, I2C-SDA SCL, VTX, VCC
Camera Pinout: x2 (Dual Camera Inputs switch)
BEC: 5V/2.5A, 9V/2A
USB: Type-C
Weight: 9.6g
External Dimensions: 36x36x7mm
Mounting: 30.5x30.5mm

Download documentation
Package includes: 1x Flight controller Pilotix F405 V3 ICM42688 CZ
