Product detailed description

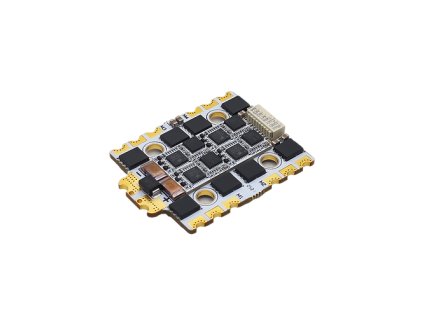

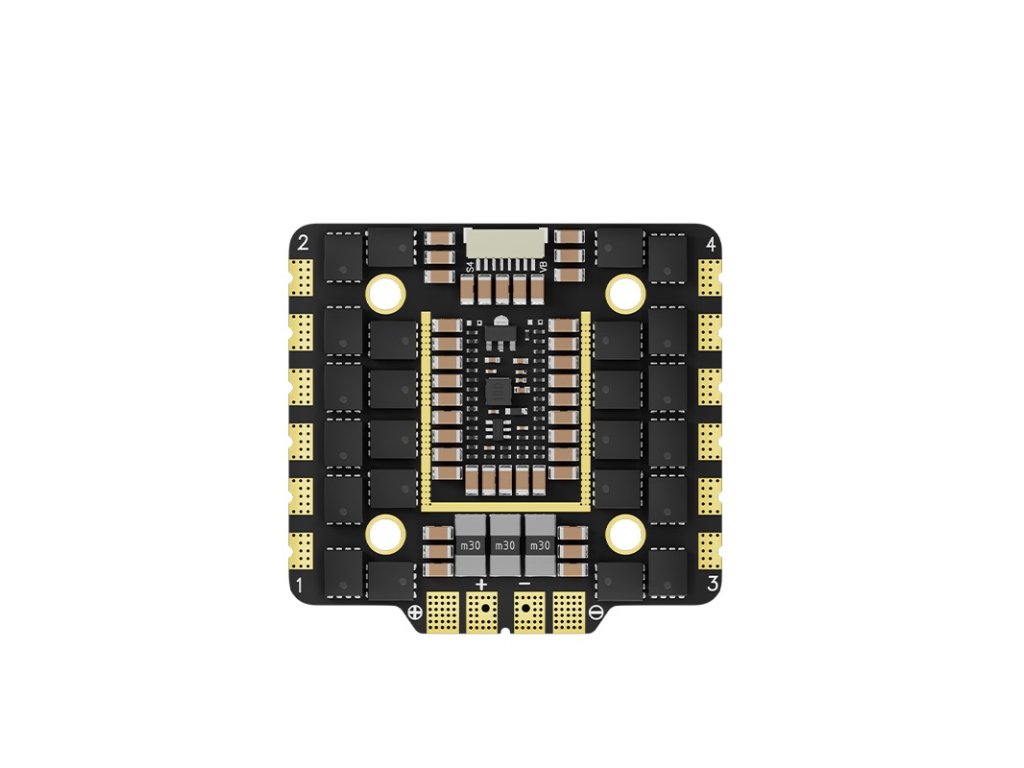

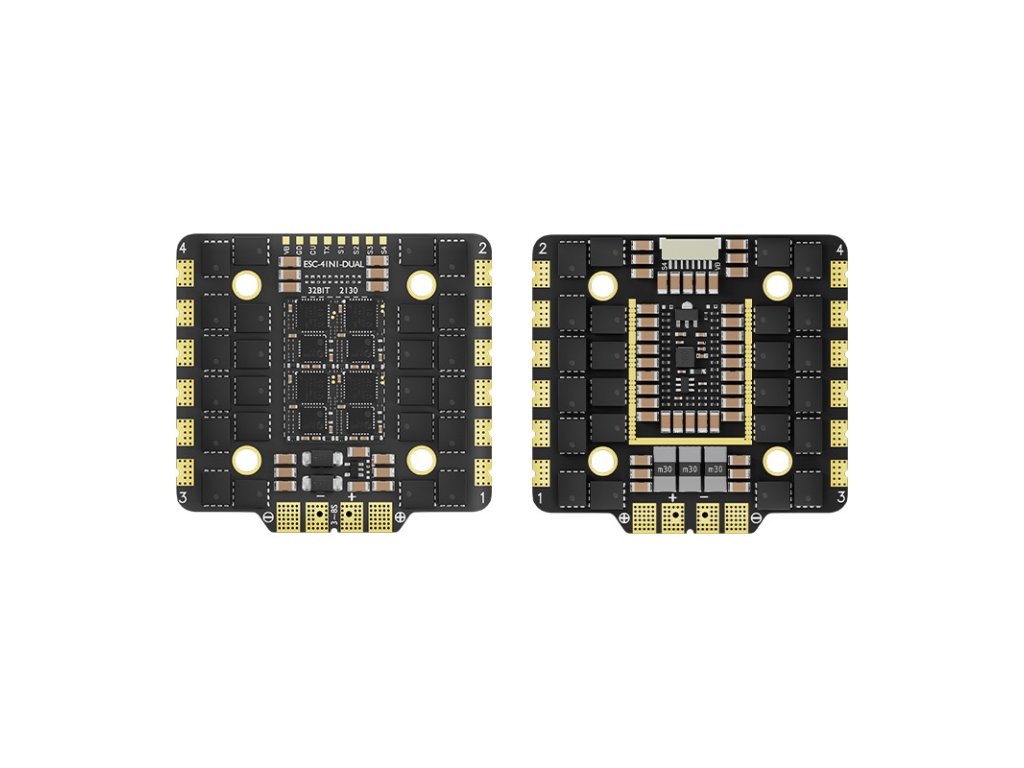

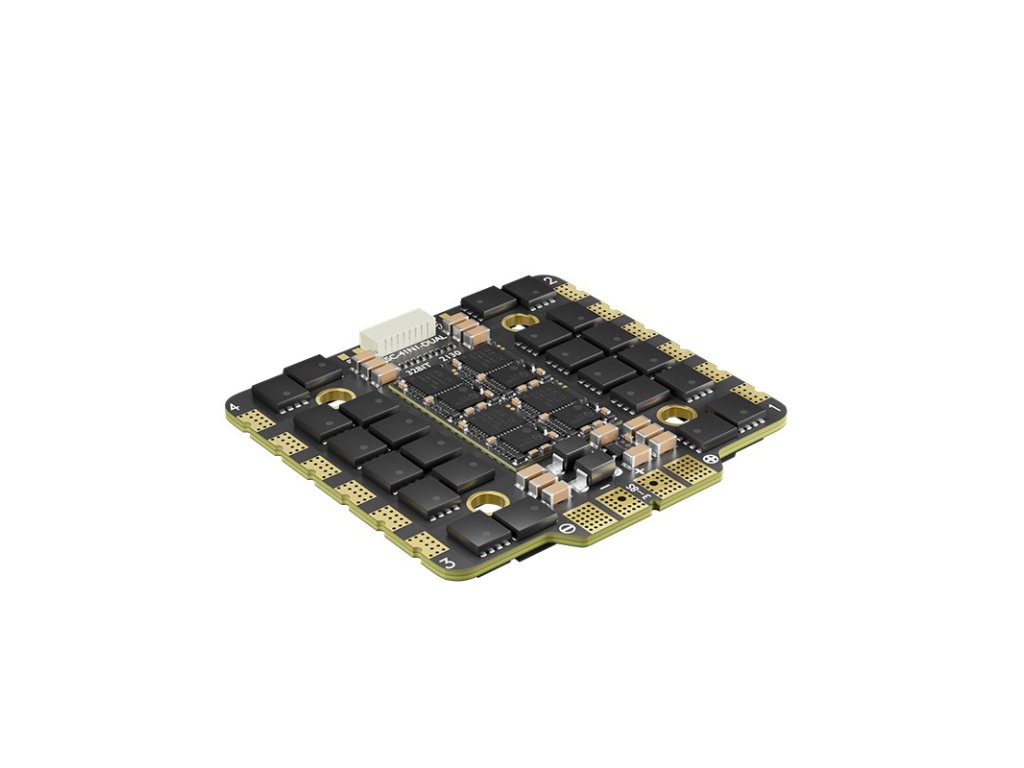

The Pilotix 4in1 80A AM32 8S is a cutting-edge FPV electronic speed controller designed for high-performance applications. This model features a continuous current rating of 80A and a peak current of 100A, accommodating input voltages between 3 and 8S.
This ESC is equipped with an AT32F421K8U7 microcontroller and runs the AM32 firmware. It supports various protocols including DShot150, DShot300, DShot600, Multishot, OneShot, ProShot, and PWM, featuring bi-directional DShot capabilities. Additionally, telemetry support for current, voltage, temperature, and RPM enhances monitoring and performance assessment.
The ESC operates effectively in temperatures ranging from -20 to 40 °C and has a storage temperature range of -30 to 50 °C. Passive cooling through natural airflow is recommended. It has dimensions of 55 x 52 mm and an M3 mounting pattern of 30.5 x 30.5 mm, weighing 33 grams. A warranty of 2 years is provided.
Product details
| Model |
4in1 80A AM32 8S
|
| SKU |
6052
|
Electrical specification
| ESC type |
4 in 1
|
| Continuous current |
4 x 80 A
|
| Peak current |
4 x 100 A
|
| Input voltage |
3 - 8S
|
| Power connector |
Solder pads
|
MCU
| ESC MCU |
AT32F421K8U7
|
| Firmware |
AM32
|
| ESC configurator |
AM32 Configurator
|
| ESC protocols |
DShot150,
DShot300,
DShot600,
Multishot,
OneShot,
ProShot,
PWM
|
| Bi-directional DShot |
yes
|
Interfaces
| Control connector |
JST-SH 1.0 mm
|
| Telemetry support |
Current,
Voltage,
Temperature,
RPM
|
| Motor output wire |
Solder pads
|
Mechanical specifications
| Dimensions |
55 x 52 mm
|
| Mounting |
30.5 x 30.5 mm (M3)
|
| Weight |
33 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-20 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
| Cooling requirements |
Passive (natural airflow)
|
