Micro TX Module BETAFPV ELRS 2.4GHz, 1W

Product detailed description

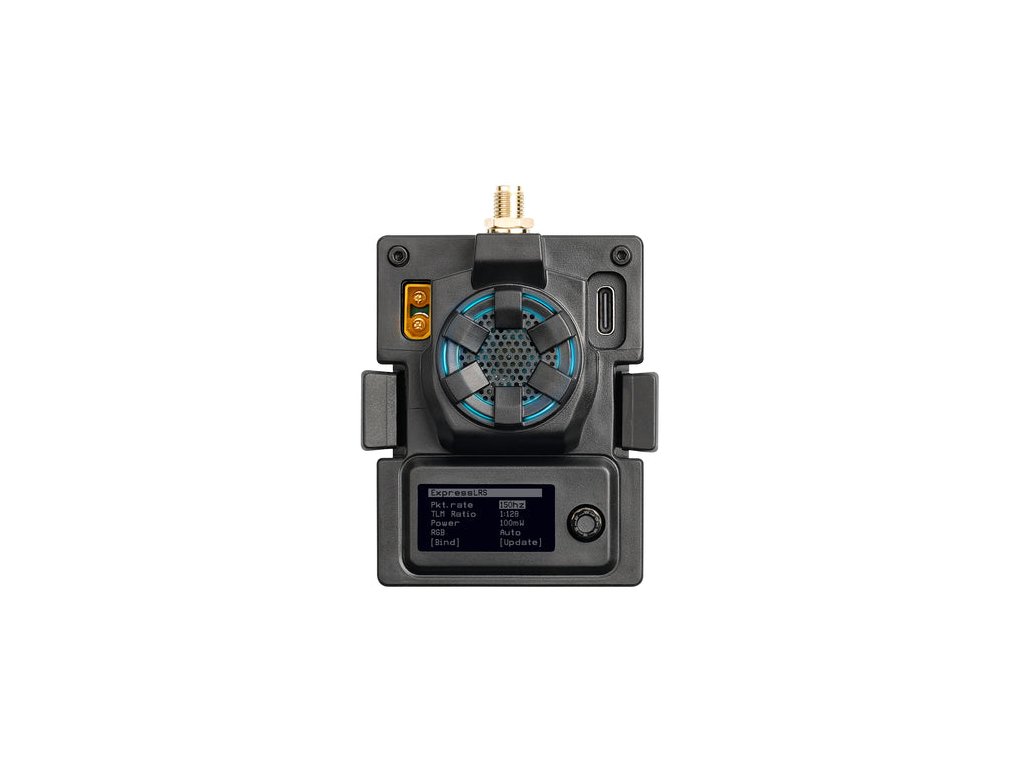

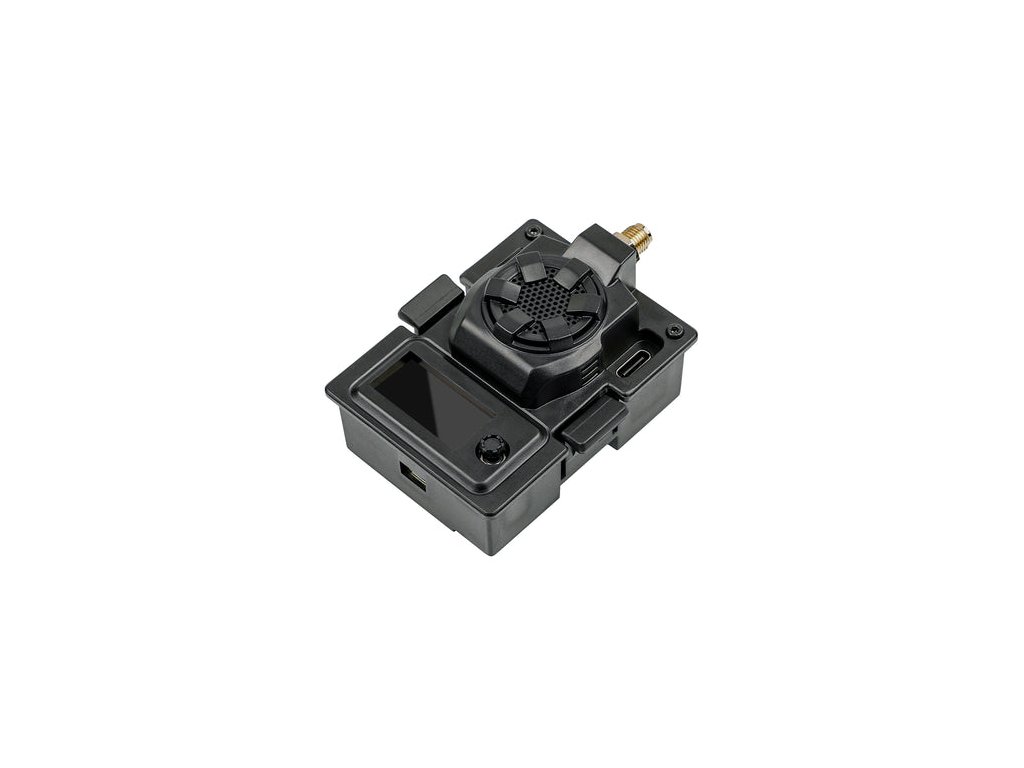

ELRS Micro TX Module (2.4GHz, 1W)

BETAFPV Micro RF TX module is based on the ExpressLRS project, an open-source RC link for RC applications. The ELRS Micro TX Module has an upgraded module case with a 6.5x13.5mm USB port housing that is compatible with most USB Type-C cables.

Specification:
Item: ELRS Micro TX Module (ELRS 2.4G, 1W)
Input voltage: 5V-12V
XT30 port: 5V-12V, recommend 2S(8.4V) battery, DO NOT support 3S(12.6V) or above
USB port: Type-C
Packet refresh rate: 50Hz, 150Hz, 250Hz, 500Hz
RF output power: 25mW, 50mW, 250mW, 500mW, 1W
Frequency bands: 2.4GHz ISM
Heat sink: Included
Backpack Function: Support

Package:

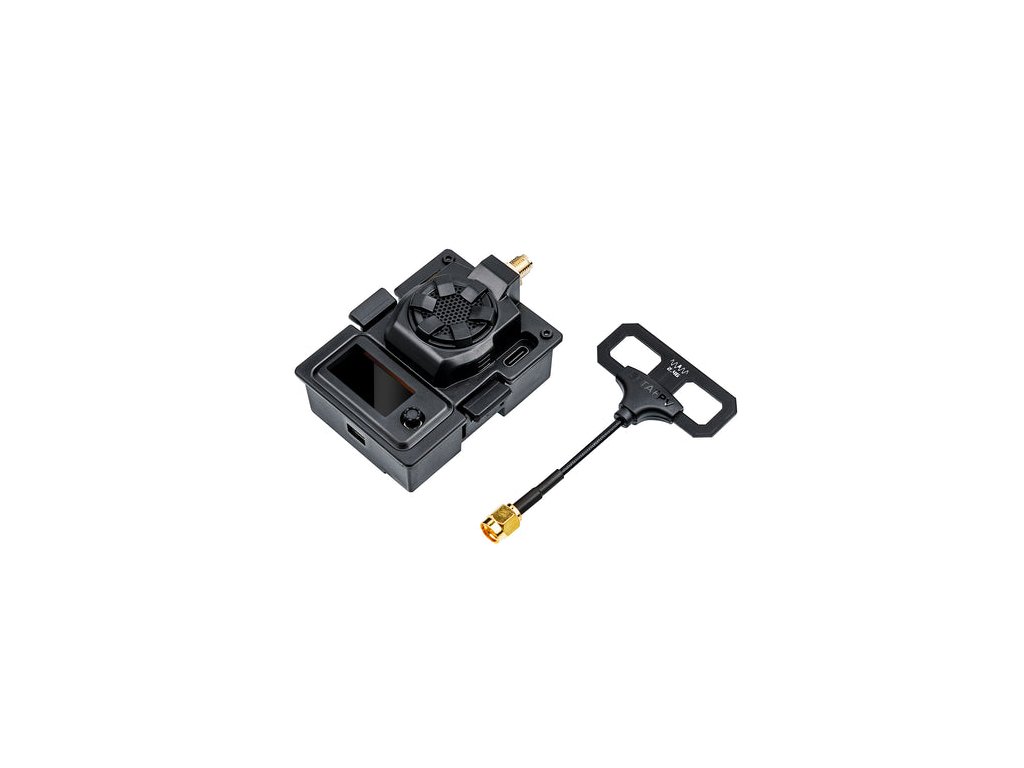

1 x BETAFPV ELRS Micro TX module
1 x BETAFPV Moxon antenna (2.4G)
1 x Monopole antenna
1 x Micro TX module user manual
1 x Spare USB data cable (Type-A to Type-C)
