Controller SkyDroid G16

Product detailed description

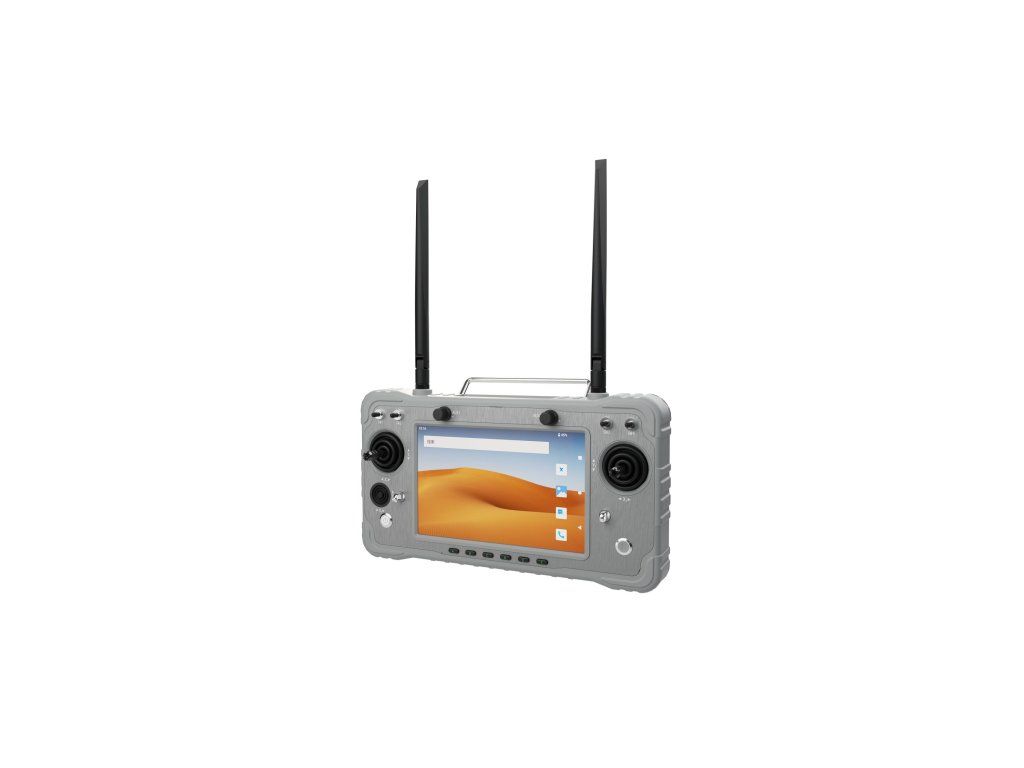

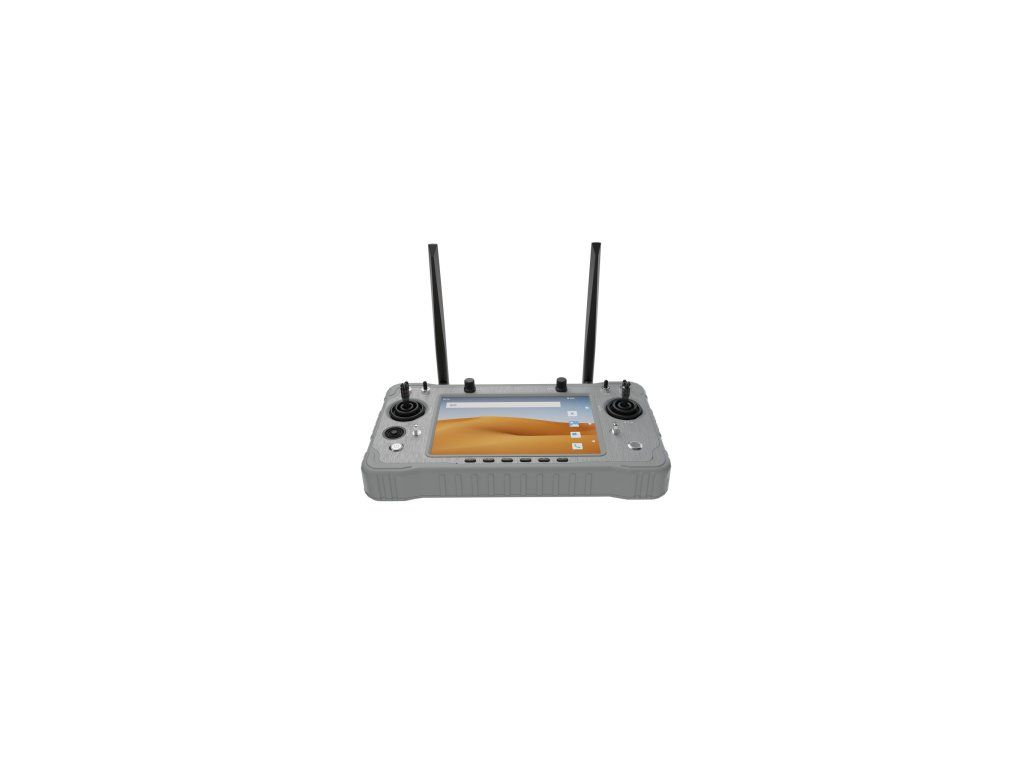

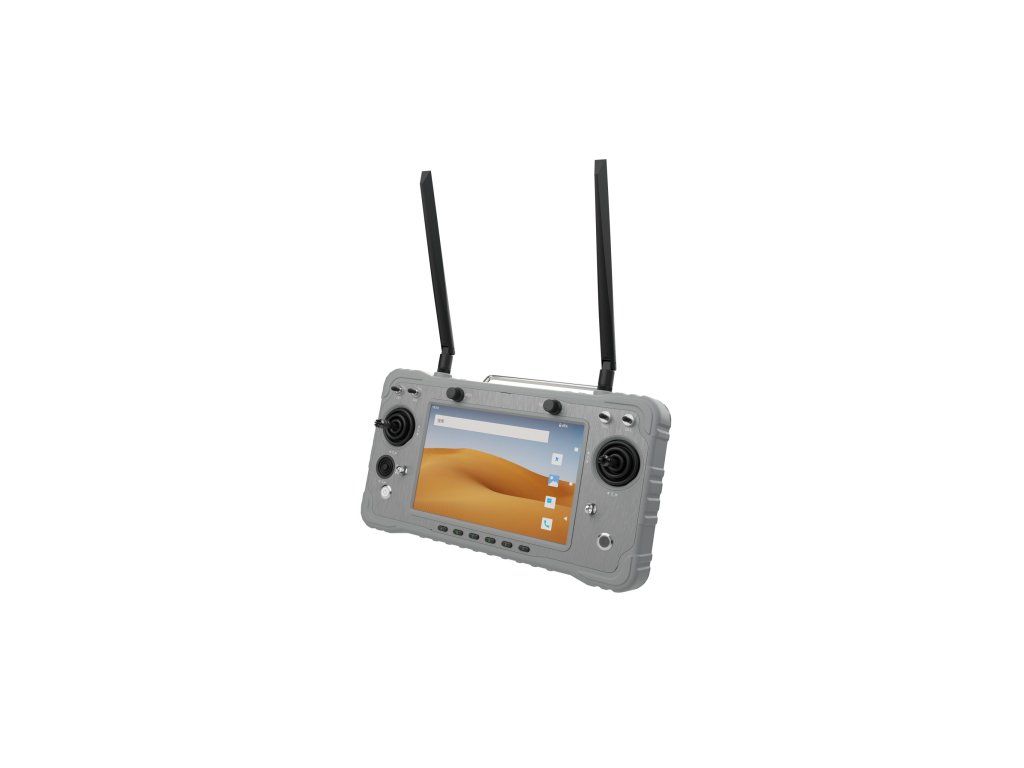

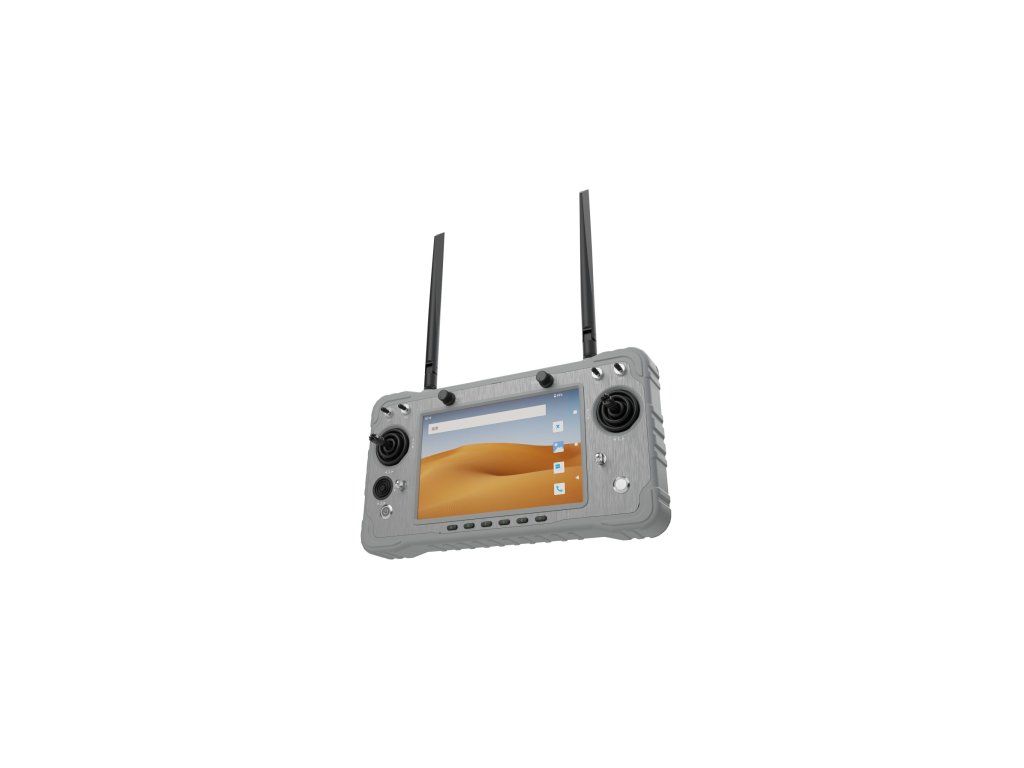

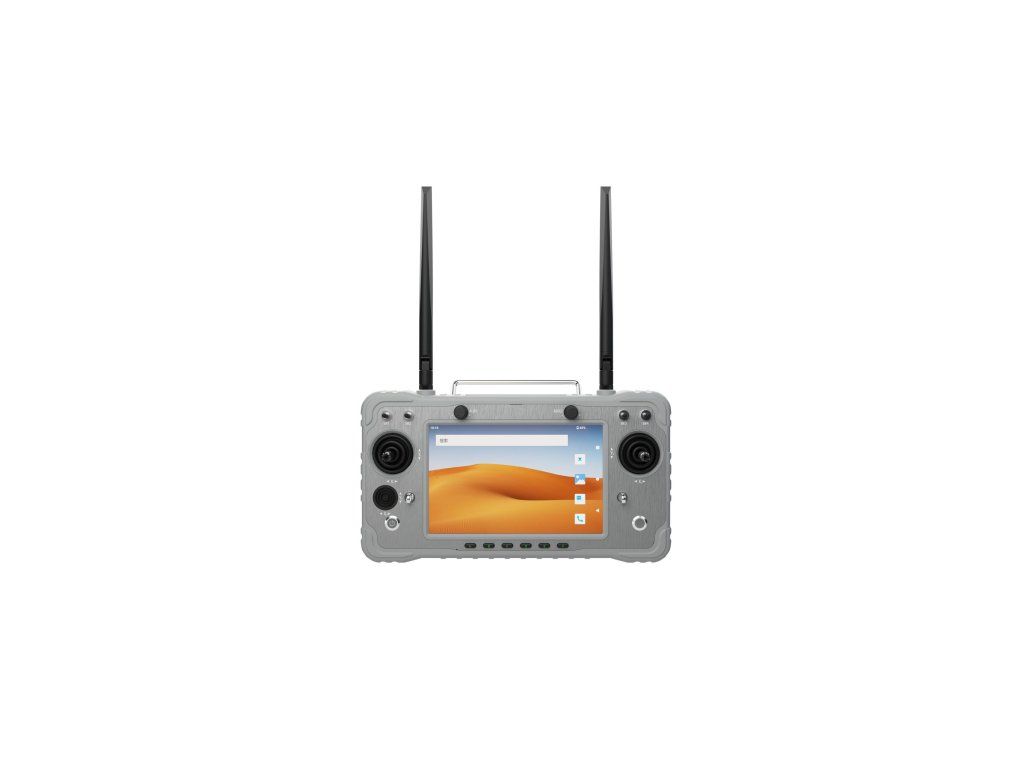

Controller SkyDroid G16

The SkyDroid G16 is a professional smart ground station controller designed for drones and other unmanned platforms. Combining a bright 7-inch sunlight-readable touchscreen, powerful Qualcomm 6nm processor, Android 13 operating system, and integrated long-range video, data, and control transmission, it provides a complete solution for demanding field operations. Dual-band communication, hardware video decoding, and extensive connectivity make the G16 an ideal choice for industrial, surveying, agricultural, and inspection applications.


Features:
- Large sunlight-readable touchscreen for clear outdoor visibility
- Powerful Qualcomm processing platform with Android 13 operating system
- Integrated video, telemetry, and control transmission system
- Dual-band 2.4GHz and 5.8GHz communication with automatic frequency switching
- Long-range transmission for reliable control over extended distances
- Supports H.264 and H.265 hardware video decoding
- Built-in high-capacity battery with fast USB-C PD charging
- Compatible with ground station software for professional mission planning
- Automatic frequency hopping for improved signal stability
- Multiple connectivity options including USB-A, USB-C, SIM card, and PPM interfaces
- Portable all-in-one design for field deployment

Specifications:
G16 Main Unit
				Product Type: Smart Ground Station Remote Controller
				Display: 7-inch Industrial Sunlight-Readable Touchscreen
				Resolution: 1920 × 1200
				Processor: Qualcomm 6nm Platform
				Operating System: Android 13
				RAM: 4GB
				Internal Storage: 64GB
				Battery Capacity: 20000mAh
				Battery Life: Approximately 9–10 Hours
				Charging Interface: USB Type-C
				Fast Charging: 36W PD
				Operating Frequency: 2.4GHz / 5.8GHz
				Channels: 16
				Frequency Management: Automatic Frequency Hopping
				RF Power: 23dBm
				Control Range: 5–30 km (Line of Sight)
				Operating Temperature: -10°C to +60°C
				Interfaces: USB-A, USB-C, SIM Slot, PPM
				Dimensions: 272x183x94 mm
				Weight: 1.05 kg
GR01 Receiver
				Operating Frequency: 2.4GHz / 5.8GHz
				Baud Rate: 57600 / 115200 / 921600
				Supply Voltage: 7.2–72V
				Power Connector: XT30
				Operating Current: 300mA @ 12V
				Data Transmission Port: Channel 1
				Network Port: Channel 1
				SBUS Output: Channel 1
				PWM Interface: Channel 3
				Air Data Rate: 200 kbps Uplink / 15 Mbps Downlink
				RF Power: 23dBm
				Channel Bandwidth: 1.25MHz / 2.5MHz / 5MHz / 10MHz / 20MHz / 40MHz
				Dimensions: 45.5x60x21.5 mm
				Weight: 37 g
				Operating Temperature: -10°C to +60°C

Package Includes

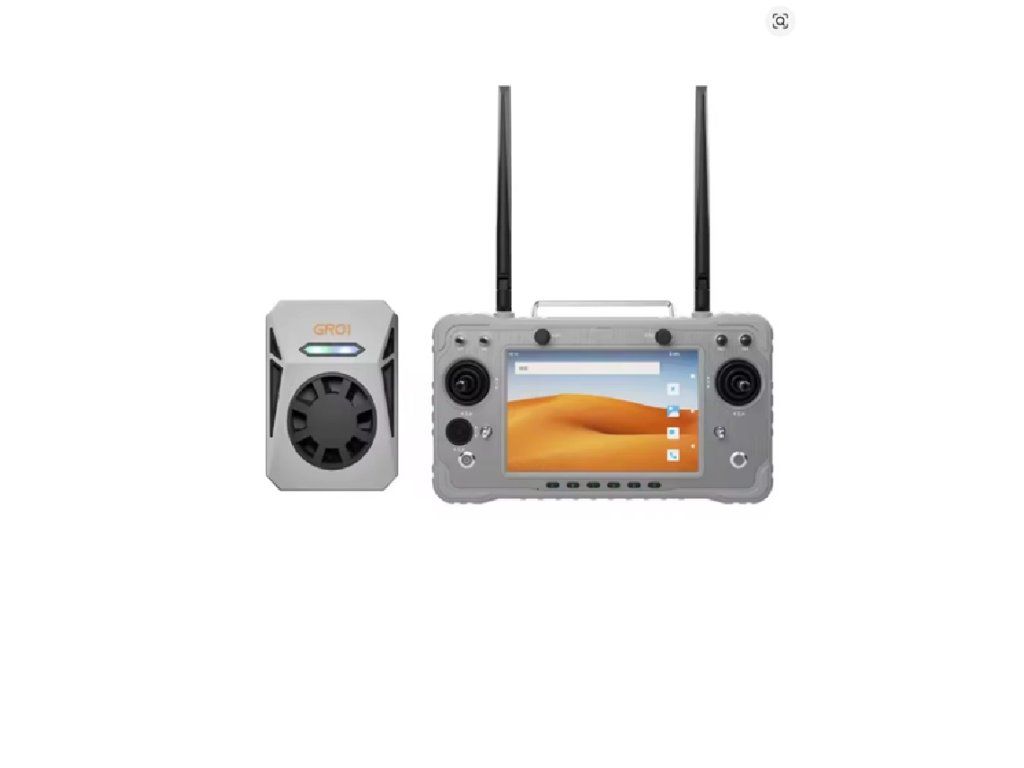

1x SkyDroid G16 Smart Ground Station Controller
1x GR01 Receiver
