Product detailed description

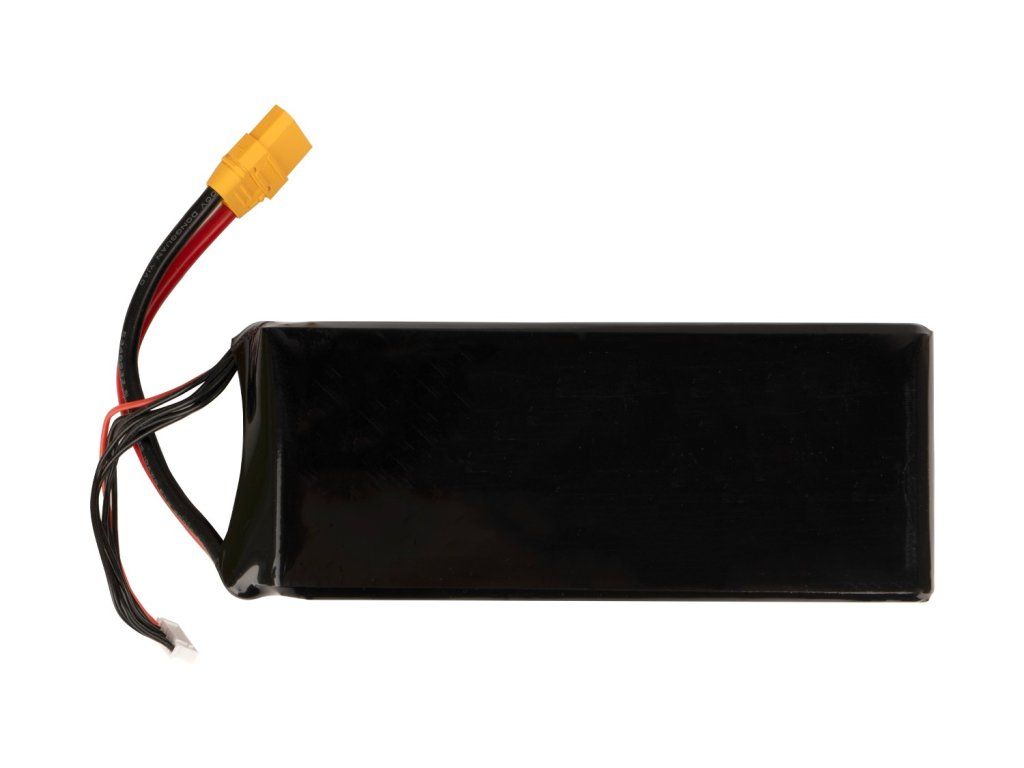

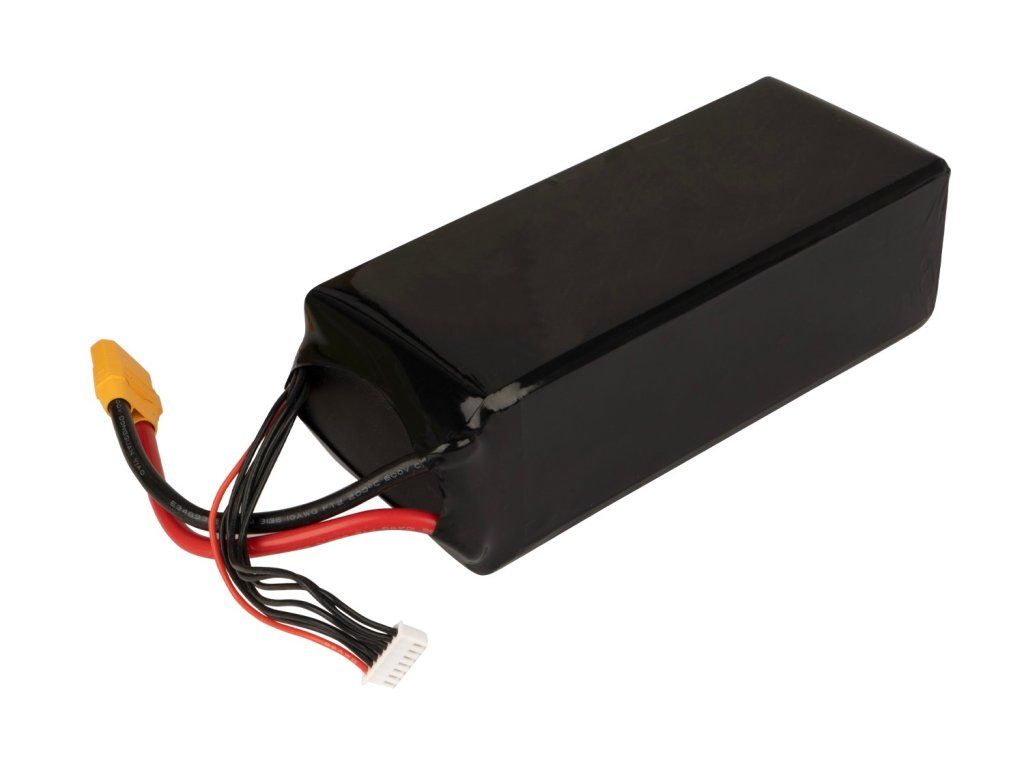

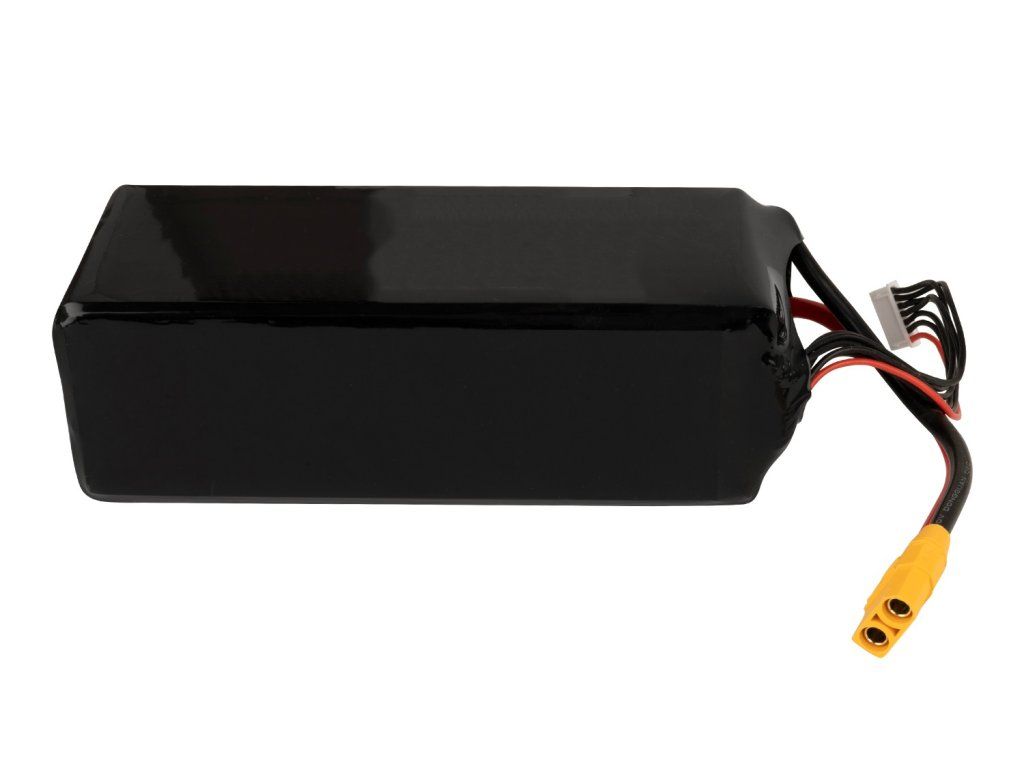

The Pilotix Lipo 6S1P 6S 8000mAh 75C XT60 is a LiPo battery designed for FPV applications, featuring a 6S cell configuration with 8000 mAh capacity. This high-performance battery pack offers a continuous discharge rate of 75C and a maximum discharge rate of 150C.
The battery operates at a nominal voltage of 22.2V, with a voltage range spanning from 18V minimum to 25.2V maximum. The recommended storage voltage is 23.1V. Maximum charge rate is 1C. Power delivery is handled through an XT60 connector, while cell balancing is managed via a JST XH 2.54mm 7-pin balance connector. The unit measures 138 x 66 x 44 mm and weighs 820 g.
Operating temperature ranges from -10 to 40°C, while charging and storage temperatures are limited to 10 to 40°C. The battery functions in humidity conditions of 20-95% RH non-condensing. This product is backed by a 2-year warranty.
Product details
| Model |
Lipo 6S1P 6S 8000mAh 75C XT60
|
| SKU |
8249
|
Electrical specification
| Type |
LiPo
|
| Cell configuration |
6S
|
| Capacity |
8000 mAh
|
| Min voltage |
18 V
|
| Nominal voltage |
22.2 V
|
| Max voltage |
25.2 V
|
| Storage voltage |
23.1 V
|
| Max charge rate |
1 C
|
| Continues discharge rate |
75 C
|
| Peak discharge rate |
150 C
|
Interfaces
| Power сonnector |
XT60
|
| Balance сonnector |
JST XH 2.54mm 7-pin
|
Mechanical specifications
| Dimension |
138x66x44 mm
|
| Weight |
820 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Charging temperature |
10 - 40 °C
|
| Storage temperature |
10 - 40 °C
|
| Operating temperature |
-10 - 40 °C
|
| Operating temperature (important note) |
Operating at sub-zero temperatures reduces available capacity, increases internal resistance, and accelerates cell degradation, shortening overall battery lifespan.
|
