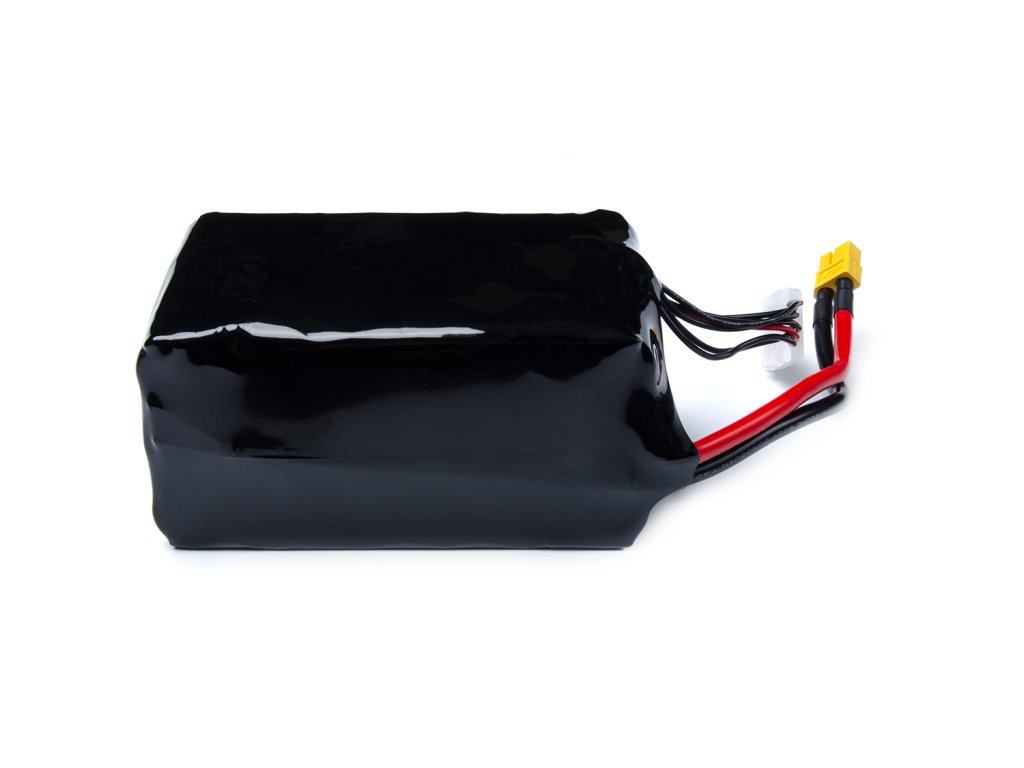

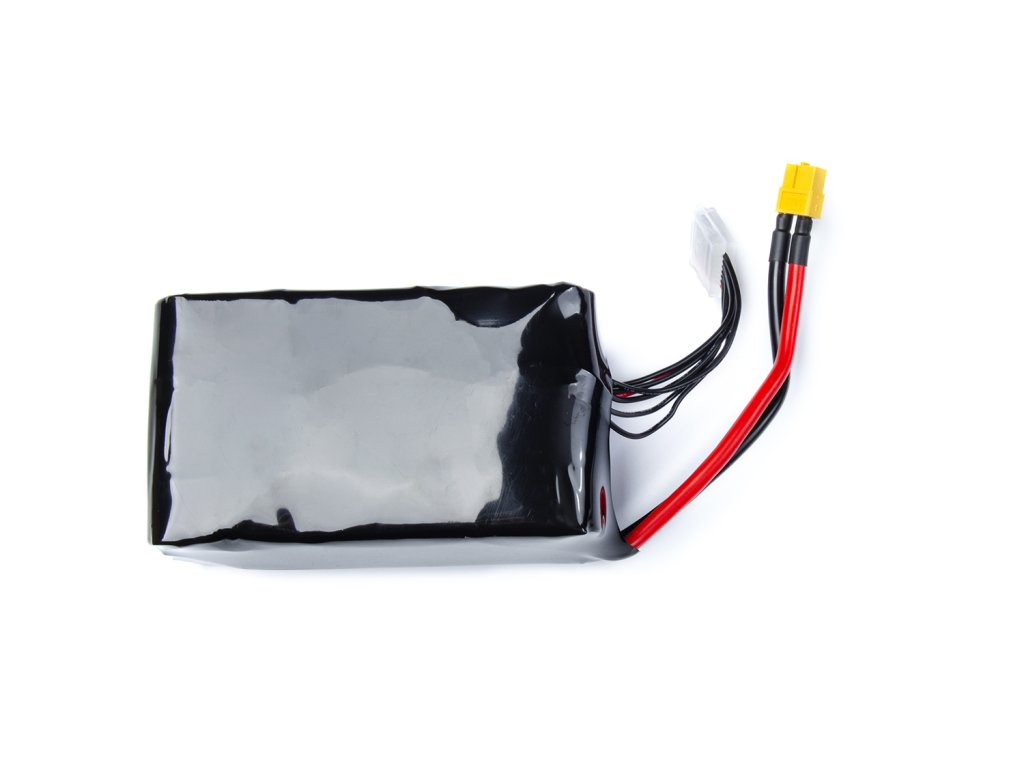

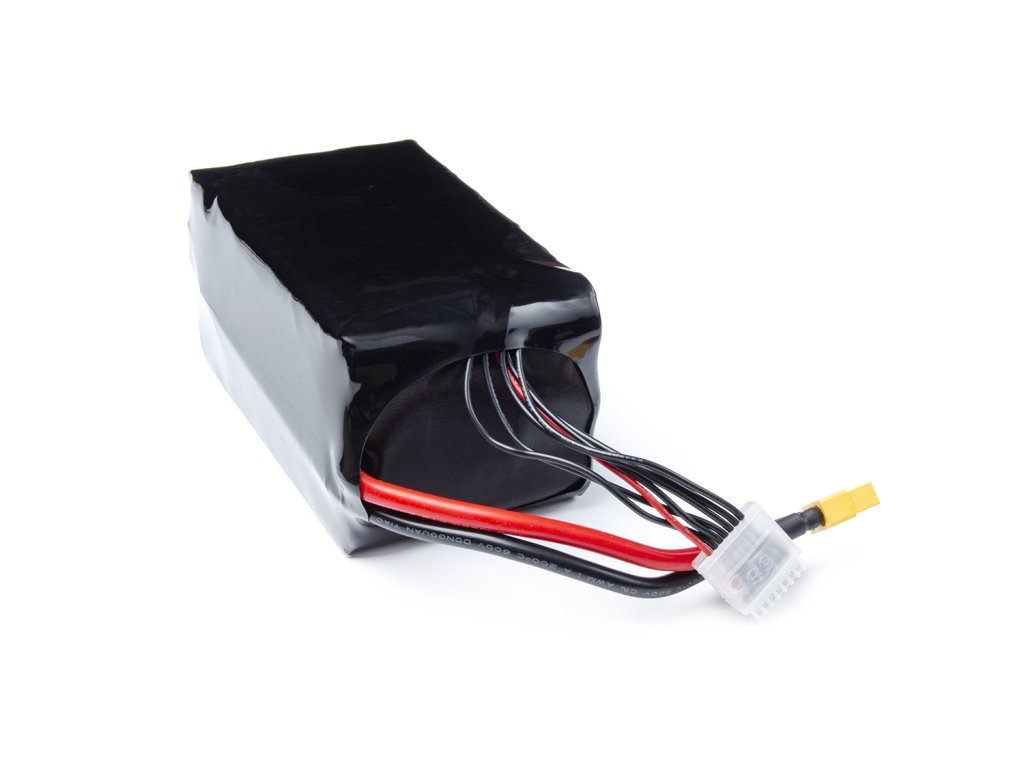

Battery HobbyDrone Li-ion 6S3P 12000mah 10C XT60
Code: 5557Related products
Product detailed description
The HobbyDrone Li-ion 6S3P 12000mah 10C XT60 is a high-capacity Li-ion FPV battery featuring a 6S3P cell configuration with 12000mAh capacity. This battery pack operates at a nominal voltage of 21.6V and delivers continuous 10C discharge rate for reliable power delivery during flight operations.
Key features
- ✓High capacity — 12000mAh Li-ion cells in 6S3P configuration
- ✓Voltage range — 15V min to 25.2V max, 21.6V nominal
- ✓Discharge performance — 10C continuous, 20C max discharge rate
- ✓XT60 power connector — with JST XH 2.54mm 7-pin balance connector
- ✓Compact dimensions — 130 x 80 x 65mm at 1280g weight
- ✓2-year warranty — manufacturer-backed coverage
The battery operates within -20 to 40°C temperature range, with charging and storage recommended between 10-40°C. Suitable humidity conditions are 20-95% RH (non-condensing). Maximum charge rate is 0.5C with recommended storage voltage at 22.2V.
Product details
| Model | Li-ion 6S3P 12000mah 10C XT60 |
|---|---|
| SKU | 5557 |
Electrical specifications
| Type | Li-ion |
|---|---|
| Cell configuration | 6S3P |
| Capacity | 12000mAh |
| Min voltage | 15V |
| Nominal voltage | 21.6V |
| Max voltage | 25.2V |
| Storage voltage | 22.2V |
| Max charge rate | 0.5C |
| Continues discharge rate | 10C |
| Peak discharge rate | 20C |
Interfaces
| Power сonnector | XT60 |
|---|---|
| Balance сonnector | JST XH 2.54mm 7-pin |
Mechanical specifications
| Dimensions | 130 x 80 x 65 mm |
|---|---|
| Weight | 1280g |
Operating conditions
| Humidity range | 20-95 % RH (non-condensing) |
|---|---|
| Charging temperature | 10 - 40 °C |
| Storage temperature | 10 - 40 °C |
| Operating temperature | -20 - 40 °C |
| Operating temperature (important note) | Operating at sub-zero temperatures reduces available capacity, increases internal resistance, and accelerates cell degradation, shortening overall battery lifespan. |
Common
| Warranty | 2 years |
|---|
Product rating
The average product rating is 5,0 out of 5 stars.
1 rating
5
4
3
2
1
Leave a rating
List of ratings
5
BH
Braddy Helligain
Braddy Helligain
packaging was solid, arrived in perfect condition, 12000mah tested and confirmed!
