Product detailed description

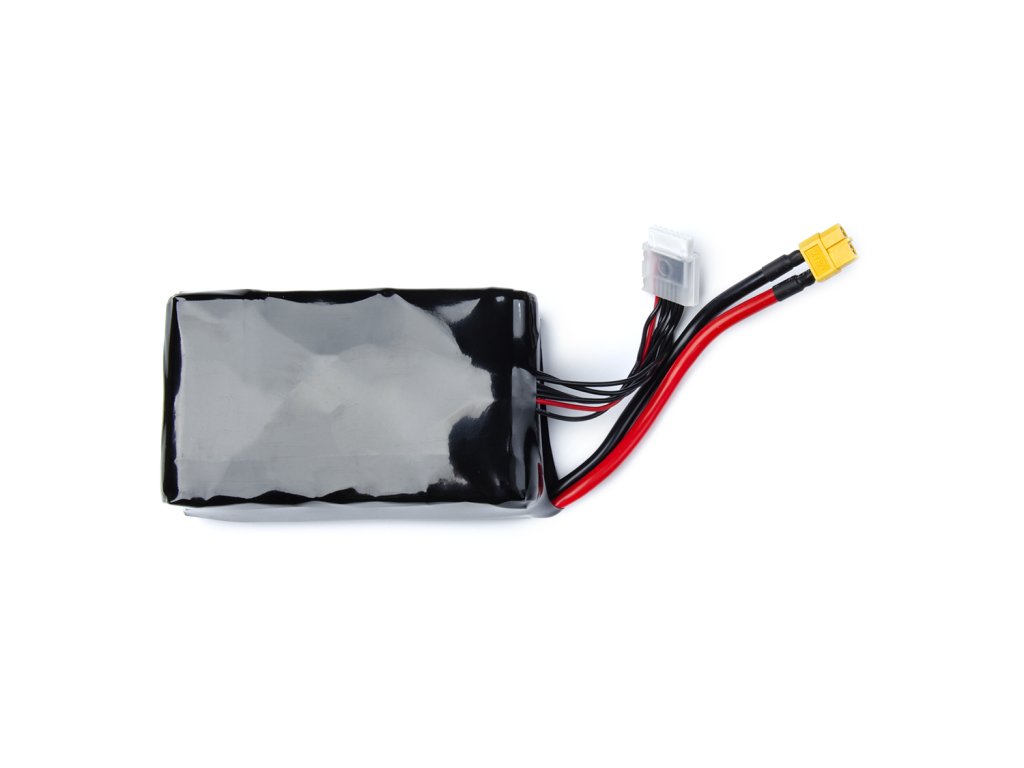

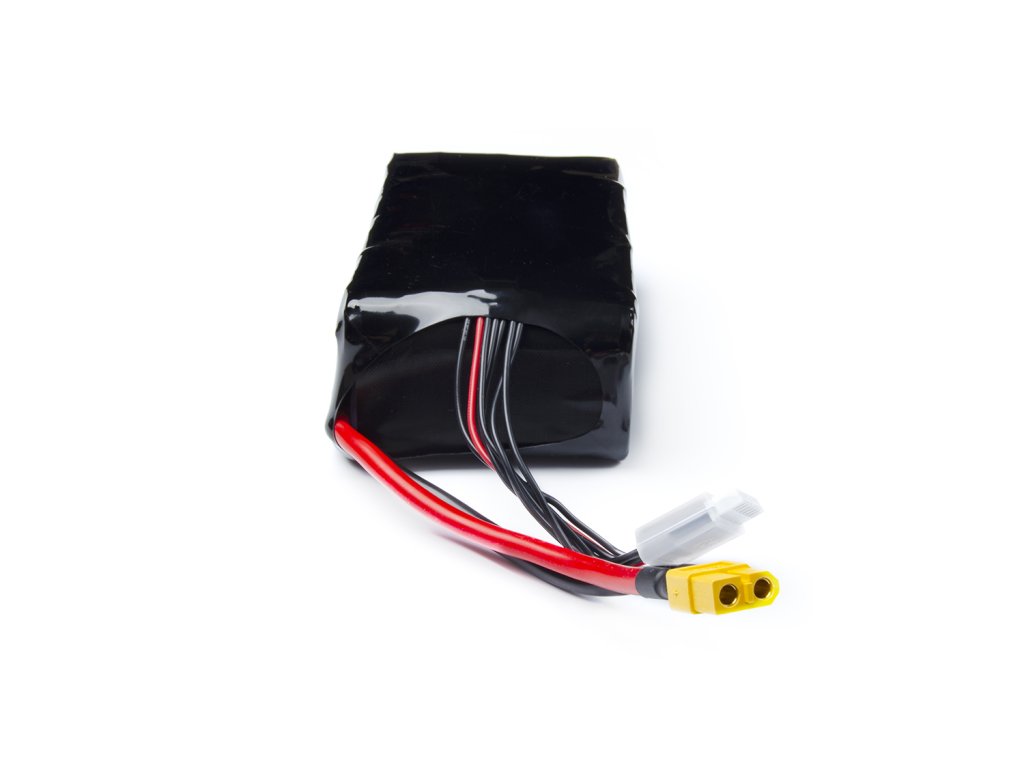

The HobbyDrone Li-ion 6S2P 8000mah 10C XT60 is a lithium-ion battery pack designed for FPV applications. This 6S2P configuration battery features an 8000 mAh capacity and is equipped with an XT60 power connector.
The battery operates with a nominal voltage of 21.6 V, a maximum voltage of 25.2 V, and a minimum voltage of 15 V, with a recommended storage voltage of 22.2 V. It supports a continuous discharge rate of 10C and a maximum discharge rate of 20C, while charging is rated at a maximum of 1C. The pack includes a JST XH 2.54mm 7-pin balance connector for cell balancing. Physical dimensions measure 130 x 73 x 45 mm with a weight of 780 g.
The battery operates within a temperature range of -20 to 40 °C, with charging and storage temperatures limited to 10 to 40 °C. Humidity tolerance is rated at 20-95% RH non-condensing. The product is backed by a 2-year warranty.
Product details
| Model |
Li-ion 6S2P 8000mah 10C XT60
|
| SKU |
5556
|
Electrical specification
| Type |
Li-ion
|
| Cell configuration |
6S2P
|
| Capacity |
8000 mAh
|
| Min voltage |
15 V
|
| Nominal voltage |
21.6 V
|
| Max voltage |
25.2 V
|
| Storage voltage |
22.2 V
|
| Max charge rate |
1 C
|
| Continues discharge rate |
10 C
|
| Peak discharge rate |
20 C
|
Interfaces
| Power сonnector |
XT60
|
| Balance сonnector |
JST XH 2.54mm 7-pin
|
Mechanical specifications
| Dimensions |
130 x 73 x 45 mm
|
| Weight |
780 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Charging temperature |
10 - 40 °C
|
| Storage temperature |
10 - 40 °C
|
| Operating temperature |
-20 - 40 °C
|
| Operating temperature (important note) |
Operating at sub-zero temperatures reduces available capacity, increases internal resistance, and accelerates cell degradation, shortening overall battery lifespan.
|
