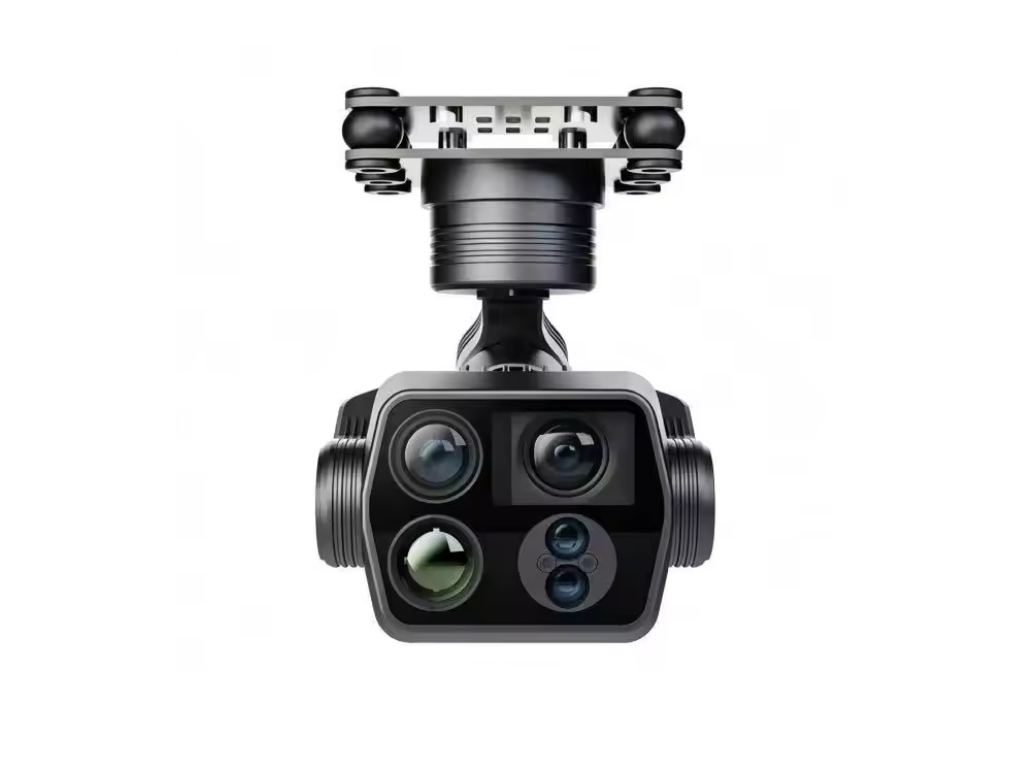

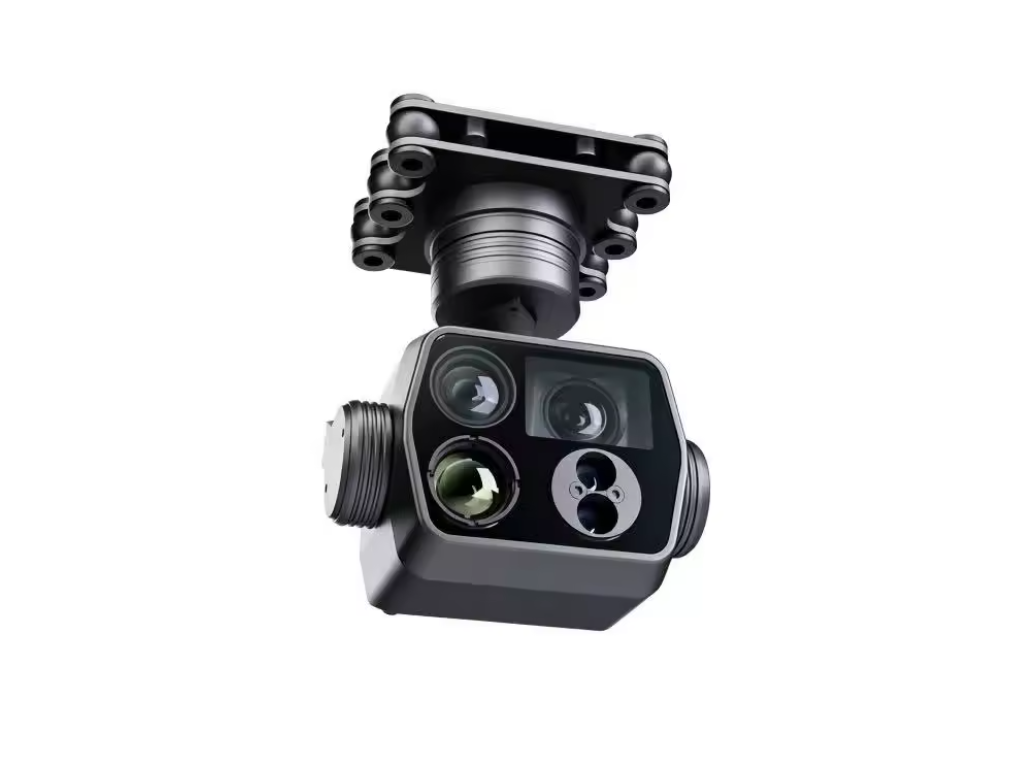

FPV Thermal camera SkyDroid C14 2K 3-Axis Stabilized gimbal

Product detailed description

FPV Thermal camera SkyDroid C14 2K 3-Axis Stabilized gimbal

The SkyDroid C14 is a professional-grade FPV imaging system that combines 2K visible light video, high-resolution thermal imaging, and a precision 3-axis stabilized gimbal. It is designed for advanced aerial operations requiring stable footage, long-range observation, and reliable performance in both daylight and low-visibility conditions. The dual optical system together with laser ranging makes it suitable for inspection, surveillance, and search applications.

Features:
- Dual-camera system combining visible light and thermal imaging for full-spectrum observation
- High-precision 3-axis mechanical stabilization ensures smooth and stable footage during flight
- Advanced thermal detection enables clear heat signature visualization in low-light or no-light environments
- Long-range optical system with zoom capability for detailed distant target observation
- Wide-angle short-focus lens for situational awareness and close-range monitoring
- High-quality 2K recording capability for detailed aerial image capture
- Real-time video transmission for FPV and remote monitoring applications
- Robust design suitable for professional UAV inspection and security tasks
- Wide voltage compatibility for integration with various drone platforms
- 100x Hybrid Electronic Zoom enables powerful long-distance observation by combining optical and digital zoom processing, allowing detailed target inspection without losing situational awareness
- AI Target Locking automatically detects and locks onto moving or stationary objects, maintaining stable focus even during fast motion or complex tracking scenarios
- AI Guidance System assists in intelligent target tracking and framing, improving operator accuracy and reducing manual control effort during flight operations
- 1.2 km Laser Ranging provides precise distance measurement to targets at long range, supporting navigation, surveying, and tactical awareness in aerial missions

Specifications:
Visible Light Camera
CMOS size: 1/2.7
Lens pixel: 5 MP
Video transmission resolution: 1280x720 @ 30 fps
Recording resolution: 2880x1620 (2K) @ 30 fps
Photo resolution: up to 2K (2880x1620)
Photo format: JPG
Video format: TS
Shooting mode: Single shot

Long-focus lens
Aperture: 2.4
Focal length: 25 mm
HFOV / VFOV / DFOV: 14.7° / 11.1° / 18.3°

Short-focus lens
Aperture: 2
Focal length: 3.2 mm
HFOV / VFOV / DFOV: 80° / 61° / 93°

Thermal Imaging
Resolution: 640x512 @ 30 fps
Aperture: 1.0
Focal length: 11 mm
HFOV / VFOV: 32.84° / 26.35°
Pixel pitch: 10 μm
Thermal time constant: < 12 ms

Laser Ranging
Detection range: up to 1.2 km

Gimbal System
Stabilization: 3-axis mechanical stabilization
Angular jitter: ±0.01° (hovering), ±0.02° (flying)
Controllable angle range:
Pitch: -110° to +75°
Yaw: -165° to +165°
Roll: -40° to +40°
Control method: UDP
Weight: 199 g
Dimensions: 65.5x90.4x68.6 mm

System Parameters
Operating voltage: 12–80 V
Video output: RTSP
Operating temperature: -10°C to +60°C
Storage temperature: -20°C to +60°C

Package includes:
1x SkyDroid C14 2K thermal imaging camera with 3-axis stabilized gimbal
