Pilotix T384 FPV Thermal Camera (9mm) v1.1

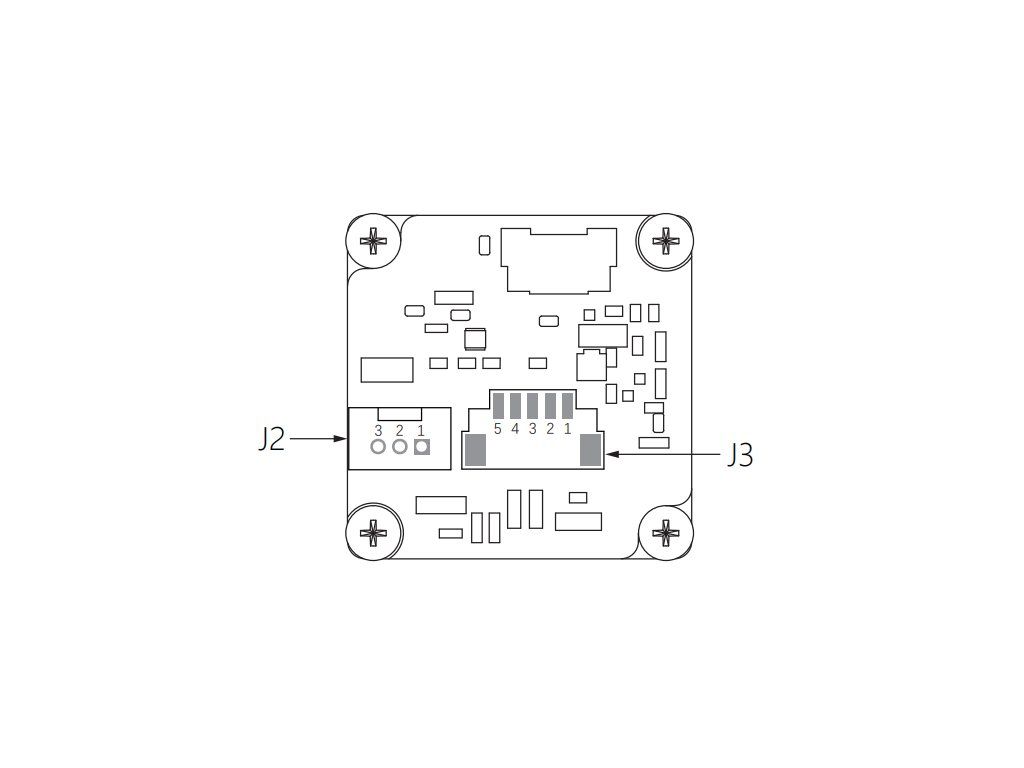

The Pilotix Thermal T384 FPV Camera v1.1 is an upgraded compact thermal imaging solution designed for drone applications. This version features redesigned connectors on the backside for easier integration and a reduced board size of 20×20 mm, making it suitable for lightweight builds. Equipped with a 9mm lens and operating in the 8–14 μm infrared band, the camera provides precise heat signature detection with a resolution of 384×288 pixels.

Specifications:

Sensor Type: VOx microbolometer
Resolution: 384×288 pixels
Pixel Size: 12 μm
Spectral Range: 8–14 μm
NETD: ≤40 mK (@25°C, F#1.0)
Field of View (FOV): 26.46° (H) × 19.81° (V) × 33.19° (D)
Lens: 9 mm focal length
Operating Temperature: -40℃ to +60℃
Storage Temperature: -45℃ to +75℃
Humidity: <90% RH (operating and storage)
Power Supply: DC 5–12 V
Power Consumption: ≤0.8 W

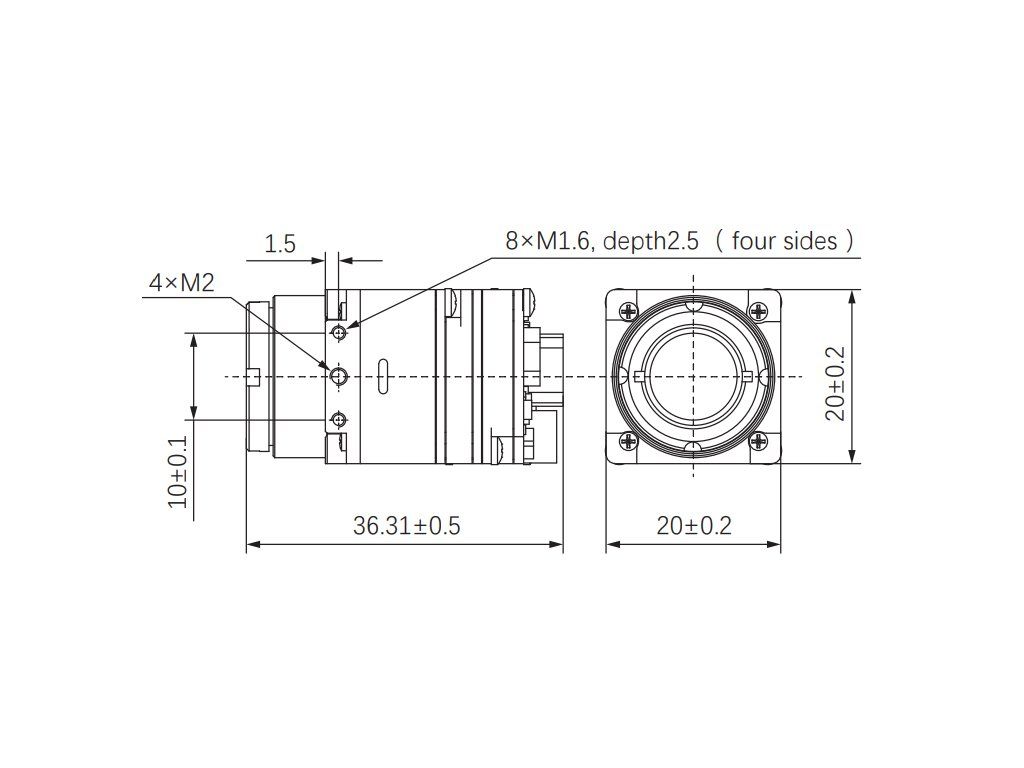

Dimensions: 20 × 20 × 38 mm
Weight: 23 g

Package Includes:

1× FPV thermal camera Pilotix T384 v1.1
