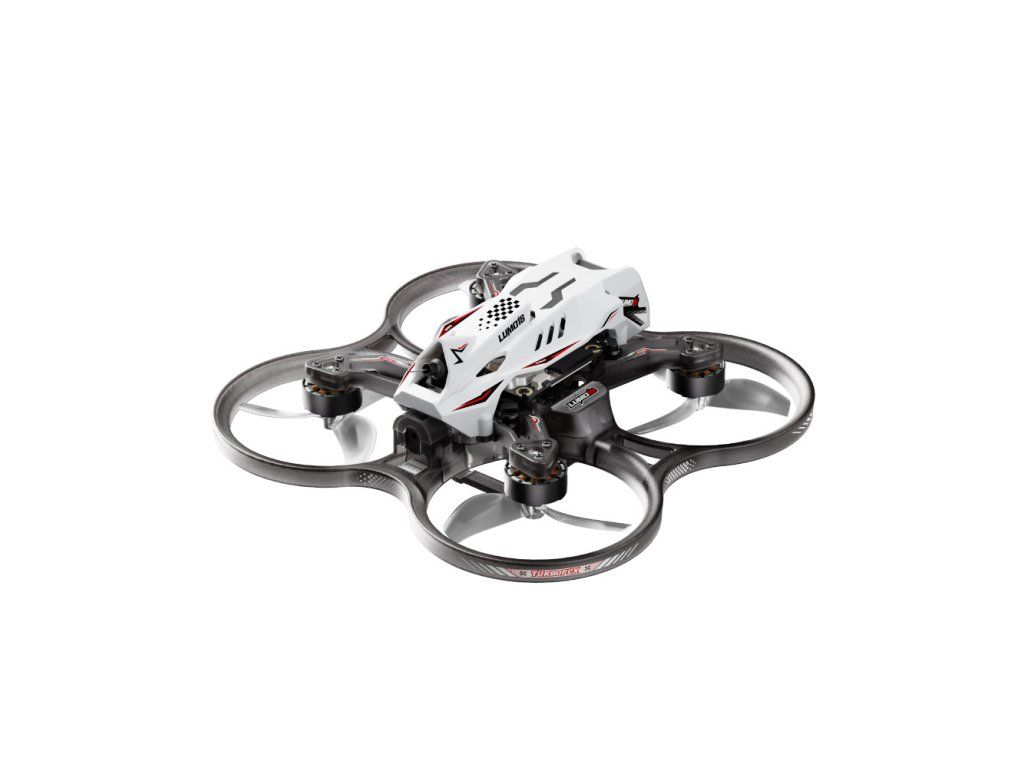

FPV Drone Oxbot Lumo18 Power ELRS (without O4）

Product detailed description

FPV Drone Oxbot Lumo18 Power ELRS (without O4）

The Oxbot Lumo18 Power ELRS is a compact 85mm micro FPV drone designed for smooth freestyle flying, indoor practice, and creative aerial shots. Featuring a built-in ELRS receiver for fast and reliable control, this version comes without a VTX, allowing pilots to install their preferred video system such as DJI O4. Its lightweight frame, efficient propulsion, and vibration-damping design ensure stable flight and clear footage.

Features:
- Built in ELRS receiver for fast responsive and stable control link
- Without VTX for full flexibility to install preferred video system
- Integrated damping structure for reduced vibration and smooth footage
- Compact lightweight design for agile indoor and outdoor flying
- High efficiency propulsion system for longer flight time
- Durable frame with protective duct design for safer flights
- Built-in buzzer for easy drone recovery
- Wireless tuning via Bluetooth for convenient setup and adjustments
- Modular construction for easy maintenance and customization
- Integrated LED lighting for enhanced visibility and style

Specification:
Frame: OXBOT LUMO18 Frame
Wheelbase: 85 mm
Flight Controller: F435 2–3S 12A AIO
MCU: AT32 F435
Receiver: ELRS (built-in)
VTX Support: DJI O4 Air Unit (not included)
Motor: 1103 12000KV Brushless
Propellers: Gemfan 45mm 3-blade
Battery Connector: XT30
Recommended Battery: 2S LiPo (450–850 mAh)
Flight Time: approx. 4–8 minutes
Bluetooth: Supported (App tuning)
Tuning Method: Wireless via App / USB
LED: Integrated Meteor LED strip (66 LEDs)
Max Battery Size: 80x18x12.5 mm
Max Strap Size: 80x18x17 mm
Weight: 63 g ±2 (without battery)

Note: VTX is not included and must be purchased ceparately

Package Include:
1x FPV Drone Oxbot Lumo18 Power ELRS (without O4）
1x Black Pointed Tweezers
1x Yellow 2.0mm Phillips screwdriver
1x Propeller Removal Tool
1x USB Extension Board
1x USB Extension Board 4-Pinx80mm Cable
1x Black TPU Antenna Mount (3D Printed)
2x Black TPU Camera Cover (3D Printed)
1x 40mm 5.8G Copper Tube Antenna
1x VTX Thermal Pad
8x M1.6x3mm Flat Head Phillips Screws
3x M1.4x3mm Flat Head Phillips Screws
6x M1.6x4mm Flat Head Phillips Screws
6x M1.6x3mm Pan-Head Phillips Screws with washers
1x LUMO18 Sticker
1x Battery Strap
