FPV Drone Oxbot Lumo18 O4 Ultra-Wide

Product detailed description

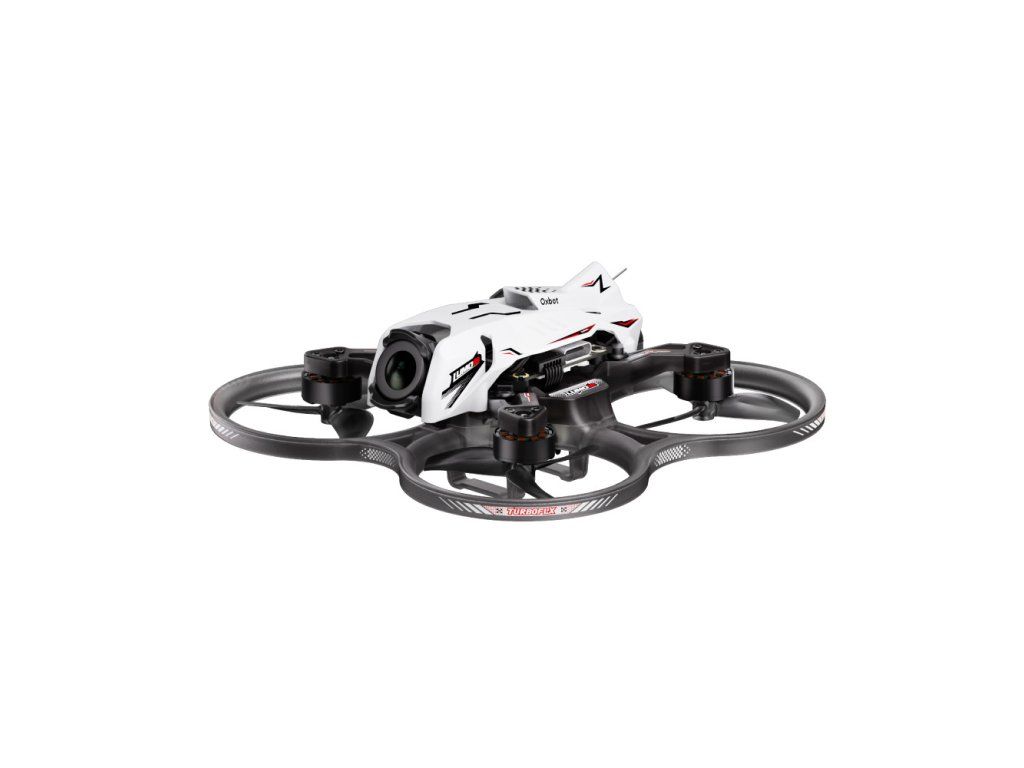

FPV Drone Oxbot Lumo18 O4 Ultra-Wide

The Oxbot Lumo18 O4 Ultra-Wide is a compact 85mm micro FPV drone designed for smooth freestyle flying and immersive aerial footage. Equipped with the DJI O4 Air Unit and an ultra-wide lens, it delivers a broad field of view with clear, low-latency video transmission. Its lightweight design, integrated damping system, and built-in ELRS receiver provide stable flight performance and precise control in both indoor and outdoor environments.

Features:
- Built in ELRS receiver for fast responsive and stable control link
- DJI O4 Air Unit with ultra wide field of view for immersive FPV experience
- Integrated damping system for reduced vibration and smooth clear footage
- Compact lightweight design for agile indoor and outdoor flying
- High efficiency propulsion system for extended flight time
- Durable frame with protective duct design for safer operation
- Built-in buzzer for easy recovery of lost drone
- Wireless tuning via Bluetooth for convenient setup and adjustments
- Modular construction for easy maintenance and upgrades
- Integrated LED lighting for enhanced visibility and style

Specification:
Frame: OXBOT LUMO18 Frame
Wheelbase: 85 mm
Flight Controller: F435 2–3S 12A ELRS AIO
MCU: AT32 F435
Receiver: ELRS (built-in)
Video Transmission System: DJI O4 Air Unit (Ultra-Wide lens)
Field of View: 148°
Motor: 1103 12000KV Brushless
Propellers: Gemfan 45mm 3-blade
Battery Connector: XT30
Recommended Battery: 2S LiPo (450–850 mAh)
Flight Time: approx. 4–8 minutes
Bluetooth: Supported (App tuning)
Tuning Method: Wireless via App / USB
LED: Integrated Meteor LED strip (66 LEDs)
Max Battery Size: 80x18x12.5 mm
Max Strap Size: 80x18x17 mm
Weight: 63 g ±2 (without battery)

Package Include:
1x FPV Drone Oxbot Lumo18 Power ELRS (without O4）
1x Black Pointed Tweezers
1x Yellow 2.0mm Phillips screwdriver
1x Propeller Removal Tool
1x USB Extension Board
1x USB Extension Board 4-Pinx80mm Cable
2x Black TPU Camera Side Plate (3D printed)
5x M1.6x3mm Flat Head Phillips Screws
3x M1.4x3mm Flat Head Phillips Screws
3x M1.6x4mm Flat Head Phillips Screws
3x M1.6x3mm Pan-Head Phillips Screws with washers
1x LUMO18 Sticker
1x Battery Strap
2x M1.4x2mm Flat Head Phillips Screws
