FPV Drone iFlight X413 Analog 5.8G 2.5W 8S (PNP)

Product detailed description

X413 Analog 5.8G 2.5W 8S (PNP)

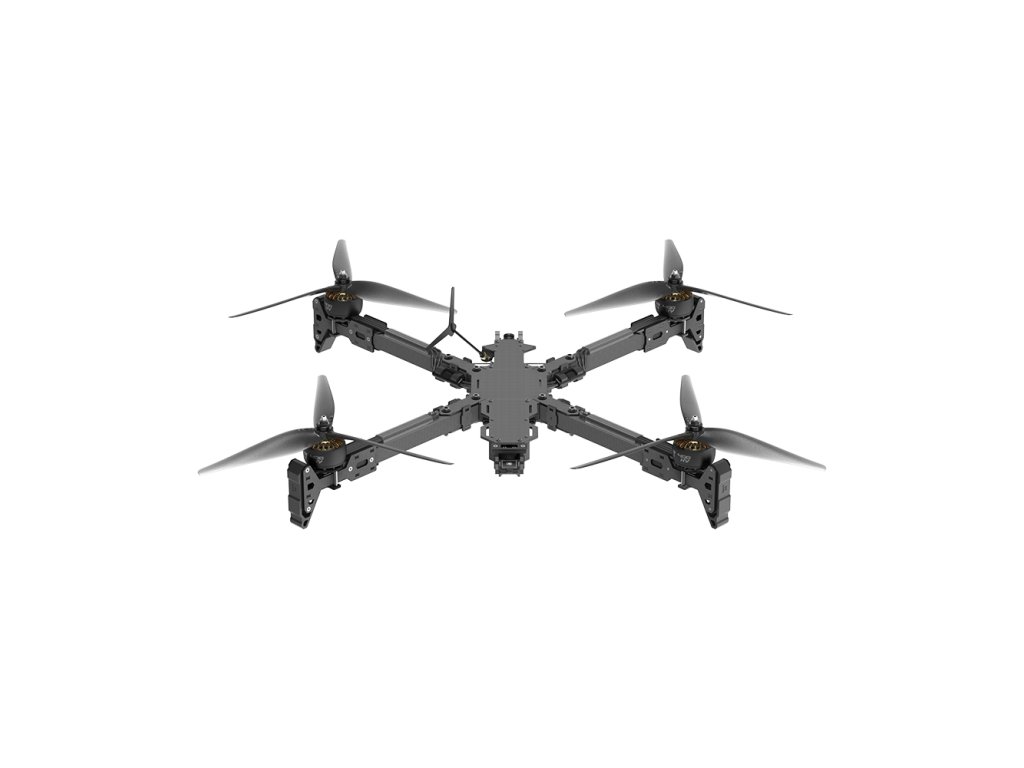

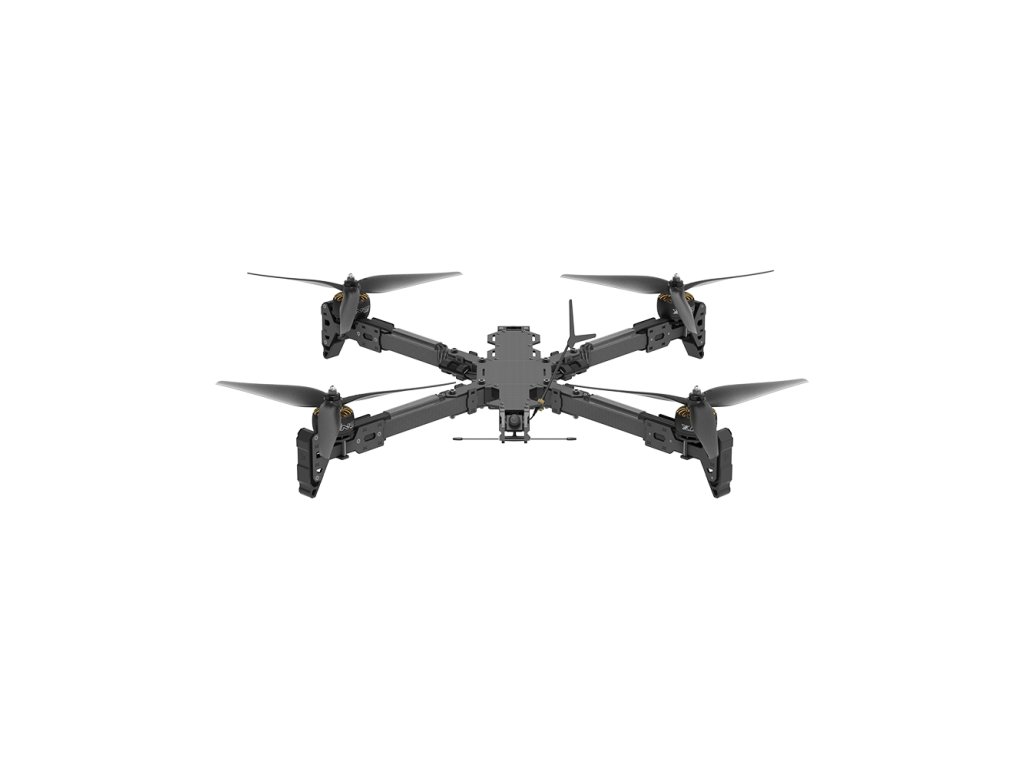

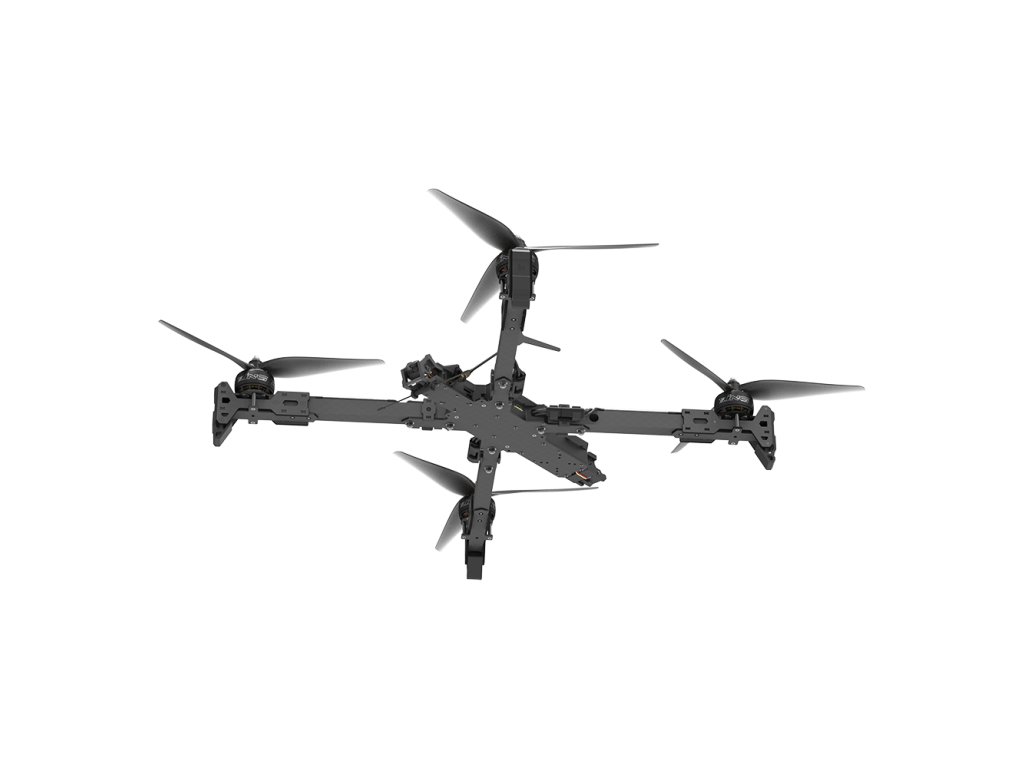

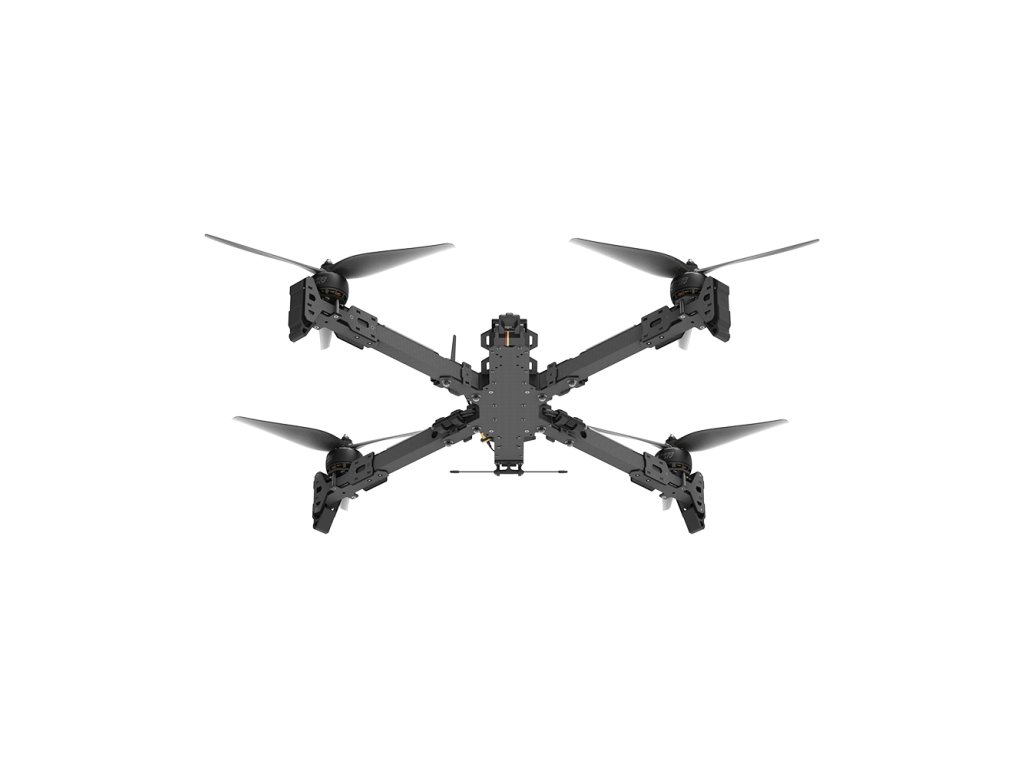

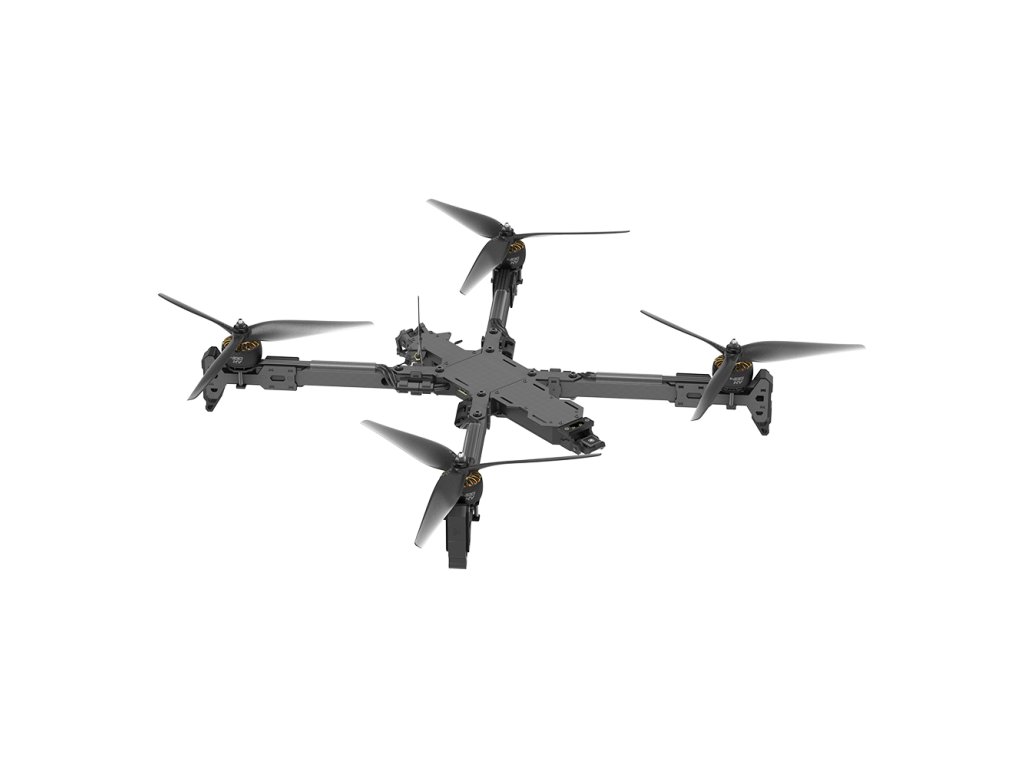

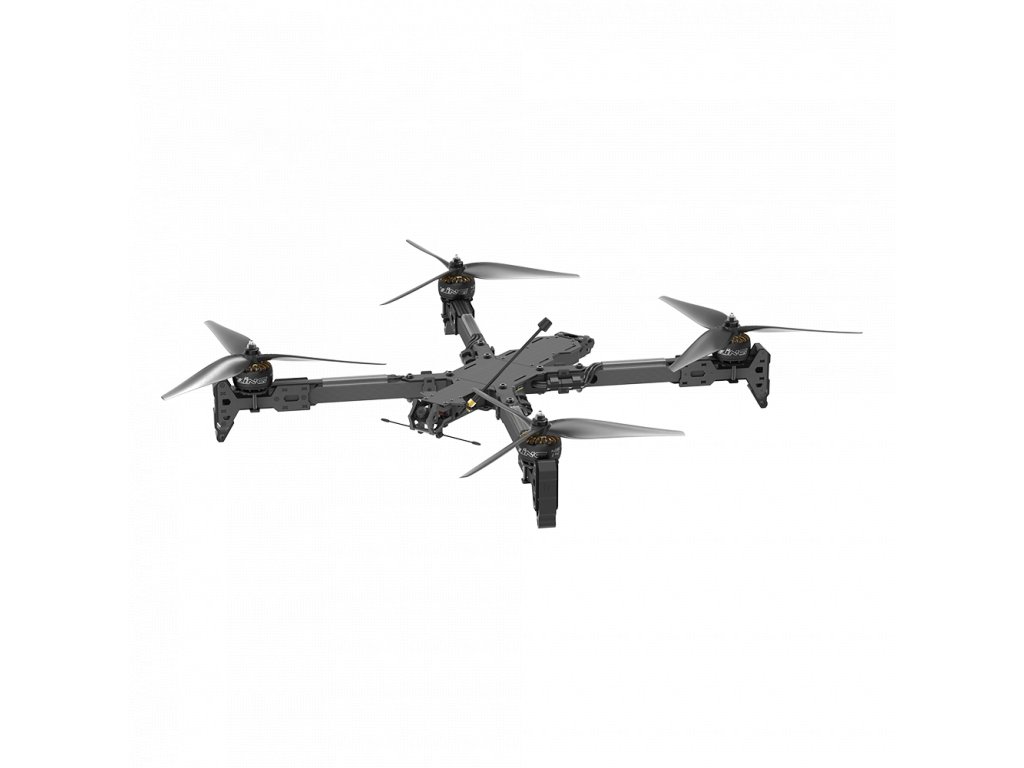

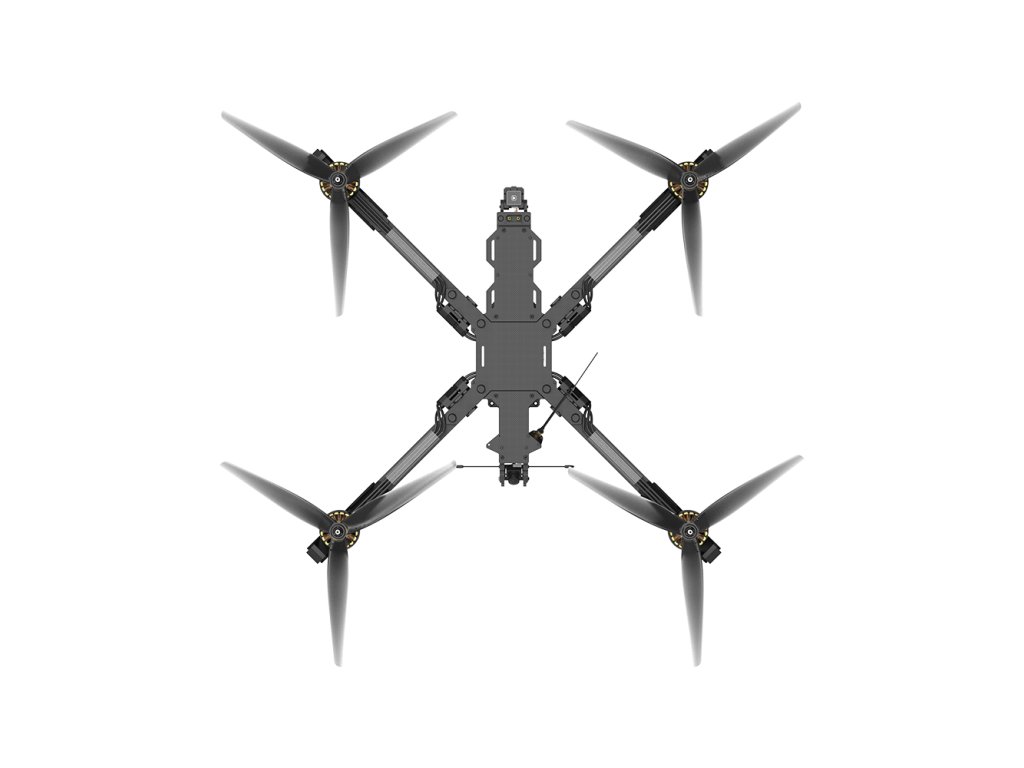

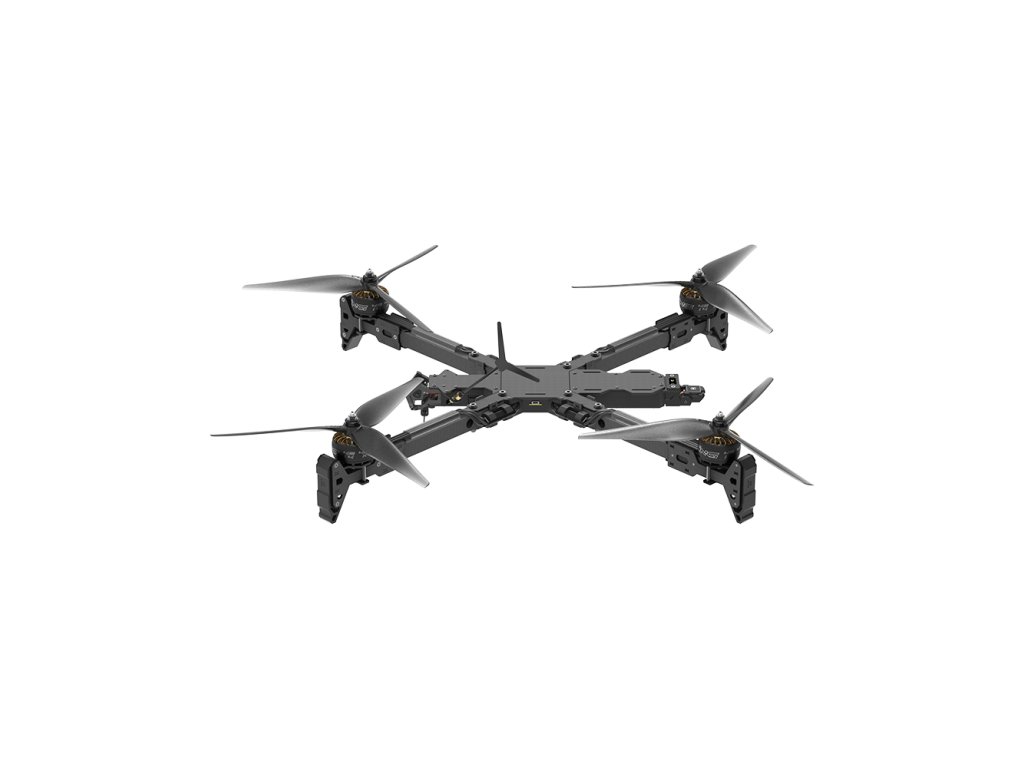

The X413 8S Analog is a 13" BNF quadcopter that comes with the BLITZ Whoop  VTX Video Transmission System, and HQ 13" 3-Blade  propellers. The X413 has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! Loaded with lots of power, it comes with the XING 4214 motors, BLITZ F7 Pro Flight Controller, GPS Module Pre-installed, and the BLITZ E80 Pro 4-IN-1 ESC.

Specifications:

Product Name: X413 Analog 13-inch
Receiver Option: Without RX (PNP)
Camera:  RaceCam R1 Mini 1200TVL 2.5mm
FC: BLITZ F7 Pro Flight Controller
ESC: BLITZ E80 4-IN-1 Pro ESC
Video Transmission: 5.8G  2.5W VTX
Frame: 599mm wheelbase
Motor: XING 4214 motors
Prop: 13X9X3 propellers
Weight: 2070g (Without Battery)
Dimensions (L×W×H): 425x425x26mm
Max Speed: 140km/h
Maximum Takeoff Altitude: 6000 m
Max Hover Time:
- 18 mins (with 8S 5600mAh no load)
- 7mins (With 8S  5600mAh 4KG load)
- 5mins (With 8S 5600mAh 6KG load)
Max Wind Speed Resistance: Level 8
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission
Product Name: BLITZ Whoop 5.8G 2.5W VTX
Output Power: 0-25-400-1000-2500mw
Input Volts: 7-34V
Working Current: ≤pit @12V 140mA, ≤25mw@12V 200mA, ≤400mw@12V 340mA, ≤1000mw@12V 480mA, ≤2500mw@12V 780mA
Transmission fre: 40CH(A-B-E-F-R)
Antenna Interface: MMCX
Mounting Hole: 25*25/φ1.6mm
Weight: 32g
Dimensions: 50*30*16mm

Package Includes:
1 x X413 8S Analog BNF (PNP)
1 x Battery pad
1 x Antennas
2 x Propellers(Pair)
3 x Battery straps
1 x Screw Bag
