VTX HDZero Freestyle V2 5.8GHz 200mW

Product detailed description

VTX HDZero Freestyle V2 5.8GHz 200mW

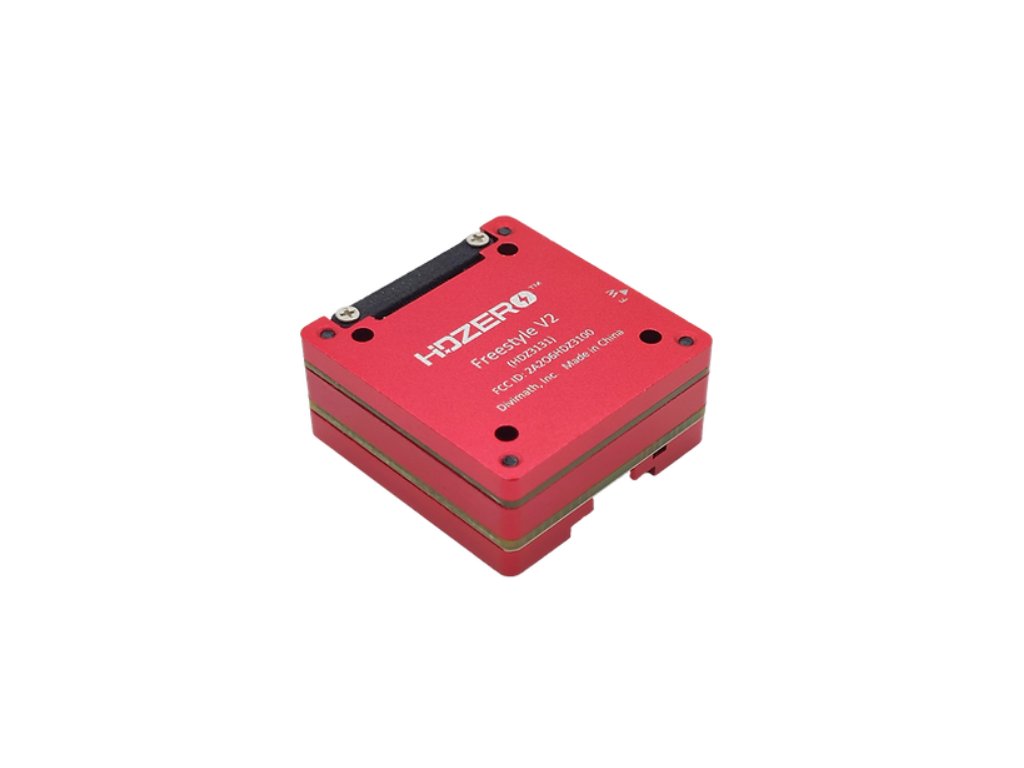

HDZero Freestyle V2 VTX is the second-generation 5.8GHz digital video transmitter, designed to fit most 3–5-inch HD drones. All sockets are well protected by a CNC-machined case that enhances durability, provides RF shielding, and improves signal integrity. A wire harness is included for solderless connection to power and the MSP UART port. The antenna and MIPI cable are secured using the provided retention bars and screws.

The VTX supports the following video modes: 720p60, 1080p30, 540p60, and 540p90. It is capable of up to 1W RF output on the R1 channel if unlocked via license or with approval from local authorities.

Specifications:

Manufacturer: Divimath, Inc
Model: HDZero Freestyle V2 VTX
Weight: 22.3 g
Dimensions: 29 × 30 × 14 mm
Operating Frequency: 5.725 – 5.850 GHz
Transmitter Power: 25 mW, 200 mW
Mounting Pattern: 20 × 20 mm M2 holes
Antenna Interface: Secured U.FL
Video In: Secured MIPI
SmartAudio: Yes
MSP Canvas Mode: Yes
Input Power: 7 – 25 V
Operating Temperature: 32˚F – 104˚F (0˚ – 40˚C)
Power Consumption: 6 – 15 W

Package Includes
1x Freestyle V2 VTX
1x Power Cable
1x SA Cable
1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm)
1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
1x Double Sided Tape (29 x 30 x 1mm)
