VTX GEPRC MATEN 5.8G 10W VTX PRO

Product detailed description

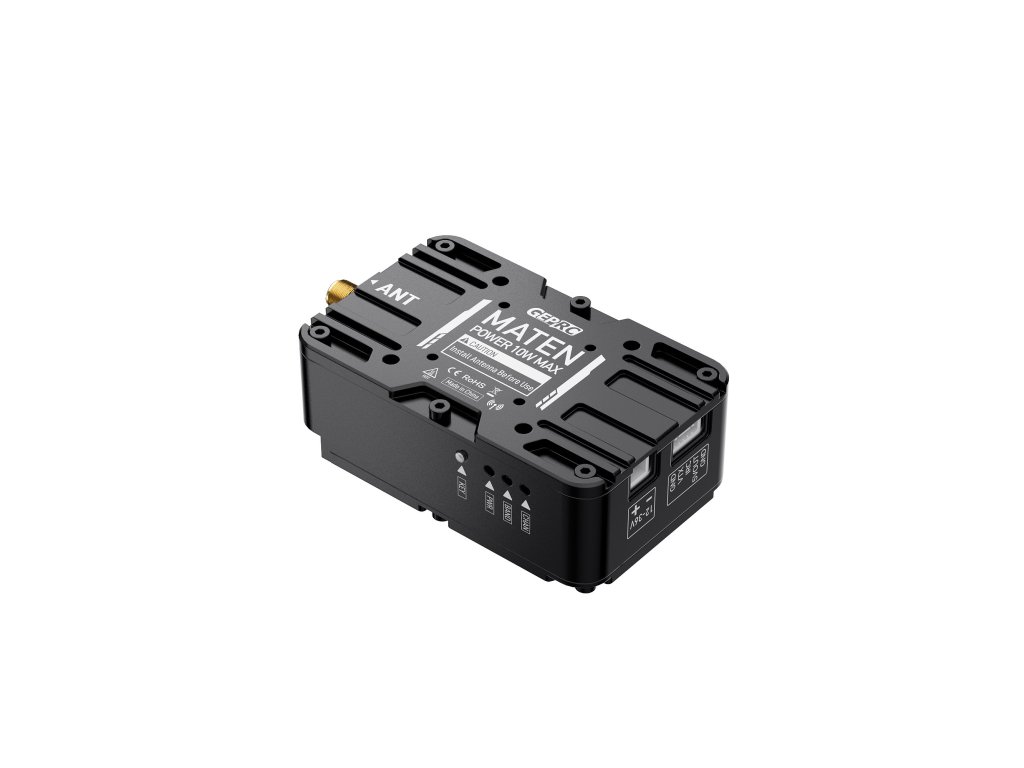

VTX GEPRC MATEN 5.8G 10W VTX PRO

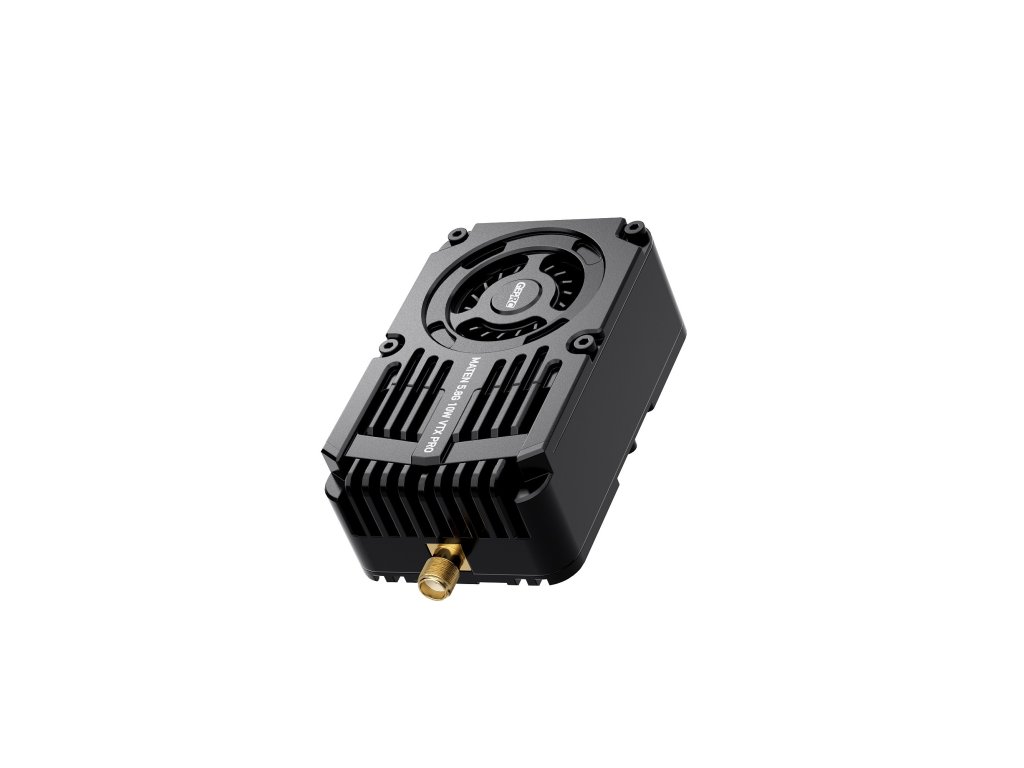

The GEPRC MATEN 5.8G 10W VTX PRO is a high-power video transmitter developed for long-range and high-performance FPV applications. Delivering up to 10W output power with multiple adjustable levels, it ensures stable signal transmission and excellent penetration even in challenging environments. Housed in a CNC aluminum alloy shell with active fan cooling, it is built for reliable operation under heavy loads.

Features:
- Ultra-high output power with multiple adjustable levels for long-range FPV flights
- CNC-machined aluminum alloy housing provides excellent heat dissipation and impact resistance
- Built-in micro turbofan actively cools the VTX for stable high-power operation
- Wide input voltage range supports high-voltage FPV and UAV builds
- Supports IRC Tramp protocol for convenient OSD control and configuration
- Direct frequency input via configurator for precise channel selection
- Integrated temperature protection to prevent overheating and damage
- Dual mounting pattern supports both compact and standard frame layouts

Specification:
Model: GEPRC MATEN 5.8G 10W VTX PRO
Frequency Range: 4884–6184 MHz
Channels: 104 CH
Output Power: 25 mW / 2.5 W / 5 W / 10 W / Pit Mode
Input Voltage: DC 12–36 V (3–8S LiPo)
Peak Operating Current: 3.5A
Output Voltage: 5V @ 600mA (for camera or cooling fan only)
Control Protocol: IRC Tramp
Antenna Connector: SMA
Cable Connector: PH2.0 2-pin, GH1.25 5-pin

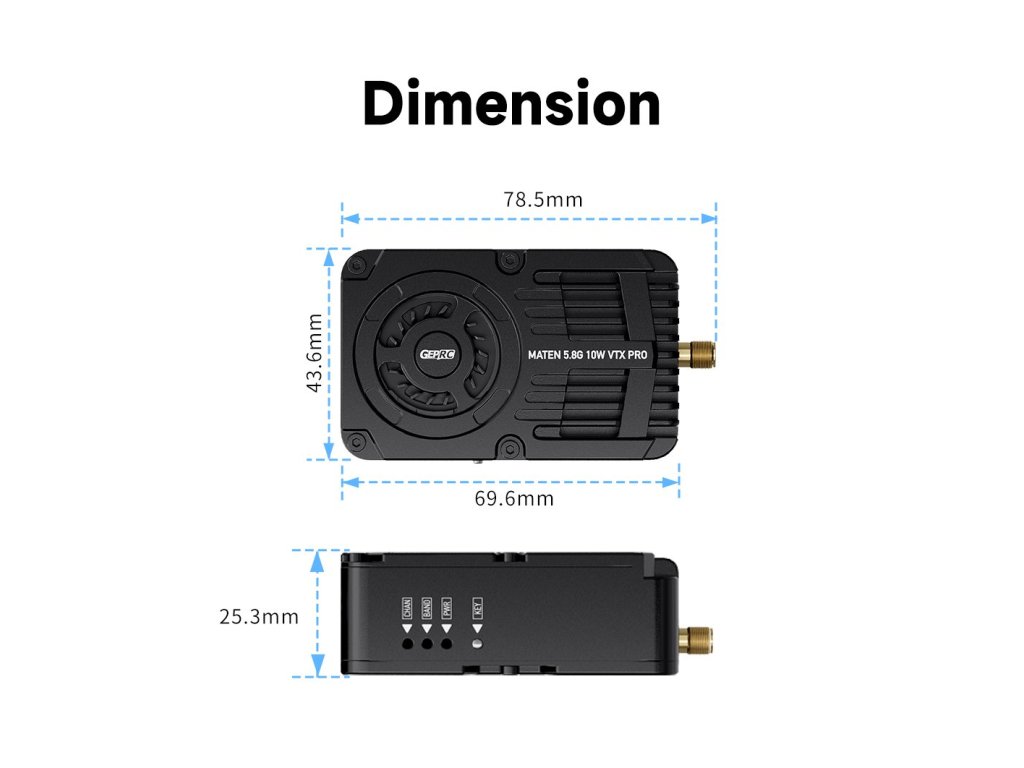

Dimensions: 78.5x43.6x25.3mm

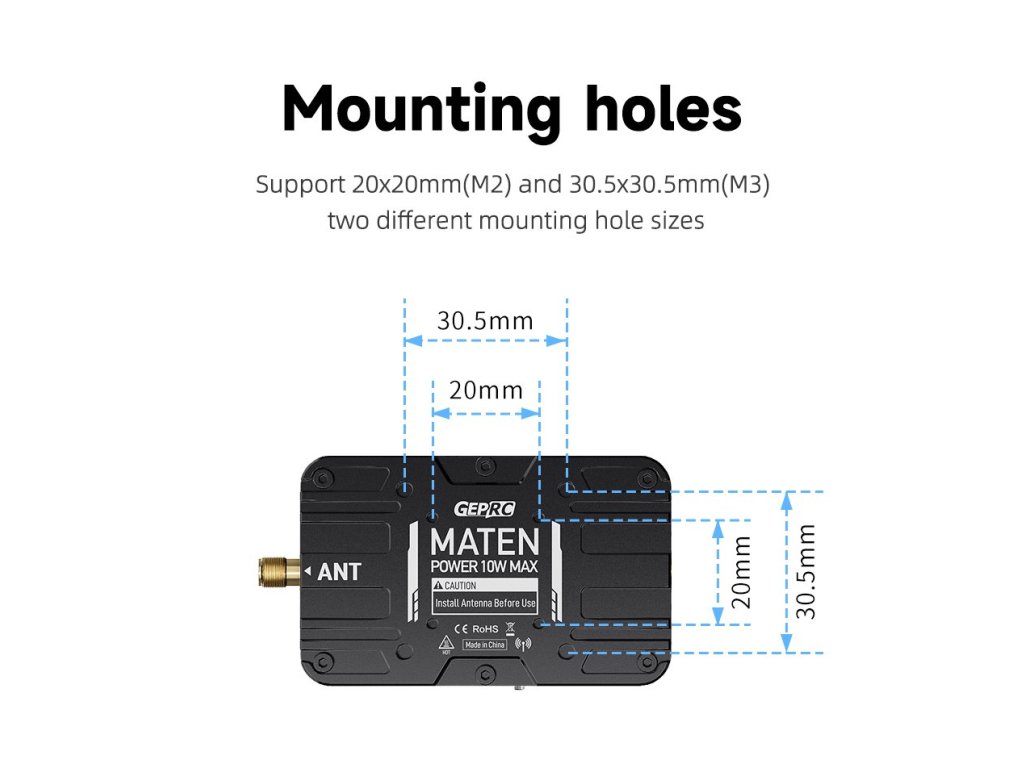

Mounting Hole Size: 20x20mm (M2), 30.5x30.5mm (M3)
Weight: 110g (VTX only)

Notes:
- Installing antenna before use.
- Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
- The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.

Package Include:
1x GEPRC MATEN 5.8G 10W VTX PRO
1x Power Cable (PH2.0 2-pin, 150 mm)
1x FC Cable (GH1.25 5-pin, 150 mm)
6x M2x5 mm Screws
6x M3x5 mm Screws
1x User Manual
