TX Module RadioMaster Bandit 868/915MHz Micro

Product detailed description

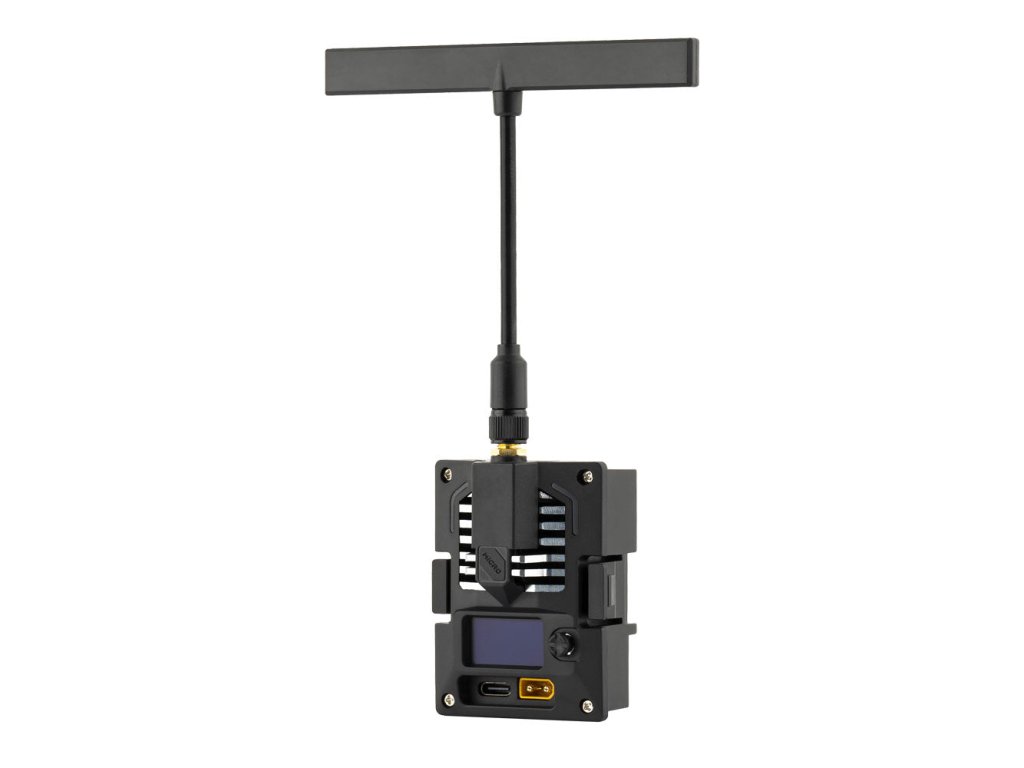

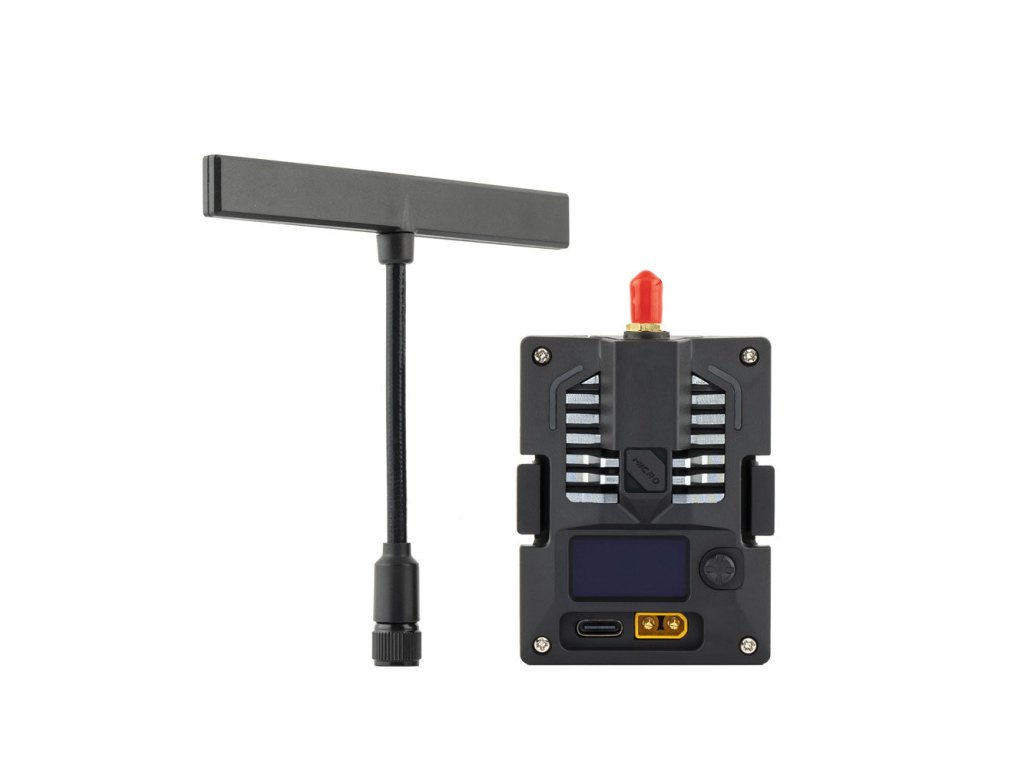

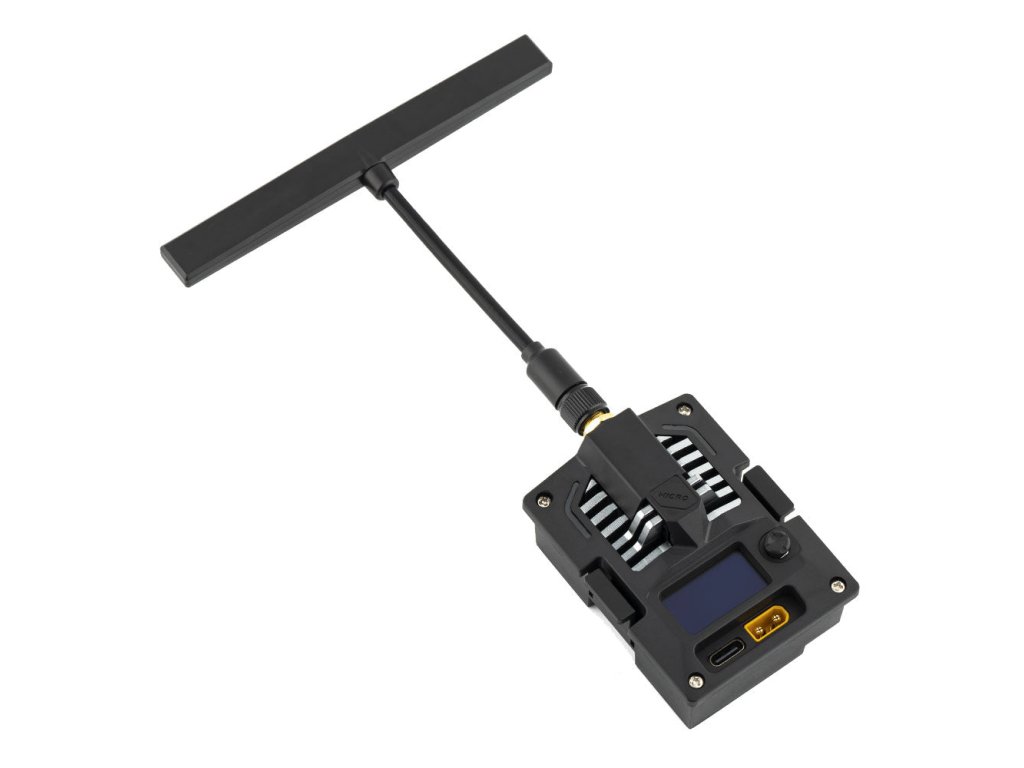

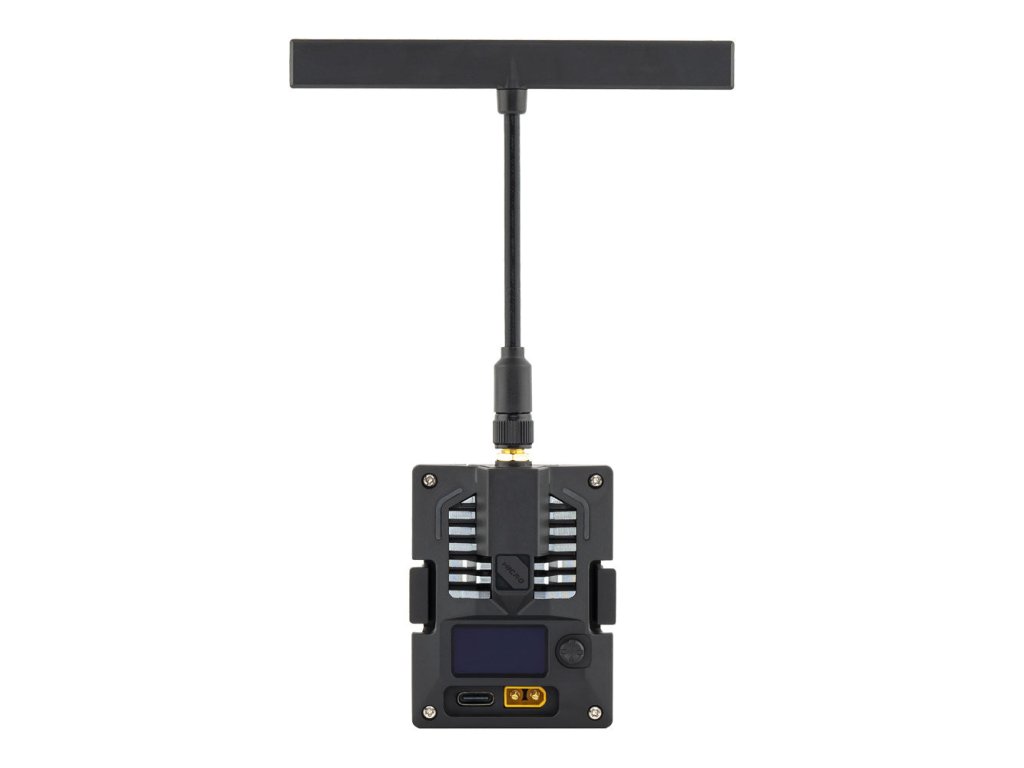

TX Module RadioMaster Bandit 915MHz Micro

The RadioMaster Bandit Micro is a cutting-edge RF module designed for the ExpressLRS protocol, providing high-speed, low-latency performance for FPV drone pilots. Compact and efficient, it offers excellent range and reliability for seamless control. Perfect for serious hobbyists and professional pilots.

Features:

- Up to 1W power output
- Packet rates up to 200Hz
- Optimized circuitry for ultra-low power consumption
- Built-in TCXO oscillator
- Low noise, high comfort
- High contrast OLED display
- Innovative convection cooling design
- Wi-fi and Bluetooth support
- Built-in ExpressLRS backpack
- 5 Directional nav key
- 915/868MHz T Antenna included
- With the Micro connector, support TX16S MKII, Boxer, and TX12 MKII radio

Specifications:

Item: Bandit Micro ExpressLRS RF Module
Regulatory Domain: FCC915
MCU: ESP32(main), ESP8285(aux, as ESP backpack)
RF Chip: SEMTECH SX1276
Refresh Rate Min/Max: 25Hz/200Hz
RF Output Power: 1000mW/30dBm
Micro standard 5pin connector
Built-in OLED screen
XT30 Power Supply Voltage: DC 6V - 16.8V
Weight: 78.0grams (with T antenna)
Dimension: 64.1x49.6x34.1mm

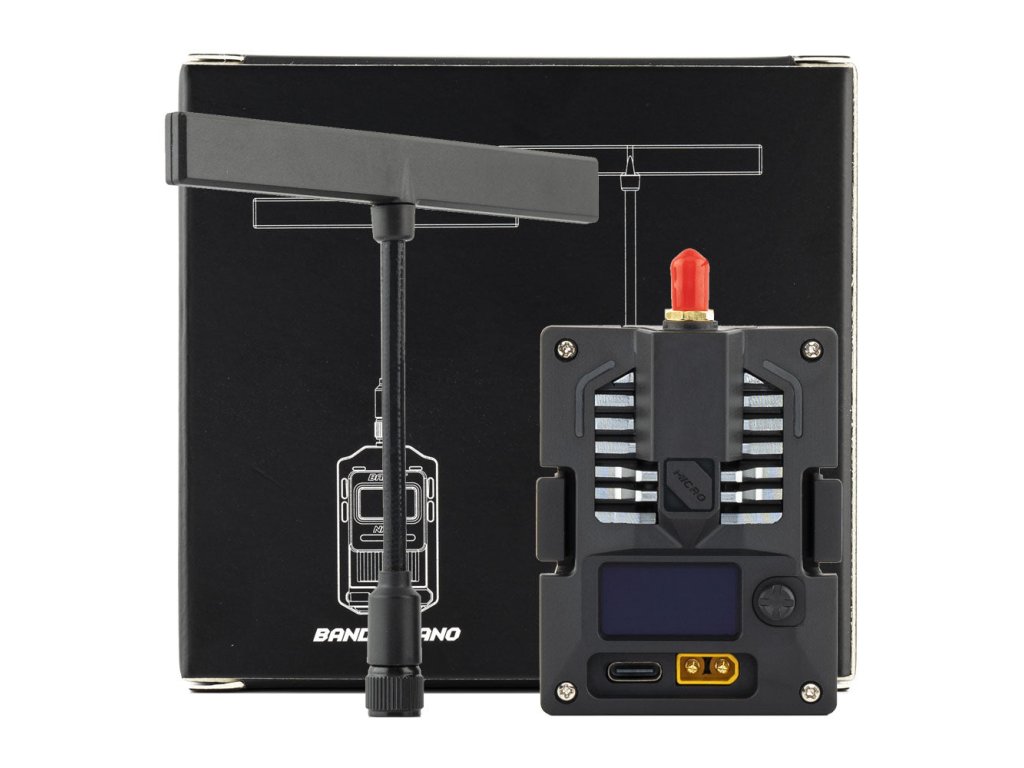

Package Includes:
1x Bandit Micro ExpressLRS RF Module
1x 900Mhz T Antenna
1x Manual
