FPV Drone Emax Tinyhawk III Plus RTF Analog

Product detailed description

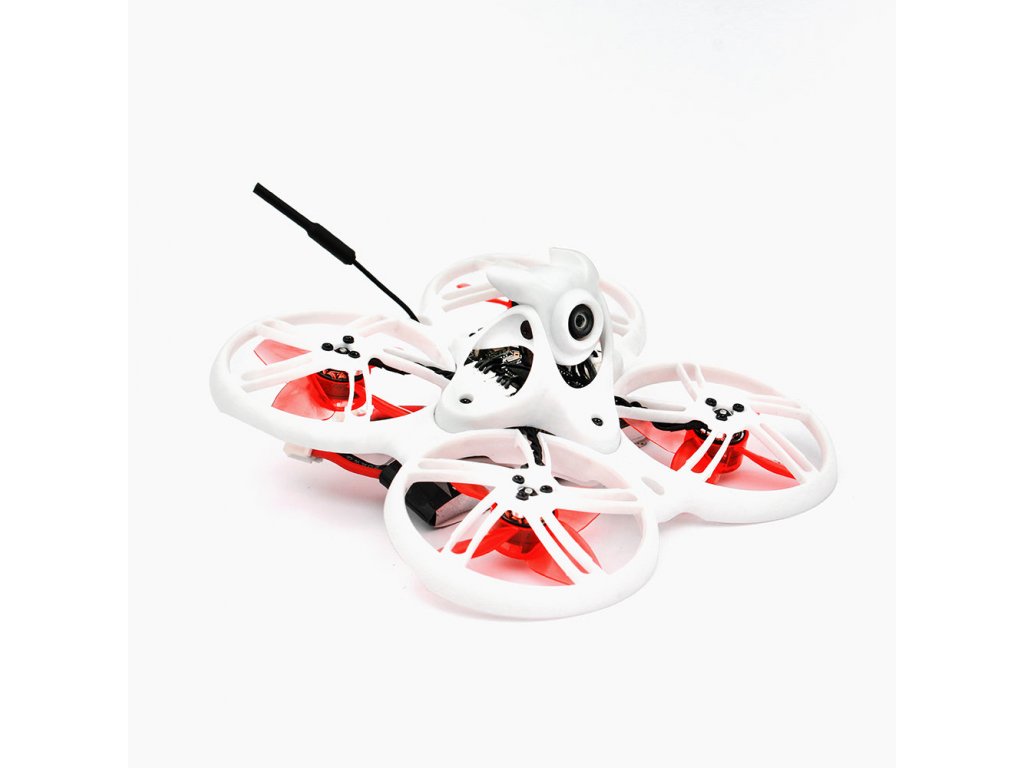

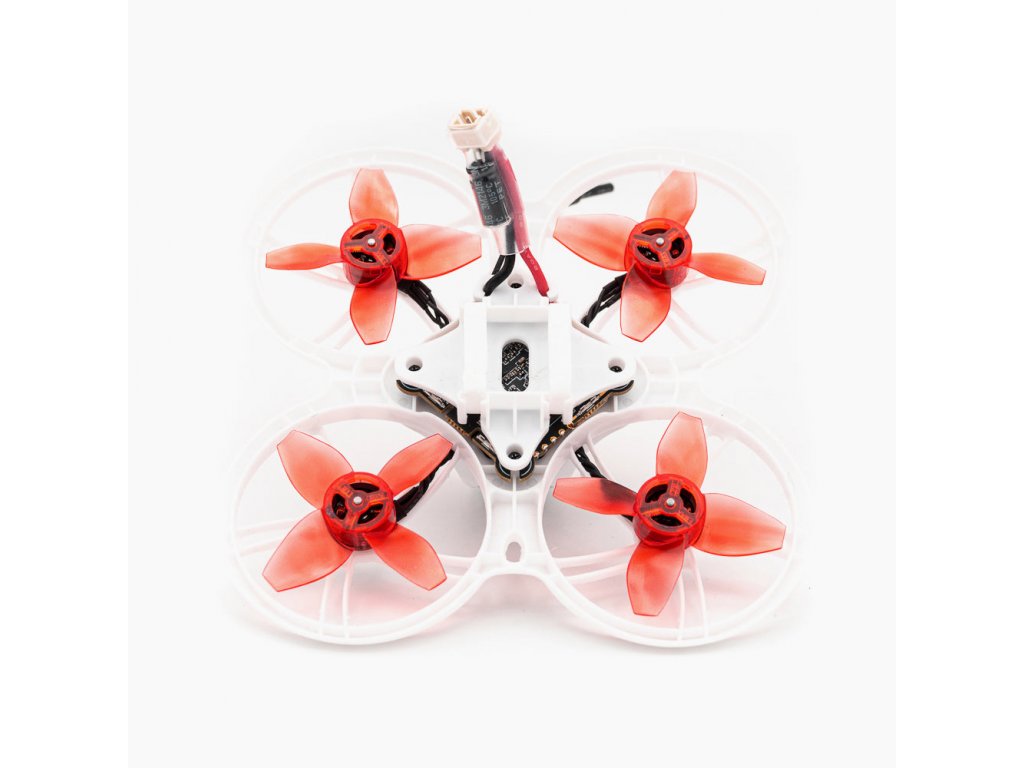

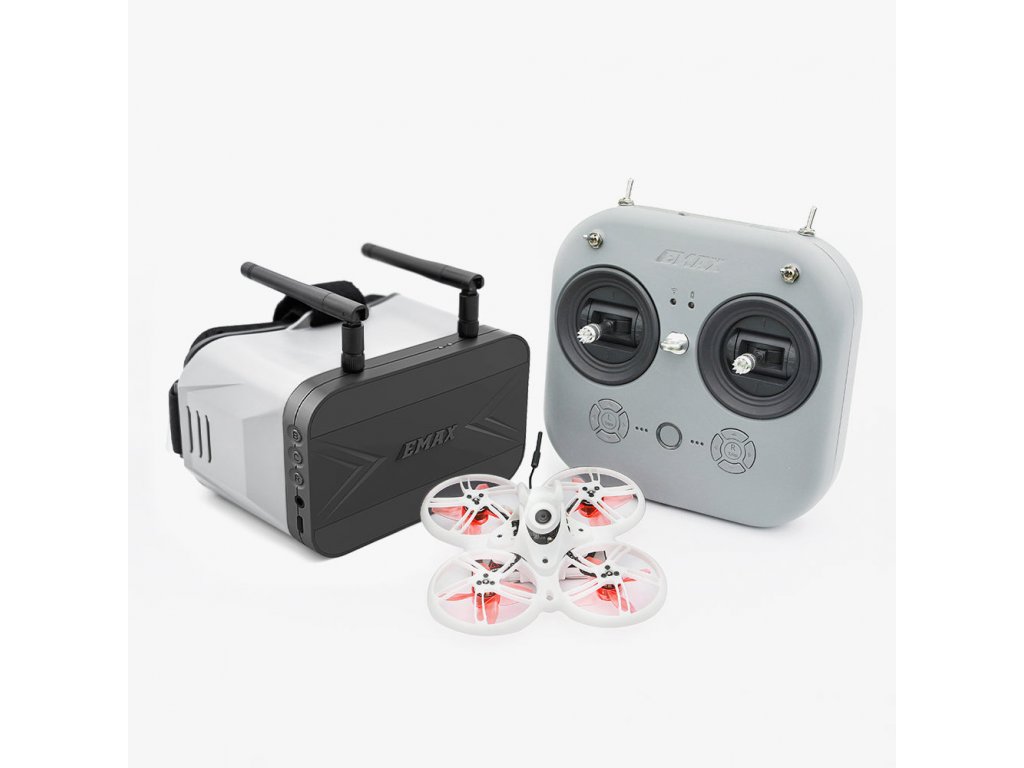

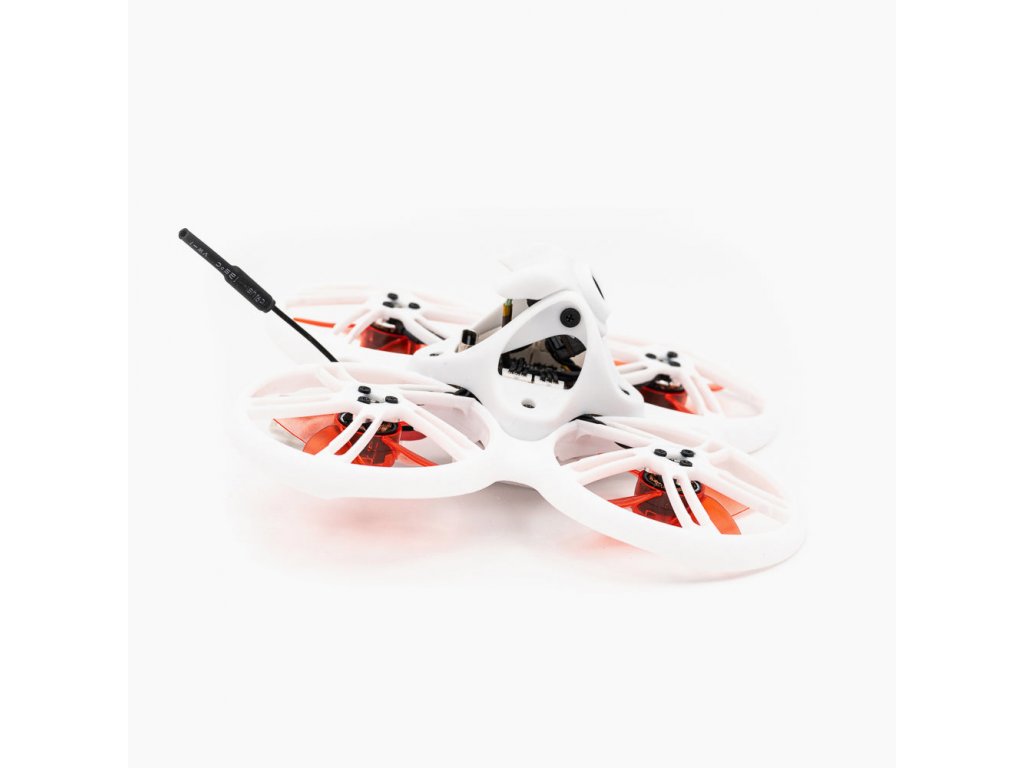

Tinyhawk III Plus RTF Analog

Features:
1. Durable Construction: Built with high-quality materials, ensuring longevity and resistance to crashes.
2. Powerful Motors: Equipped with strong motors for rapid acceleration and impressive flying performance.
3. Advanced Flight Controller: Enjoy stable and precise flight control, perfect for beginners and enthusiasts.
4. Extended Flight Time: With its efficient battery system, have longer flight sessions and more fun.

Specifications:

Model: Tinyhawk III Plus RTF Analog
Wheelbase: 76mm
Maximum Size L.W.H.:105x105x45mm
Weight: about 32.5g (excluding battery)
Motor: TH0802 II 15000KV
Propeller: Avan TH Turtlemode-2
Main control board: F411 (100MHz) main control, integrated 4-in-16A 8-bit ESC, onboard ELRS (2.4G) receiver (SPI communication), input voltage 1-2S
Camera: RunCam Nano 6
Image transmission: 32-bit 40CH open-source image transmission 25mW/100mW/200mW
Battery: 1S HV 650mAh

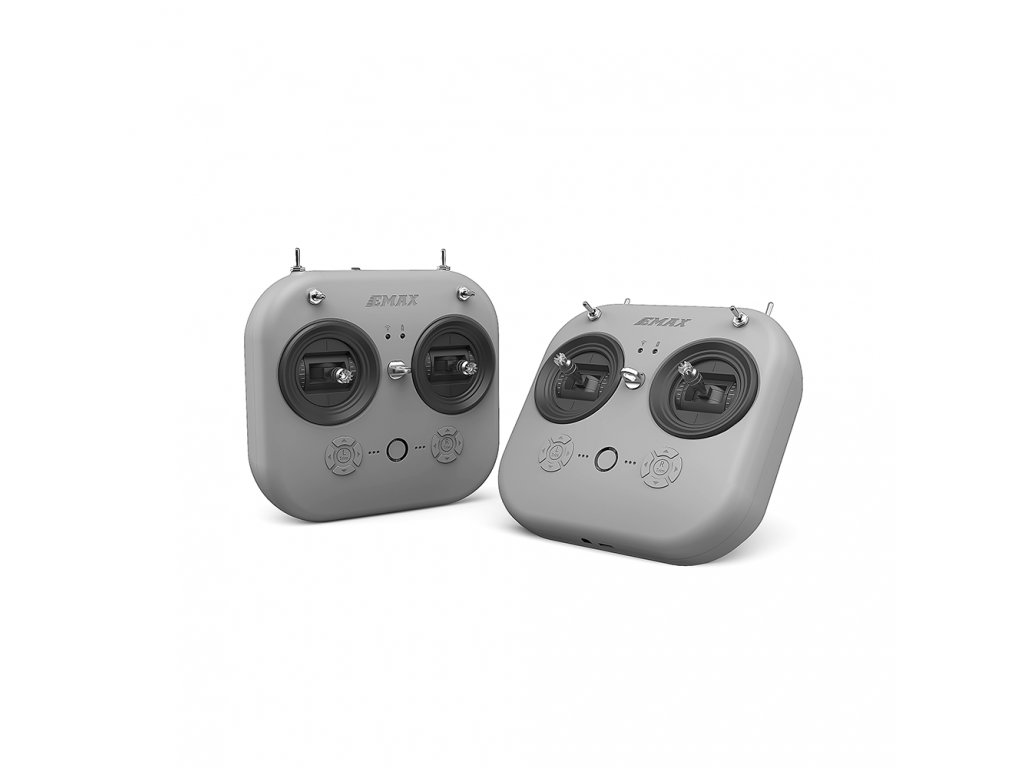

Remote Controller
Model: E8 Transmitter (ELRS-2.4G)
Size: L×W×H=150×140×45mm
Weight: about 260g (excluding battery)
Number of channels: 8 channels
Protocol: ELRS-2.4G
Working frequency: 2.4gHz frequency band (2400-2483.5MHz)
Power: 10mW/25mW/50mW/100mW
Battery: Built-in 1800mAh 18650 lithium-ion battery
Charging system: Built-in USB1A linear lithium-ion battery charging system
Working voltage: 3.7-4.2V
External interface: Type-C interface. 3.5mm audio interface (wired trainer interface)
Others: Support simulator, support joystick calibration, support left and right hand switching, support firmware update (USB method), support adjustable power, support adjustable send/return rate, support changing binding key.

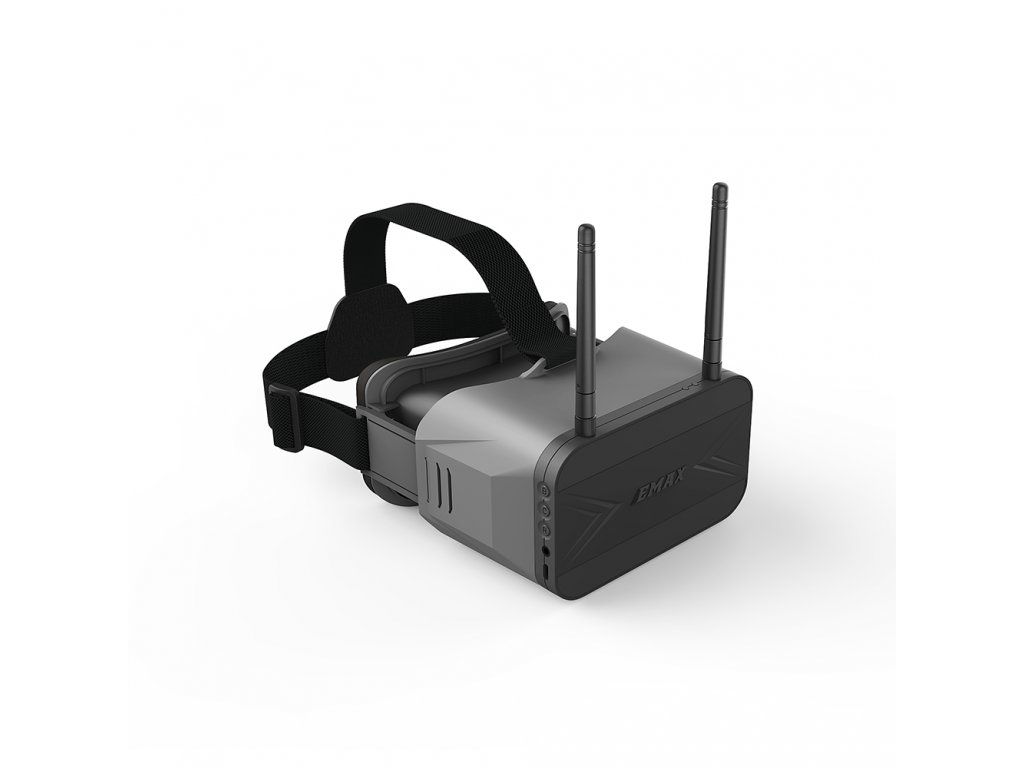

FPV Goggles
Model: Transporter II
Size: L×W×H=150×100×90mm
Weight: about 398g (including headband and antenna)
Screen resolution: 480x800
Display size: 4.3 inches
Battery: Built-in one 1300mAh lithium battery
Voltage: 3.7-4.2V
Working frequency: 5.8GHz frequency band (5658-5945MHz)
Charging system: Built-in USB 1A linear lithium battery charging system
DVR: Maximum supported memory 32G TF card, file format AV size: VGA/D1/HD (three modes optional)

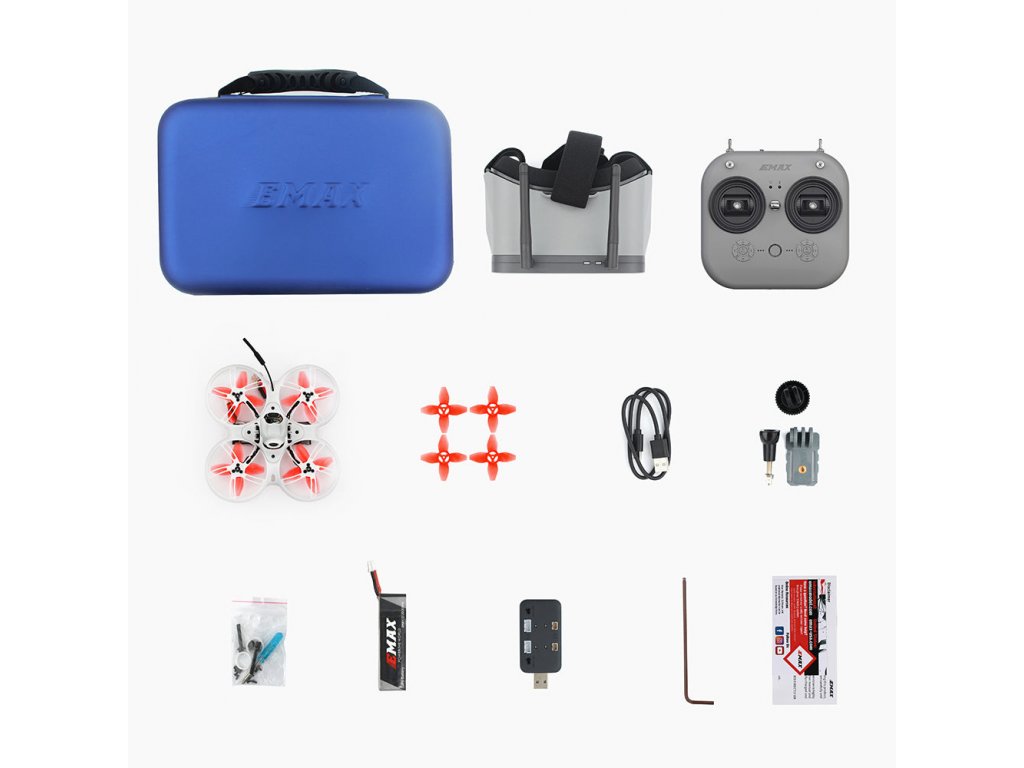

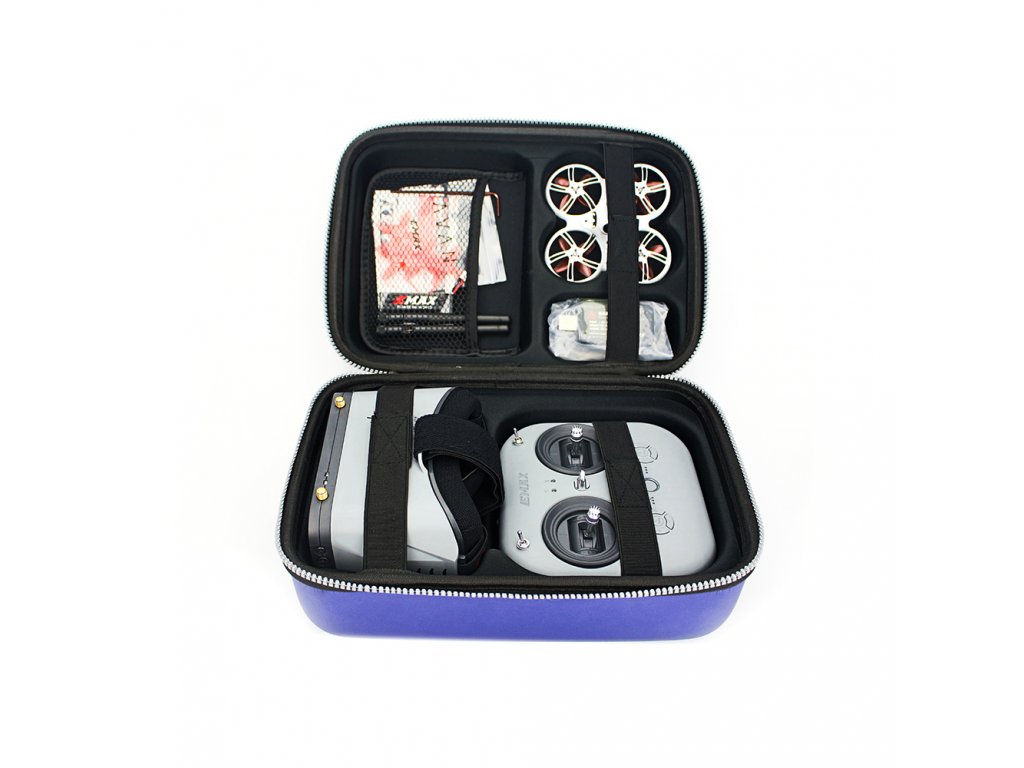

Package Includes:
1x Tinyhawk III PLUS
1x FPV Goggles
1x E8 Remote Controller (ELRS-2.4G)
1x Battery 1S HV 650mAH
1x Charger
4x Blades(2 positive and 2 negative)
1x Accessory package
1x USB data cable
1x Screw
3x Screen adapter (component)
1x Instructions and Disclaimer
