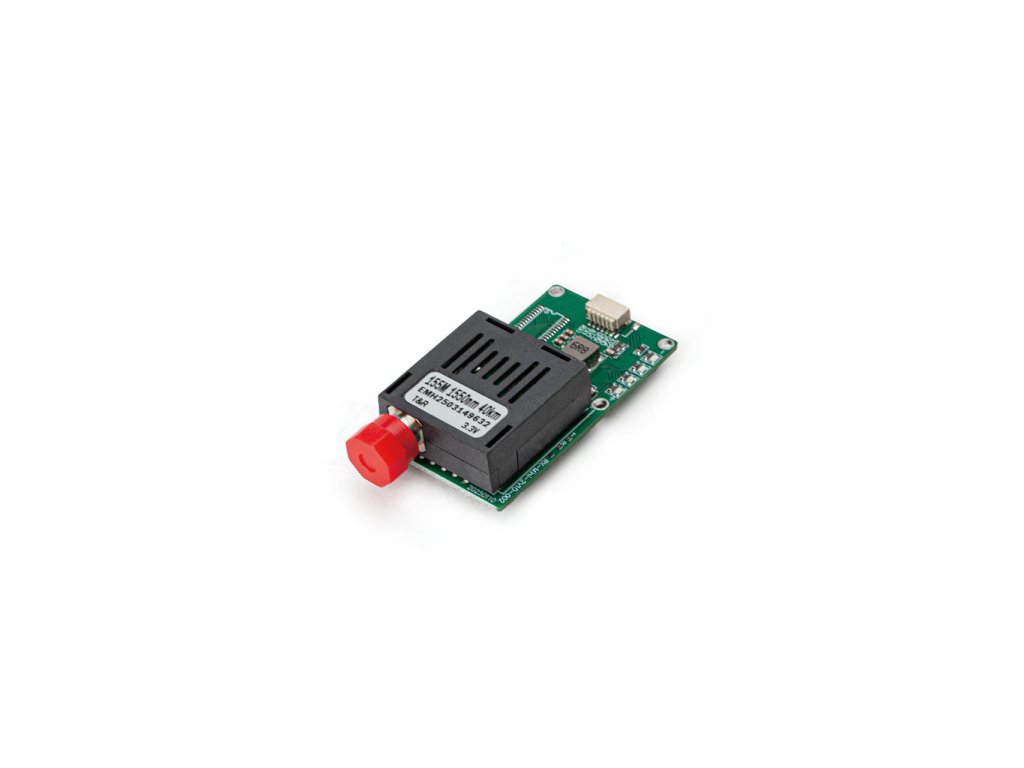

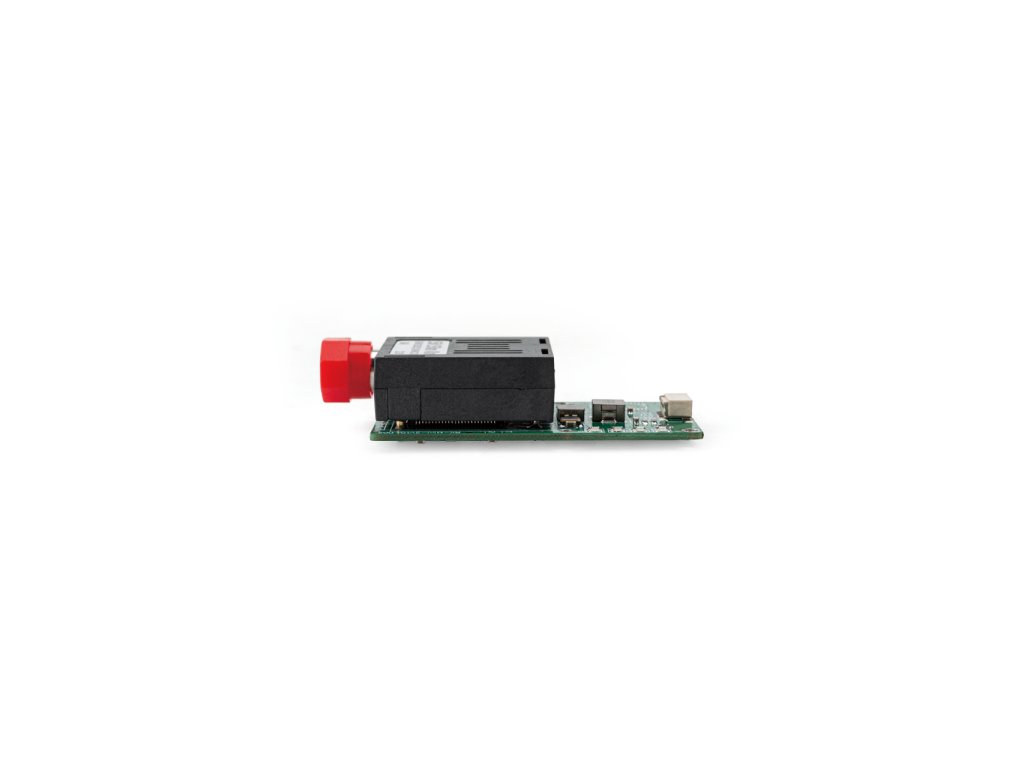

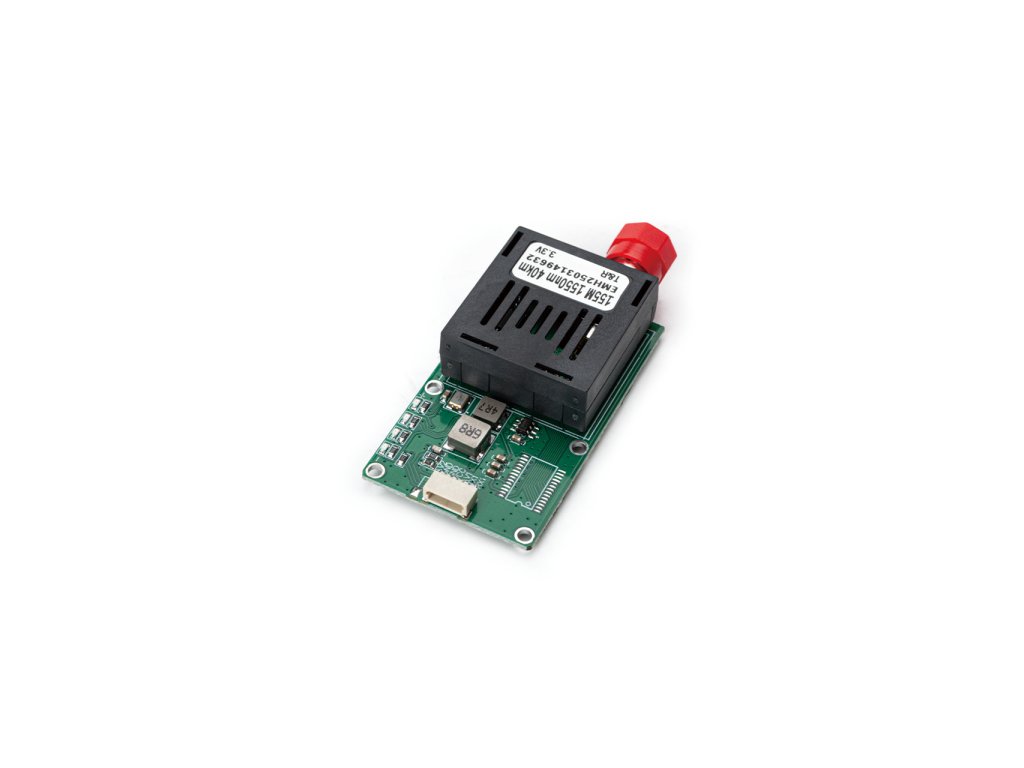

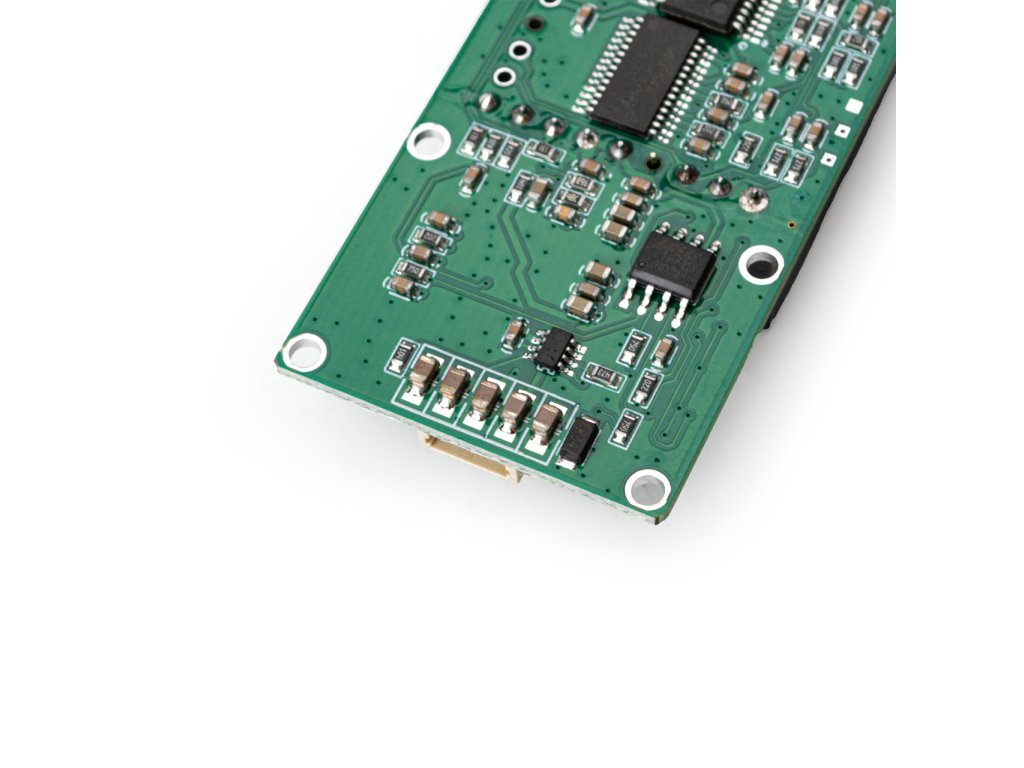

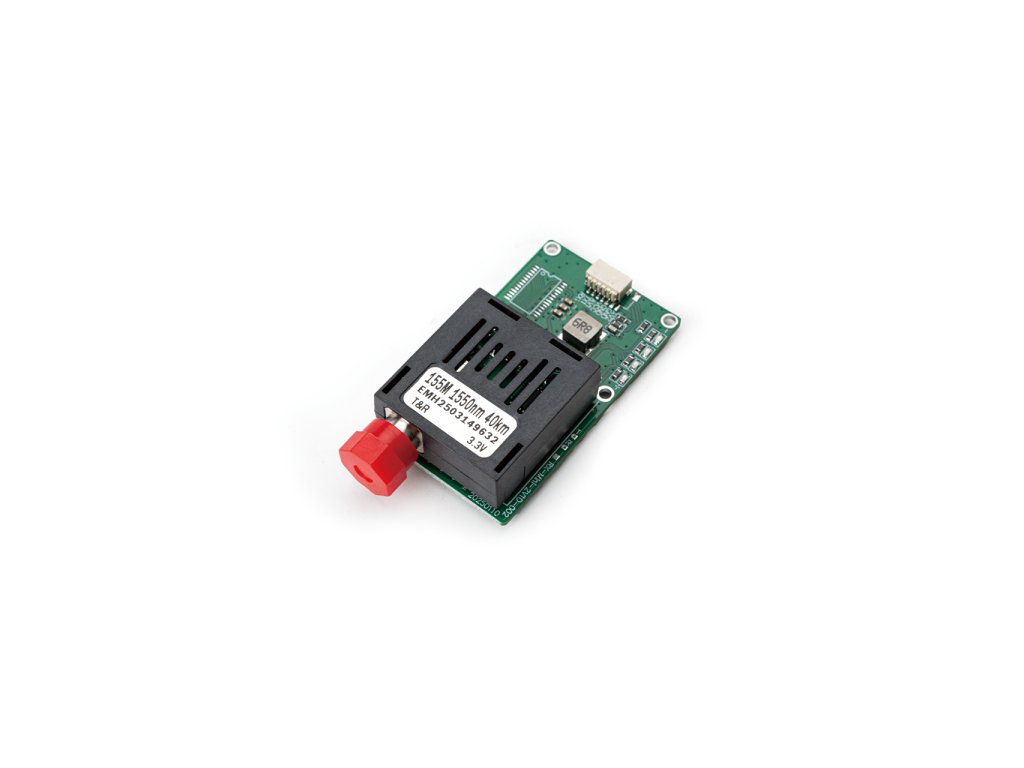

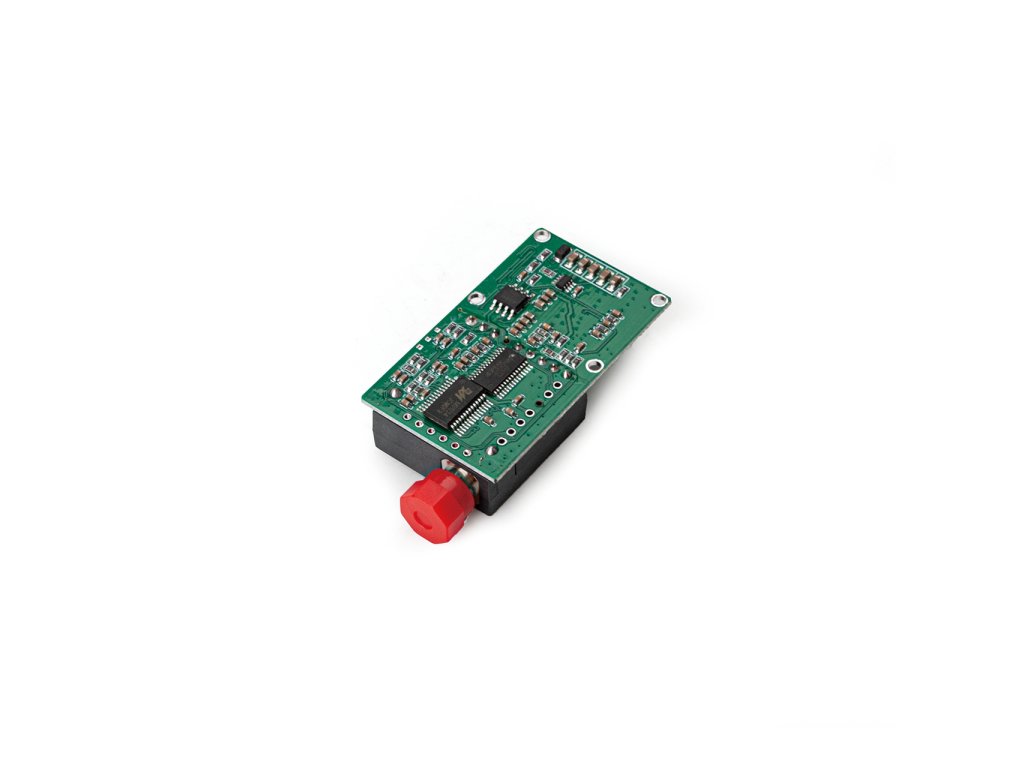

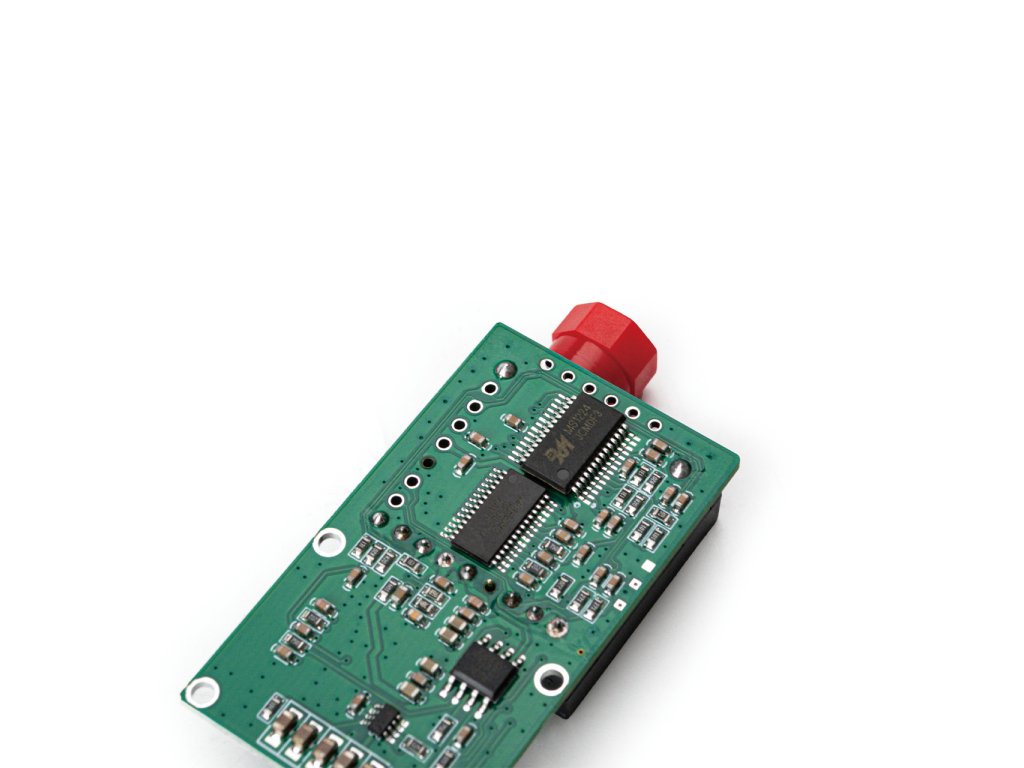

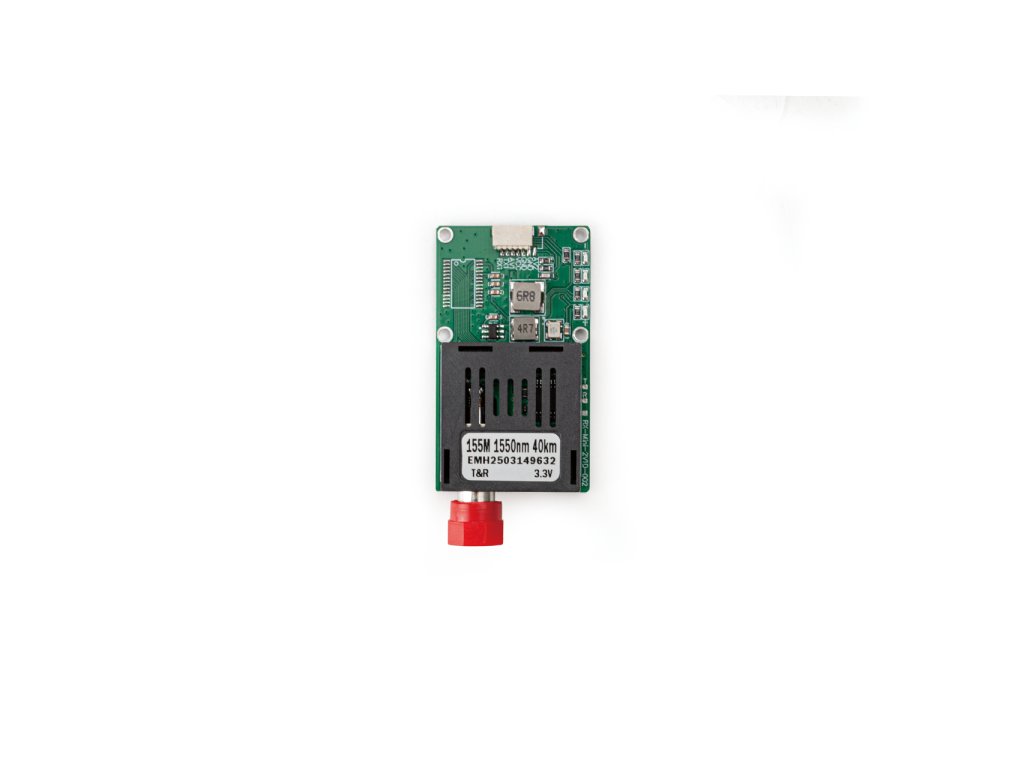

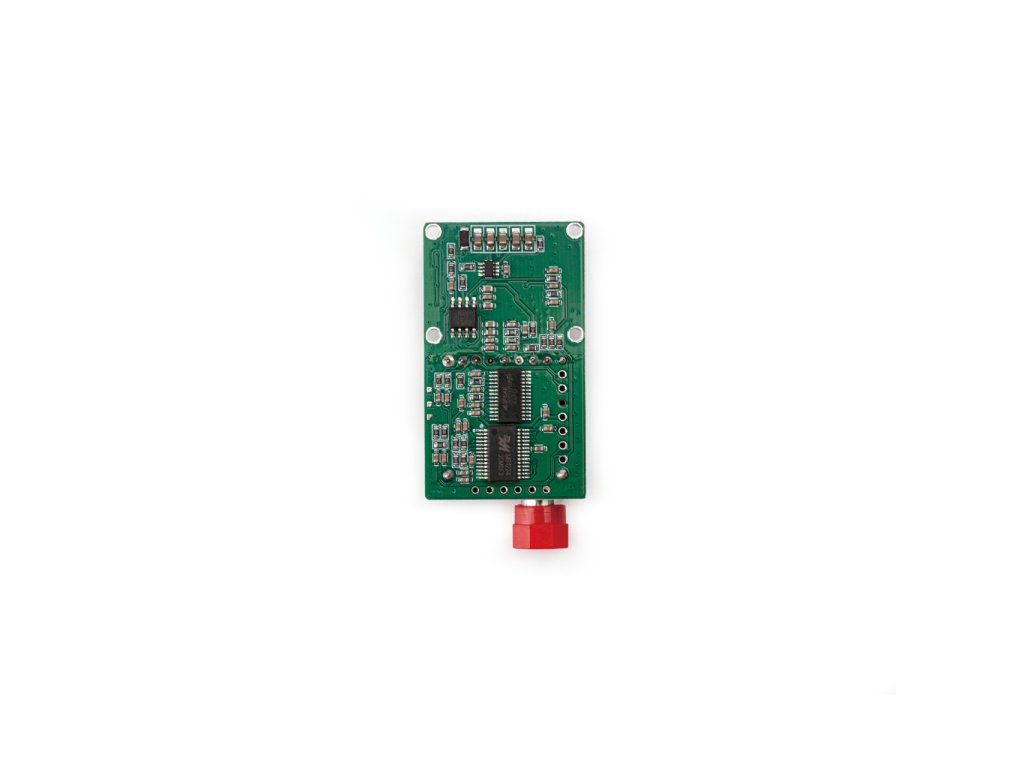

PCB board Pilotix Ground station without shell and wires (40km)

Product detailed description

PCB board Pilotix Ground station without shell and wires (40km)

The PCB board Pilotix Ground station, without shell and wires, is designed to work seamlessly with the Pilotix fiber optic communication system. It ensures stable, high-speed data transmission for drones, underwater ROVs, and ground-based robotic systems, even in the absence of radio communication.

Equipped with a single-mode fiber optic interface, this transceiver supports bidirectional data transmission, making it ideal for applications that demand low latency, high security, and interference-free connectivity.

Supplied without housing, it is perfect for developers and integrators who need maximum flexibility in mounting.

Important notes:

- For reliable communication over distances up to 9 km we recommend selecting a transceiver with a range of up to 20 km.

- For reliable communication over distances from 10 km to 14 km, we recommend selecting a transceiver with a range of up to 40 km.

- For reliable communication over distances from 15 km to 20 km and more, we recommend selecting a transceiver with a range of up to 60 km.

- Pilotix fiber optic communication modules are only compatible with transceivers of the same series. We do not guarantee compatibility or take responsibility for proper operation when using devices from other series.

Specifications:
Fiber Interface: FC Interface
Fiber Type: Singlemode-Single Fiber
Data Interface: SH1.0
Video Format: NTSC/PAL/SECAM
Data Direction: Bidirectional
Data Format: TTL/SBUS
Speed: 0~1Mbps
Wavelength Singlemode: 1550 (9/125μm)
Transmission Distance: Single Mode Fiber up to 40km

Package includes:
1x PCB board Pilotix Ground station without shell and wires (40km)
