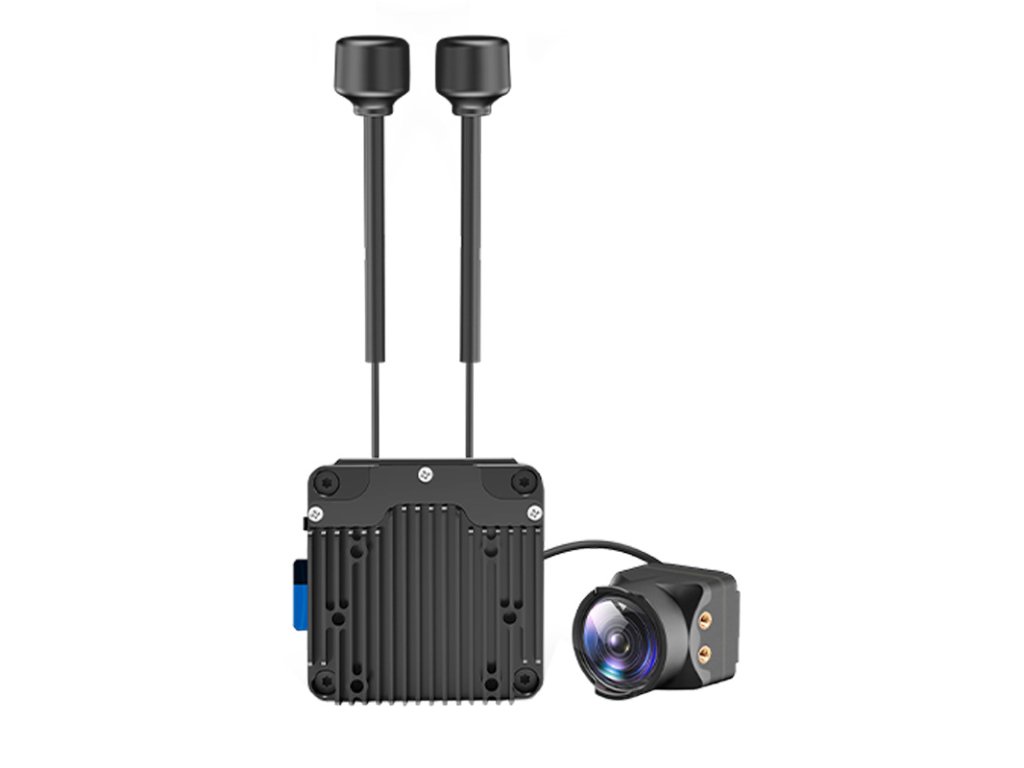

HD system EDGE T3 VTX Air Unit

EDGE T3 video transmission system is widely applicable to drones, unmanned vehicles, and unmanned boats. It's an essential device that enables seamless communication and real - time video transfer in these unmanned systems, facilitating various operations such as aerial photography, surveillance, and remote control tasks.

Features:

- AI Image Processing: Enhances color, dynamic range, and detail
- Transmission Range up to 35 km: Stable operation over long distances
- Transmission Latency: Approximately 60 ms
- Maximum Video Bitrate: 120 Mbps
- Night Vision Support: AI algorithms improve image quality in low-light conditions
- 3-in-1 Data Transmission: Combines video, telemetry, and control into a single channel
- Flexible OSD Settings: Ability to customize on-screen display data
- Mobile Device Compatibility: Built-in Wi-Fi for viewing video on smartphones and laptops without extra cables

Specifications:

Image Transmission Module (VTX)
Model: T3 VTX
Product Name: T3 Digital HD Image Transmission (Air Unit)
Communication Frequency: 5.18-5.24GHz, 5.745-5.825GHz
Transmit Power (EIRP): FCC≤30 dBm, CE<14dBm; SRRC<20dBm
Interface: SH1.0-4P, SH1.0-6P, SH1.0-8P
Mounting Hole Spacing: 2×25.5 / 4×20 mm
Dimensions: 36×36×11.8 mm
External Storage: Support microSD card (16-256GB)
Recording Specifications: 1080p@60fps
Weight: 25g (including heat sink)
Operating Temperature: 0°C to +50°C
Available Frequency Points: 9
Voltage Input Range: 6-28V DC
Supported Flight Control Systems: ArduPilot, Betaflight, iNav

Camera Module
Model: T3 Camera Module
Image Sensor: 1/2.8-inch 2MP 16:9 sensor
Resolution: 1080P/60FPS
Aspect Ratio: 16:9
Lens (Standard): 2.9mm HD120
Aperture: F1.4
FOV: 120°
Lens (Optional): 2.2mm HD155
Aperture: F1.9
FOV: 155°
Shutter Type: Rolling Shutter
Weight: 13g
Dimensions: 20×20×30mm / 20×20×25mm
Coaxial Cable Length: 130mm

Antenna
Name: Omnidirectional Antenna
Polarization Direction: Left-hand Circular Polarization (LHCP)
Working Bandwidth: 5500-6000 MHz
Input Impedance: 50 Ω
VSWR: ≤1.5
Interface Type: IPEX-1
Dimensions: 15×122 mm
Weight: 2.5 g (single)

Package includes:
1x EDGE T3 HD VTX Air Unit
