GPS Module MATEKSYS M10Q-5883 with compass

Product detailed description

GPS Module MATEKSYS M10Q-5883 with compass

The Matek M10Q-5883 GNSS & Compass is a high-performance GPS module designed for drones, RC aircraft, and other UAV applications. It combines advanced positioning capabilities with a reliable compass in a compact form factor.

Features:

- M10Q-5883 uses multi-constellation GNSS module powered by u-blox M10 series
- The GNSS module features the u-blox M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition time for all L1 GNSS signals. It supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. u-blox Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy in non-line-of-sight scenarios.

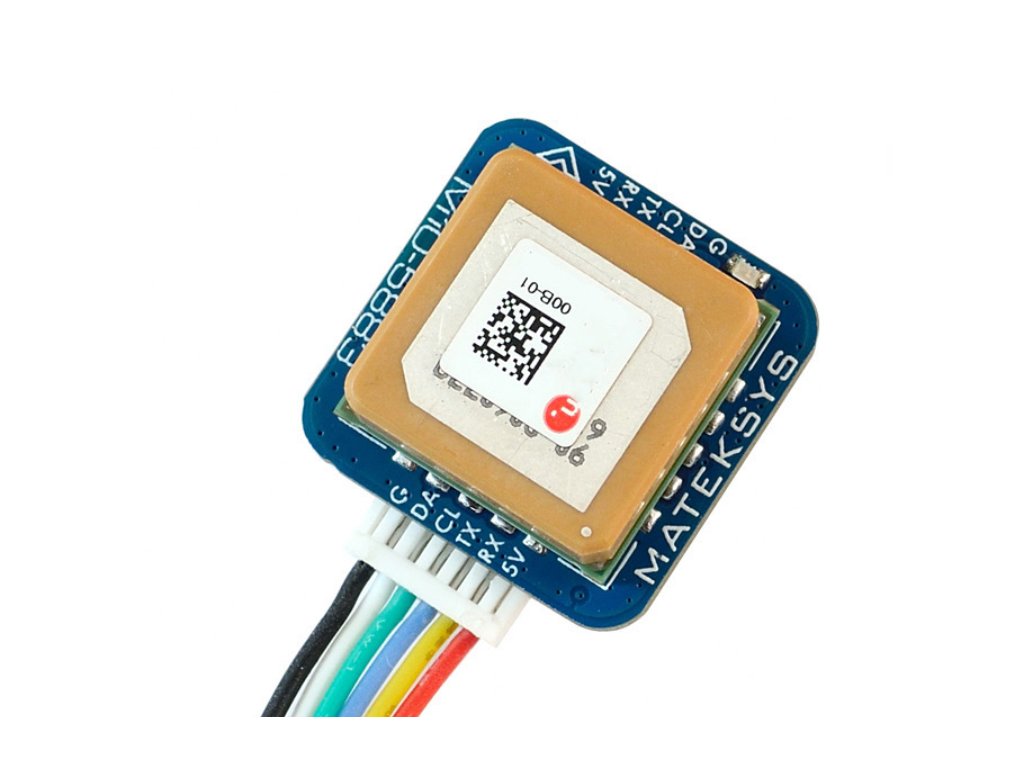

- The high-gain 15 x 15 mm2 patch antenna provides the best balance between performance and small size. The omnidirectional antenna radiation pattern increases flexibility for device installation.

Specifications:

GNSS Module: u-blox SAM-M10Q-00B
Supported GNSS: GPS, GLONASS, Galileo, BeiDou
Compass: QMC5883L
Antenna: 15x15x4mm patch antenna
Input Voltage: 4V to 9V
Power Consumption: Approximately 13mA

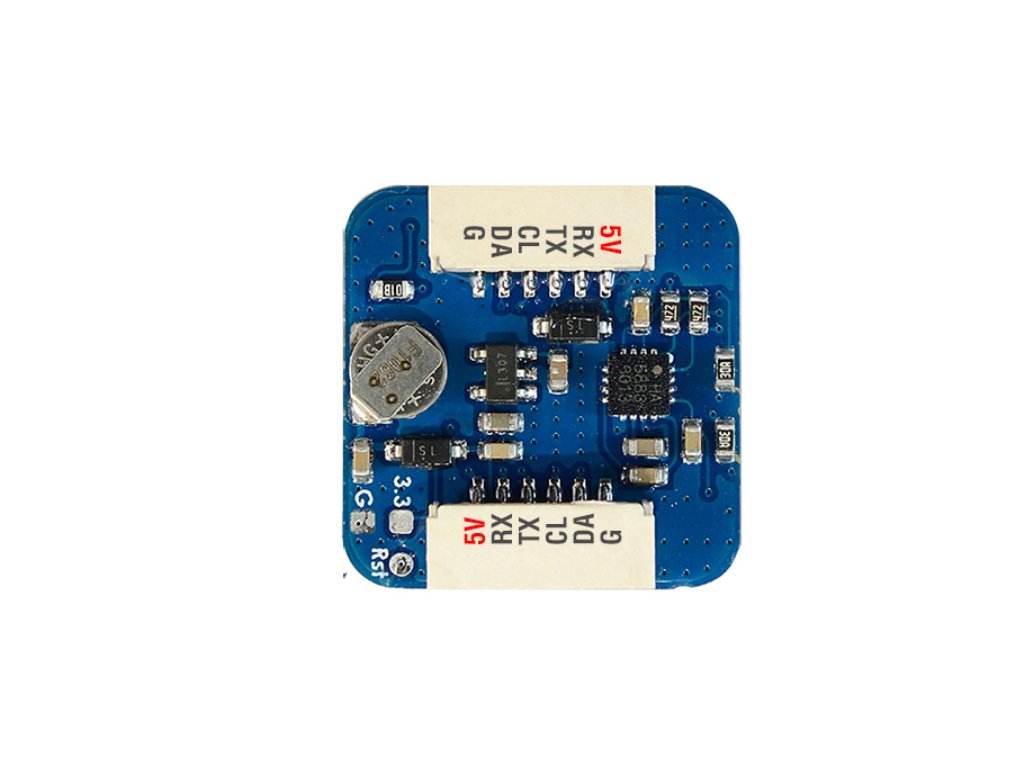

Interfaces:
-GNSS: UART (TX, RX)
-Compass: I2C (DA, CL)
Connector: JST-GH-6P (1.27mm pitch)
Protocol: UBX (u-blox) at 5Hz or NMEA at 1Hz
Operating Temperature: -20°C to +80°C

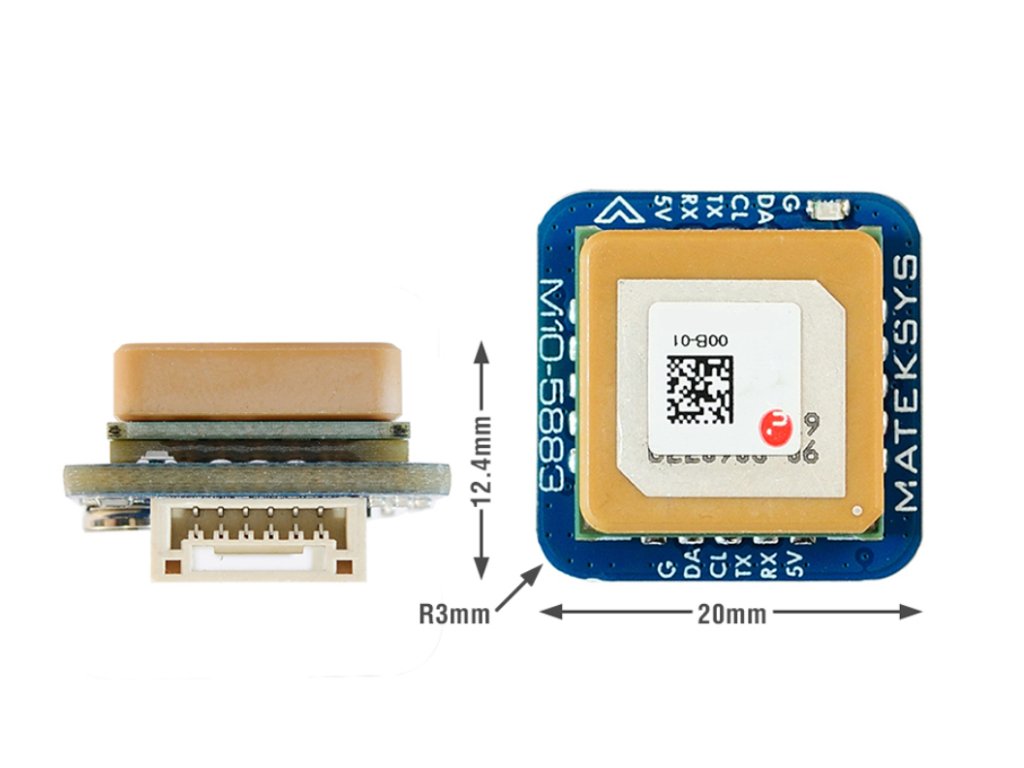

Dimensions: 20mm x 20mm x 12.4mm
Weight: Approximately 8g

Package Includes:

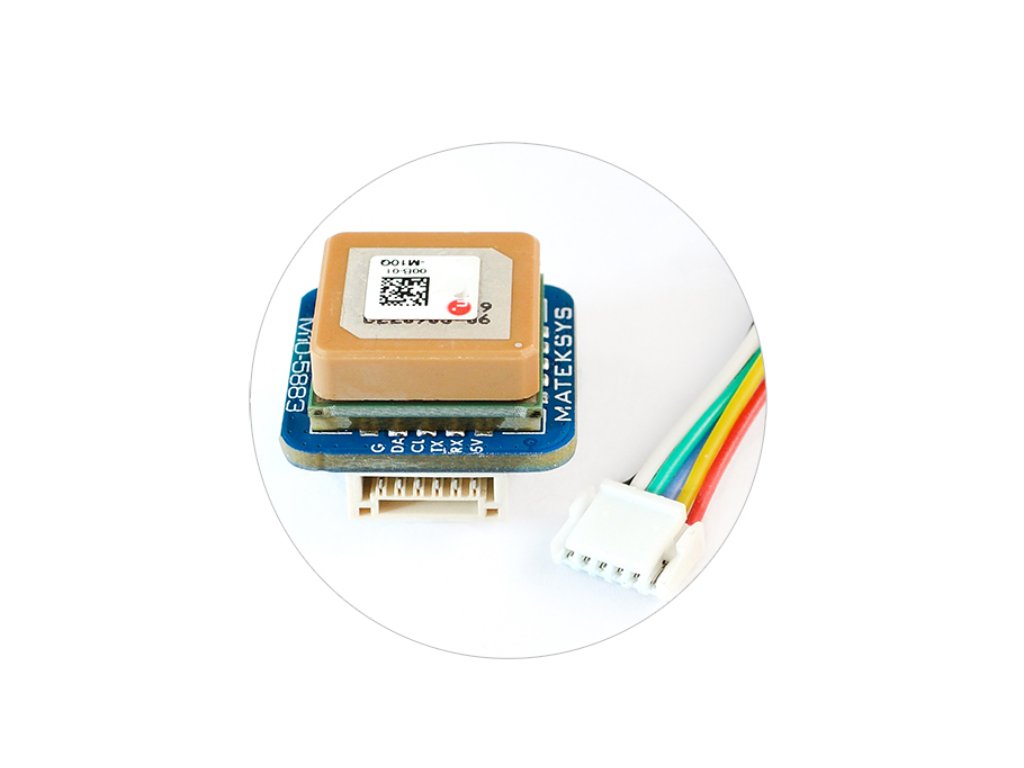

1x M10Q-5883 GNSS & Compass Module
1x Cable
