Frame GEPRC GEP-CB5 for Crocodile Baby 5 Drone
Code: GP104616Related products
Product detailed description

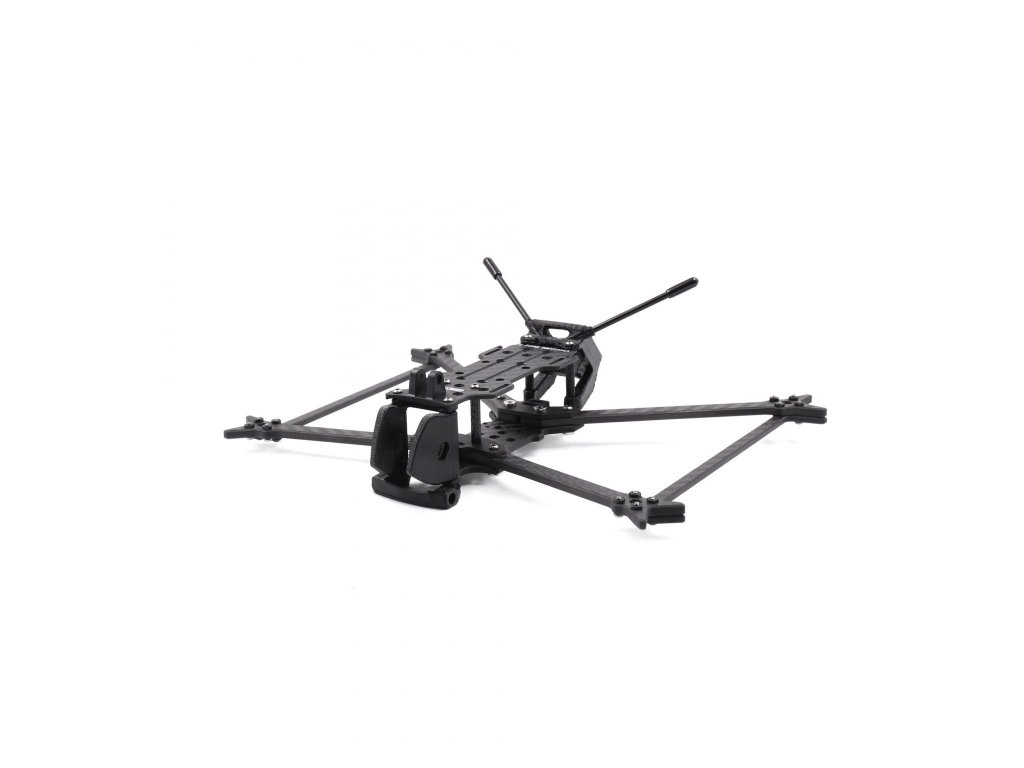

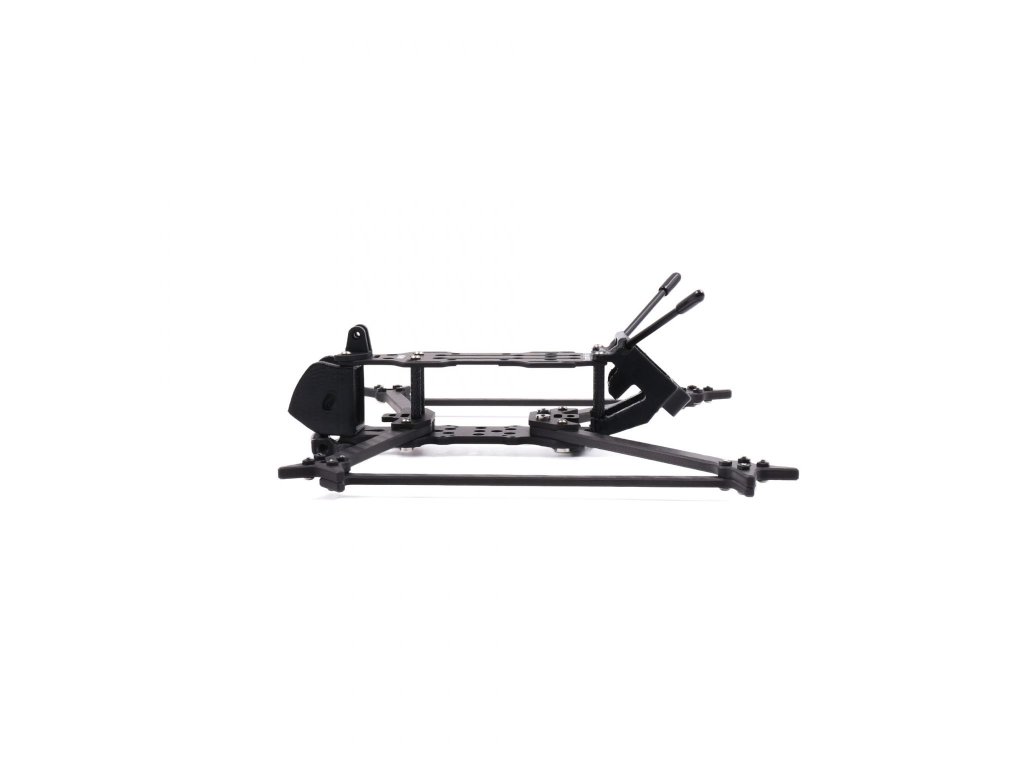

GEP-CB5 The Crocodile5 Baby frame is an improved model based on the Crocodile4 Baby and Crocodile7 frames. It continues the consistent design of a carbon plate + 3D print + aluminum column, resulting in an ultra-lightweight frame that offers a better operational feel, reduced flight resistance, and significantly minimized frame vibrations, ultimately leading to improved shooting results. It has multiple mounting hole options, including 26.5mm x 26.5mm and 20.5mm x 20.5mm FC mounting holes on the bottom plate, and 20mm x 20mm Vista mounting holes on the top plate with fixing grooves. The motor mounting holes can accommodate motors like the 1507, 1805, and 2004. Specifications: Model: GEP-CB5 Brand name: GEPRC Wheelbase: 227mm Top Plate: 2.0mm Bottom Plate: 3.0mm Arm Plate: 4.0mm Reinforced Arm: 3.0mm FC Mounting Holes: 26.5x26.5mm, 20.5x20.5mm VTX Mounting Holes: 20x20mm (with fixing grooves) Camera Spacing: 20x20mm Motor Mounting Holes: 12x12mm Size: 210x160x32mm Weight: 84.8g (with 3D prints)
Additional parameters
| Category: | FPV Frames |
|---|---|
| Material: | Carbon fiber |
| Camera Mounting: | Mini (20mm) |
| Size: | 5 inch |
| Wheelbase: | 227mm |
| Drone Type: | Freestyle |
| The item has been sold out… | |
Be the first who will post an article to this item!
Only registered users may submit ratings. Please log in or sign up.
Be the first who will post an article to this item!
Add a comment
GEPRC is a team of over 100 specialists who are committed to providing users with high-quality FPV drones. There are drones for fun, freestyle, racing, and commercial purposes. Through years of experience accumulation, GEPRC has developed a variety of products, and the company is committed to creating high-quality FPV drones and parts (electronics, motors, frames, etc.) to help more people get into the FPV hobby.
